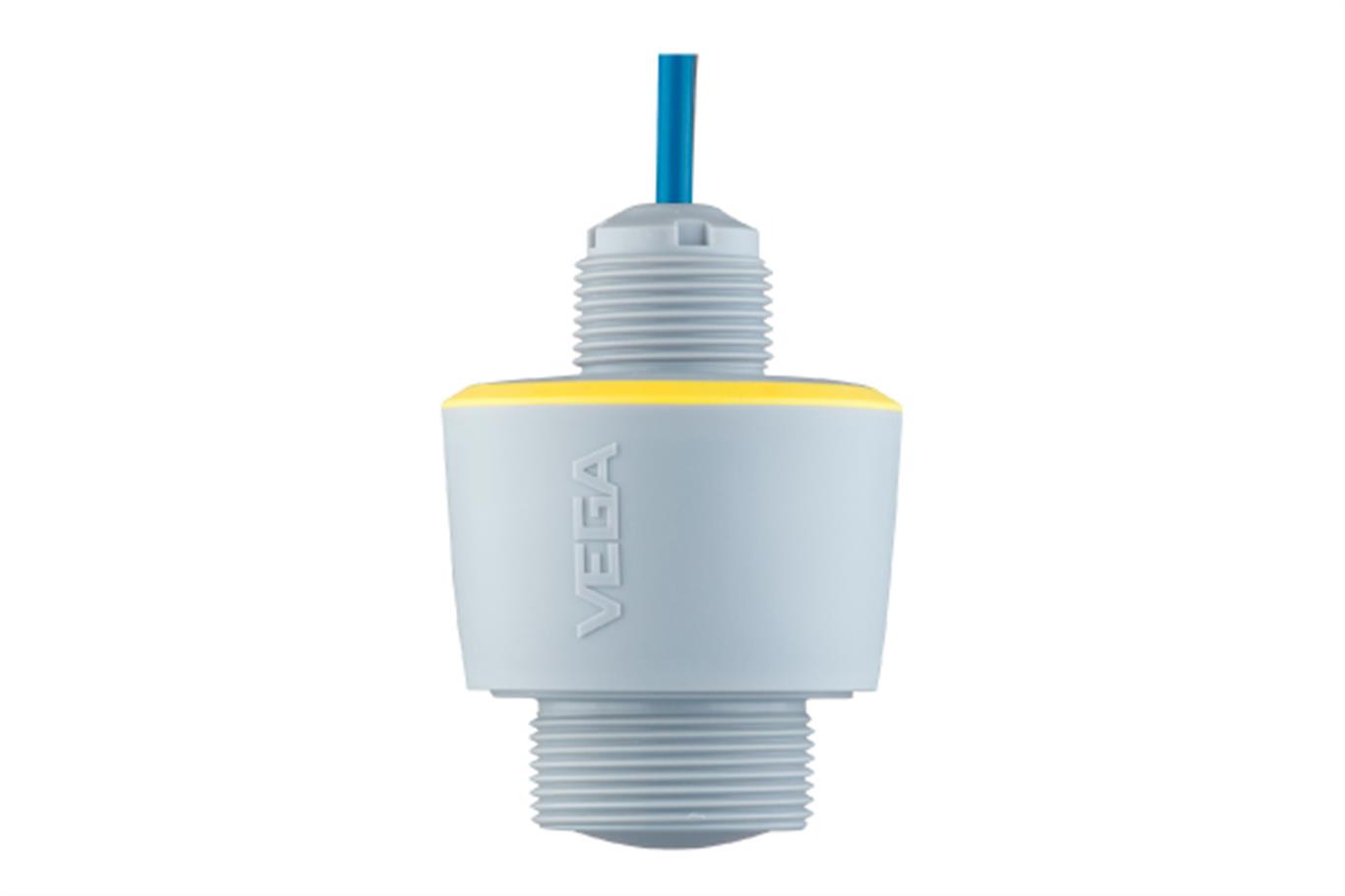

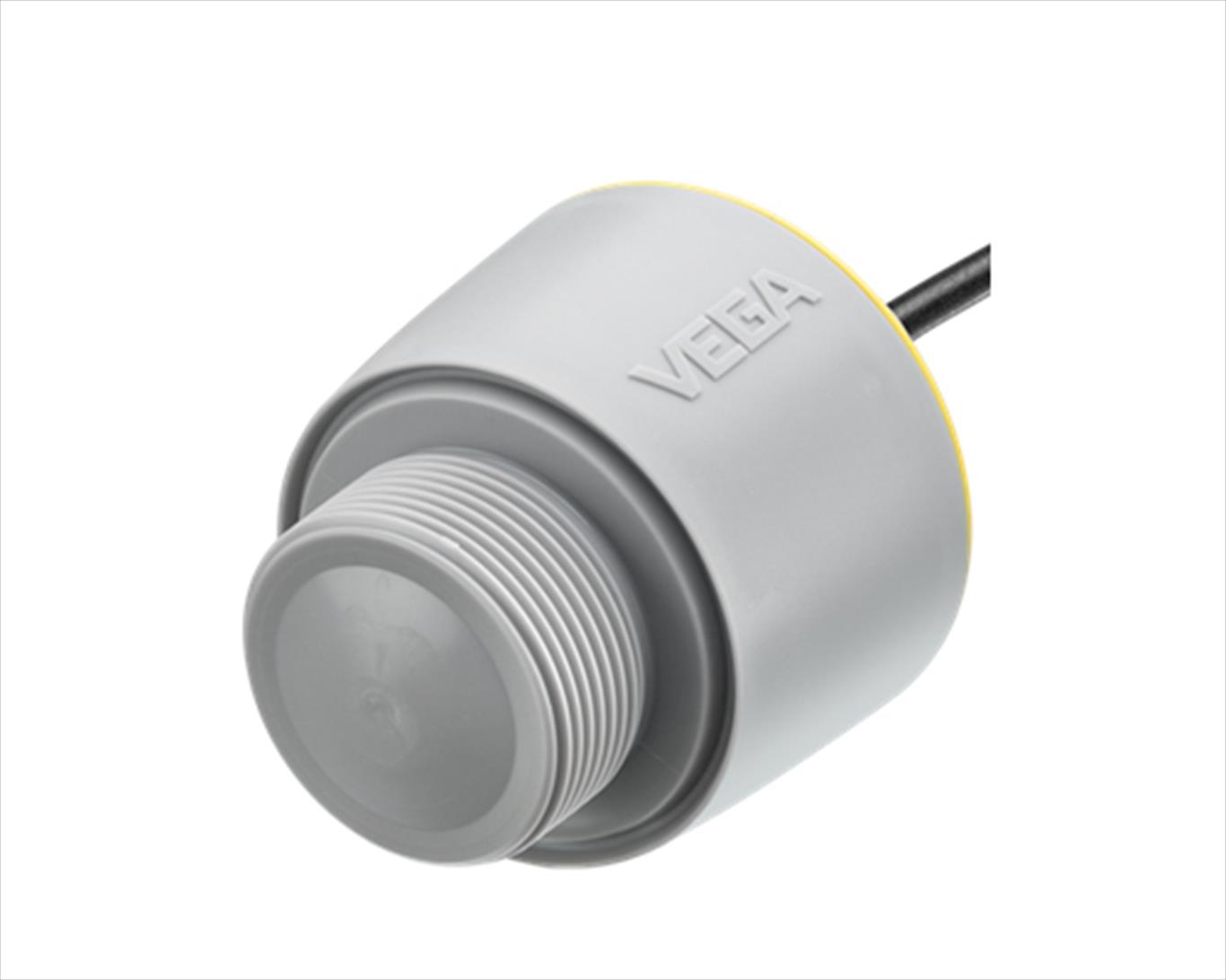

VEGAPULS C 21

Wired radar sensor for continuous level measurement

For standard measuring tasks, IP66/IP68, Type 6P

Request a quote

Introduction Application Technical specifications Documentation

Application area

Axial cable outlet, measuring range up to 20 m, accuracy ±2 mm, 4 ... 20 mA, HART, SDI-12 or Modbus output, Ex-approval optional

VEGAPULS C 21 is the ideal sensor for non-contact level measurement in simple applications where a high degree of protection is required. It is particularly suitable for use in water treatment, pumping stations and rain overflow basins, for flow measurement in open channels and level monitoring. In bulk solids the sensors are used in small bulk solids silos or open containers.

Your benefit

Exact measurement results independent of medium, process and environmental conditions
Maintenance-free operation due to non-contact 80 GHz radar technology
High accuracy and reliability

Other applications

Measuring range - Distance	20 m [Meter - Foot]
Process temperature	-40 ... 80 °C [°C - °F]
Process pressure	-1 ... 3 bar [Bar - kPa - psi]
Accuracy	± 2 mm
Frequency	80 GHz
Beam angle	8°
Materials, wetted parts	PVDF
Threaded connection	≥ G¾, ≥ ¾ NPT
Flange connection	G1½ / G1, 1½ NPT / 1 NPT, R1½ / R1
Seal material	FKM
Protection rating	IP66/IP68 (3 bar), Type 6P
Output	4 … 20 mA/HART Modbus SDI-12
Ambient temperature	-40 ... 80 °C

Scope	ATEX / Europe IEC / worldwide NEPSI / China INMETRO / Brazil CCOE / India KTL Korea CSA / USA and Canada FM / USA and Candada TIIS / Japan IA UKEX
Explosion protection	Intrinsic safety "i" Dust ignition protection "t" Encapsulation "m"
Foodstuffs/Pharma	FDA Drinking water EG1935/2004
Ship approval	ABS BV CCS DNV LR NK RINA
Overfill protection	WHG VLAREM II
