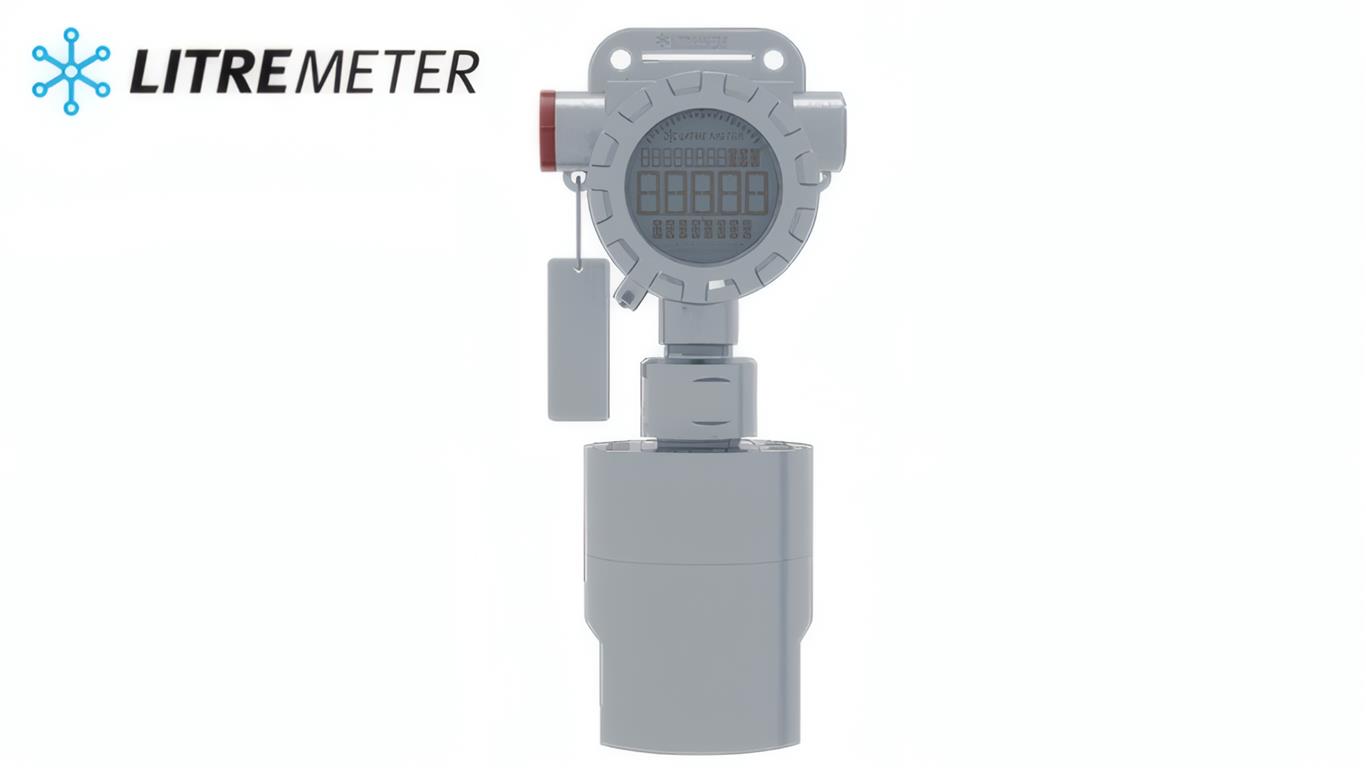

VFF Flow Meter and FlowPod

VFF Flow Meter and FlowPod

Helical Flow Meters
Mechanical

The VFF range is ideally suited to low flow/high pressure services such as those found in chemical injection, hydraulics and subsea.

Request a quote
Introduction Functions & Specifications Documents, Manuals & Software

The VFF Flow Meter was designed for use in Chemical Injection applications or those that require high pressure tolerance, low flow capabilities, and corrosion resistance. VFF meters are available in a wide range of flow rates; as low as 0.008 l/hr up to 2400 l/hr.

Measuring Ranges 0.3 up to 40 l/min
Measuring Accuracy up to±1 %
Repeatability ±0.1 %
Linearity ±0.5 % of actual flow (viscosity ≥ 30 mm²/s)
Materials
  • Housing: 316L Stainless Steel (other materials on request)
  • Rotor: Ultra low friction PVD coated Titanium (Nitronic-60 for MF/VFF/HF range)
  • Pressure Balance Chamber: Ultra low friction PVD coated Nitronic-60
  • Seals:  FEP Encapsulated FKM–Inconel for pressure above 690 bar (others on request)
Pressure up to1,035 bar as standard [15,000 psi]
(higher on request)
Medium Temperature -40 °C up to 75 °C [-40 °F up to 167 °F]
(up to 100°C with remote mount display)
VFF - Datasheet Flow Meter and FlowPod Dowload PDF
VFF – Manual VFF Dowload PDF
VFF – Installation and Operating Instructions FlowPod Dowload PDF
