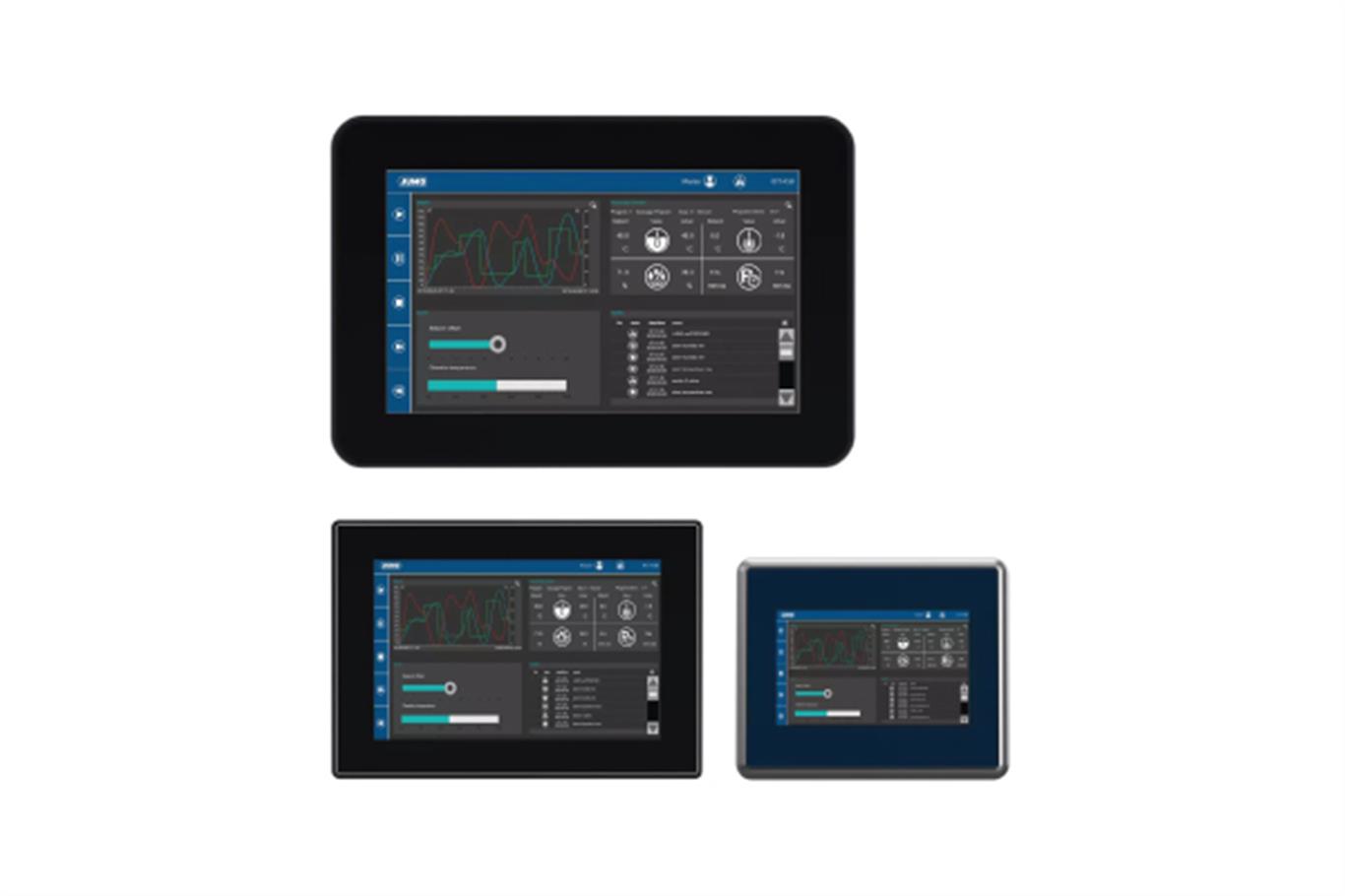

Web panels
For automation system JUMO vari TRON
The web panels are easily connected to the JUMO variTRON automation system via Ethernet. They support CODESYS Remote TargetVisu or WebVisu. In this way, visualizations created with CODESYS can be displayed on the web panels and used to operate the system. The resitive or capacitive TFT-touchscreens are available in various sizes and resolutions.
 |
 |
 |
|
Multi-touch
operation |
CODESYS Remote
TargetVisu or WebVisu |
Customer-specific
process screens |
GENERAL TECHNICAL DATA |
| Display | TFT color screen |
| Touch technology | resistive or capacitive with multi-touch operation (some are operable with gloves) |
| Diagonal screen sizes | from 4.3'' (10.9 cm) to 21.5'' (54.6 cm) |
| Screen resolutions | from 480 x 272 to 1920 x 1080 |
| Special features | Support of CODESYS Remote TargetVisu or WebVisu, models for the food industry, operable with gloves |
| Installation | Panel mounting or variable mounting |
| Interfaces | up to 3x Ethernet, USB (Host), USB (Device), serial interface |
| Connection | Connection to the central unit via Ethernet interface |
| Voltage supply | DC 24 V or Power over Ethernet (PoE) |
| Protection type | Front: IP54, IP66, IP67, IP69; rear: IP20 or IP67 |
| Approvals | UL and DNV GL |
Related products
JUMO mTRON T 705060

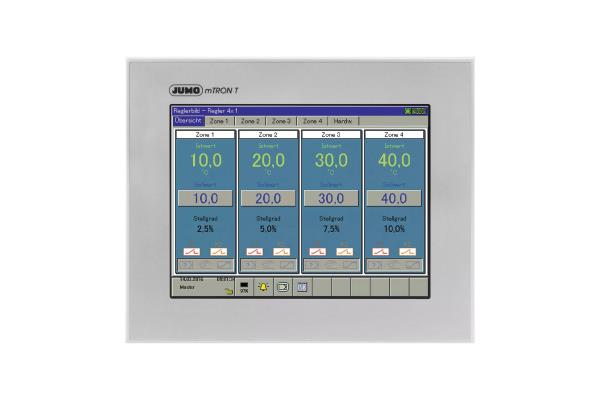

Multifunction panel 840
