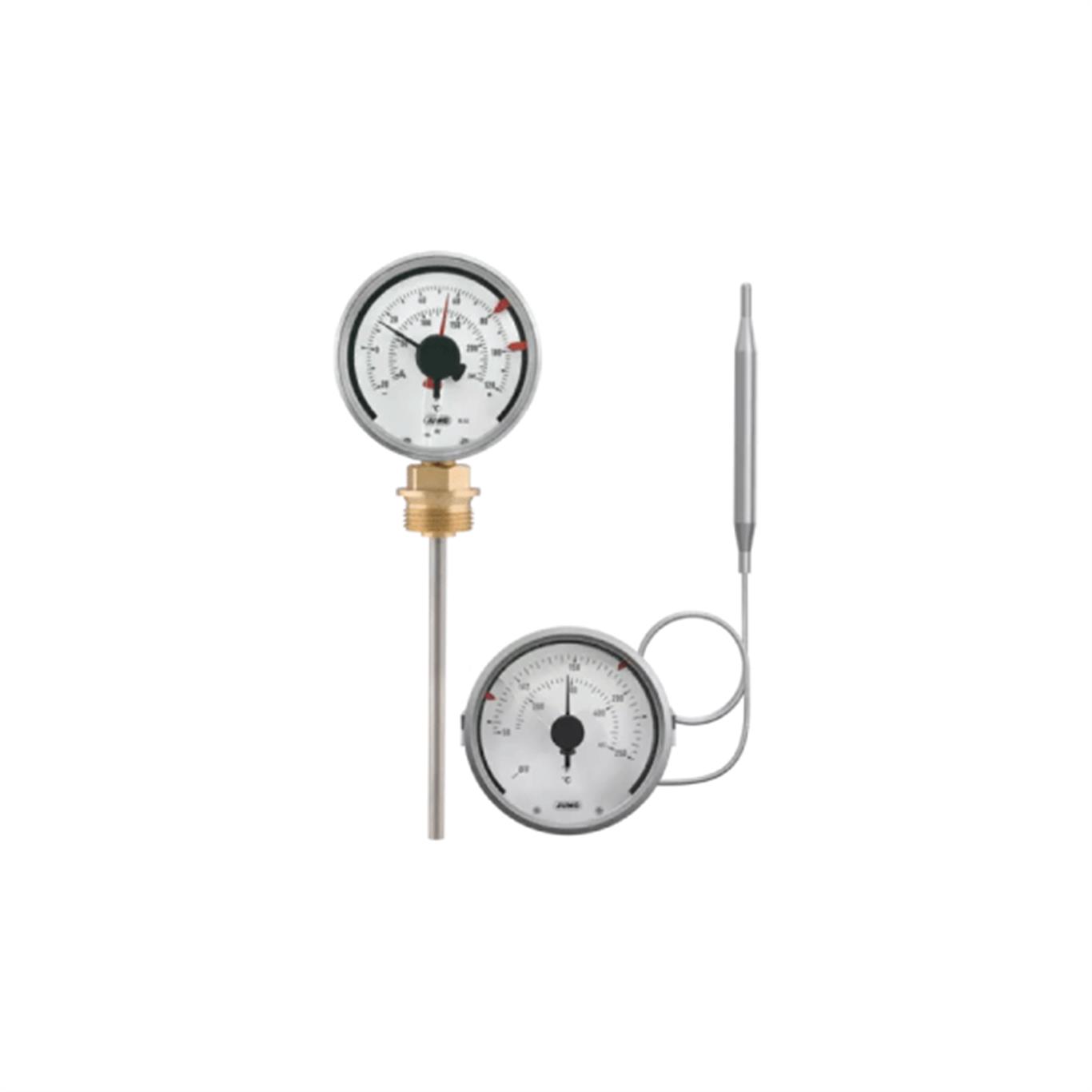

Contact dial thermometer 608520
For temperature control
Contact dial thermometers are universally-applicable devices with actual value display for temperature measurement, control, and monitoring. The 608520 series is RoHs compliant and cadmium free.
 |
 |
 |
|
Without auxiliary energy
|
Capillary measuring system
|
Bend protection spring
|
GENERAL TECHNICAL DATA |
| Measuring range | -30 to +500 °C |
| Display range | -40 to +600 °C |
| Features | Temperature controller with up to 2 microswitches; IP65 possible (type 608523) |
| Accuracy class according to DIN EN 13190 | Class 1.5 |
| Probe outlet | Vertical or horizontal |
| Housing size | 60 mm, 80 mm, 100 mm made from CrNi (608540 made from polyamide, 80 mm only) |
| Capillary/rigid thermowell | Rigid thermowell or capillary (up to 10 m) |
| Areas of application | Monitoring of the oil temperature in industrial transformers, process technology |
Industry version
The measuring principle of the thermometer is based on a bimetal coil in a stainless steel or brass protection tube. If the temperature increases or falls, it turns and has a direct effect on the indicator via an axis. Versions of the 608002 products comply with DIN EN 13190, class 1.
 |
 |
|
|
Impervious to
ambient temperature |
Accuracy class 1
|
Without auxiliary
energy |
Dial thermometer with microswitch
Dial thermometers with microswitch are universally-applicable devices with actual value display for temperature measurement, control, and monitoring. The devices have a temperature controller with actual value display and are manufactured using high-grade stainless steel.
 |
 |
 |
|
Independent
control |
Low mounting
depth |
High degree of
process reliability |
For temperature control
Contact dial thermometers are universally-applicable devices with actual value display for temperature measurement, control, and monitoring. The slow-action contact/magnetic snap contact closes or opens an electrical circuit depending on the movement direction at the set limit values.
|
|
|
|
Capillary measuring
system |
Without auxiliary
energy |
Accuracy class
1 |
