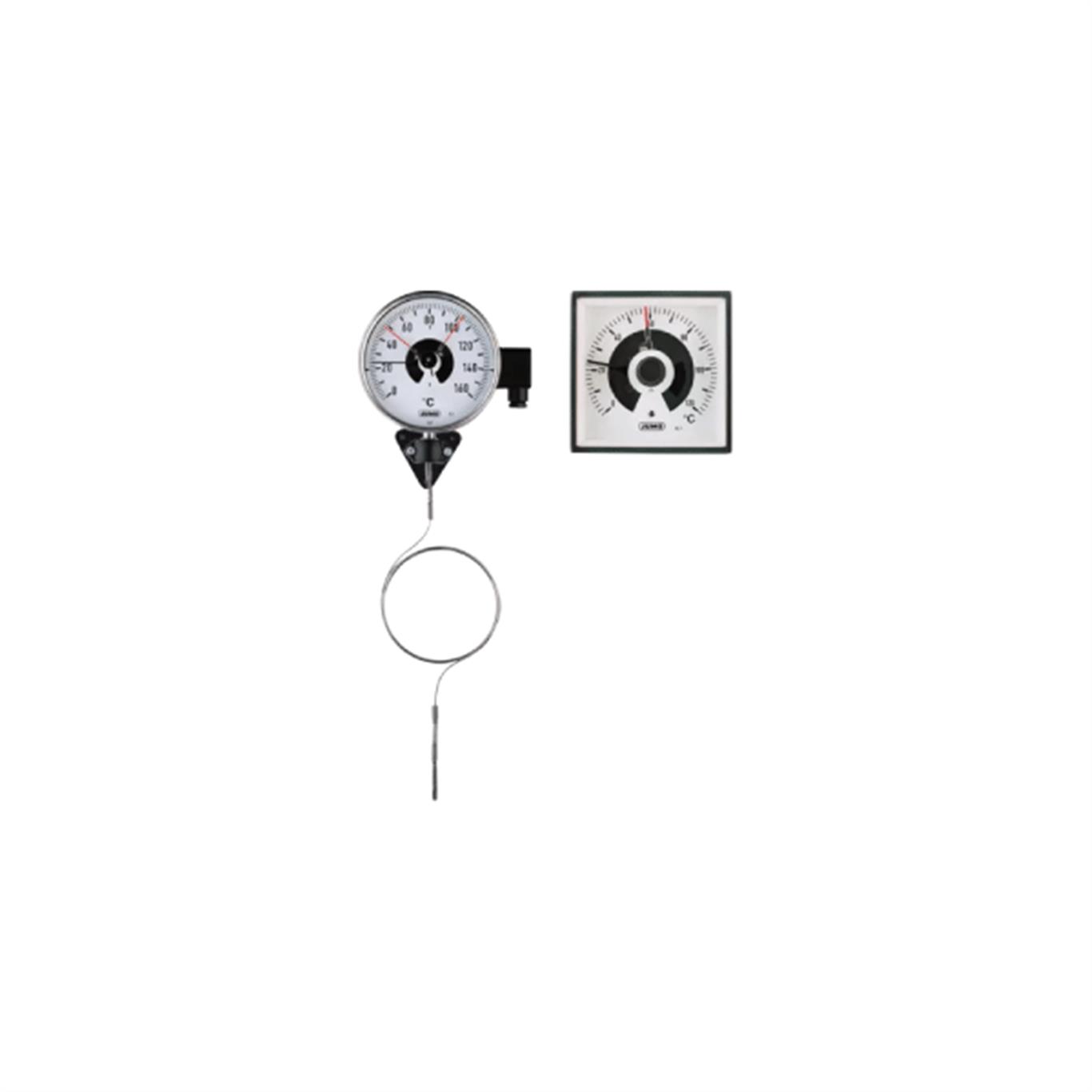

Contact dial thermometers 608425
For temperature control
Contact dial thermometers are universally-applicable devices with actual value display for temperature measurement, control, and monitoring. The slow-action contact/magnetic snap contact closes or opens an electrical circuit depending on the movement direction at the set limit values.
 |
 |
 |
|
Capillary measuring
system |
Without auxiliary
energy |
Accuracy class
1 |
GENERAL TECHNICAL DATA |
| Measuring range | -40 to +450 °C |
| Display range | -50 to +500 °C |
| Housing size | 100 mm, 160 mm, and front panel 96 × 96 mm |
| Accuracy class according to DIN EN 13190 | Class 1 |
| Features | Temperature controller in flush-mounted housing or surface-mounted housing; ambient temperature compensation |
| Areas of application | Process technology, oven engineering |
| Capillary/rigid thermowell | Rigid thermowell or capillary (up to 10 m) |
| Probe outlet | Vertical or horizontal |
Digital indicator
Devices that can be used universally in various DIN formats to display process variables. The basic version includes a min/max value function, a hold function, a taring function, limit value monitoring functions, digital control signals, timer functions, and a service counter.
 |
|
 |
|
Creation of individual
ST code application |
Intuitive configuration
and operation |
Fast and simple
startup |
Temperature limiter/monitor
The JUMO safetyM TB/TW is a user programmable limiter/monitor. The universal measurement input is user configurable for RTD temperature probes, thermocouples, and current or voltage signals. TB/TWs are used to monitor thermal processes in plants for a set limit value.
 |
 |
|
|
Setup program
|
Universal measurement
input |
Alphanumeric
LCD display |
Safety temperature limiters and monitors according to DIN EN 14597 and ATEX approval
The compact and user configurable JUMO safetyM STB/STW Ex can enable early and reliable detection of risks in Ex areas which could potentially result in personal injuries, environmental damage, or destruction of the production facilities and production goods.
|
 |
 |
|
Setup program
|
Intrinsically safe
inputs [Ex ia] |
Ignition source
monitoring |
