CTi G5

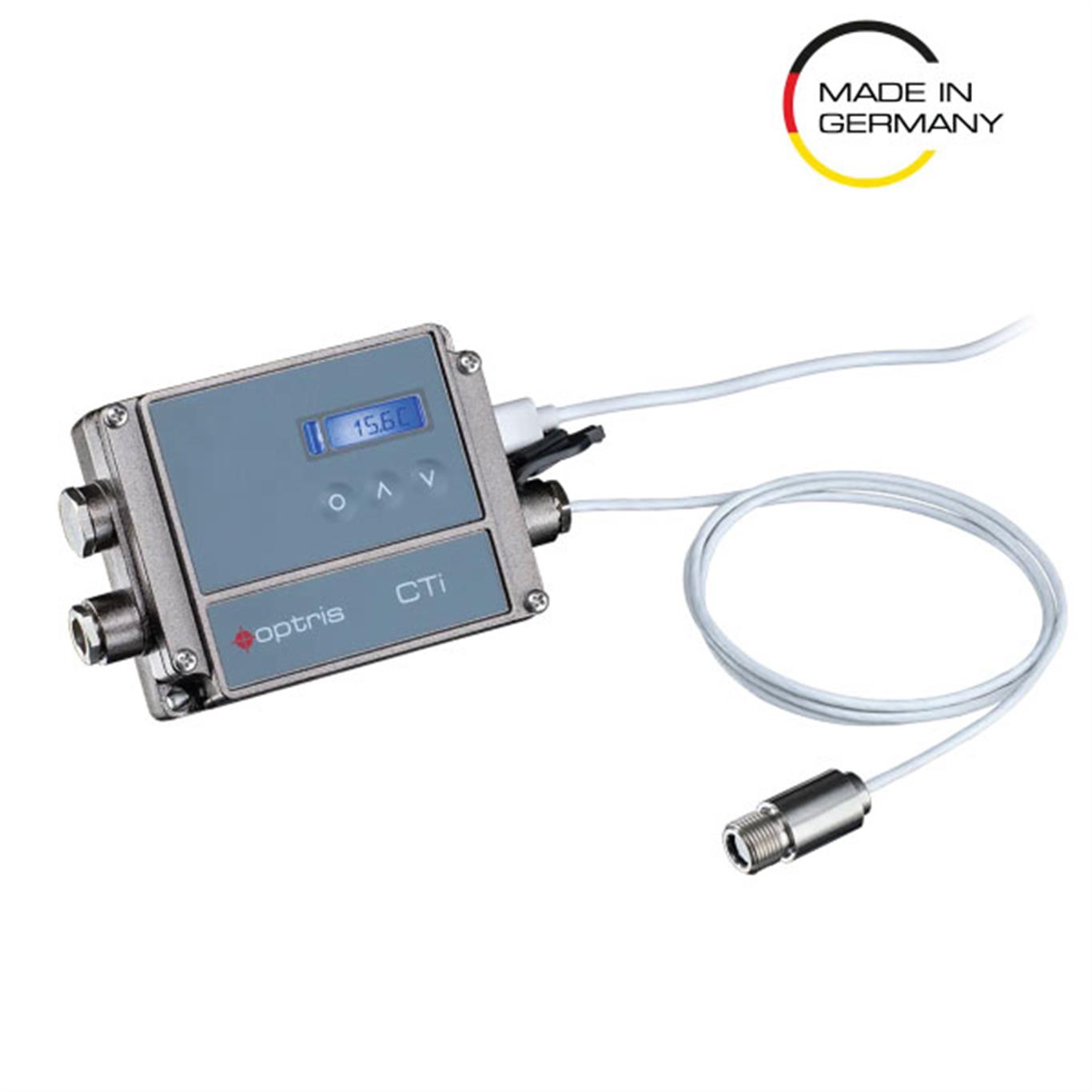

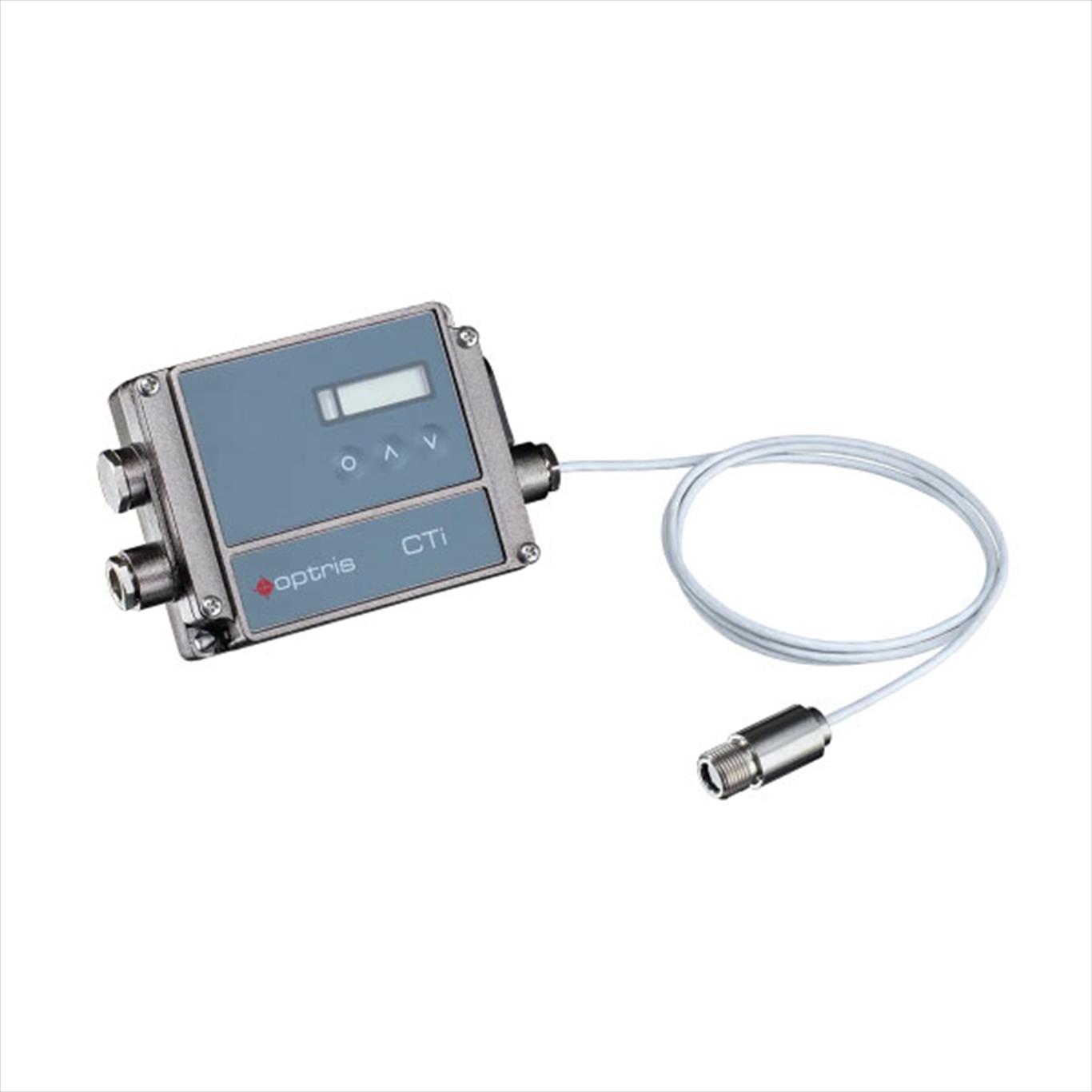

The Optris CTi G5 pyrometer is designed for precise temperature measurement in glass-related industries, featuring a two-piece sensor design with a separate electronic box for integration-friendly operation.
The IR thermometer accurately measures temperatures from 50 °C to 1650 °C, suitable for vehicle and flat glass manufacturing. Emissivity plays a crucial role in accuracy, influenced by material properties and wavelength. For glass production, wavelengths of 5.0 μm or 7.9 μm are preferred due to higher emissivity values. Wavelength selection is vital for measuring surface and deeper layers effectively.
The CTi G5's specialized spectral range of 5.0 μm makes it versatile for various industrial processes, with its compact design allowing for flexible installations.
CTi G5 — Important Features:
- - Temperature range: 50 °C to 1650 °C
- - Spectral range: 5.0 µm
- - Response time: down to 70 ms
The Optris CTi G5 pyrometer is expertly designed for precise temperature measurement in glass-related applications. The pyrometers two-piece sensor design, which includes a separate electronic box with programming keys and a display, ensures user-friendly operation and accurate temperature readings across a range of 50 °C to 1650 °C. Ideal for vehicle and flat glass manufacturing processes, the CTi G5 delivers reliable and accurate temperature measurements to meet diverse industrial needs.
In non-contact stationary infrared temperature measurement, ensuring accuracy requires careful consideration of emissivity, which depends on material properties, surface characteristics, wavelength, measuring angle, and the measuring setup. For example, uncoated glass typically exhibits an emissivity of 0.85 in the longwave range (8 μm – 14 μm). However, in high-temperature processes such as glass production, using wavelengths of 5.0 μm or 7.9 μm is preferred due to their higher emissivity values (≥0.95) in those spectral ranges. Wavelength selection is crucial for effectively measuring the glass surface and deeper layers, with 1.0 μm, 2.2 μm, or 3.9 μm suitable for deeper layers, and 5.0 μm recommended for surface measurements. For lower temperatures, wavelengths between 8 μm and 14 μm and an emissivity of 0.85 help mitigate reflection effects.
The Optris CTi G5, with its specialized spectral range of 5.0 µm, is a versatile tool for measuring glass temperatures in various industrial processes. The infrared thermometer is suitable for container glass production, vehicle glass manufacturing, and solar cell production, delivering reliable temperature data. The compact stainless steel measuring head allows for versatile installations, including multi-spot configurations such as line scanning, even in limited spaces. The measuring head operates in ambient temperatures of up to 85 °C without additional cooling, making it robust and adaptable.

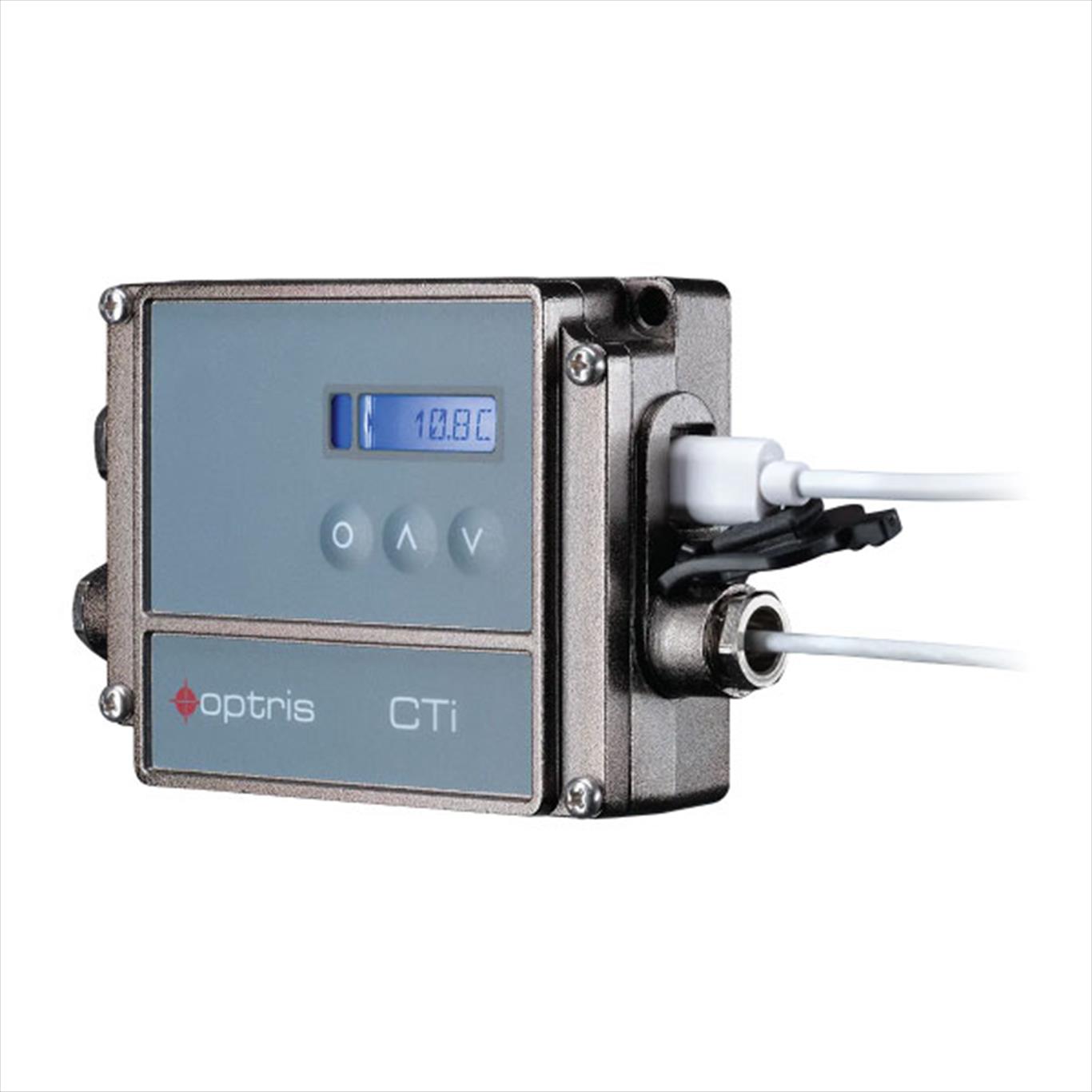

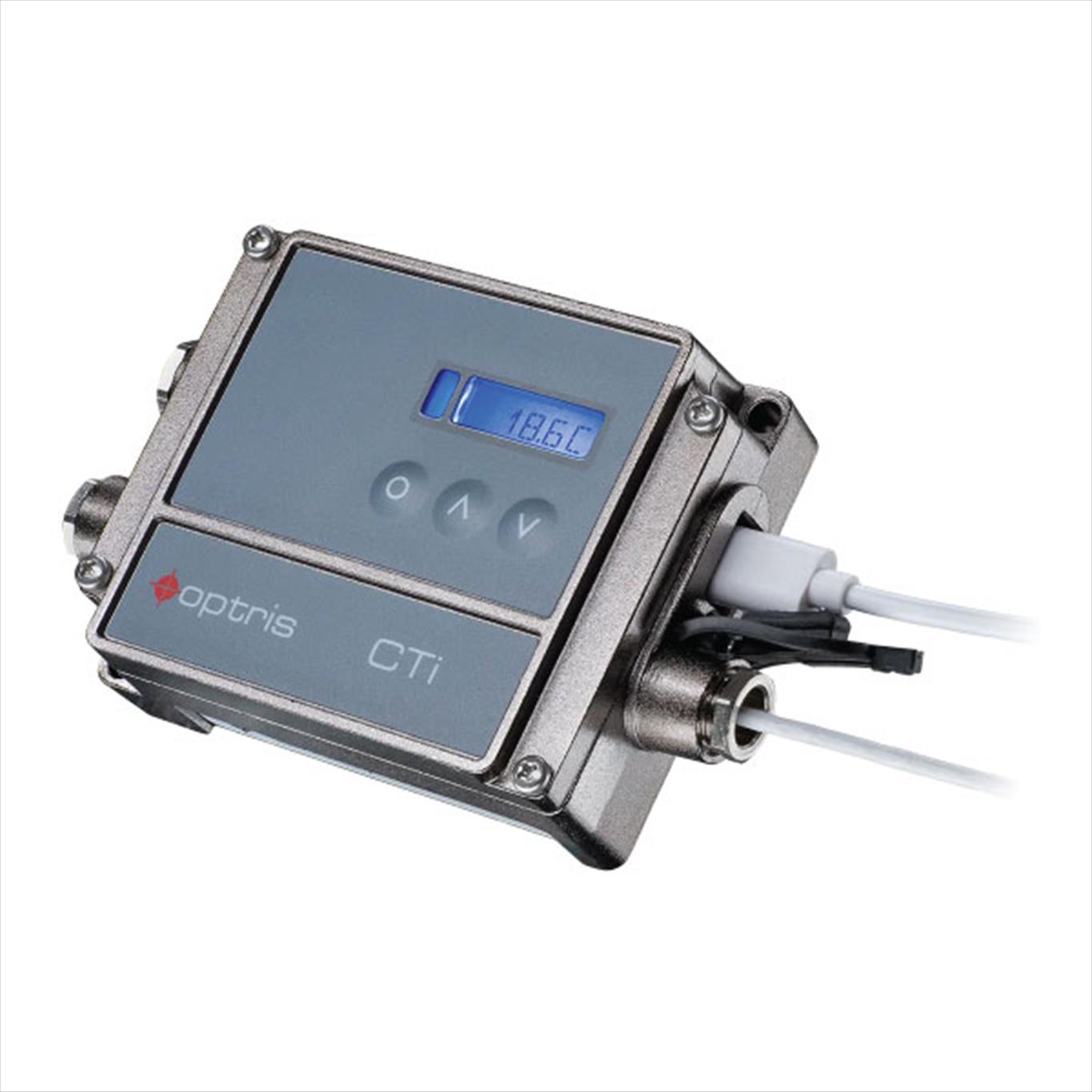

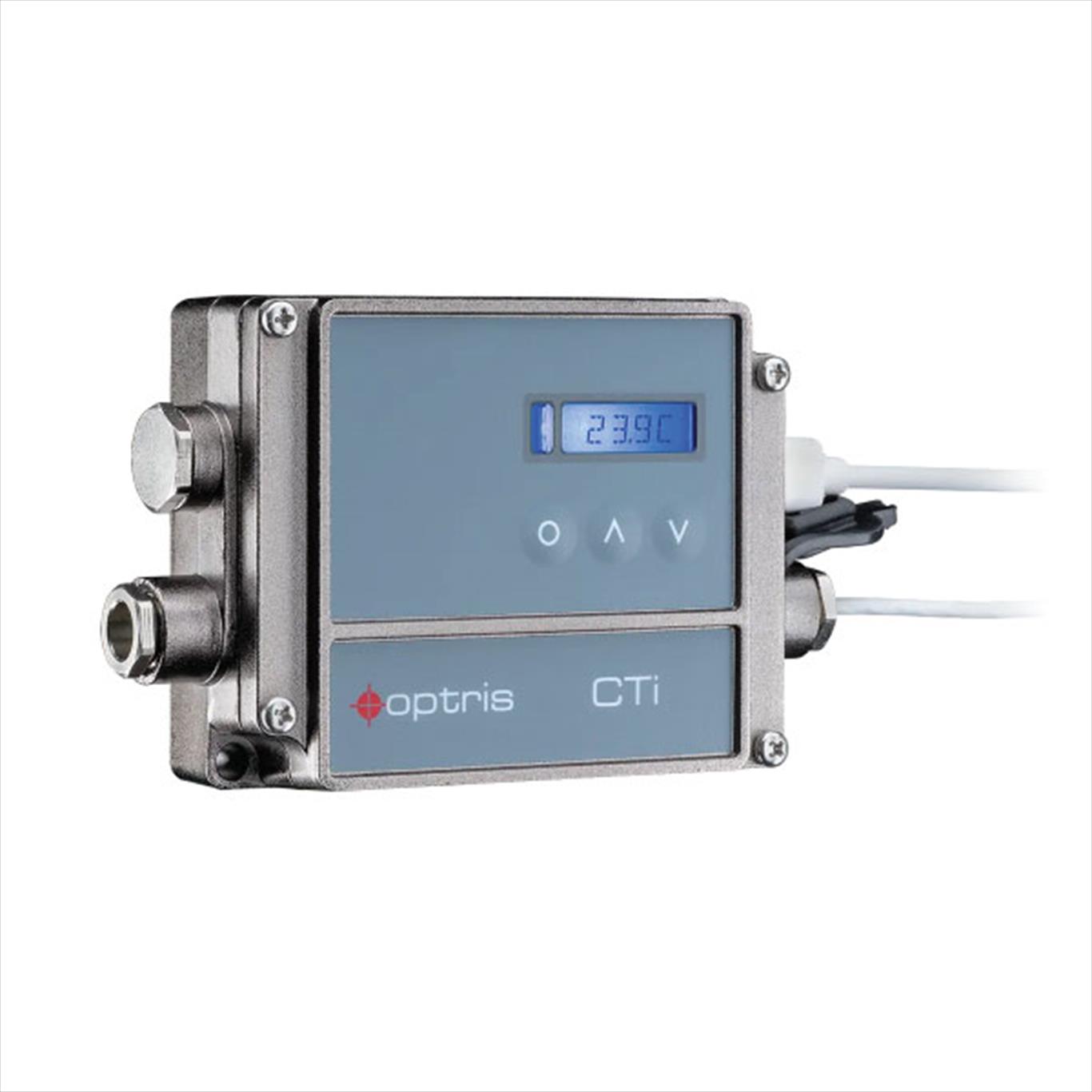

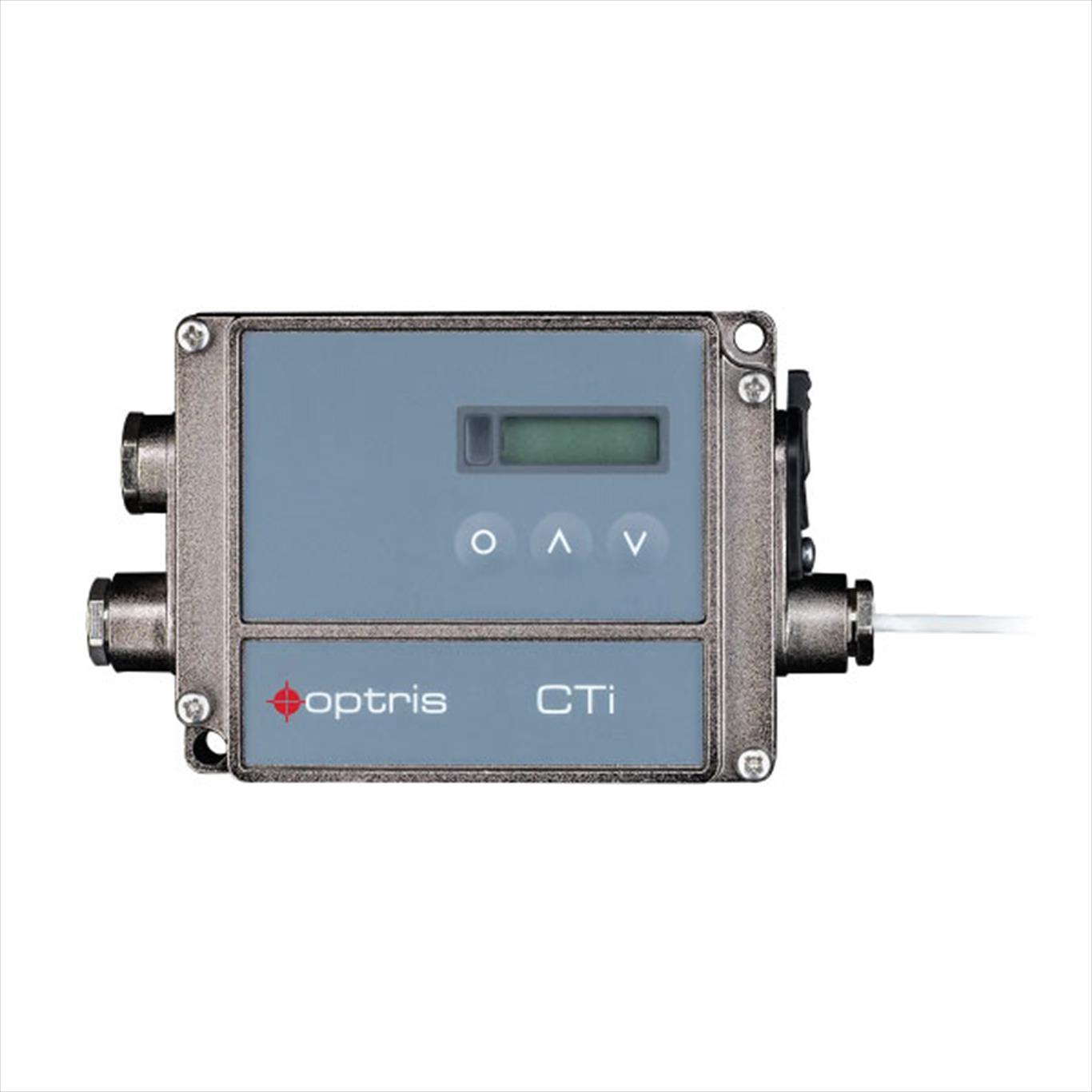

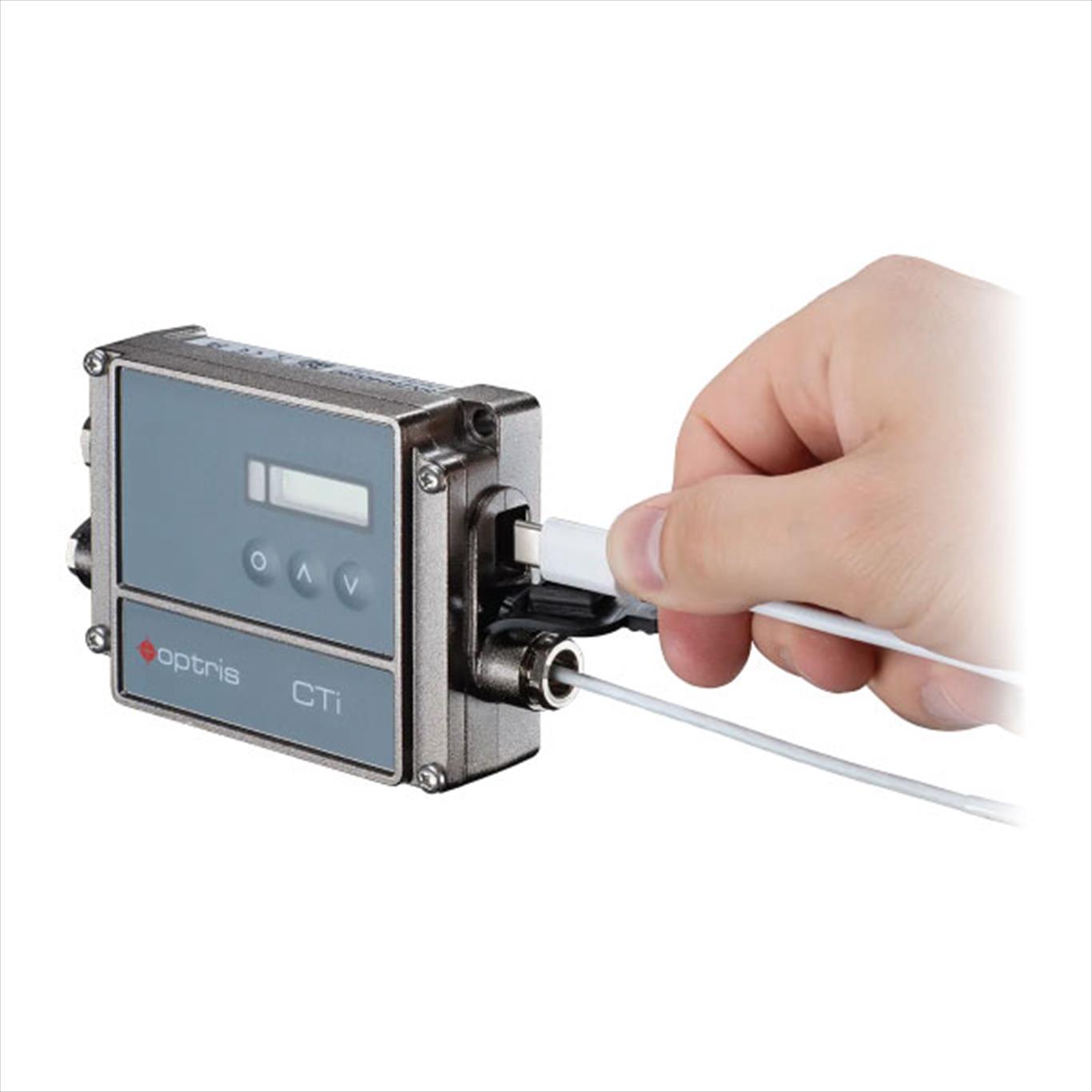

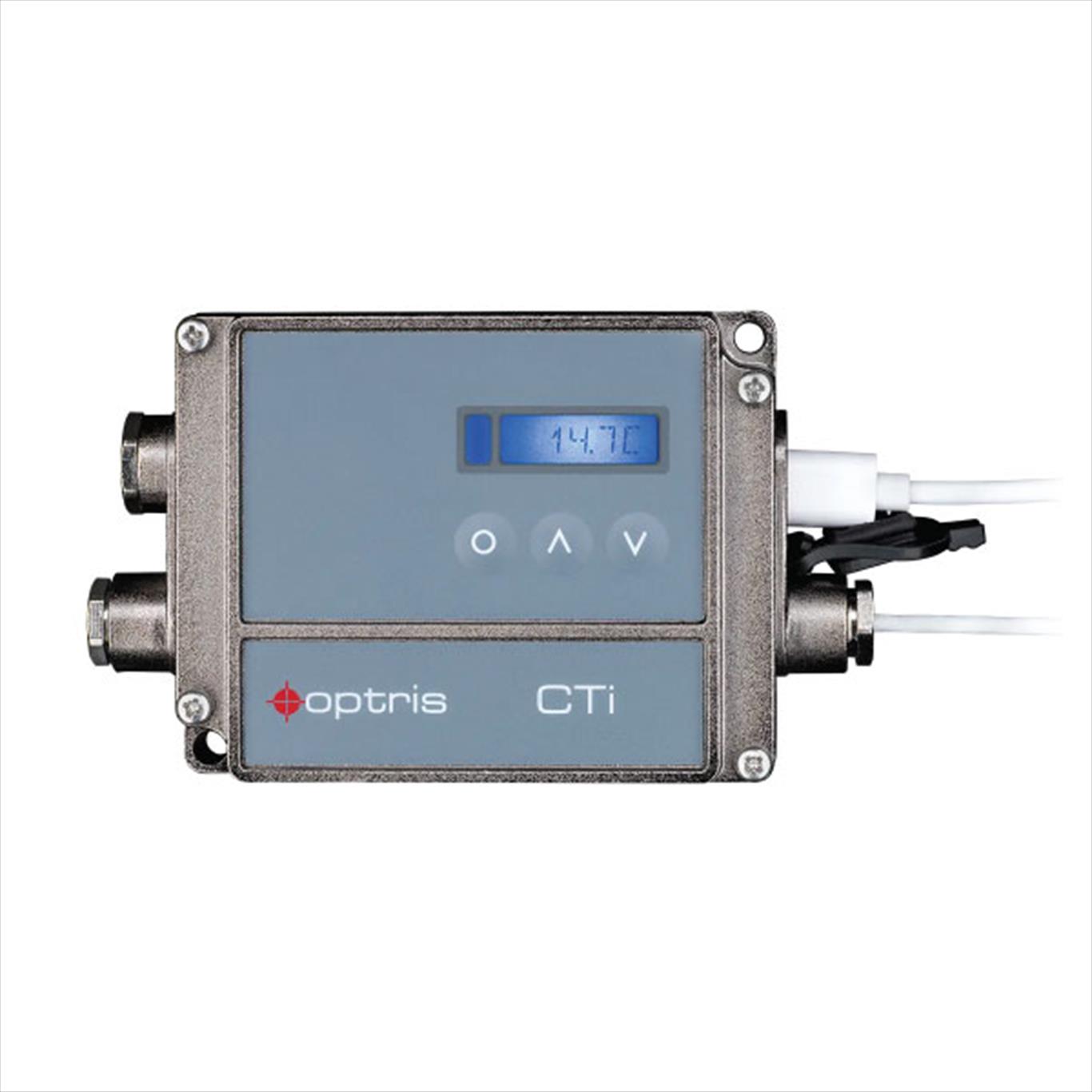

A key attribute of the Optris CTi G5 is its precise non-contact temperature measurement facilitated by separate electronics. The electronic box offers a wide array of analog and digital outputs, including 0/4 – 20 mA, 0 – 5 V, 0 – 10 V, thermocouple (type K), USB, RS485, and RS232 interfaces, as well as relay outputs (2 x optically isolated), ProfiNet, and Ethernet, EtherNet/IP, IO-Link and EtherCAT.
To further enhance the functionality of the infrared sensor, various optional accessories are available, catering to diverse industrial needs. The mounting fork ensures secure and stable installation for continuous temperature monitoring. The sighting tube enhances targeting precision and accuracy in specific applications. The close-focus lens allows detailed temperature measurements on small or distant objects, and the air purge accessory protects the temperature sensor from contaminants to maintain the optical path in harsh environments. Additionally, the cooling jackets optimize performance in elevated temperature conditions, ensuring consistent and accurate readings.
These optional accessories significantly enhance the versatility of the Optris CTi G5 series, providing tailored solutions for various industrial scenarios.
In summary, the Optris CTi G5 series pyrometer combines precision, adaptability, and durability to facilitate non-contact temperature measurements in glass-related applications. Whether capturing rapid manufacturing processes or operating in challenging conditions, the IR pyrometer is a reliable and efficient solution for diverse industrial needs.
Popular Model Codes:
| 1. Range: 50-1000 °C |
|
| 2. Range: 100-1650 °C |
|
In the most demanding thermal environments, where others falter, the Optris CTi LThot stands resilient. Designed to excel in extreme ambient conditions, this robust infrared pyrometer features a sensing head engineered for unparalleled temperature resistance, operating reliably without additional cooling at ambient temperatures up to 250 °C. This critical advantage makes it the definitive choice for processes where heat is a constant, unforgiving presence.
The CTi LThot masterfully tackles high-temperature applications across diverse industries. From monitoring dryers, industrial furnaces, and heat-treating ovens to ensuring precision in plastics/textiles processing and semiconductor production, it delivers steadfast performance. Encased in a compact, durable stainless steel housing, it offers non-contact temperature measurement from –50 °C to 1050 °C within the spectral range of 8 to 14 µm, ideal for many materials including plastics and organic substances. With a swift response time down to 40 ms, it captures even rapid thermal fluctuations with industrial-standard precision and speed.
Beyond its core resilience, the CTi LThot is a powerhouse of connectivity and control. It features analog and digital outputs (including 0-4-20 mA and 0-10 V), comprehensive interfaces (USB, RS485, RS232, relay , Modbus RTU, Modbus TCP, Profinet, and EtherNet/IP ), and relay outputs. Three programmable I/Os offer versatile functionality for alarms, triggering, or external parameter adjustment. Configuration is seamless via free PC software or a mobile app. Developed, produced, and calibrated in Germany with rigorous end-of-line checks, it guarantees superior quality and accuracy. Supported by a wide range of accessories, the Optris CTi LThot is the robust, reliable solution for the harshest industrial landscapes.
CTi LThot — Important Features
- - Temperature range: -50 °C to 1050 °C
- - Spectral range: 8 to 14 µm
- - Response time: down to 40 ms
- - High operating temperature rating up to 250 °C
The Optris CTi LTfast pyrometer quickly captures non-contact temperature data remotely. Its remarkably short response time of 6 ms makes it an ideal choice for applications requiring speedy measurements. Whether in industrial processes demanding rapid assessments or research settings mandating precise temperature control, the CTi LTfast pyrometer delivers consistent performance. Its adaptability and accuracy are tailored to be the sensing input for fast control loop applications. It offers fast analog output options with smart data processing, alongside instant digital output with a response time of 4 ms (50% signal). Additionally, its rugged construction allows operation in ambient temperatures of up to 125 °C without the need for cooling, ensuring resilience in challenging conditions.
- - Temperature range: -50 °C to 1050 °C
- - Spectral range: 8 to 14 µm
- - Response time: 6 ms (% signal)
- - High Distance-to-spot size ratio of up to 25:1
Engineered in Germany for reliability, the Optris CTi LT series is a breakthrough in compact, high-performance infrared temperature measurement. These pyrometers feature one of the world’s smallest sensing heads along with strong industrial capabilities. They deliver precise non-contact temperature monitoring for even the toughest applications.
The CTi LT has a superior 8–14 µm spectral bandwidth. It is best for measuring high-emissivity materials and low-temperature targets with great accuracy. With a wide measurement range from -50 °C to 1050 °C, it works well for non-reflecting objects in various industrial processes. Additionally, its excellent optical resolution of up to 22:1 ensures accurate readings of small or distant targets while reducing background interference.
Built to withstand tough conditions, the CTi LT operates reliably at ambient temperatures up to 180 °C without requiring external cooling. Moreover, its special thermal-shock-resistant design ensures long-term stability, repeatability, and accuracy. The device allows for flexible integration using configurable analog and digital outputs, including industrial protocols like Modbus RTU, Modbus TCP, Profinet, and EtherNet/IP. Additionally, setting it up is easy with the free CompactPlus Connect PC software or the IR mobile app for Android.
Developed, produced, and factory-calibrated in Germany, the CTi LT comes with a range of accessories. In addition to mounting forks, sighting tubes, and close-focus lenses, these include air purge systems to suit any industrial environment. Whether used for plastics, coatings, electronics, or automotive manufacturing, the Optris CTi LT offers a dependable, precise, and versatile solution for critical temperature monitoring.
CTi LT — Important Features
- - Temperature range: -50 °C to 1050 °C
- - Spectral range: 8 to 14 µm
- - Response time: up to 40 ms
- - High ambient temperature rating up to 180 °C
- - Higher Distance-to-spot size ratio of up to 22:1
- - Unique thermal shock-resistant design for best repeatability and accuracy
