CTi P3
The Optris CTi P3 pyrometer is designed for precise temperature measurement of thin plastic films, utilizing a spectral range of 3.43 µm for accuracy between 35 °C and 600 °C.
While plastics thicker than 0.4 mm and pigmented films are easily measured in the long-wavelength IR spectral range, very thin plastic films are transparent in this spectral range. Therefore, thin foil plastics require specific narrow-band sensitive IR sensors that match material-specific absorption bands in the IR spectrum to measure their temperature.
The IR thermometer has a rapid response time of 15 ms and can withstand temperatures up to 85 °C. Its electronics box offers various outputs, and optional accessories enhance functionality for industrial use.
CTi P3 — Important Features:
- - Temperature range: 35 °C to 600 °C
- - Spectral range: 3.43 µm
- - Response time: 15 ms
The Optris CTi P3 pyrometer is engineered with precision to accurately measure the temperature of thin plastic films. The pyrometers specialized spectral range of 3.43 µm ensures precise measurements within a broad temperature range, spanning from 35 °C to 600 °C.
Emissivity is a crucial factor in non-contact temperature measurement and must be considered based on various factors, including material properties and wavelength. Plastics thicker than 0.4 mm and pigmented films can be easily measured in the long-wavelength IR spectral range (8-14 μm) with emissivity of ≥ 0.9. However, very thin plastic films are transparent in this range, necessitating temperature measurement through material-specific absorption bands in the IR spectrum via narrow-band sensitive IR sensors. Materials like Polyethylene (PE), Polypropylene (PP), Cellophane, Polystyrene (PS), Polymethylmethacrylate or Acrylic (PMMA), Polycarbonate (PC), Polyester (PET), and Polyvinyl chloride (PVC or Vinyl) exhibit IR opaqueness at 3.43 μm, while polyester, polyurethane, Teflon, FEP, and polyamide exhibit this property at 7.9 μm.

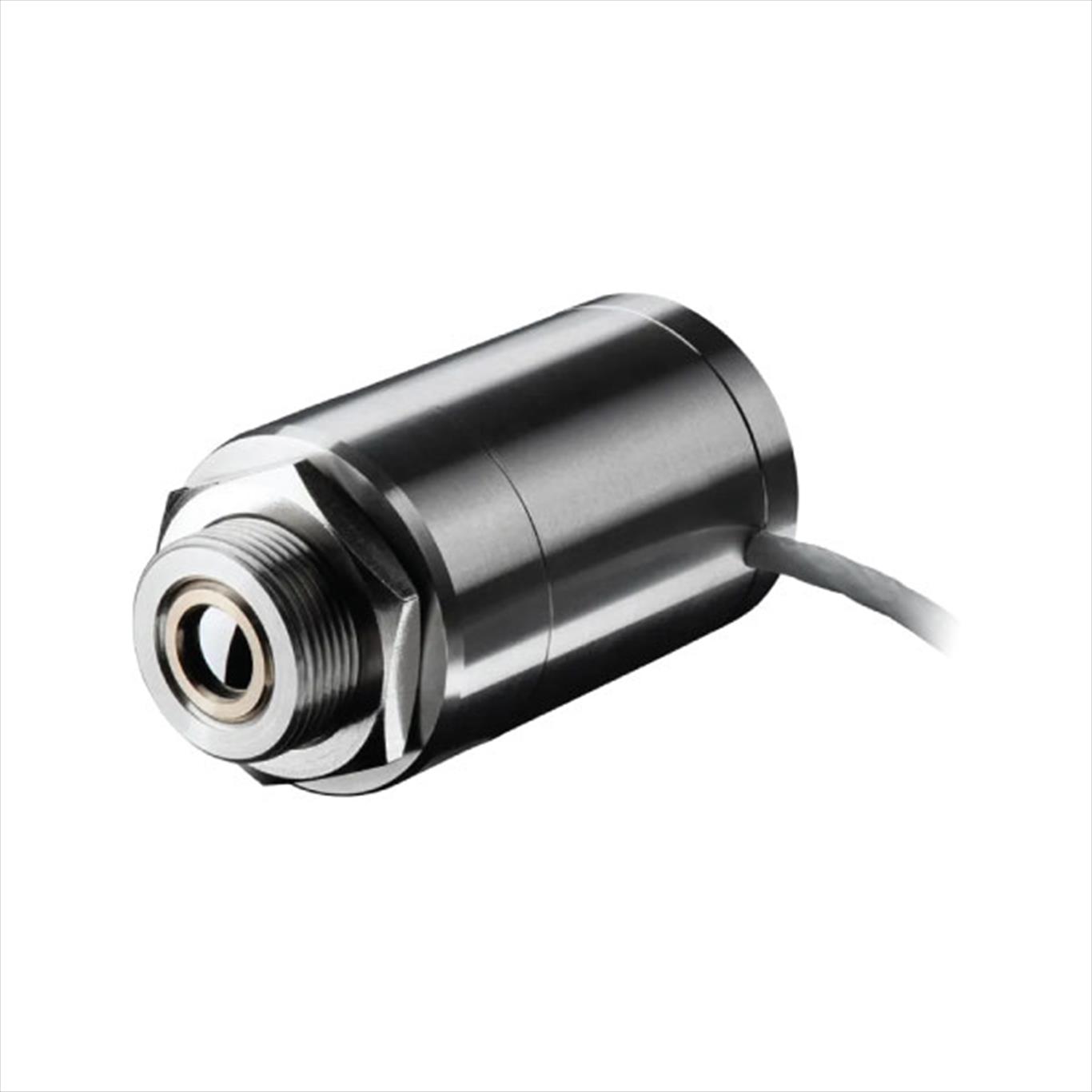

The CTi P3 infrared thermometer, with its extremely narrow-band spectral range of 3.43 μm, is ideal for measuring the temperature of very thin plastic materials. The infrared sensors temperature range spans from 35 °C to 600 °C, and it offers a rapid response time of 15ms. The sensing head can withstand temperatures of up to 85 °C without requiring additional cooling. The separate electronics box is equipped with easily accessible programming buttons and a backlit LCD display.

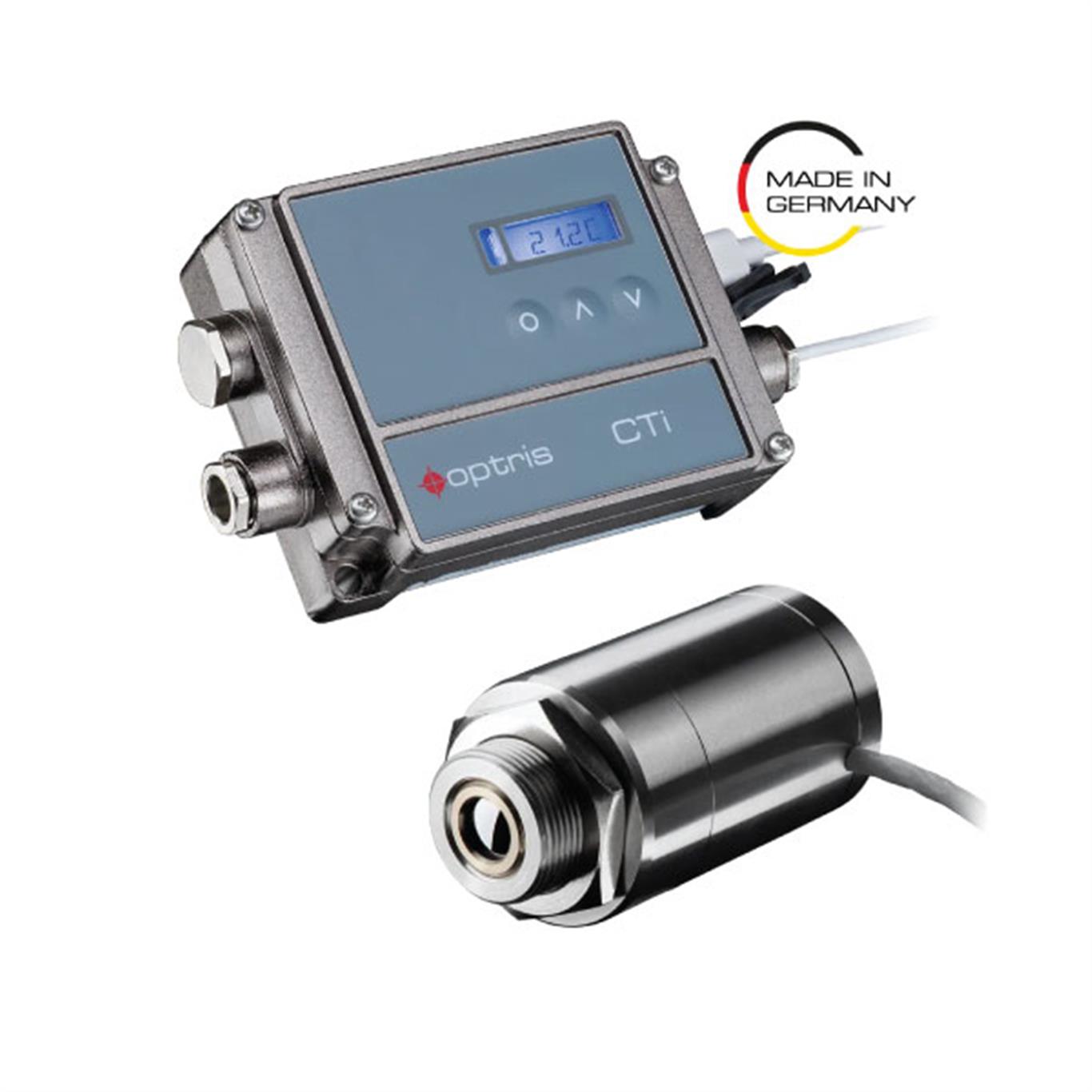

The Optris CTi P3 series infrared sensor emphasizes adaptability, featuring an electronics box with a wide array of analog and digital outputs, including 0/4 – 20 mA, 0 – 5 V, 0 – 10 V, thermocouple (type K), built-in-USB, or optional IP67 USB interface kit, RS485, RS232 interfaces, relay outputs (2 x optically isolated), Profinet, and Ethernet, EtherNet/IP, Modbus TCP, Modbus RTU, IO Link and EtherCAT. Optional accessories further enhance its functionality, catering to diverse industrial needs. The mounting fork ensures secure and stable installation for continuous temperature monitoring, while the sighting tube enables precision targeting and improved accuracy in specific applications. The close-focus lens facilitates detailed temperature measurements on small or distant objects. The air purge accessory safeguards the temperature sensor from contaminants in harsh environments, and cooling jackets optimize performance in elevated temperature conditions, ensuring consistent and accurate readings. These optional accessories significantly expand the versatility of the Optris CTi P3 series, providing tailored solutions for varied industrial scenarios.
In summary, the Optris CTi P3 series pyrometer combines precision, adaptability, and durability to facilitate non-contact temperature measurements. Whether capturing rapid manufacturing processes or operating in challenging conditions, the IR pyrometer offers a reliable and efficient solution for diverse industrial applications.
Popular Model Codes:
| 1. Range: 35-600 °C |
|
In the most demanding thermal environments, where others falter, the Optris CTi LThot stands resilient. Designed to excel in extreme ambient conditions, this robust infrared pyrometer features a sensing head engineered for unparalleled temperature resistance, operating reliably without additional cooling at ambient temperatures up to 250 °C. This critical advantage makes it the definitive choice for processes where heat is a constant, unforgiving presence.
The CTi LThot masterfully tackles high-temperature applications across diverse industries. From monitoring dryers, industrial furnaces, and heat-treating ovens to ensuring precision in plastics/textiles processing and semiconductor production, it delivers steadfast performance. Encased in a compact, durable stainless steel housing, it offers non-contact temperature measurement from –50 °C to 1050 °C within the spectral range of 8 to 14 µm, ideal for many materials including plastics and organic substances. With a swift response time down to 40 ms, it captures even rapid thermal fluctuations with industrial-standard precision and speed.
Beyond its core resilience, the CTi LThot is a powerhouse of connectivity and control. It features analog and digital outputs (including 0-4-20 mA and 0-10 V), comprehensive interfaces (USB, RS485, RS232, relay , Modbus RTU, Modbus TCP, Profinet, and EtherNet/IP ), and relay outputs. Three programmable I/Os offer versatile functionality for alarms, triggering, or external parameter adjustment. Configuration is seamless via free PC software or a mobile app. Developed, produced, and calibrated in Germany with rigorous end-of-line checks, it guarantees superior quality and accuracy. Supported by a wide range of accessories, the Optris CTi LThot is the robust, reliable solution for the harshest industrial landscapes.
CTi LThot — Important Features
- - Temperature range: -50 °C to 1050 °C
- - Spectral range: 8 to 14 µm
- - Response time: down to 40 ms
- - High operating temperature rating up to 250 °C
The Optris CTi LTfast pyrometer quickly captures non-contact temperature data remotely. Its remarkably short response time of 6 ms makes it an ideal choice for applications requiring speedy measurements. Whether in industrial processes demanding rapid assessments or research settings mandating precise temperature control, the CTi LTfast pyrometer delivers consistent performance. Its adaptability and accuracy are tailored to be the sensing input for fast control loop applications. It offers fast analog output options with smart data processing, alongside instant digital output with a response time of 4 ms (50% signal). Additionally, its rugged construction allows operation in ambient temperatures of up to 125 °C without the need for cooling, ensuring resilience in challenging conditions.
- - Temperature range: -50 °C to 1050 °C
- - Spectral range: 8 to 14 µm
- - Response time: 6 ms (% signal)
- - High Distance-to-spot size ratio of up to 25:1
Engineered in Germany for reliability, the Optris CTi LT series is a breakthrough in compact, high-performance infrared temperature measurement. These pyrometers feature one of the world’s smallest sensing heads along with strong industrial capabilities. They deliver precise non-contact temperature monitoring for even the toughest applications.
The CTi LT has a superior 8–14 µm spectral bandwidth. It is best for measuring high-emissivity materials and low-temperature targets with great accuracy. With a wide measurement range from -50 °C to 1050 °C, it works well for non-reflecting objects in various industrial processes. Additionally, its excellent optical resolution of up to 22:1 ensures accurate readings of small or distant targets while reducing background interference.
Built to withstand tough conditions, the CTi LT operates reliably at ambient temperatures up to 180 °C without requiring external cooling. Moreover, its special thermal-shock-resistant design ensures long-term stability, repeatability, and accuracy. The device allows for flexible integration using configurable analog and digital outputs, including industrial protocols like Modbus RTU, Modbus TCP, Profinet, and EtherNet/IP. Additionally, setting it up is easy with the free CompactPlus Connect PC software or the IR mobile app for Android.
Developed, produced, and factory-calibrated in Germany, the CTi LT comes with a range of accessories. In addition to mounting forks, sighting tubes, and close-focus lenses, these include air purge systems to suit any industrial environment. Whether used for plastics, coatings, electronics, or automotive manufacturing, the Optris CTi LT offers a dependable, precise, and versatile solution for critical temperature monitoring.
CTi LT — Important Features
- - Temperature range: -50 °C to 1050 °C
- - Spectral range: 8 to 14 µm
- - Response time: up to 40 ms
- - High ambient temperature rating up to 180 °C
- - Higher Distance-to-spot size ratio of up to 22:1
- - Unique thermal shock-resistant design for best repeatability and accuracy
