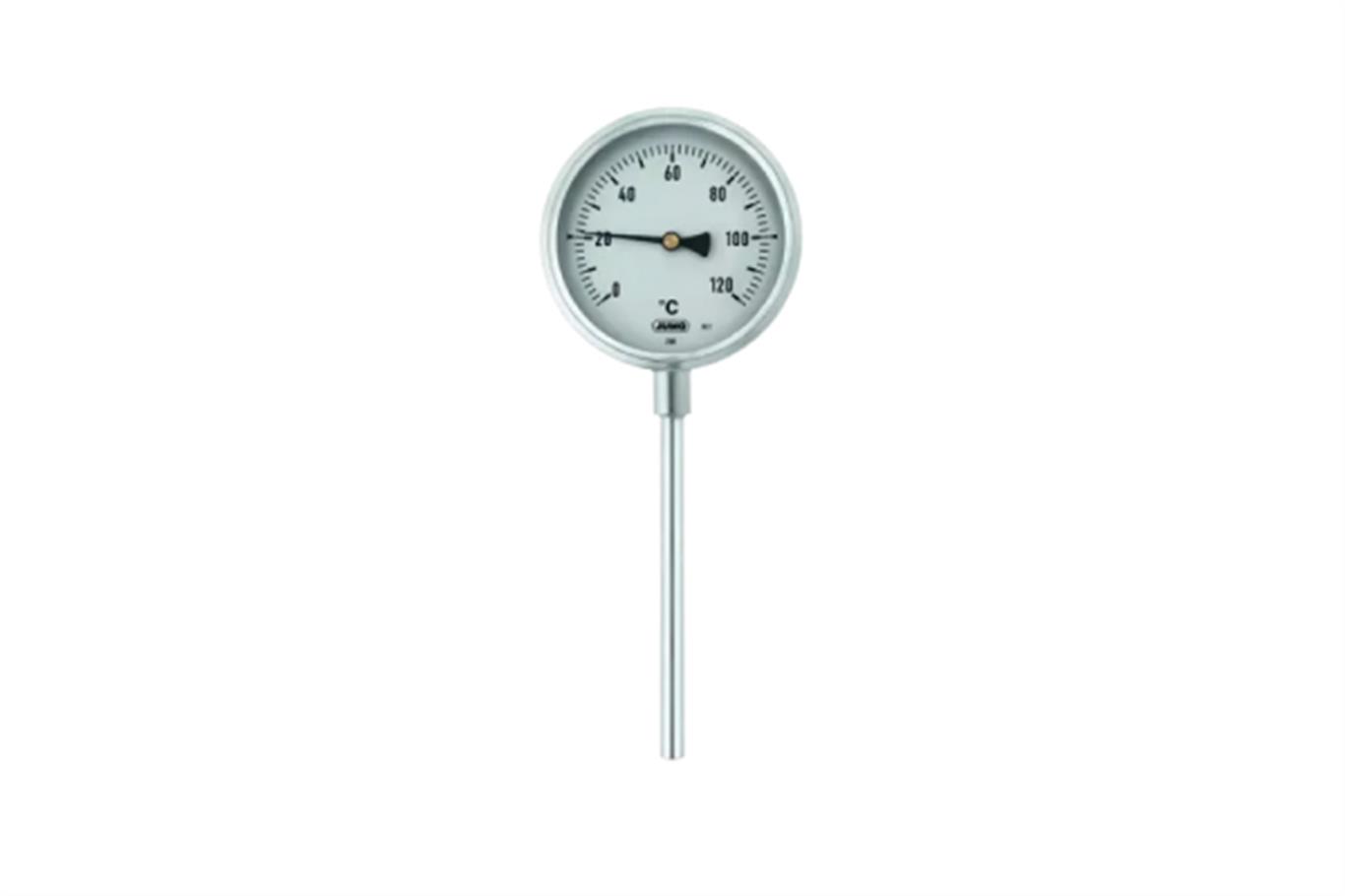

Dial thermometer 608002
Industry version
The measuring principle of the thermometer is based on a bimetal coil in a stainless steel or brass protection tube. If the temperature increases or falls, it turns and has a direct effect on the indicator via an axis. Versions of the 608002 products comply with DIN EN 13190, class 1.
 |
 |
 |
|
Impervious to
ambient temperature |
Accuracy class 1
|
Without auxiliary
energy |
GENERAL TECHNICAL DATA |
| Measuring range | -40 to +450 °C |
| Display range | -50 to +500 °C |
| Features | Stainless steel case |
| Accuracy class according to DIN EN 13190 | Class 1 |
| Capillary/rigid thermowell | Rigid thermowell |
| Case size | 60 mm, 80 mm, and 100 mm |
| Probe outlet | Vertical or horizontal |
| Area of application | Mechanical engineering, process technology, gearbox construction, chemical industry, plant engineering |
Digital indicator
Devices that can be used universally in various DIN formats to display process variables. The basic version includes a min/max value function, a hold function, a taring function, limit value monitoring functions, digital control signals, timer functions, and a service counter.
 |
|
 |
|
Creation of individual
ST code application |
Intuitive configuration
and operation |
Fast and simple
startup |
Temperature limiter/monitor
The JUMO safetyM TB/TW is a user programmable limiter/monitor. The universal measurement input is user configurable for RTD temperature probes, thermocouples, and current or voltage signals. TB/TWs are used to monitor thermal processes in plants for a set limit value.
 |
 |
|
|
Setup program
|
Universal measurement
input |
Alphanumeric
LCD display |
Safety temperature limiters and monitors according to DIN EN 14597 and ATEX approval
The compact and user configurable JUMO safetyM STB/STW Ex can enable early and reliable detection of risks in Ex areas which could potentially result in personal injuries, environmental damage, or destruction of the production facilities and production goods.
|
 |
 |
|
Setup program
|
Intrinsically safe
inputs [Ex ia] |
Ignition source
monitoring |
