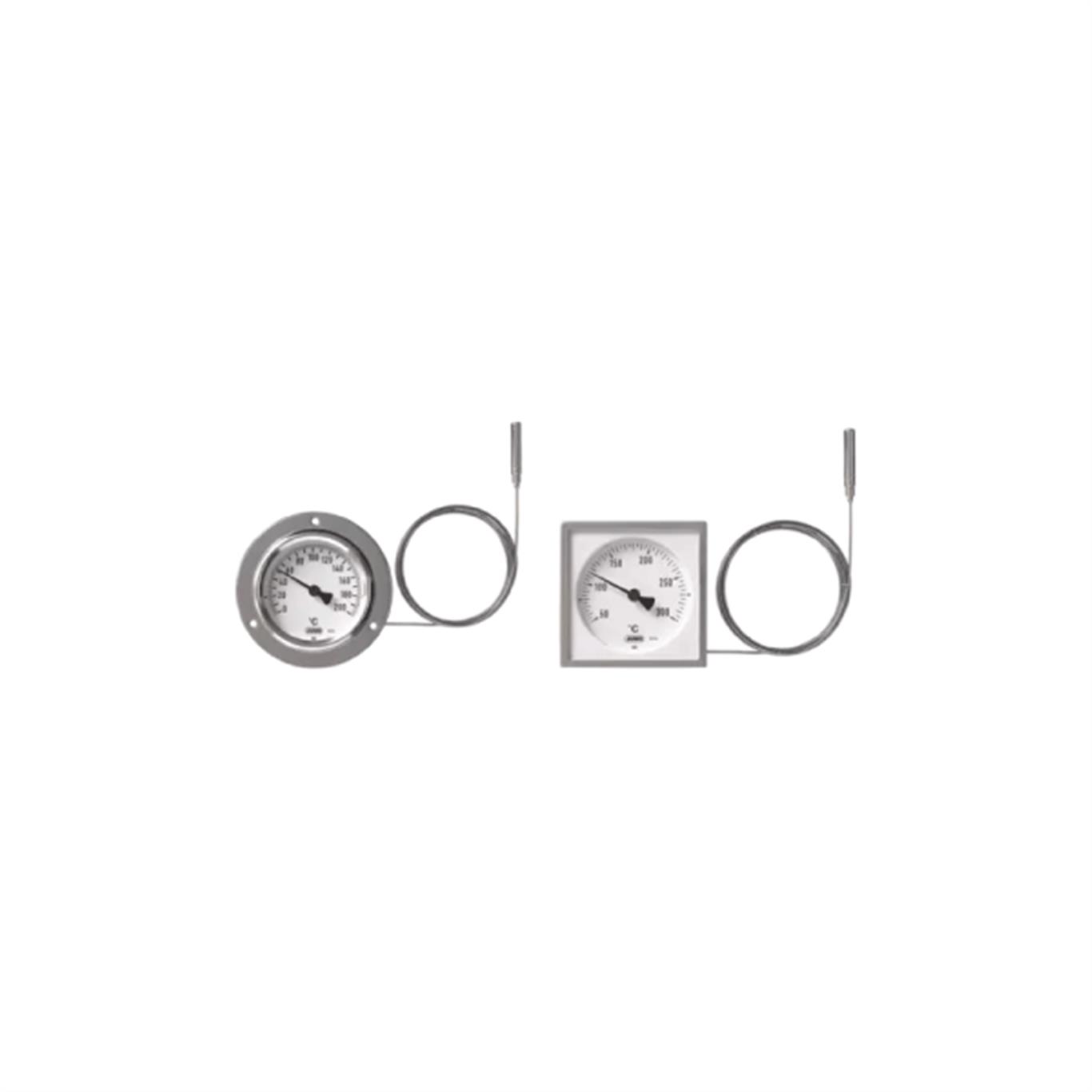

Dial thermometer 608201
Panel mounting
Dial thermometers are temperature indicators for universal use. The devices come in a stainless steel case with a liquid or gas-filled measuring system.
 |
 |
 |
|
Suitable for
panel mounting |
Without auxiliary
energy |
Capillary measuring
system |
GENERAL TECHNICAL DATA |
| Measuring range | -30 to +500 °C |
| Display range | -40 to +600 °C |
| Features | Temperature indicator in flush-mounted or surface-mounted housing |
| Accuracy class according to DIN EN 13190 | Class 1.5 |
| Capillary/rigid thermowell | Capillary length up to 10,000 mm possible |
| Probe outlet | Vertical or horizontal |
| Case size | 60 mm, 80 mm, 100 mm |
| Areas of application | Oven engineering, compressor engineering |
Industry version
The measuring principle of the thermometer is based on a bimetal coil in a stainless steel or brass protection tube. If the temperature increases or falls, it turns and has a direct effect on the indicator via an axis. Versions of the 608002 products comply with DIN EN 13190, class 1.
 |
|
|
|
Impervious to
ambient temperature |
Accuracy class 1
|
Without auxiliary
energy |
Dial thermometer with microswitch
Dial thermometers with microswitch are universally-applicable devices with actual value display for temperature measurement, control, and monitoring. The devices have a temperature controller with actual value display and are manufactured using high-grade stainless steel.
 |
 |
 |
|
Independent
control |
Low mounting
depth |
High degree of
process reliability |
For temperature control
Contact dial thermometers are universally-applicable devices with actual value display for temperature measurement, control, and monitoring. The slow-action contact/magnetic snap contact closes or opens an electrical circuit depending on the movement direction at the set limit values.
 |
|
|
|
Capillary measuring
system |
Without auxiliary
energy |
Accuracy class
1 |
