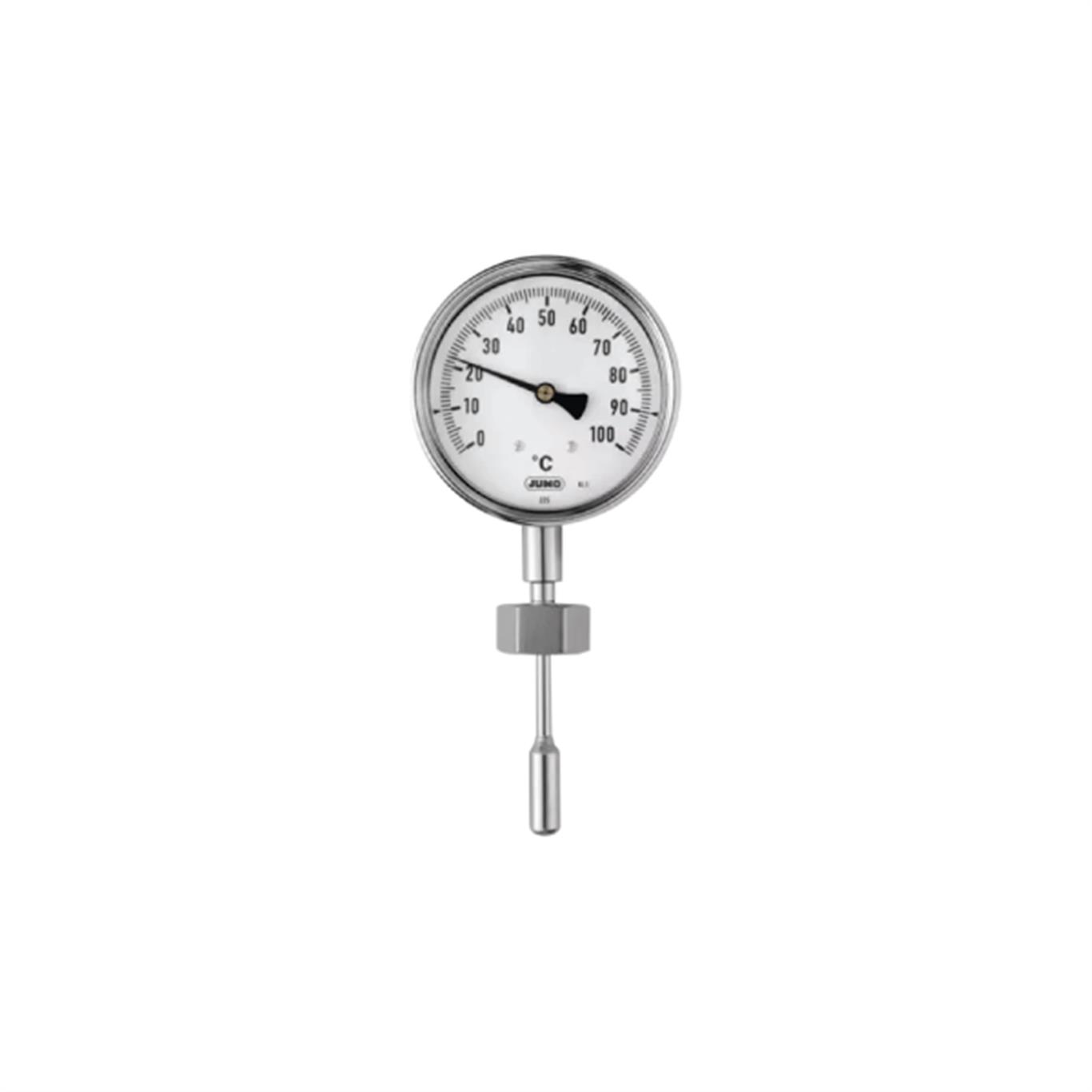

Dial thermometer 608225
For local monitoring
Dial thermometers are universal devices used for temperature measurement and monitoring. The overall system is extremely warp resistant due to the direct connection of the indicator to the measuring system. Oscillations are transferred to the indicator only to a limited degree.
 |
 |
 |
|
Without auxiliary
energy |
Capillary measuring
system |
Accuracy class
1 |
GENERAL TECHNICAL DATA |
| Features | Temperature controller in flush-mounted or surface-mounted housing; ambient temperature compensation as a standard feature |
| Accuracy class according to DIN EN 13190 | Class 1 |
| Capillary/rigid thermowell | Capillary length up to 10,000 mm possible |
| Probe outlet | Vertical or horizontal |
| Case size | 100 mm, 160 mm |
| Approval | ATEX |
| Areas of application | Mechanical engineering, process technology, gearbox construction, chemical industry, plant engineering |
| Measuring range | -40 to +450 °C |
| Display range | -40 to +500 °C |
Industry version
The measuring principle of the thermometer is based on a bimetal coil in a stainless steel or brass protection tube. If the temperature increases or falls, it turns and has a direct effect on the indicator via an axis. Versions of the 608002 products comply with DIN EN 13190, class 1.
 |
|
|
|
Impervious to
ambient temperature |
Accuracy class 1
|
Without auxiliary
energy |
Dial thermometer with microswitch
Dial thermometers with microswitch are universally-applicable devices with actual value display for temperature measurement, control, and monitoring. The devices have a temperature controller with actual value display and are manufactured using high-grade stainless steel.
 |
 |
 |
|
Independent
control |
Low mounting
depth |
High degree of
process reliability |
For temperature control
Contact dial thermometers are universally-applicable devices with actual value display for temperature measurement, control, and monitoring. The slow-action contact/magnetic snap contact closes or opens an electrical circuit depending on the movement direction at the set limit values.
|
|
|
|
Capillary measuring
system |
Without auxiliary
energy |
Accuracy class
1 |
