ecom-DP
EXTREMELY configurable.

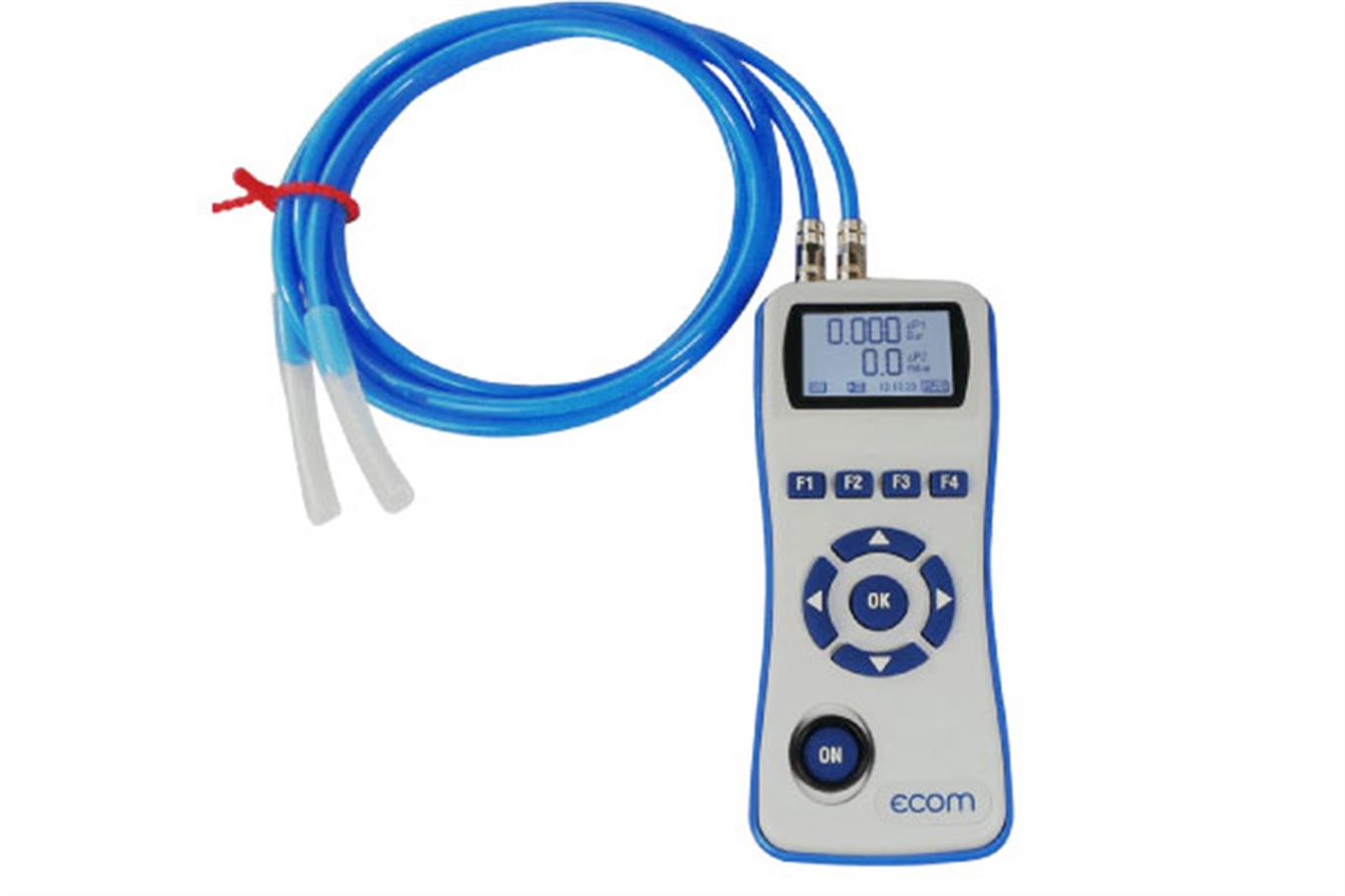

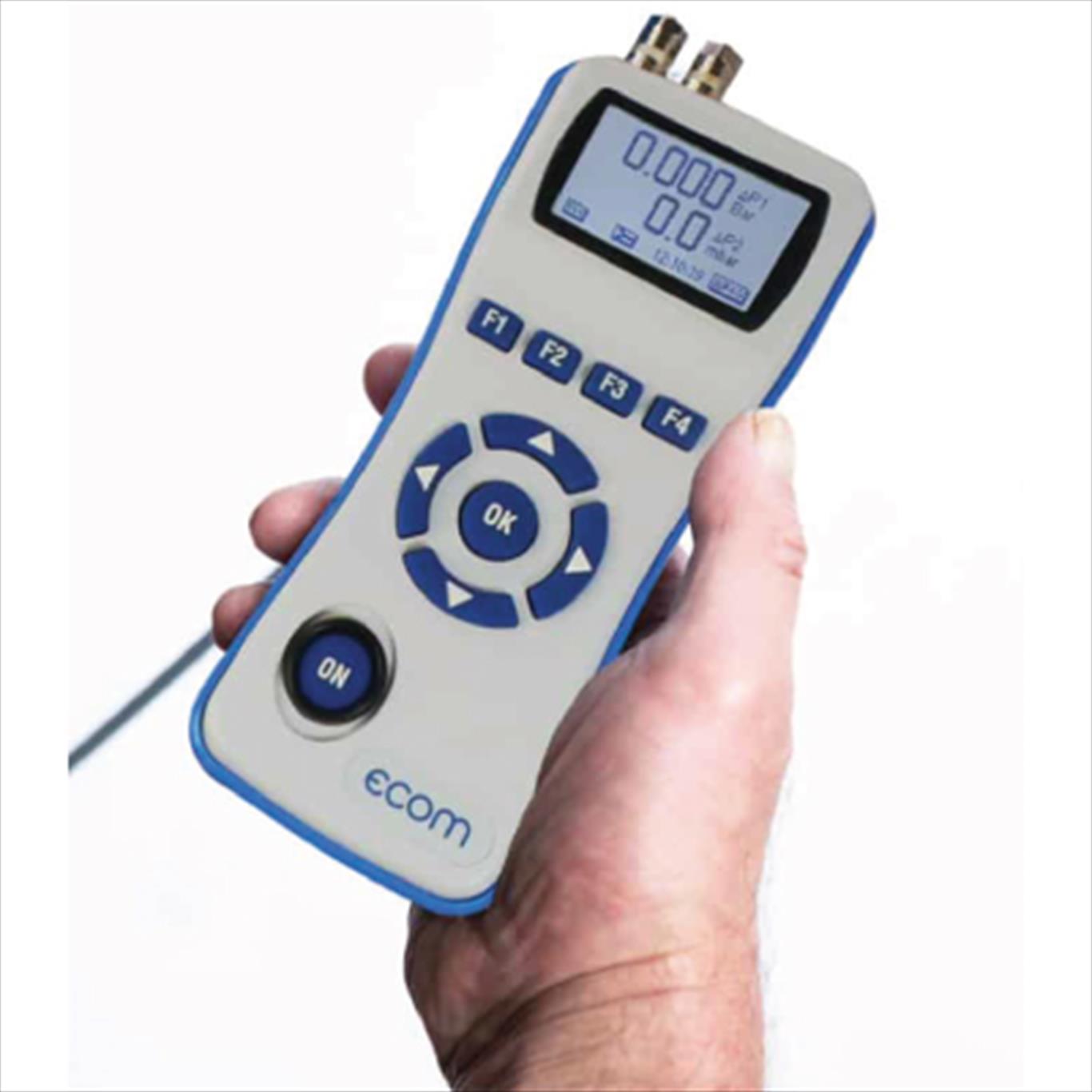

ecom-DP
-
For various applications of pressure measurements
-
Two sensors and measurement ranges for parallel or separate measurements
-
Optional thermal printer for measurement data printout
-
Min./max. function (recording of lowest respectively
highest measurement value) -
Freeze function (manual temporary storage of a specific
measurement value) -
Adjustable damping
-
Optional measurement routines (checks acc. to TRGI, tightness
checks at gas fittings, etc.) -
Changeable parameters for single checks
-
Data recording and data logging
- Measuring instrument with backlit graphics display
- Power supply: 3 one-way batteries AA 1.5 V (Mignon)
- Dimensions (L x W x H): approx. 170 x 75 x 35 mm
- Weight: approx. 300 g (with batteries)
- Free downloadable PC software "ecom-DP Logger"
For Various Pressure Measurements within the Available Measurement Ranges

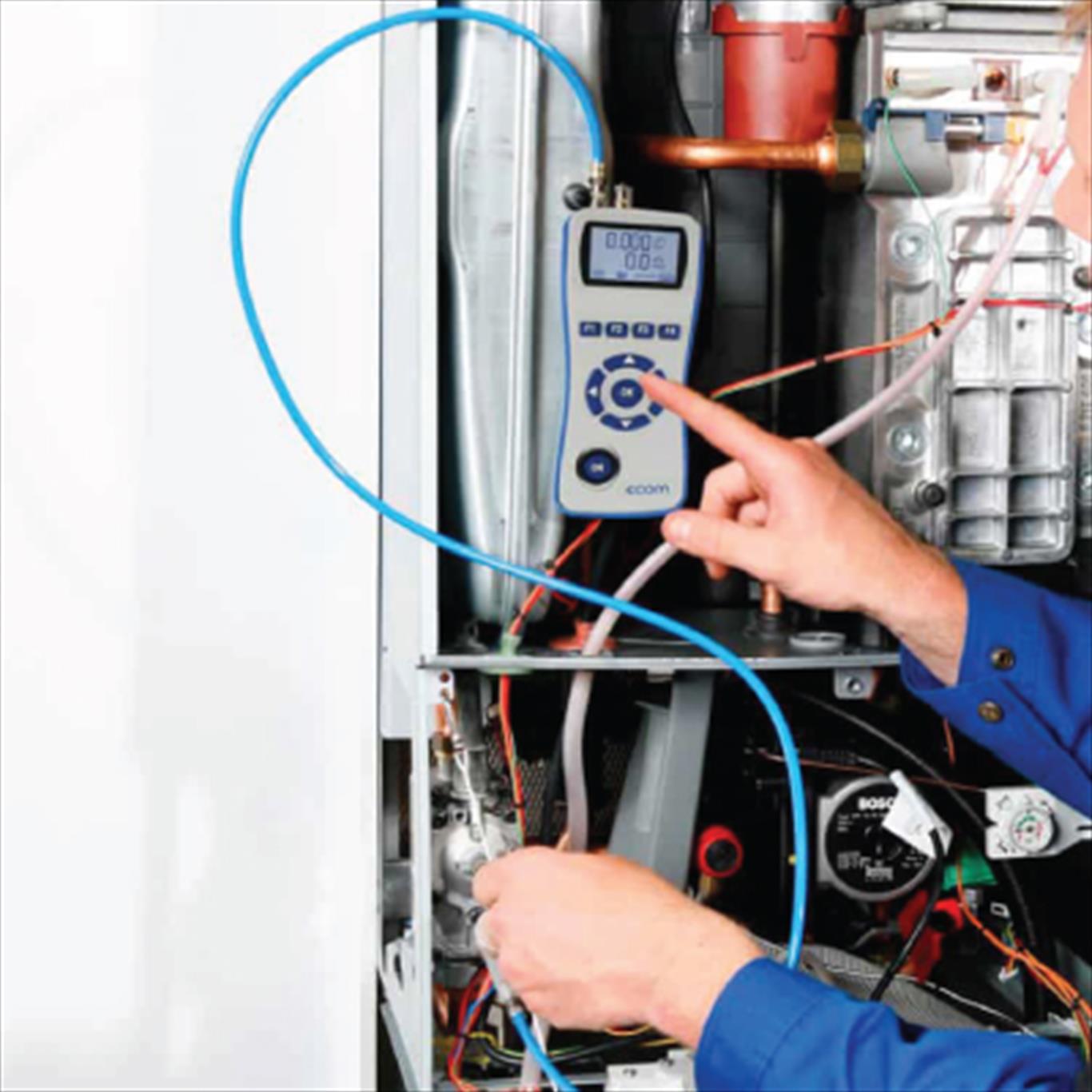

- Differential pressure measurements at gas heatings/gas burners (connection pressure, nozzle pressure, plant pressure and idle pressure)
- Further differential pressure measurements and pressure checks
Testing according to UKCA approved
DIN EN 50379-2 and
1 st. BlmSchV.
- Parallel temperature measurement (instead of second pressure sensor)
- Pressure measurements according to TRGI (on request)
- Tightness check at gas fittings of gas heatings/gas burners (on request)
- Thermal printer (IR)
- Transport case made out of plastics (various alternatives – according to delivery)
- Tubing set - for operating pressures up to 1 bar (2 hoses - 4 m each incl. quick- and screw couplings)
| Range |
Resolution [hPa] |
Accuracy |
|---|---|---|
| 0-1500 hPa | 0,1 hPa | < 3% of meas. value |
| 0-70 hPa | 0,01 hPa | < 3% of meas. value |
EXTREMELY functional.
ecom-UNO
Pressure Measurement in Pocket Size
-
Fits in every shirt pocket – small and compact
-
Precise and fast pressure measurement at gas heatings and burners
-
Magnet fixation at the back side
-
Four changeable units
-
Batteries and protective pouch included in delivery scope
EXTREMELY functional.
ecom-DP3
Pressure-Meter
-
Fully automatic pressure checks
-
Internal pump for pressure build-up up to 1.5 bar
-
Integral thermal quick-printer
-
Fully automatic leakage rate determination within a few minutes
(gas sampling not required) -
Suitability check in no time
-
Safe and fully automatic check routines
-
For gas (TRGI), liquid gas (TRF), water (TRWI) and sewage pipes checks
-
For further measurements up to 40 bar (with external sensors)
-
PC software included in delivery scope
EXTREMELY customized.
ecom-DP Profi Set
-
For pressure measurements at gas burners
-
For tightness check of gas fittings (± 100 to 150 mbar)
-
Check of gas connection pressure
-
Measurement of gas adjustment pressure
-
Adjustement of gas pressure controller
-
Adjustment of air pressure controller
