ecom-DP3 - EXTREMELY functional

Fully automatic pressure gauge

Introduction Specification/ Scope of delivery Options Accessories

EXTREMELY functional.

ecom-DP3

Fully automatic pressure gauge

Internal pump for pressure build-up up to 1.5 bar
Integrated thermal printer
Fully automatic leak rate determination in just a few minutes (gas sampling not required)
Usability testing in no time
Safe, fully automated test routines
For gas (TRGI), liquid gas (TRF), water (TRWI) and sewage pipe tests
For further measurements up to 40 bar (with external sensors)
PC software included

precise

efficient

roust

safe

complete

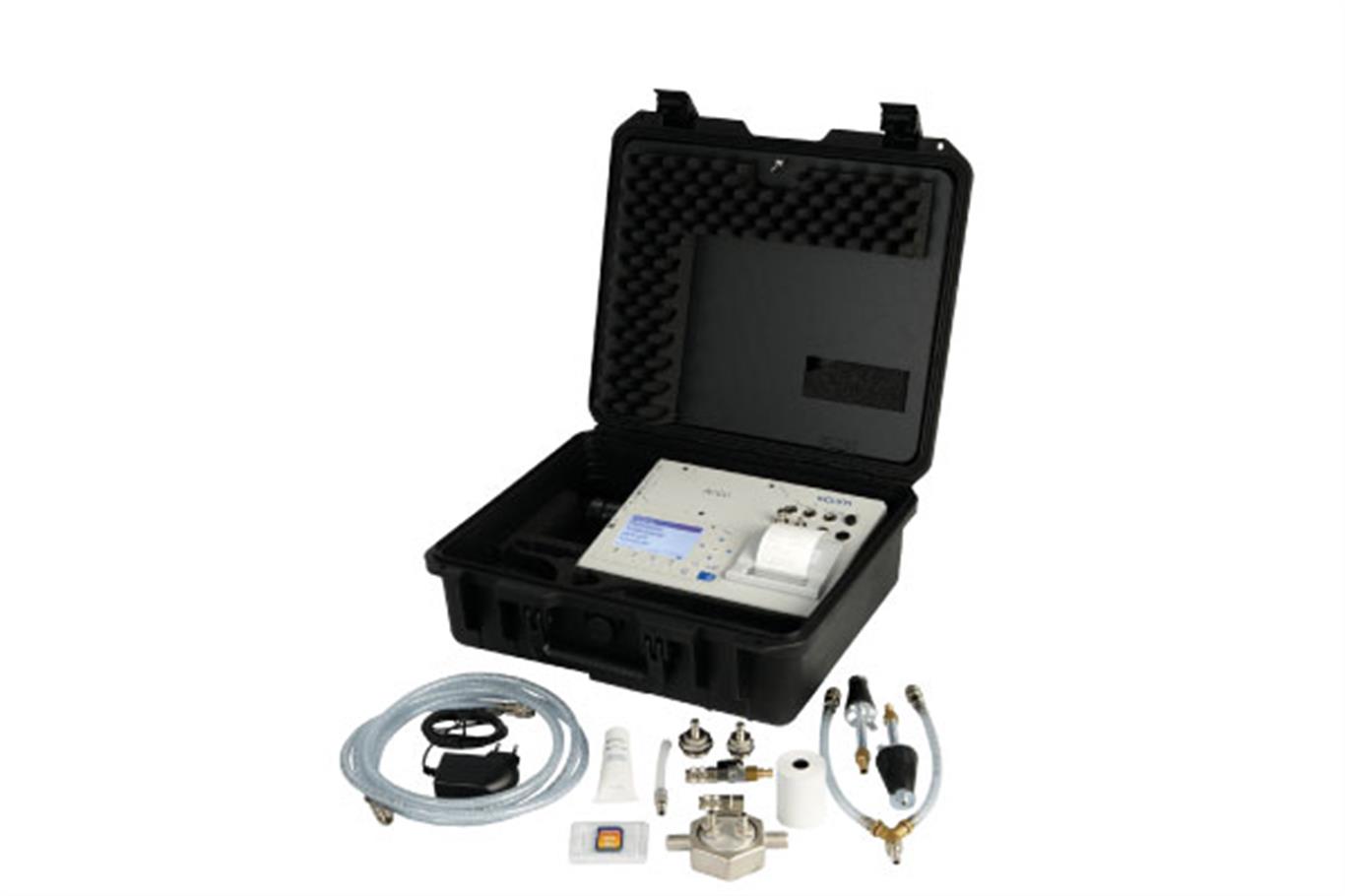

Measuring device in an ultra-light and robust aluminum housing
Temperature monitoring (0 - 100 °C at 0.1 °C resolution) via internal thermocouple
integrated thermal printer for the documentation of safety-relevant tests (including document-safe printer paper and replacement roll)
high-quality lithium-ion battery
Data storage on SD card (for easy exchange with the PC)
Hard-shell transport case made of sturdy plastic
PC software on USB stick

Dimensions

(W x H x D): 430 x 170 x 380 mm

Weight

approx. 8 kg (complete with accessories in the measuring case)

Accessories included:

Silicone hose (100 mm) with quick coupling for connection to the measuring nozzle
hose (2.8 m long) and quick couplings
Y-hose adapter
two conical test plugs (1/2" - 3/4" // 3/4" - 1 1/4")
T-piece for pressure relief valve with quick coupling
plus two high-pressure test plugs (3/8" to 1/2" // 3/8" to 3/4") also with quick coupling
shut-off valve, mini ball valve and quick coupling
single-pipe meter cap
sealing plug and quick coupling

to carry out the following measurements

load test according to TRGI 2018
leak test according to TRGI 2018
fully automatic leak rate determination without feed device
Examination of:
- LPG pipelines according to TRF
- Drinking water systems according to DIN EN 806-4 (with external pressure sensor*)
- Heating systems according to DIN 18380 (with external pressure sensor*)
- Wastewater systems according to DIN 1610 (with sealing bladder set*)
Heating check according to DIN EN 15378*
4-Pa test*
freely specifiable pressure measurements
differential temperature (with appropriate temperature sensors*)

Heating check according to DIN EN 15378*
4-Pa test*
parallel pressure measurement possible (1500 hPa and one of the above measuring ranges)

various temperature sensors (contact sensors, surface sensors, ...) for differential temperature measurement (e.g. flow and return temperatures)
high pressure sensor 0 to 20 bar
high-pressure sensor 0 to 40 bar
ecom-LSG leak detector for detecting flammable gases
