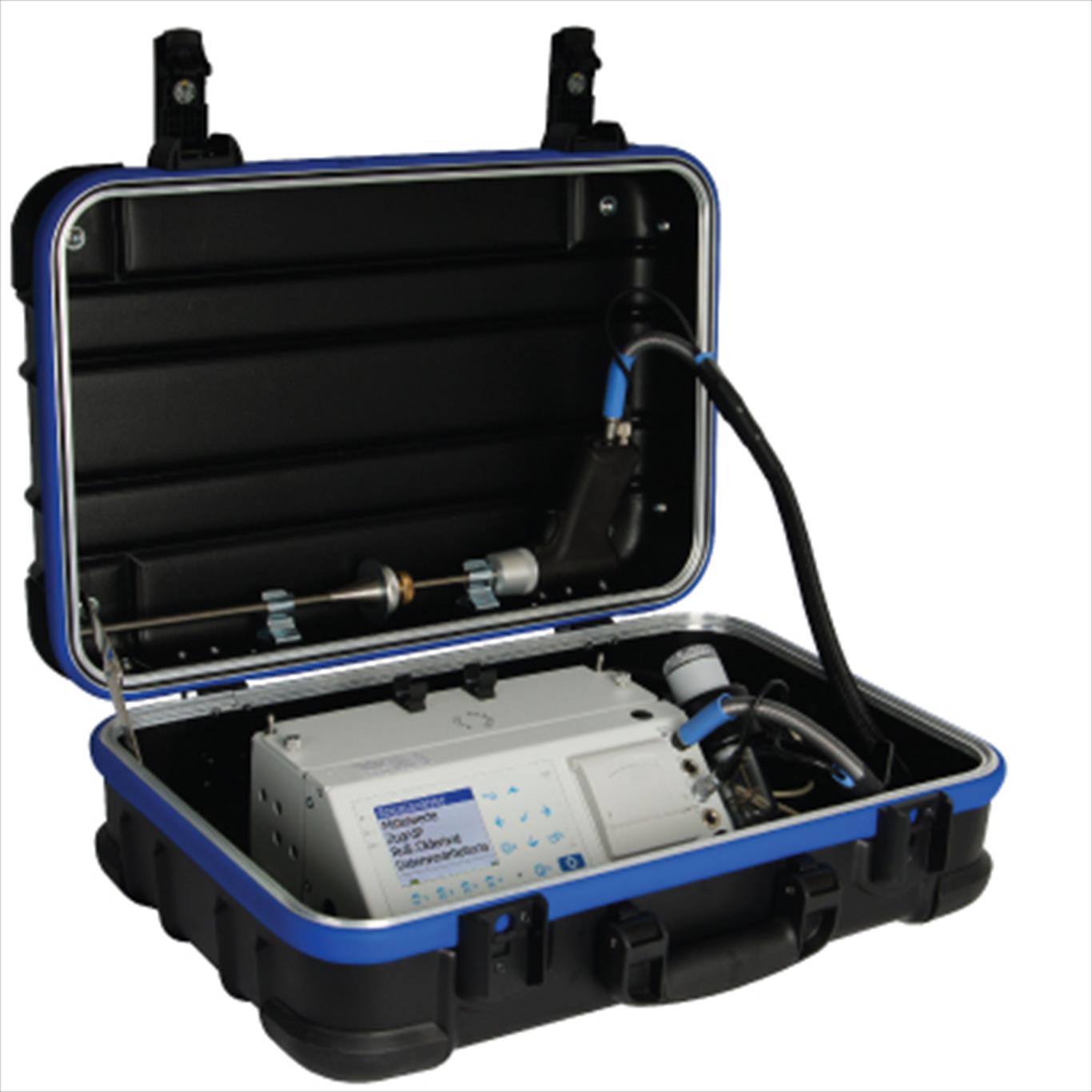

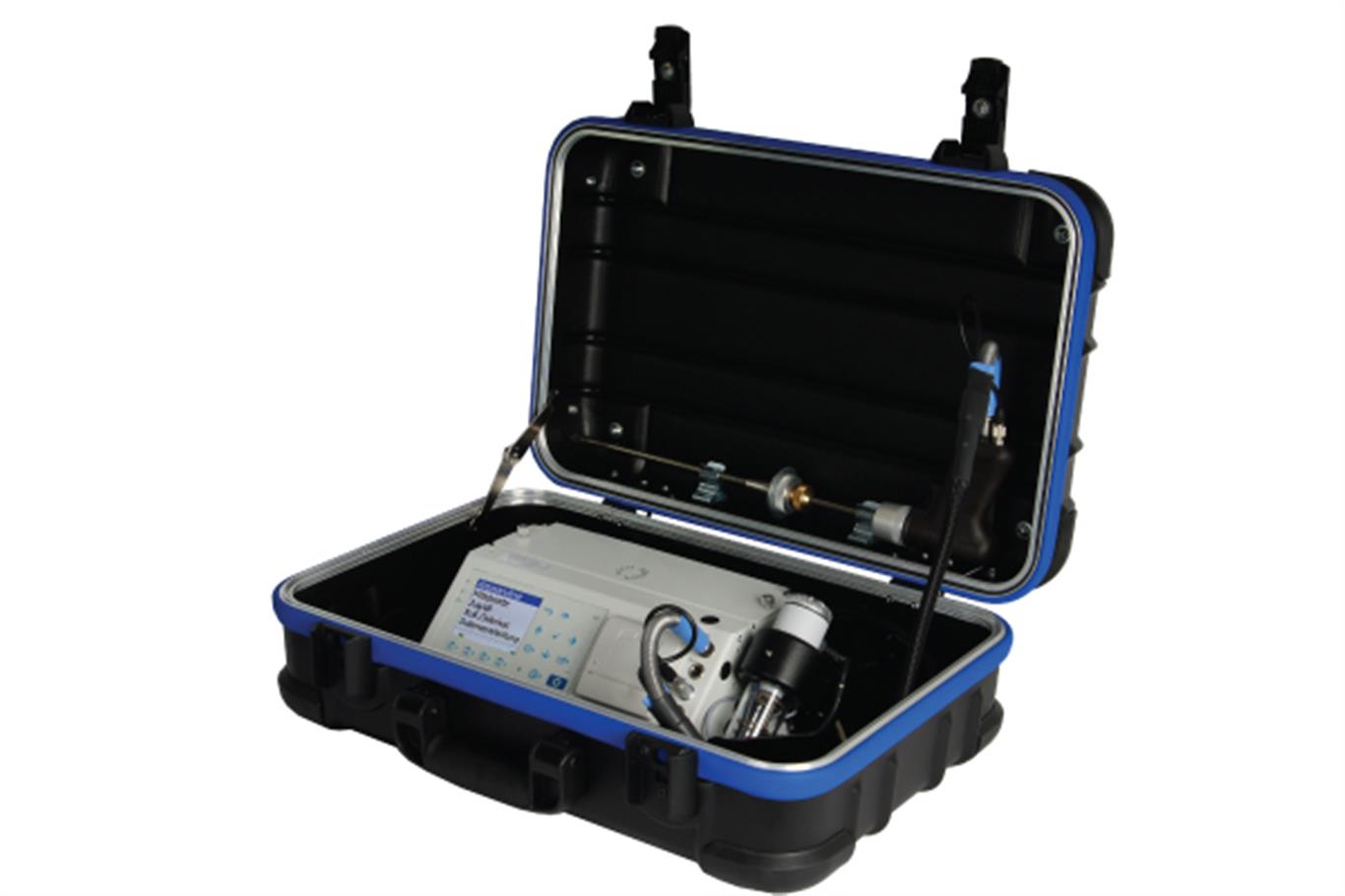

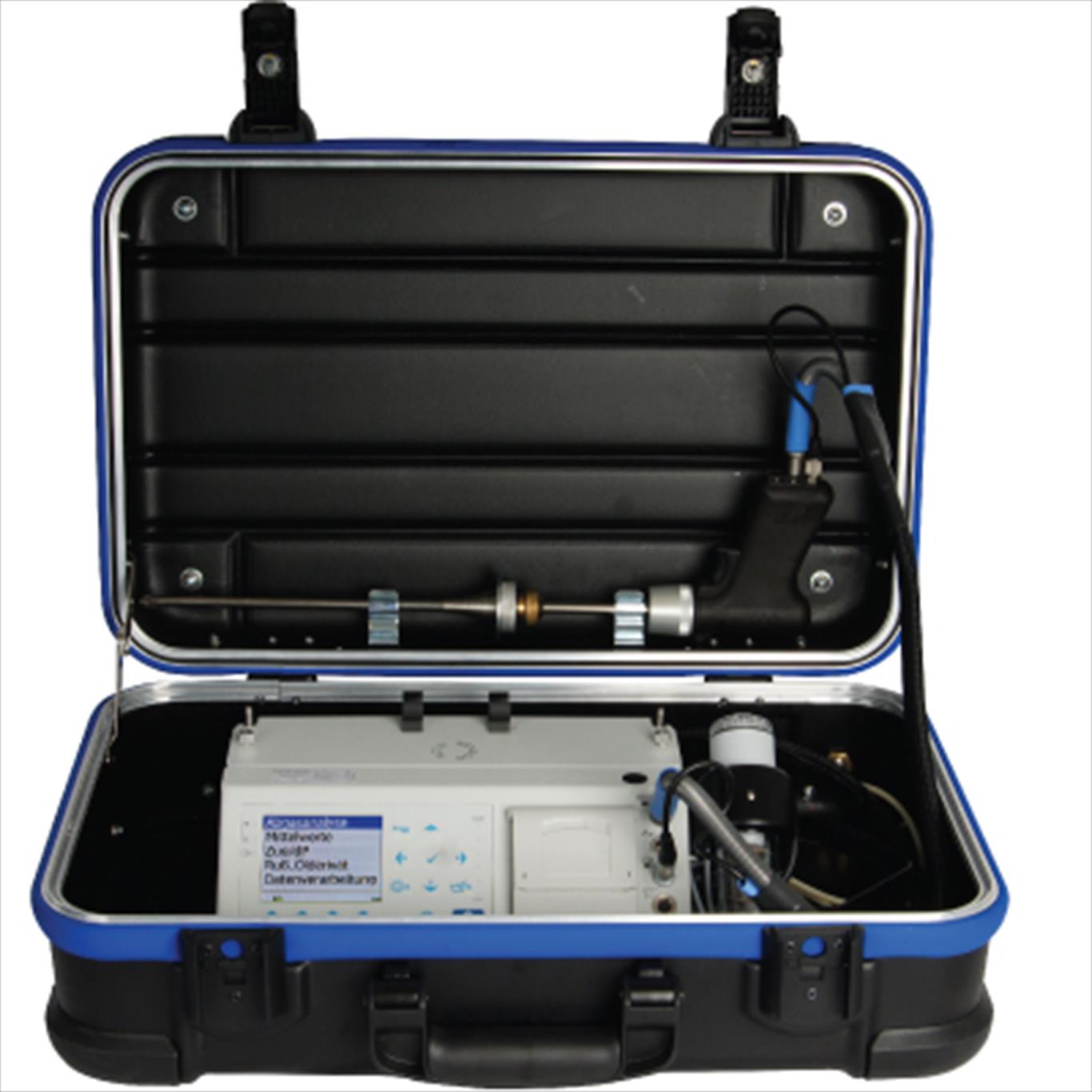

ecom-EN3-F - EXTREMELY operational

• with O₂ /CO (H₂ comp.)/NO/NO₂  long-life sensors
• automatic CO shutdown and flushing (but without interrupting the measurement)
• Sample gas cooler including electronic condensate monitoring and automatic condensate drainage
• with high-quality sampling probe including thermocouple, cone and high-quality 3-chamber hose
• low-maintenance high-performance measuring gas pump (2.6 liters/minute)
• T-room sensor or T-room stick (depending on your requirements or equipment variant)
• integrated thermal printer
• TFT color display
• LED flow display
• powerful lithium-ion battery
• wireless data transfer (e.g. to a smartphone or tablet)
• ultra-light aluminum housing in a spacious hard-shell carrying case
• Manual, calibration certificate - created after 100% sensor calibration in the climate chamber
• ecom service package (including free PC software)

Dimensions

(W x H x D): approx. 550 x 380 x 185 mm

Weight

approx. 8.5 kg (complete in the measuring case)

Testing according to DIN EN 50379-2 and 1. BImSchV.	UKCA approved

Data Sheet

ecom-EN3-F Flyer

Biogas option package for raw gas analysis

(Extension for ENGINE variant)

• CH₄ (NDIR) sensor, 0-100 %
• H₂ S (EC) sensor, 0-5000 ppm
• Viton extraction hose, 3 m

Biogas brochure

• NO _x  calculation via NO measurement value or NO _x  measurement possible
• Integrated soot measurement via heated sampling probe
• higher resolution and accuracy in the NO _Low  (0 - 300 ppm) or NO _2-Low  (0 - 100 ppm) range
• additional sensor options (SO₂  , H₂ S, H ₂  , CO%)
• CO₂ -direct measurement and C_x H_y - measurement (calibrated to methane) with infrared measurement (NDIR measurement method)
• ecom remote control for the exhaust gas analyzer for reading, printing, saving and manually switching off the CO sensor
• ecomFORT - Devices FULL Service

• various filter options – including for enhanced solid fuel measurement
• various temperature sensors (contact sensors, surface sensors, ...) for differential temperature measurement (e.g. flow and return temperatures)
• additional probe attachments (high temperature) or heat protection shield
