ecom-EN3 Tech - EXTREMELY accurate

High-tech measuring device for emissions measurements in a backpack case

Introduction Technical Equipment Options

EXTREMELY accurate.

ecom-EN3 Tech

High-tech measuring device for emissions measurements in a backpack case

Preheating function ensures immediate system functionality at the site; the overall operating time is significantly reduced
Cross-sensitivity-free emission measurements even at very low NO _x/ SO₂ concentrations thanks to UV technology
Immediate display update of measured values in case of fluctuating concentrations thanks to high-performance gas sampling pump

NO2

SO2

precise

efficient

roust

safe

broad reach

lossless

with O₂/ CO (H₂ comp.) longlife sensors and UV module for NO / NO₂ / SO₂

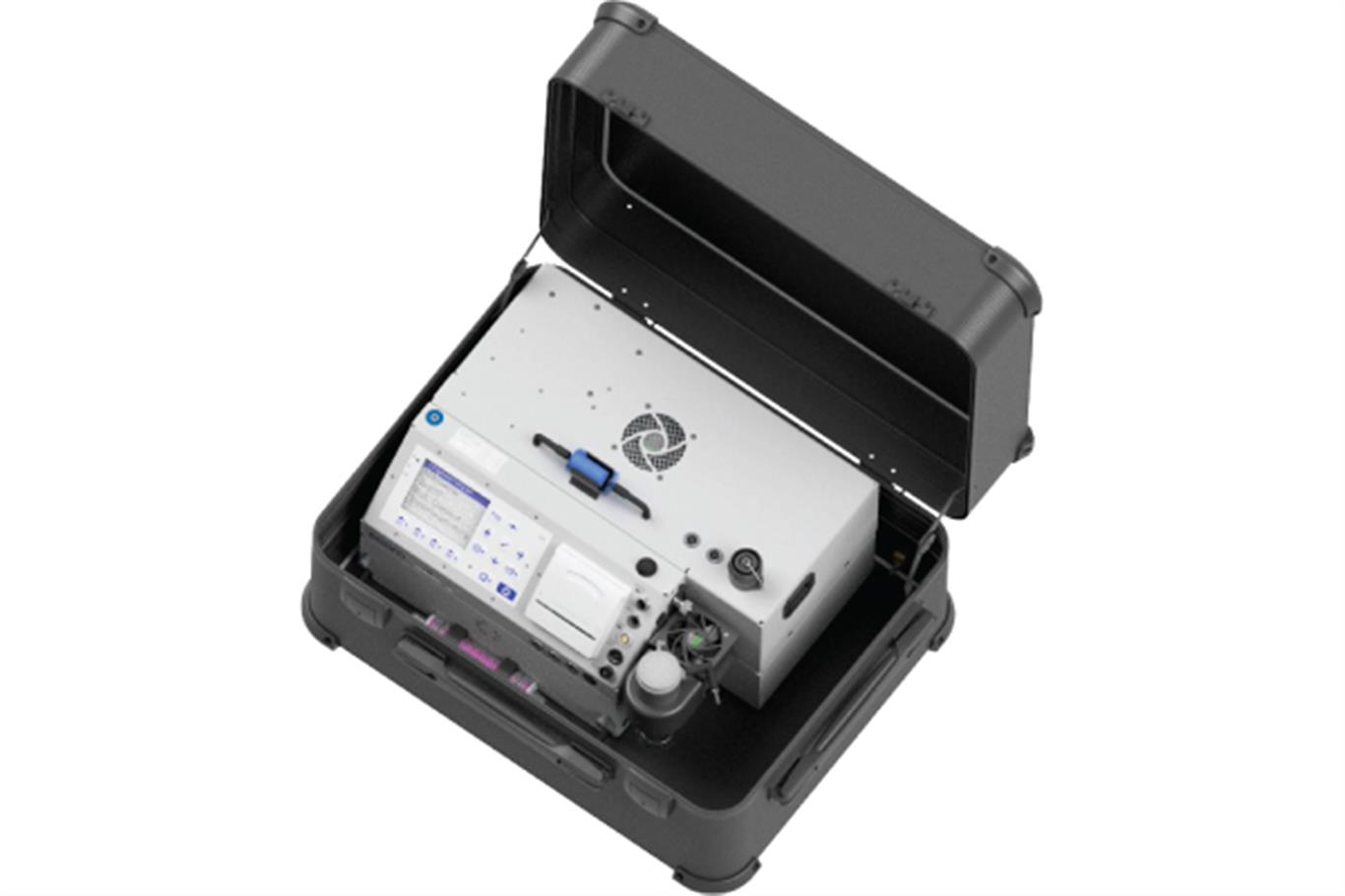

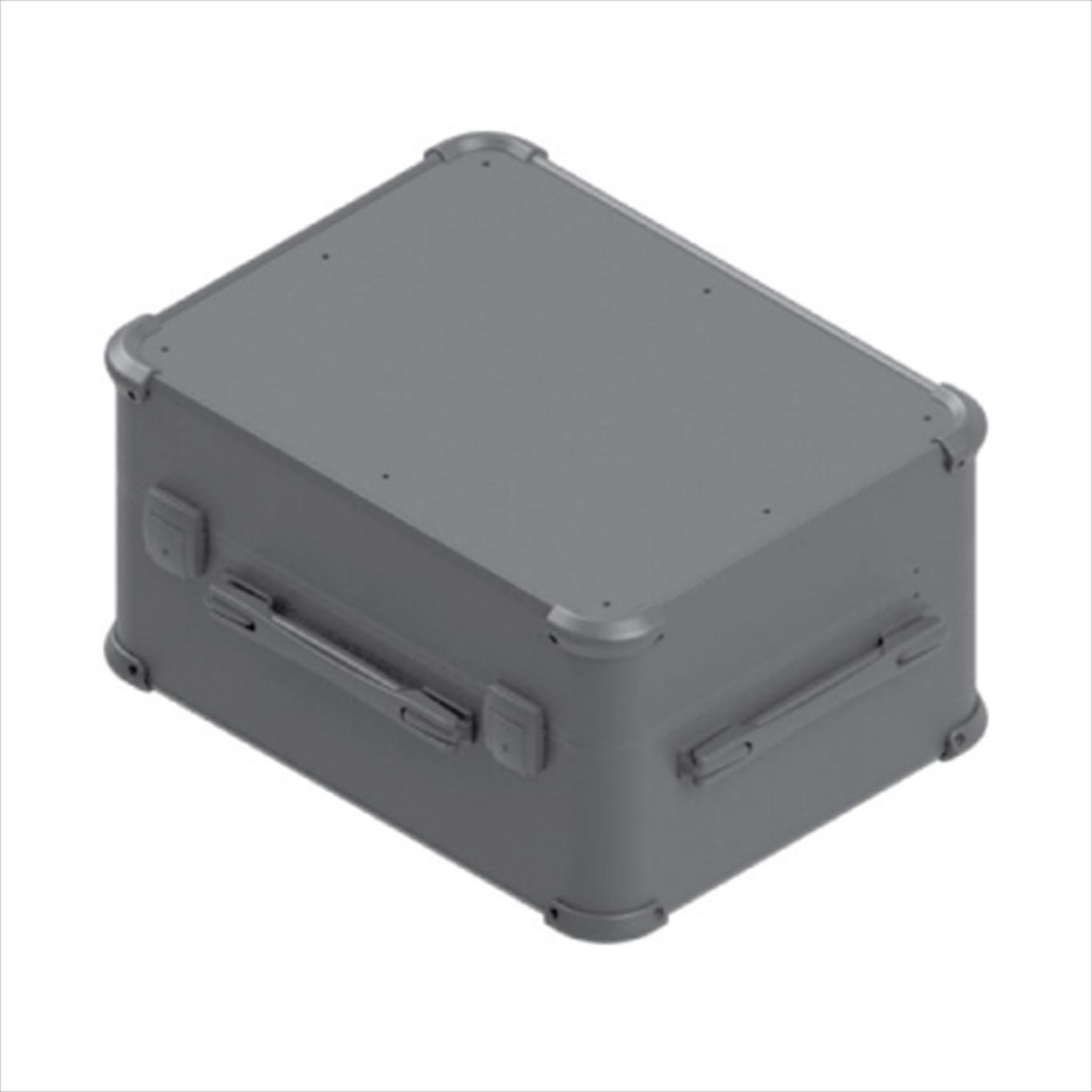

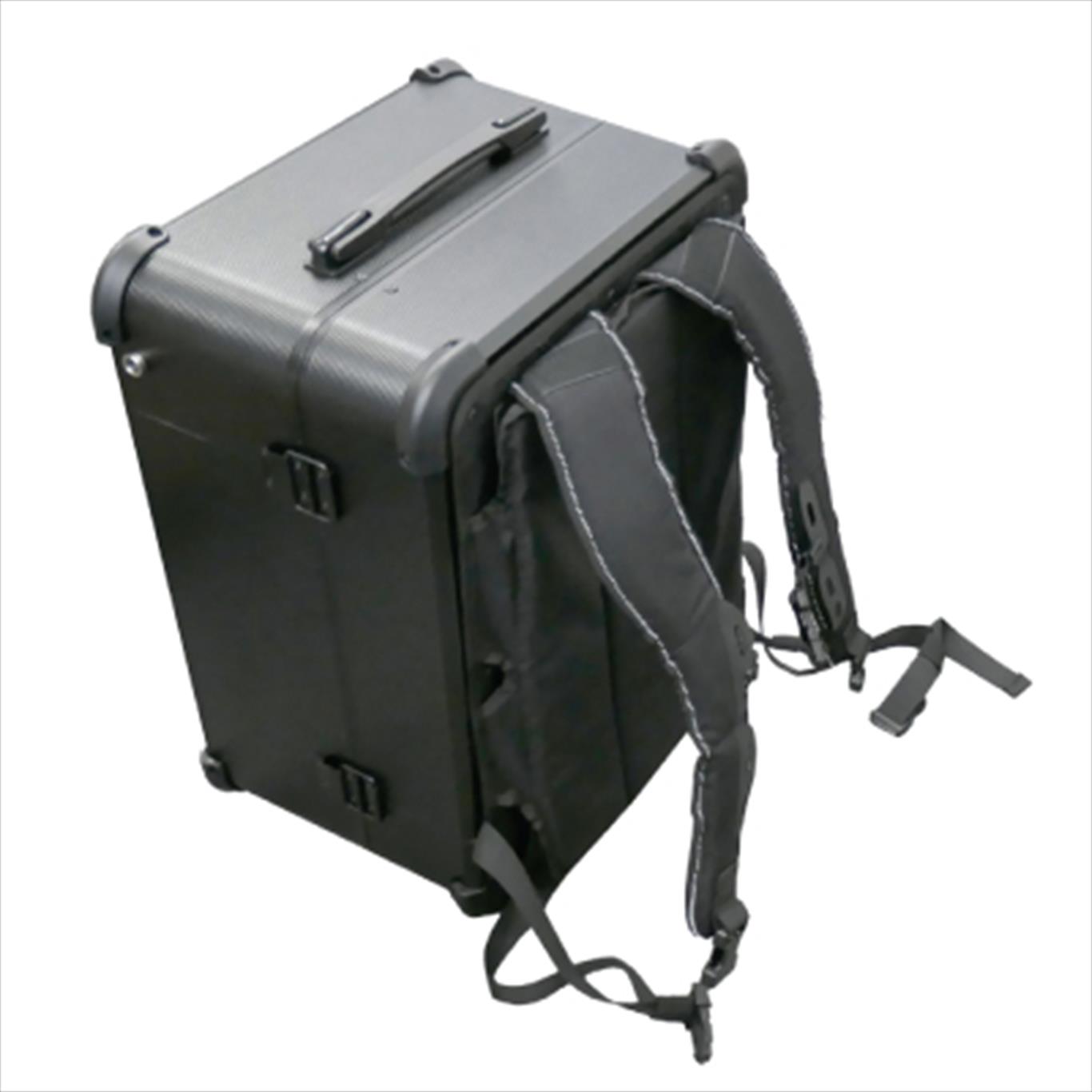

made of ultra-light aluminum in a backpack case with practical shoulder straps
CO overload protection and purging without interrupting the measurement of other parameters
Sample gas cooler including electronically monitored condensate trap with automatic draining
powerful lithium-ion battery
low-maintenance high-performance measuring gas pump (2.2 liters/minute)
LED flow display
TFT color display and backlit membrane keyboard
integrated thermal printer
wireless data transfer (e.g. to a smartphone or tablet)
T-Space Stick
Charging cable
Calibration certificate - created after 100% - sensor calibration in the climate chamber
ecom service package (including free PC software)

Dimensions

(W x H x D): 500 x 320 x 390 mm

Weight

approx. 13 kg (in measuring case without removal system)

Heated sampling system consisting of heated hose and heated head with thermocouple (0-500 °C) with integrated hot gas filter for loss-free analysis of water-soluble NO ₂ / SO ₂ particles as well as dust particle filtration during long-term measurements.

Sampling system consisting of special hose with Teflon core for loss-free transport of water-soluble NO ₂/ SO ₂ particles and pistol grip probe with high-temperature attachment and thermocouple (0-1,100°C).
