ecom-J2KNpro INDUSTRY - EXTREMELY powerful

• with O₂ /CO (H₂ comp.)/NO/NO₂  long-life sensors
• automatic CO shutdown and flushing (but without interrupting the measurement)
• equipped for quasi-continuous measurement on systems (up to 48 hours) with programmable measurement intervals
• with stainless steel sample gas cooler for perfect, dry gas preparation
• electronic condensate monitoring and automatic condensate drainage
• Connection for a heated sampling system (accessory)
• Powerful lithium-ion battery
• wireless data transfer (e.g. to a smartphone or tablet)
• as well as integrated thermal printer
• Status display for displaying basic functions, settings and warning messages
• completely in a robust yet ultra-light aluminum housing
• T-room sensor or T-room stick (depending on your requirements or equipment variant)
• integrated soot measurement (included in standard delivery depending on probe equipment)

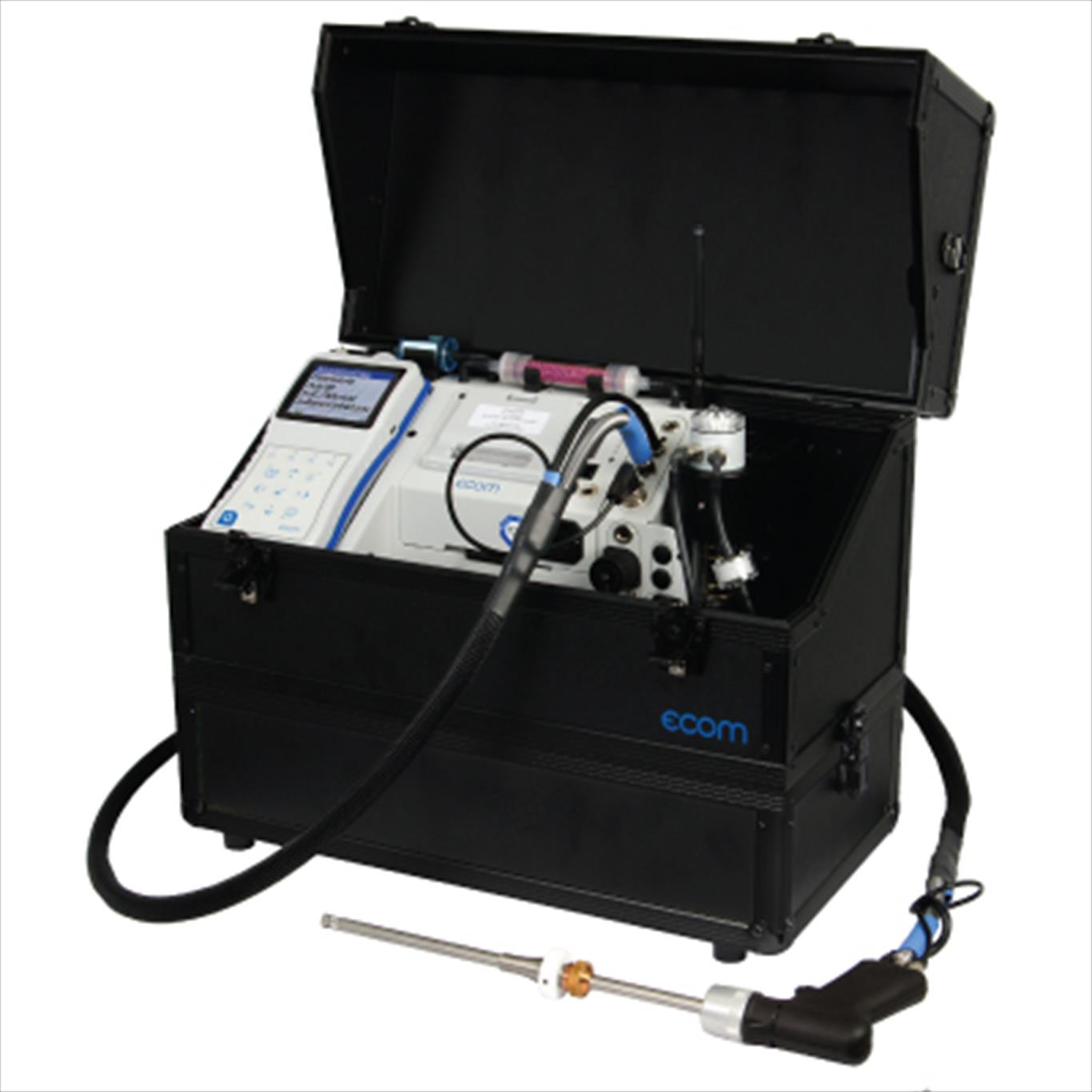

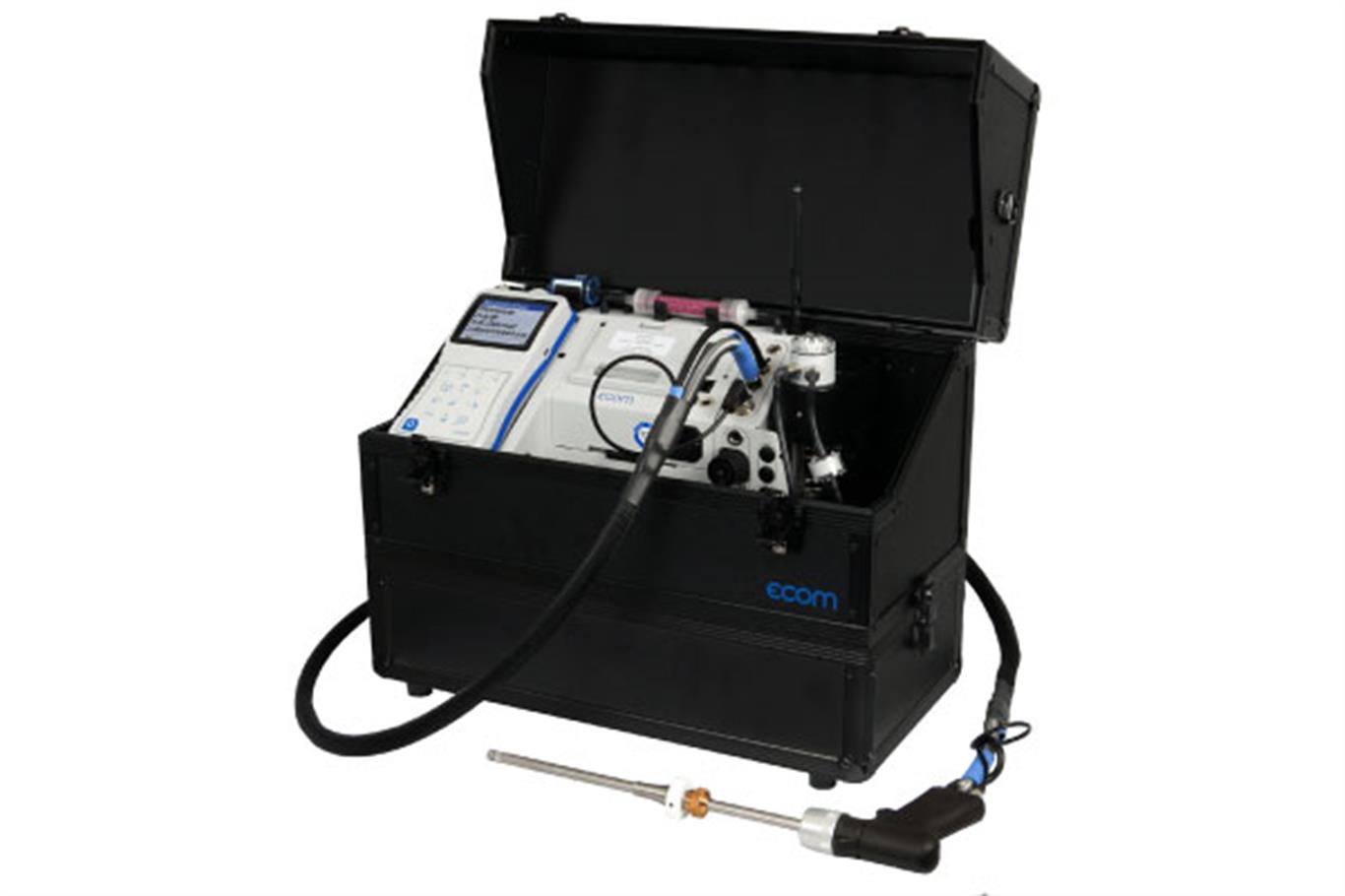

• in a spacious aluminum frame transport case with comfortable carrying strap
• Calibration certificate - created after 100% sensor calibration in the climate chamber
• ecom service package (including free PC software)

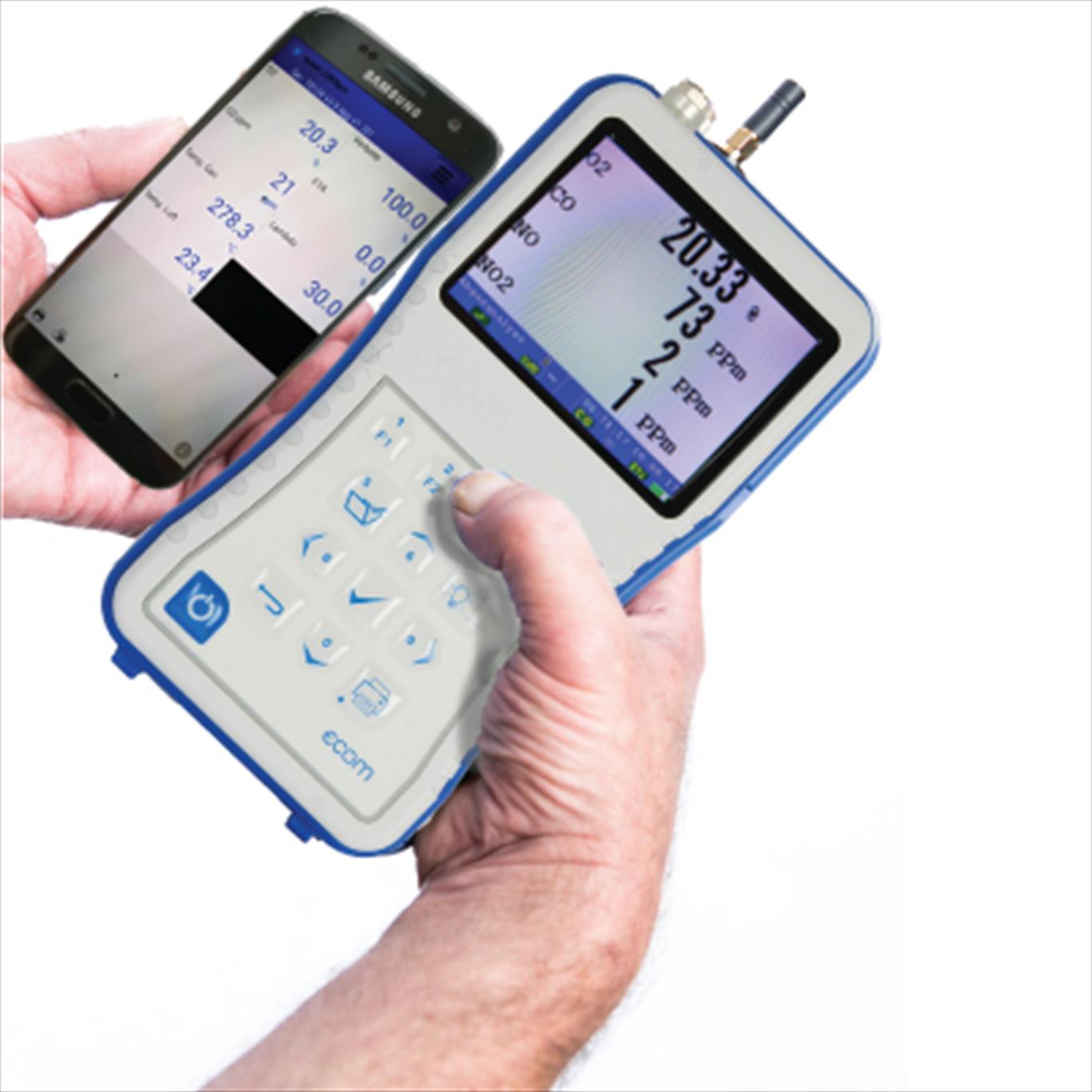

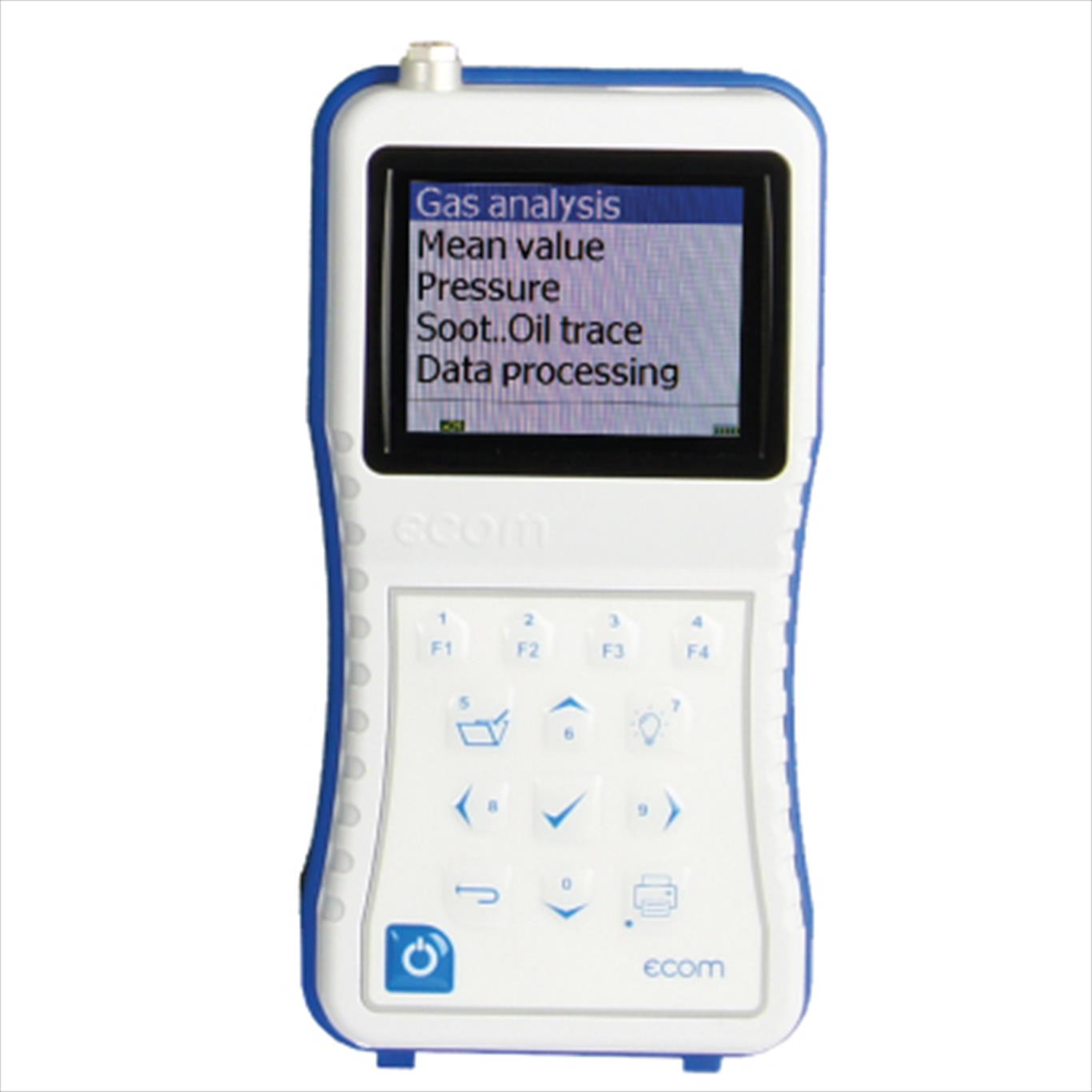

radio remote control

(included in every standard delivery)

• long range to bridge distances between the measuring point (exhaust gas opening) and setting (e.g. burner, control cabinet, etc.)
• incl. thermocouple input, mini USB port (data transfer to a laptop or PC), SD card slot
• backlit membrane keyboard and high-quality TFT color display
• Display, printing and storage of measurement data
• complete device operation (including manual CO shutdown, start and end of measurements, data processing, ...)
• In addition, stable data transmission via radio (greatest possible avoidance of interference, overcoming obstacles made of metal or concrete, automatic connection establishment, no abrupt connection interruption while retaining all measurement data as well as automatic establishment and restoration of the radio connection)

Dimensions

(W x H x D): 500 x 330 x 250 mm

Weight

approx. 14 kg (complete in the measuring case)

Testing according to DIN EN 50379-2 and 1. BImSchV.	UKCA approved

Data Sheet

Brochure

• NO _x  calculation via NO measurement value or NO _x  measurement possible
• additional sensor options (SO₂  , H₂ S, H ₂  , CO%)
• higher resolution and accuracy in the NO _Low  (0 - 300 ppm) or NO _2-Low  (0 - 100 ppm) range
• Infrared measurement (NDIR) of CO_x (direct measurement), CO _High  and C_x H_y  (calibrated to CH₄  – methane or C₃ H₈  – propane)
• C_x H_y - measurement via catalytic measuring method (pellistor)
• Stainless steel sample gas cooler for the loss-free sample gas preparation of water-soluble gases
• Measurement of the flow velocity in the exhaust gas
• ecomFORD- Devices FULL Service.

Accessories (including)

gas transport

• through NO_x  / SO_x - hose in different lengths
• heated hose in different lengths

sampling probe

• heated probe and probe pre-filter in different lengths
• Probe handle heated or unheated with various probe attachments (different lengths and temperature resistances)
• various other filter options – for example for enhanced solid fuel measurement
• Furthermore, various temperature sensors (contact sensors, surface sensors, ...) for differential temperature measurement (e.g. flow and return temperatures)
• heat shields
