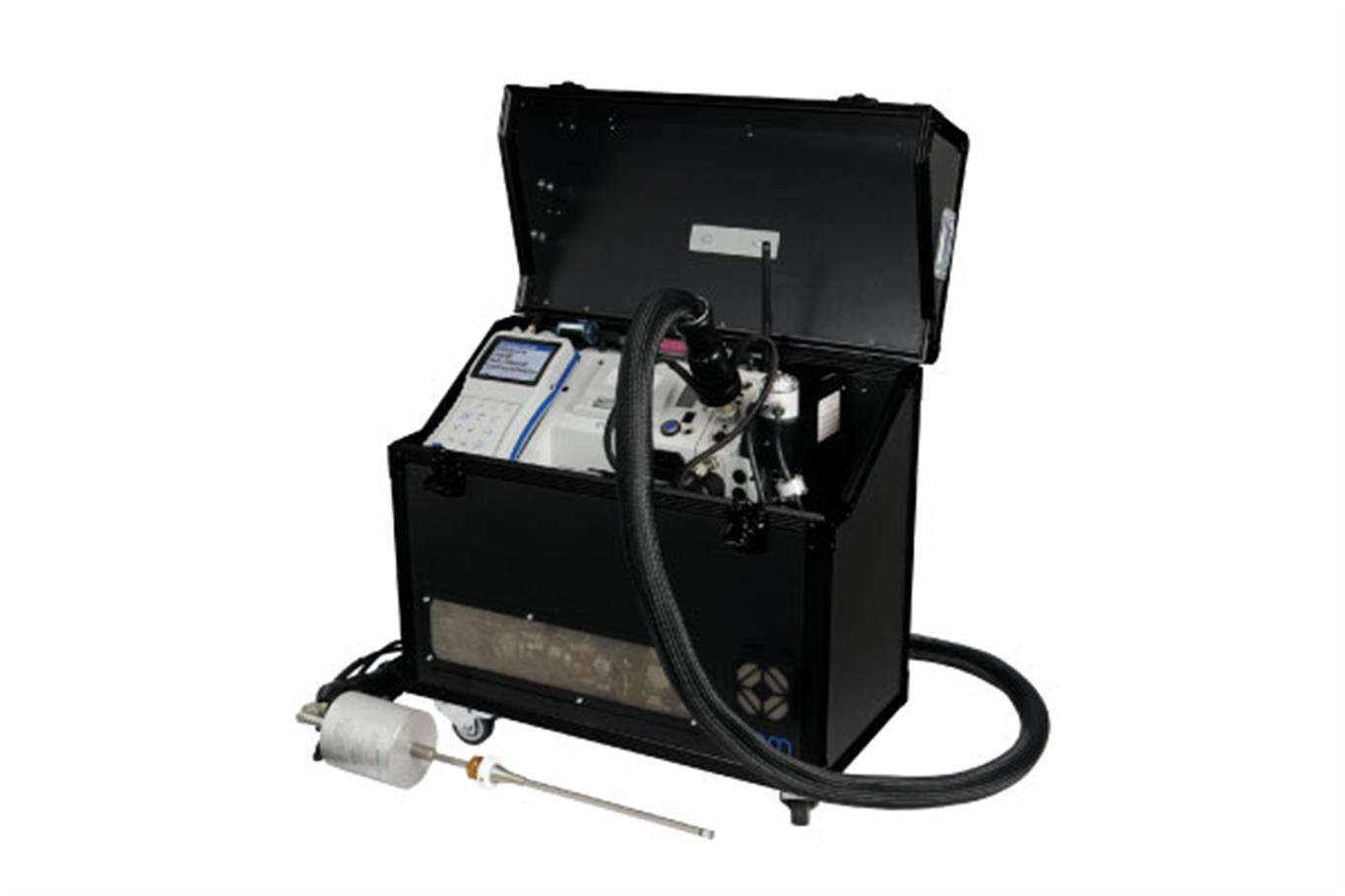

ecom-J2KNpro TECH - EXTREMELY technological. Fully equipped. Mobile

• for free configuration of the required gas sensors (the O₂ sensor is included in the standard scope of delivery)
• equipped for quasi-continuous measurement on systems with programmable measurement intervals
• integrated thermal printer
• Internal heating/ventilation cooling depending on the operating environment (0 - 40 °C ambient temperature)
• extensive data processing options (including wireless data transfer)
• Stainless steel sample gas cooler for perfect and dry gas preparation
• electronic condensate monitoring and automatic condensate drainage
• Status display for displaying basic functions, settings and warning messages
• completely in a robust yet ultra-light aluminum housing

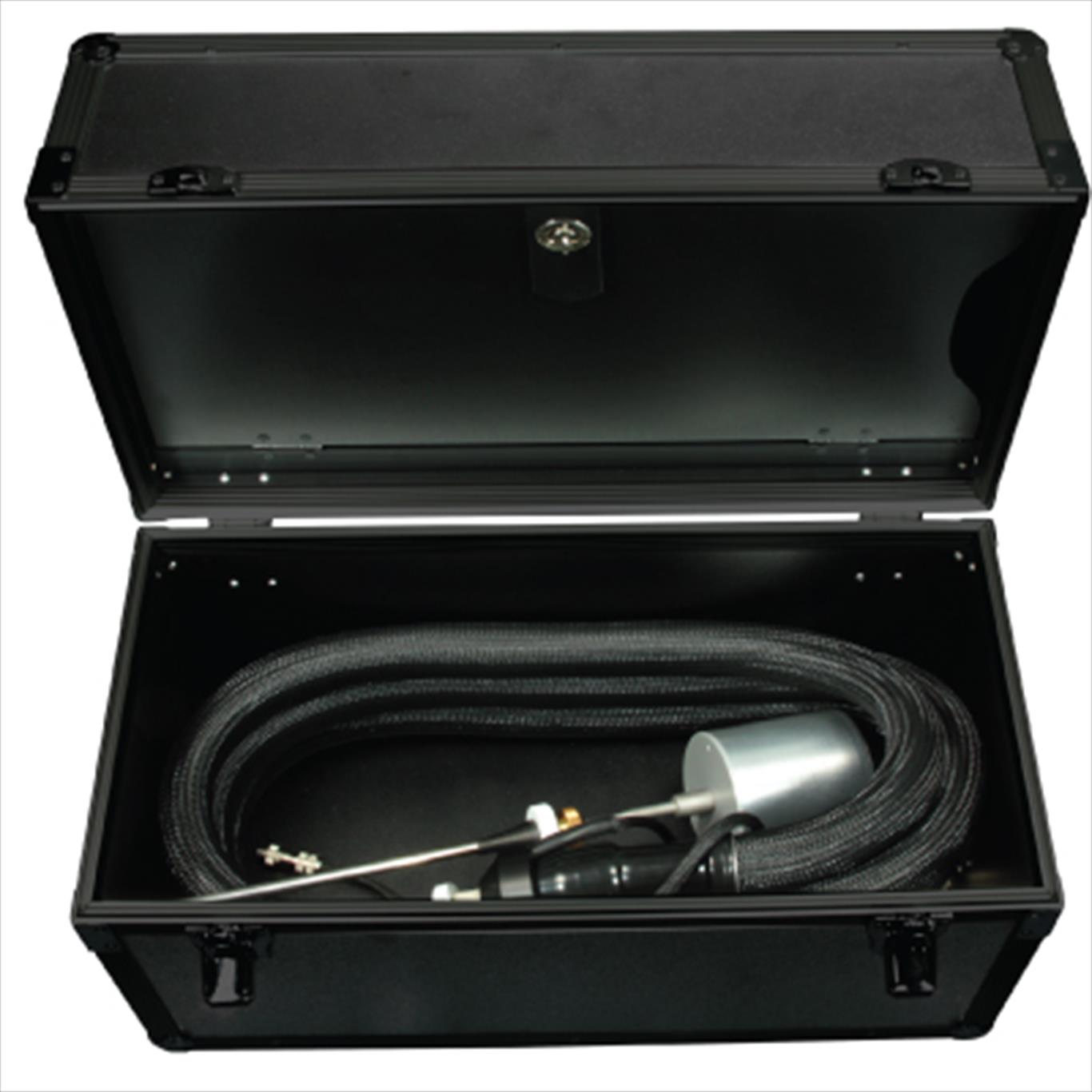

• T-room sensor/T-room stick (depending on your requirements or equipment variant) in a spacious aluminum frame transport case including trolley
• also includes all necessary filters, printer paper, etc. - all filters and consumables can be replaced by the user
• ecom service package (including free PC software)

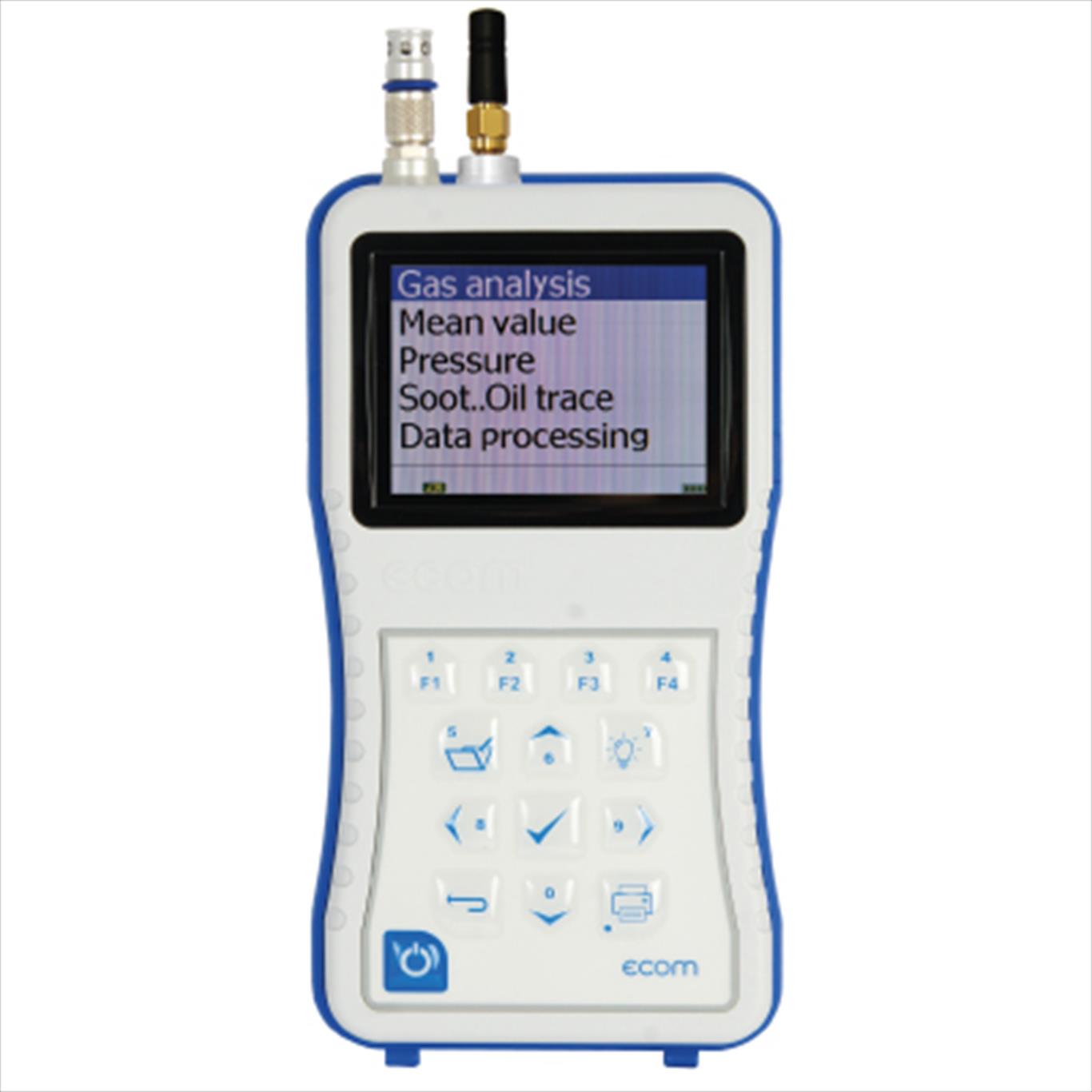

     Radio remote control
     (included in every standard delivery)

• long range to bridge distances between the measuring point (exhaust gas opening) and setting (e.g. burner, control cabinet, etc.)
• incl. thermocouple input, mini USB port (data transfer e.g. to a laptop or PC), SD card slot
• backlit membrane keyboard and high-quality TFT color display
• Display, printing and storage of measurement data
• complete device operation (including manual start and end of measurements, data processing, ...)
• stable data transmission via radio (greatest possible avoidance of interference, overcoming obstacles made of metal or concrete, automatic connection establishment, no abrupt connection interruption while retaining all measurement data as well as automatic establishment and restoration of the radio connection)

Dimensions

• (W x H x D): 500 x 650 x 250 mm (measuring device and heated system on trolley)

Weight

• approx. 28 kg (measuring device and heated system on trolley)

Data Sheet

Brochure

• NO_x calculation via electrochemical NO sensor or NO_x ;measurement (NO + NO₂ sensor) possible
• also other electrochemical sensor options (SO₂ , H₂ S, H₂ , CO%)
• higher resolution and accuracy in the electrochemical NO_Low (0 - 500 ppm) or NO_2Low (0 - 100 ppm) range
• Infrared measurement (NDIR) of CO₂ ;(direct measurement), CO_High , SO₂ and C_x H_y ;(calibrated to CH₄ ;- methane or C₃ H₄  propane)
• C _x H _y measurement via catalytic measuring method (pellistor)
• Photoacoustic spectroscopy (PAS): Highly accurate measurement method for determining NO₂
• Stainless steel sample gas cooler for the loss-free sample gas preparation of water-soluble gases
• Measurement of the flow velocity in the exhaust gas

Heated sampling system

• Heated sampling probe including PTFE filter and thermocouple for measuring the exhaust gas temperature
• Heated hose for loss-free gas transport (adjustable temperature)

• various additional filter options
• as well as various temperature sensors (contact sensors, surface sensors, ...) for differential temperature measurement (e.g. flow and return temperatures)
• heat shields
