ecom-ST - EXTREMELY operational

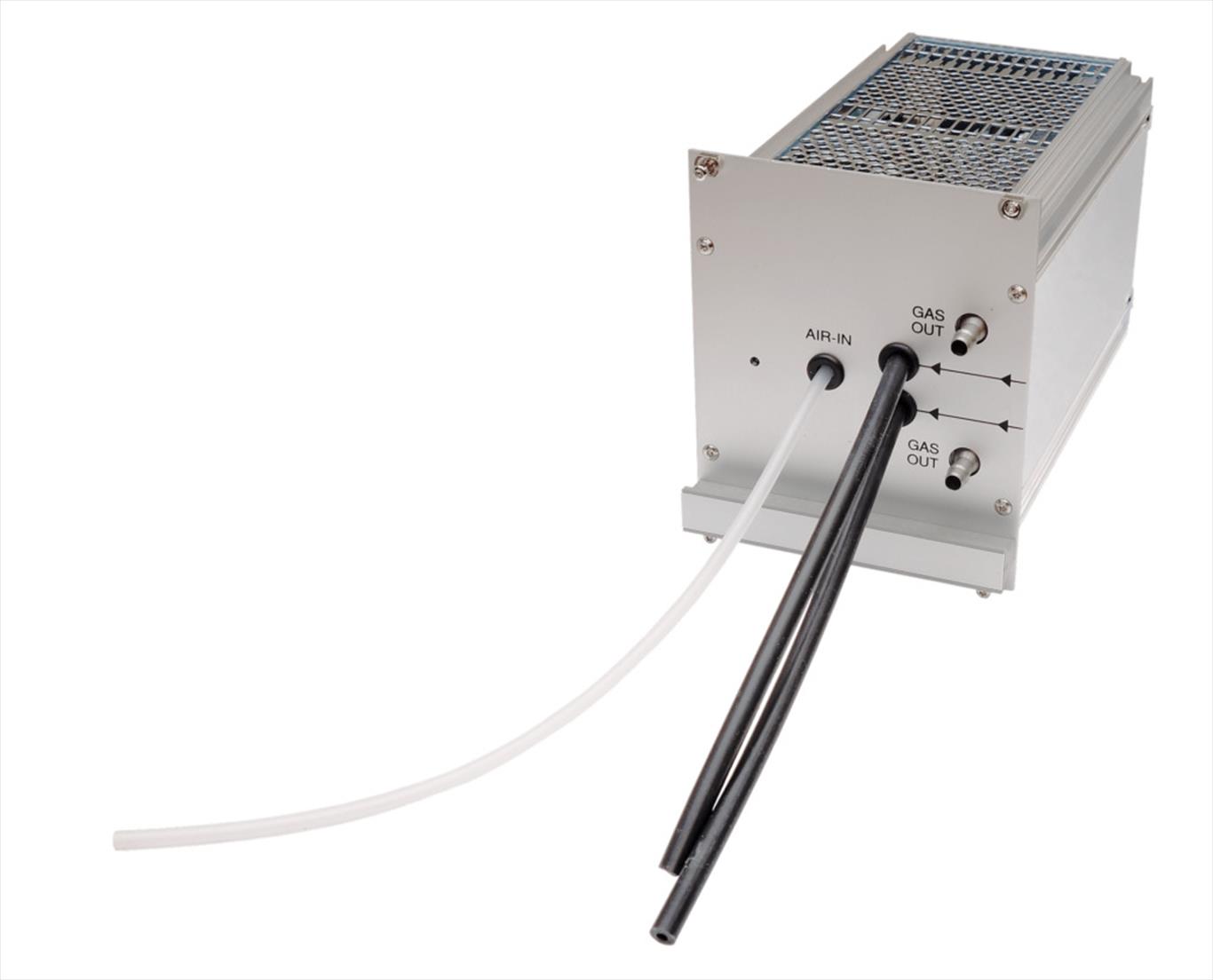

• Modular design
• Programmable measurement interval cycles from 10 minutes (144 measurements/day) to 65 minutes (22 measurements/day)
• Control of gas extraction / fresh air purge via integrated solenoid valve
• Basic equipment with two long-life gas sensors (O₂ and CO), expandable by up to four additional sensors
• CO sensor overload protection & fresh air purge without measurement interruption
• High-performance measuring gas pump for fast gas transport

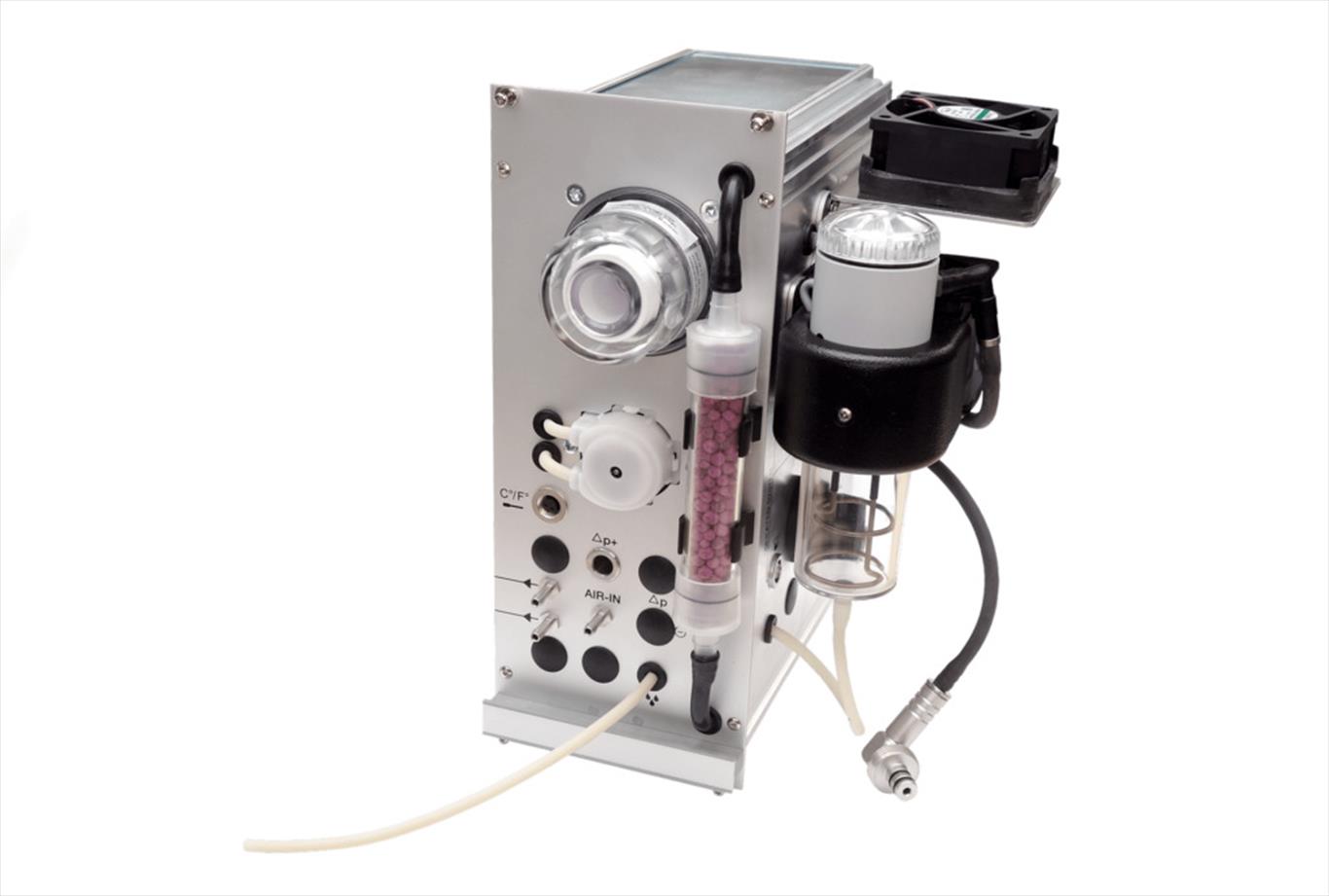

• Powerful gas cooler with electronic level monitoring
  and automatic condensate disposal
• display & keyboard illuminated
• Data transfer/query via Modbus RTU via RS485 or Modbus TCP via Ethernet

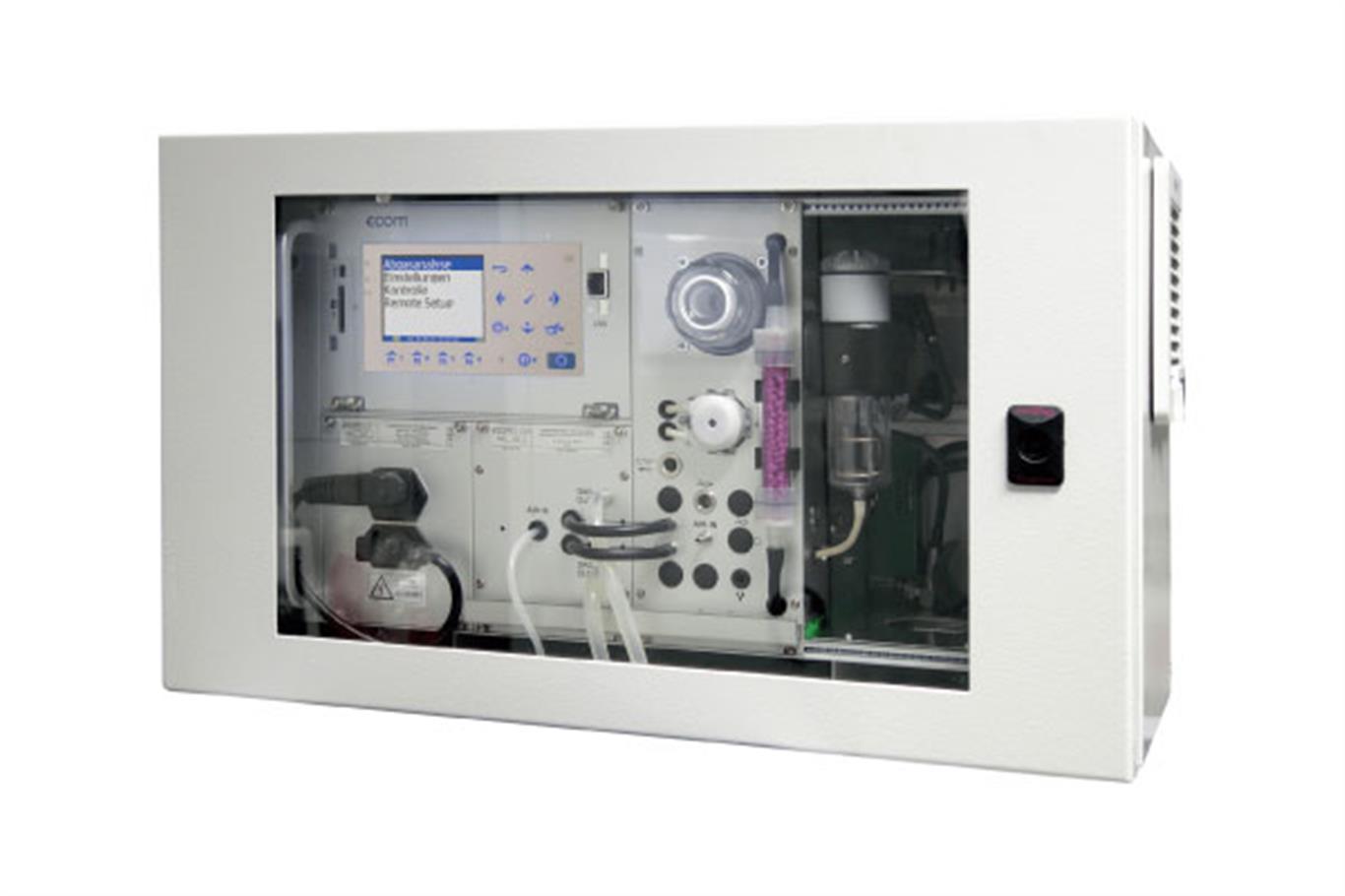

• Robust aluminum housing in 19' rack design. Optionally with additional, lockable protective housing with glass front door (as shown in the illustration above)

Dimensions

• (W x H x D): approx. 436 x 265 x 235 mm, including rack handles

Weight

• approx. 8.6 kg

Document

Data Sheet

ecom-ST flyer

sensors

The basic equipment consists of two electrochemical (EC) sensors for determining oxygen (O ₂ ) and carbon monoxide (CO) content, which can optionally be supplemented by up to four more according to user requirements according to the following overview: CO%, CO₂ , NO, NO ExtraLow, NO₂ , NO₂ Low, SO₂ , SO₂ Low, H₂ , H₂S, CH₄ , C _xH _y .

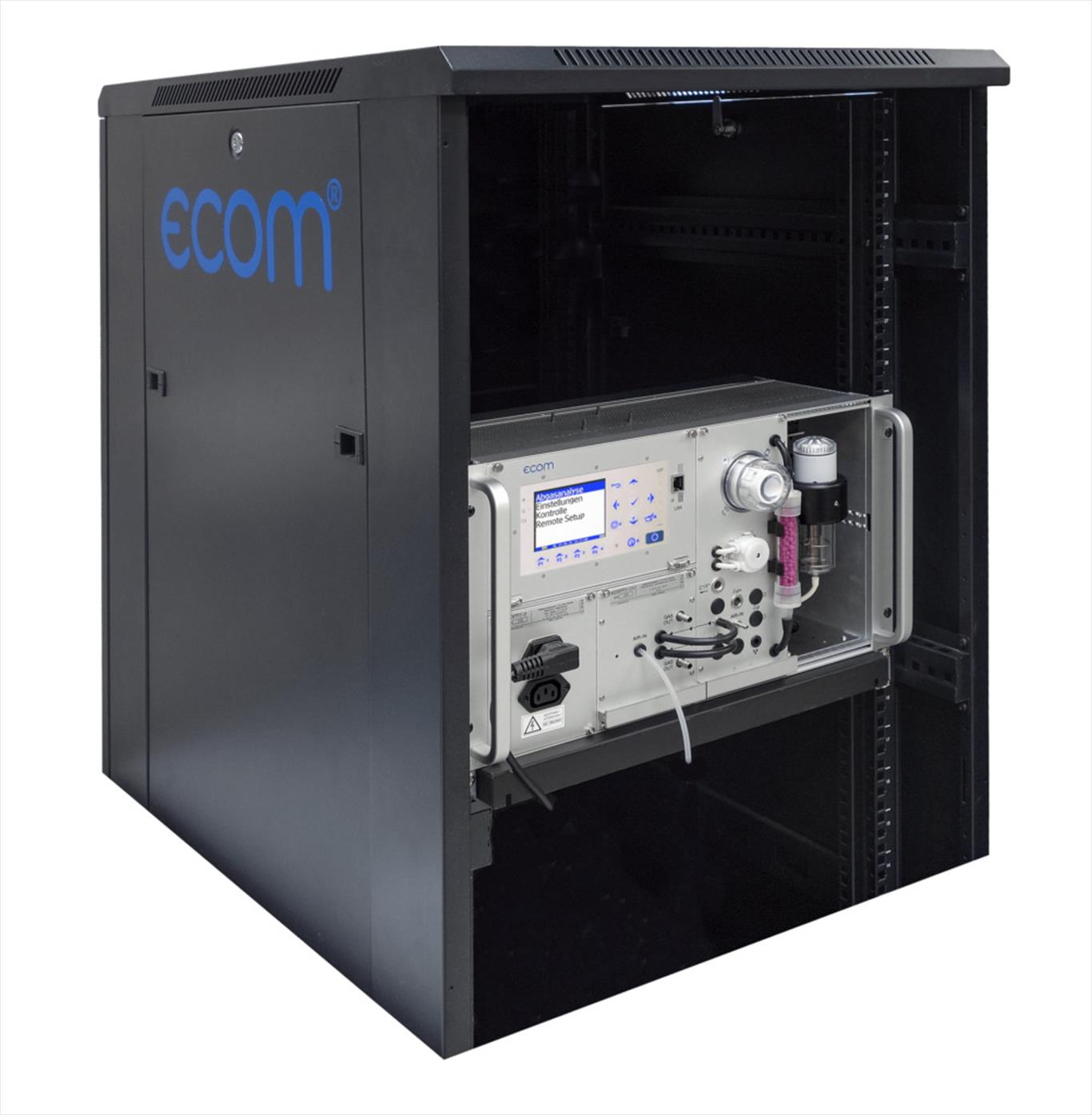

housing

Alternatively with additional, lockable protective housing with glass front door.

extraction systems

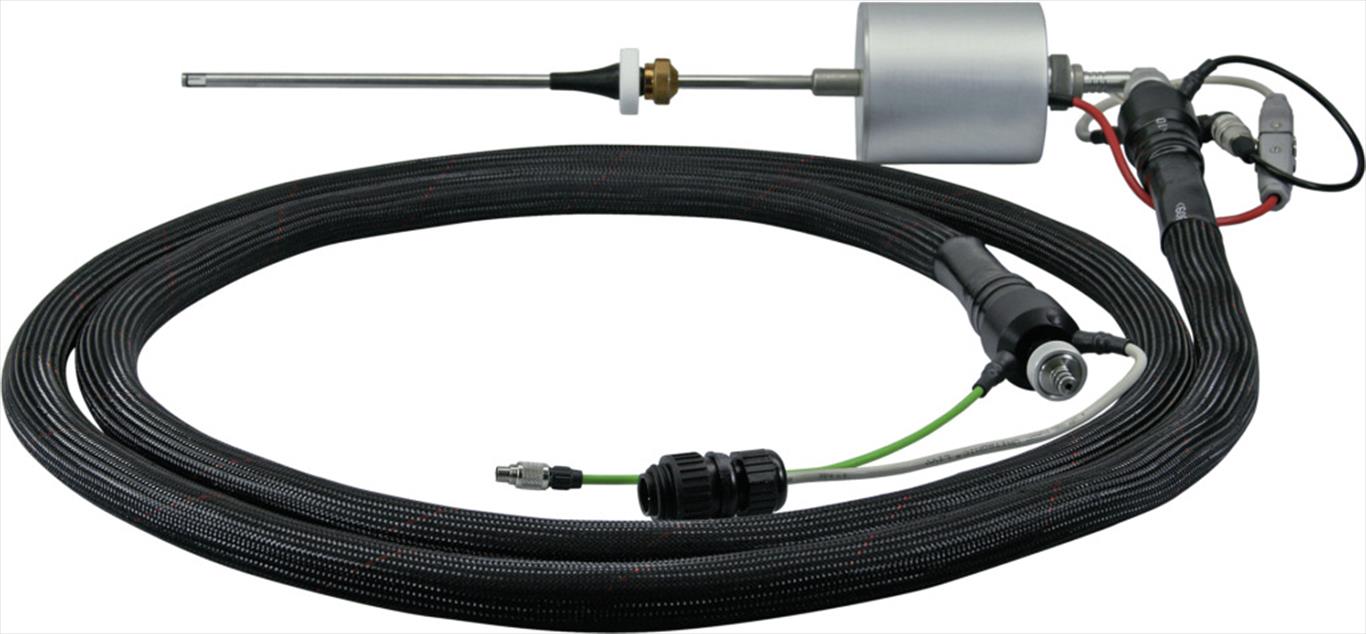

Gas sampling system SBK2

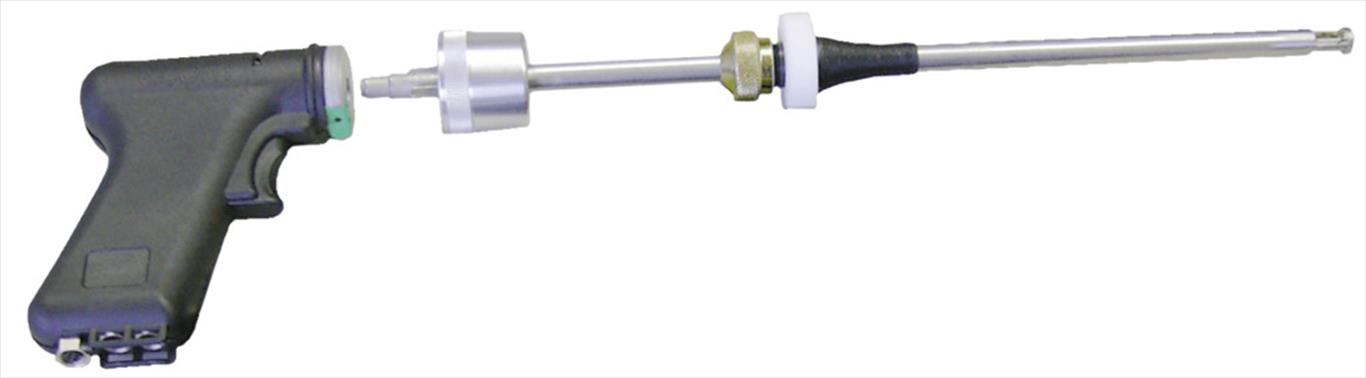

Gas sampling system SU probe

interfaces

Analog outputs 8 x 0…20 mA
