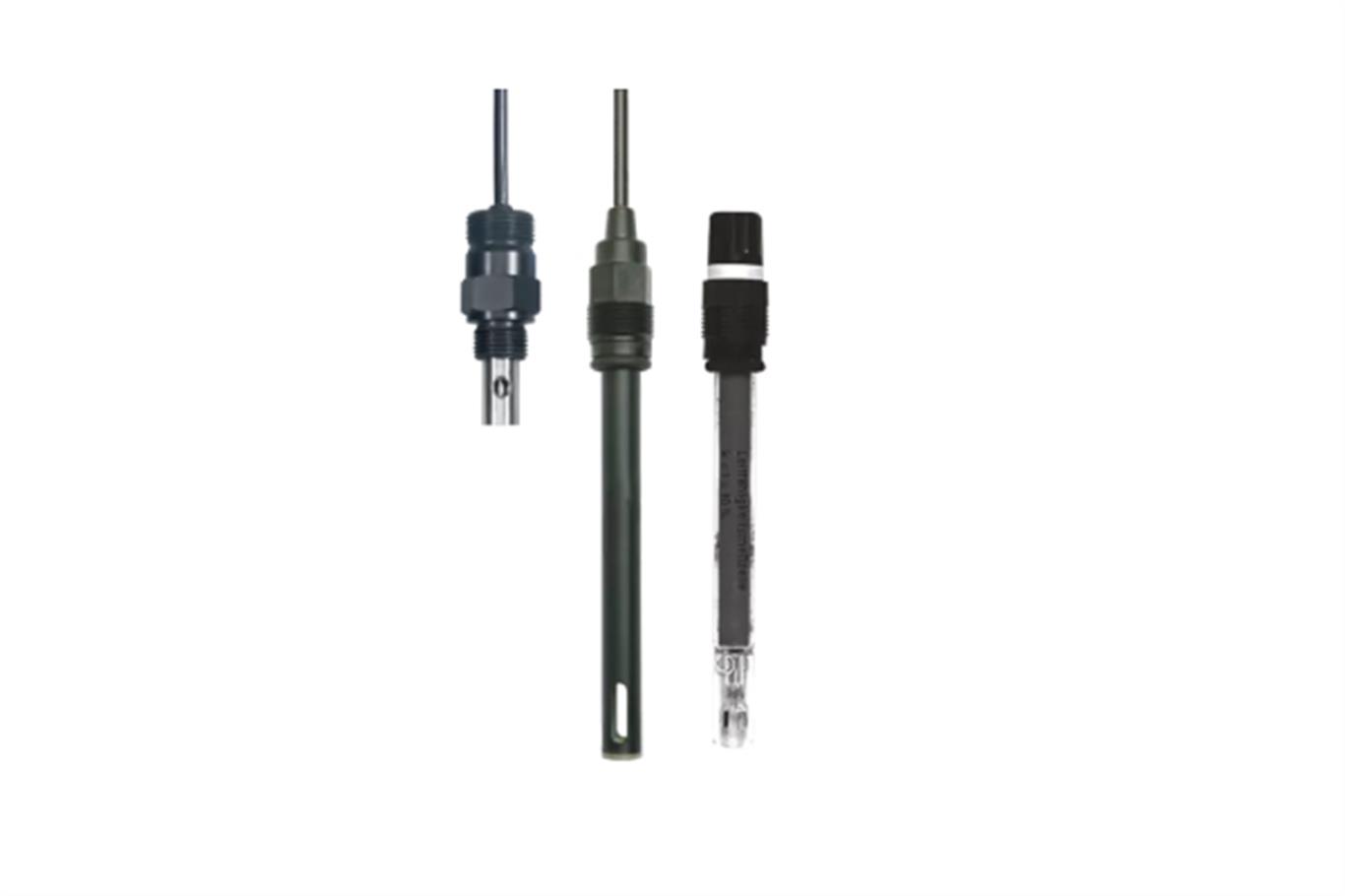

JUMO BlackLine CR-GT/-EC/-GS
Conductive two-electrode conductivity sensor
The product is available in versions GT, EC, and GS. A special graphite is used in the GT version for water treatment. The main features of the stainless steel EC version are its very compact design type and the integrated Pt100 as a standard feature.
 |
 |
 |
|
Robust design
|
Can be used for
various applications |
Minimum investment
costs |
GENERAL TECHNICAL DATA |
| Measuring ranges | 0.05 μS/cm to 100 mS/cm |
| Electrode material | JUMO BlackLine CR-GT: special graphite; JUMO BlackLine CR-EC: stainless steel (1.4571) or titanium; JUMO BlackLine CR-GS: platinum |
| Process connection | Screw head Pg 13.5, screw-in thread G 1/2A or 1/2"-14 NPT or plug head |
| Process pressure | Up to 6 bar |
| Operating temperature | -5 to +80 °C |
| Cell constant | K = 0.01; 0.1 or 1.0 |
| Features | Compact design type, inexpensive version, for universal application |
| Areas of application | Drinking water; ion exchangers and reverse osmosis plants; aquaristics |
GENERAL TECHNICAL DATA |
| Measuring ranges | 0.05 μS/cm to 100 mS/cm |
| Electrode material | JUMO BlackLine CR-GT: special graphite; JUMO BlackLine CR-EC: stainless steel (1.4571) or titanium; JUMO BlackLine CR-GS: platinum |
| Process connection | Screw head Pg 13.5, screw-in thread G 1/2A or 1/2"-14 NPT or plug head |
| Process pressure | Up to 6 bar |
| Operating temperature | -5 to +80 °C |
| Cell constant | K = 0.01; 0.1 or 1.0 |
| Features | Compact design type, inexpensive version, for universal application |
| Areas of application | Drinking water; ion exchangers and reverse osmosis plants; aquaristics |
Sensor for free chlorine
These membrane-covered amperometric sensors are used to measure the concentration of free chlorine (e.g. in drinking water, swimming pool water, industrial water, process water, and cooling water). The sensors can be connected directly to a suitable indicating and control device.
 |
 |
 |
|
Easy calibration
|
Two-electrode/three-electrode
principle |
Integrated
temperature compensation |
pH combination electrode with glass or plastic shaft
The electrode acquires the pH value of water and aqueous-based media. It is used, among other places, in swimming pools, aquaristics for monitoring and treating drinking water, and in greenhouse technology.
|
 |
 |
|
Low-resistance
UW glass |
Quick measurement
results |
Low investment
costs |
Inductive conductivity transmitter with switching contacts
The device is used for measuring and controlling the conductivity or the concentration of liquid media. The integrated temperature measurement enables precise and quick compensation. Additional functions allow the combined toggling of measuring range and temperature coefficient.
 |
|
|
|
Activation of 4
measuring ranges |
Easy-to-use
programming |
Activation of 4
temperature coefficients |
