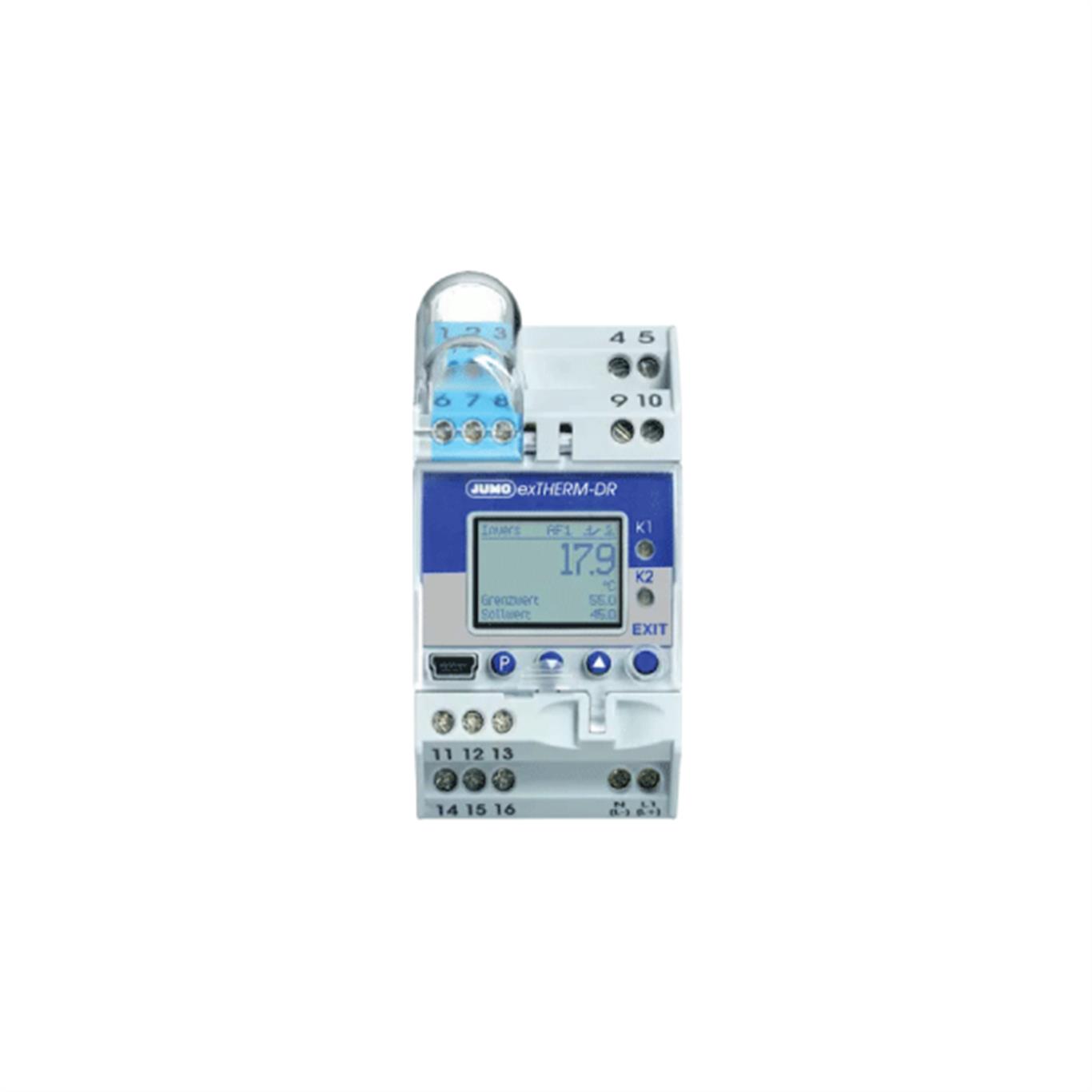

JUMO exTHERM-DR
Two-state controller with [Ex ia] input according to ATEX
The JUMO exTHERM-DR is a two-state controller for heating or cooling applications. The intrinsically safe [Ex ia] measurement input allows the direct connection of the corresponding type-tested probes. Use of a barrier is no longer required.
 |
 |
 |
|
Front USB
interface |
Setup program
|
LCD display
|
GENERAL TECHNICAL DATA |
| Measuring inputs | 1 universal analog input for RTD temperature probe; thermocouple or current 4 to 20 mA; 1 digital input for potential-free contact |
| Outputs | 1 analog output can be configured as actual value output, setpoint value output, or logic output 0/10 V; 1 relay output limit value changeover contact; 1 relay output controller; changeover contact, with fuse cut-out |
| Alarms | Limit value output (relay) for alarm indication |
| Display | Black and white LCD display with backlight |
| Protection type | IP20 |
| Mounting | Mounting rail |
| Voltage supply | AC/DC 20 to 30 V, 48 to 63 Hz; AC 110 to 240 V +10/-15 %, 48 to 63 Hz |
| Format | 87.5 mm × 45 mm × 104.8 mm |
| Connections | Screw terminals |
| Approvals | ATEX; IECEx |
Electronic thermostat with optional PID two-state controller function
The JUMO miroTRON is a digital electronic thermostat for simple temperature control with optional PID two-point controller function and measurement input for RTD temperature probes. In the 60 mm and 80 mm round installation format, the JUMO miroTRON offers an alternative solution for mechanical dial thermometers or contact dial thermometers.
 |
|
 |
|
Flexible in its
application |
Intuitive operation
in plain text |
Retrofit for dial
thermometers |
Compact controller
The Quantrol series is available in three DIN formats. It is used for two-state and three-state control applications as well as for the control of regulating valves or thyristor power controllers via a continuous output. Configuration is carried out on the device front or using the setup program.
 |
 |
 |
|
Firing curve
for ceramic furnaces |
Autotuning
|
Up to 5 relay
outputs |
Modular one-channel/two-channel controller with PLC function
The multifunctional controller impresses with the individual design of its user interface and hardware equipment. This way, analog as well as digital inputs and outputs, counting inputs, and interfaces can be added as required. The controller masters even complex applications with a second control channel, math and logic functions, and the implementation of control functions via ST code.
 |
 |
 |
|
Sequence
control in real time |
Wide range of
connection possibilities |
PLC
functionality |
