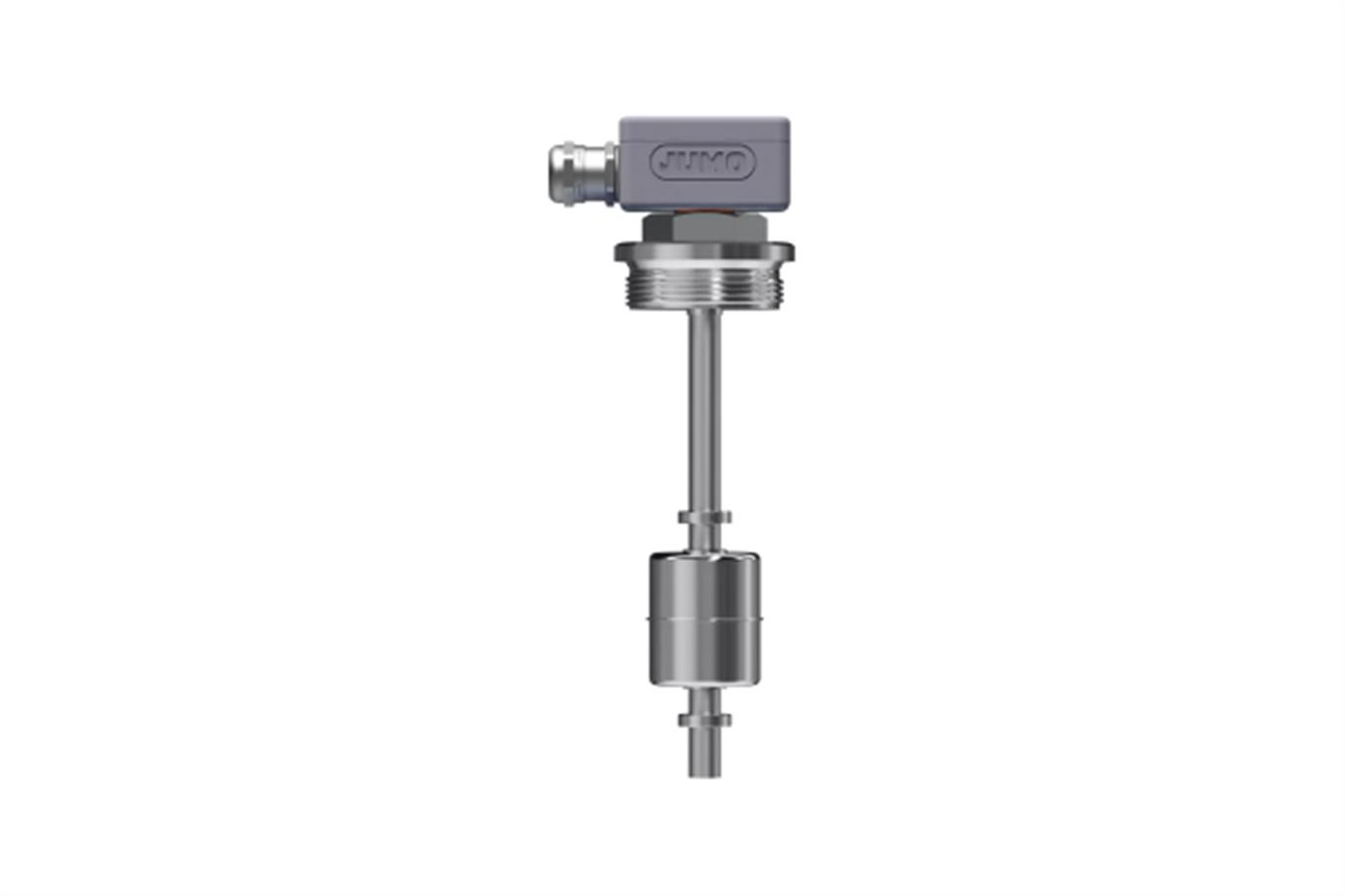

JUMO NESOS R02 LS
Standard version of float switch
For point level measurement in liquids with up to 5 floats and up to 5 switching contacts. Both the optional temperature sensor and the temperature switch can be used for point level measurement as well as to acquire temperature with only one measuring point.
 |
 |
 |
|
Maintenance-free
device setup |
Price-performance
ratio |
No isolating
switch amplifier for [Ex d] required |
GENERAL TECHNICAL DATA |
| Switching capacity | Up to 250 V AC/DC; up to 1 A |
| Medium temperature | -52 to +240 °C |
| Contact versions | Normally closed contact; changeover contact; changeover contact, bistable; normally open contact; normally open contact, bistable |
| Float | Cylinder, CrNi (stainless steel) Ø 44; sphere, CrNi (stainless steel) Ø 52; sphere, Ti (titanium) Ø 52 |
| Protection rating | Up to IP68 |
| Approvals | ATEX, IECEx, EACEx, CCC [Ex i, Ex d], DNV GL, WHG, EAC |
| Manufacturer's declaration | Railway test according to DIN EN 50155, CE |
| Special features | The product does not fall under the Pressure Equipment Directive 2014/68/EU, since there is no pressurized housing (see separate certificate TÜV SÜD). |
Float switch with chamber
For point level measurement of liquids with chamber. In the event of a lack of space or turbulent media, the device is mounted on the side of the tank. Available with 1 float and up to 2 switching contacts as well as an optional temperature sensor/switch.
|
|
|
|
Maintenance-free
device setup |
Price-performance
ratio |
Side mounting
via compression fitting |
Float switch in miniature form
For point level measurement in liquids with up to 4 floats and up to 4 switching contacts. The optional temperature sensor can be used for point level measurement as well as to acquire temperature with only one measuring point.
|
|
|
|
Maintenance-free
device setup |
Price-performance
ratio |
No isolating
switch amplifier for [Ex d] required |
Float switch in horizontal design
The horizontal float switch can be easily mounted, e.g. on the side of a tank wall. Due to its construction it is suitable for the minimum and maximum limit level of liquids (MIN/MAX level). It offers up to 2 switching contacts for redundant level measurement. Thanks to Ex approvals, it is ideal for the chemical industry, power plants, machine and container construction.
 |
|
 |
|
Cost-saving
installation and assembly |
Maintenance-free
device structure |
Reduction of
storage costs |
