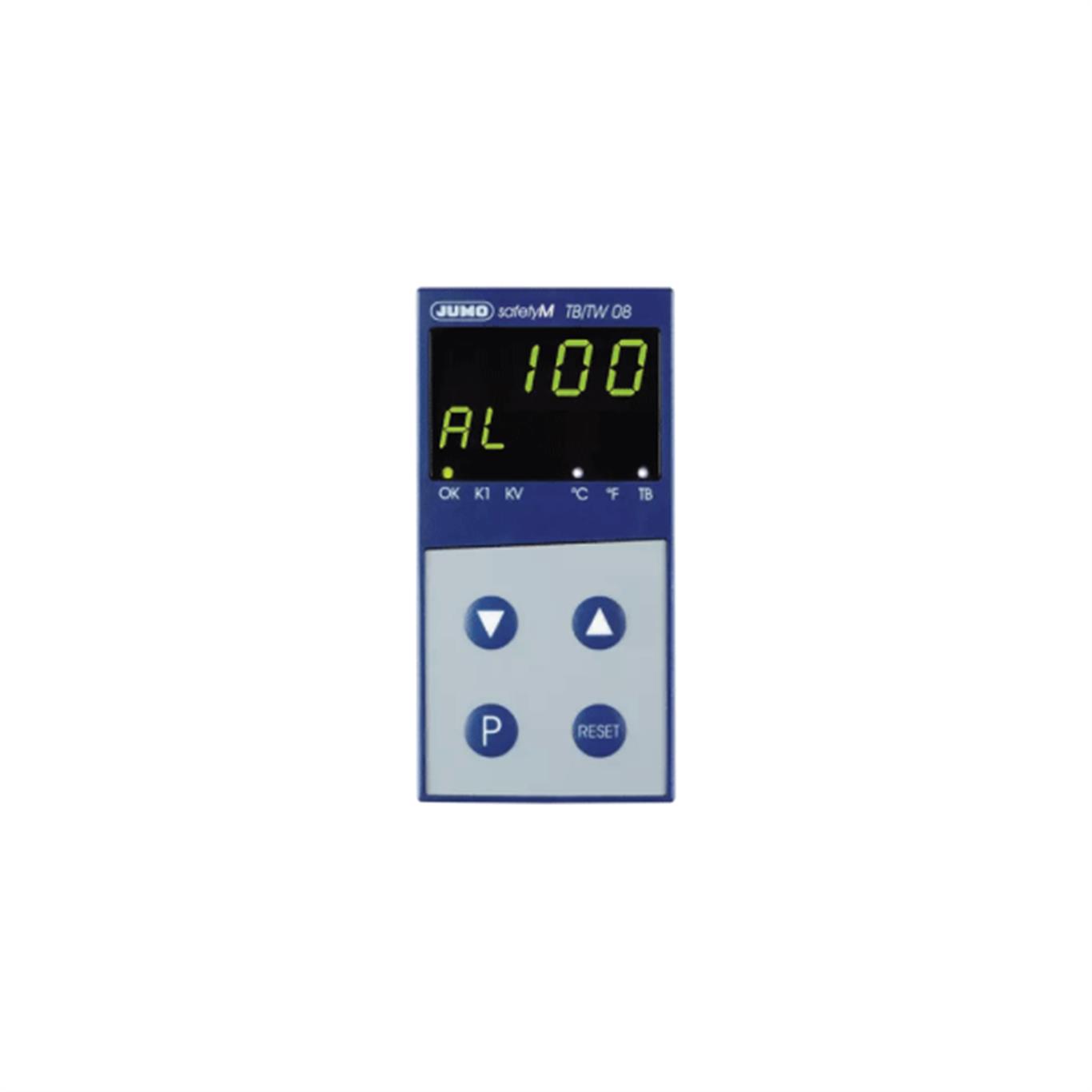

JUMO safetyM TB/TW08
Temperature limiter/monitor according to DIN EN 14597
The JUMO safetyM TB/TW08 is a user programmable temperature limitation device. The measurement input is user configurable for RTD temperature probes, thermocouples, and current or voltage signals. TB/TWs are used to monitor thermal processes in plants for a set limit value.
 |
 |
 |
|
17 linearizations can be set
|
Internal and external unlocking
|
Setup program
|
GENERAL TECHNICAL DATA |
| Wide voltage supply range | AC 110 to 240 V +10 %/-15 % |
| Analog inputs Pt100 DIN EN 60751 | -200 to +850 °C |
| Analog inputs Pt1000 DIN EN 60751 | -200 to +850 °C |
| Analog inputs, connection type | Two-wire, three-wire circuit |
| Input filter | Digital filter, 2nd order; filter constant can be set from 0 to 100 s |
Industry version
The measuring principle of the thermometer is based on a bimetal coil in a stainless steel or brass protection tube. If the temperature increases or falls, it turns and has a direct effect on the indicator via an axis. Versions of the 608002 products comply with DIN EN 13190, class 1.
 |
 |
 |
|
Impervious to
ambient temperature |
Accuracy class 1
|
Without auxiliary
energy |
Dial thermometer with microswitch
Dial thermometers with microswitch are universally-applicable devices with actual value display for temperature measurement, control, and monitoring. The devices have a temperature controller with actual value display and are manufactured using high-grade stainless steel.
|
 |
 |
|
Independent
control |
Low mounting
depth |
High degree of
process reliability |
For temperature control
Contact dial thermometers are universally-applicable devices with actual value display for temperature measurement, control, and monitoring. The slow-action contact/magnetic snap contact closes or opens an electrical circuit depending on the movement direction at the set limit values.
 |
|
|
|
Capillary measuring
system |
Without auxiliary
energy |
Accuracy class
1 |
