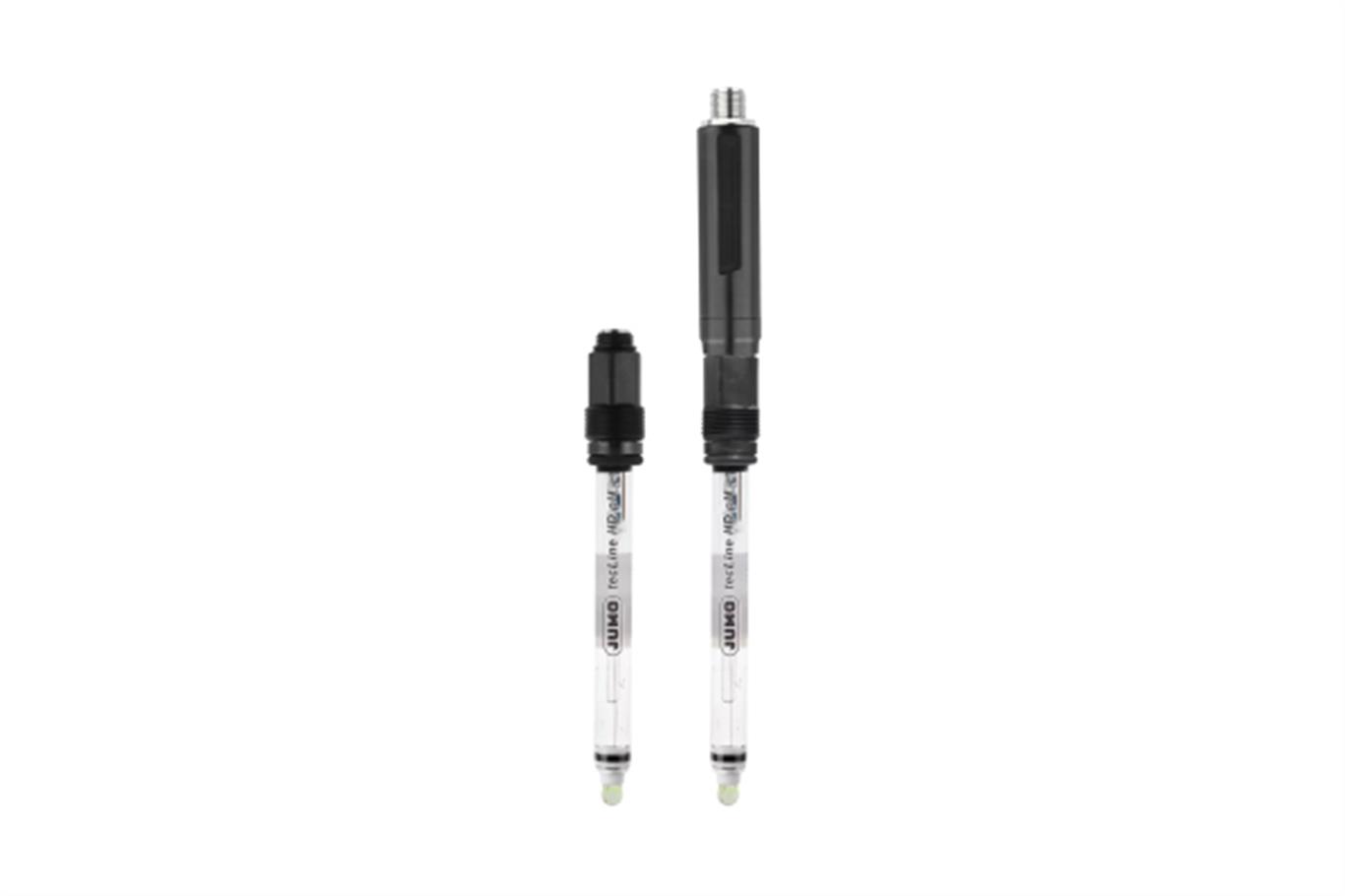

JUMO tecLine HD 201021
pH combination electrodes
The product acquires the pH value of water and aqueous-based media. It has robust industrial electrodes for the most demanding applications with increased dirt and poison load as well as oil-containing media.
 |
 |
 |
|
Stable and reliable
measured values |
Low maintenance
and robust |
Extended
operating life |
GENERAL TECHNICAL DATA |
| Active part | High-temperature (HT) glass, suitable for high-alkaline |
| Temperature range | 0 to 135 °C (depending on diaphragm) |
| Pressure range | Up to 13 bar |
| Electrode head | N-screw head (S8), Pg13.5 thread; VarioPin (VP) plug head, Pg13.5 thread |
| Temperature sensor | Pt1000 |
| Insertion length | 120 or 225 mm |
| Diaphragm | Extensive PTFE ring diaphragm or pinhole diaphragm |
| Special feature | Available with reusable JUMO digiLine electronic components (type 202705) |
| Features | For industrial applications; also available in heavy-duty and hygienic version for demanding processes; integrated temperature sensor |
| Area of application | Process measurement; high temperature applications; suspensions; galvanic; coatings; wastewater; ultra-pure water; water; always contaminated media; hygienic and sterile applications; boiler feed water |
Redox combination electrodes
The electrode acquires the redox potential of water and aqueous-based media. A robust industrial electrode for the most demanding applications with increased dirt and poison load as well as oil-containing media.
|
 |
 |
|
Dirt-repelling
PTFE diaphragm |
Low diffusion
potentials |
Double chamber
version |
Inductive conductivity transmitter with switching contacts
The device is used for measuring and controlling the conductivity or the concentration of liquid media. The integrated temperature measurement enables precise and quick compensation. Additional functions allow the combined toggling of measuring range and temperature coefficient.
 |
 |
 |
|
Activation of 4
measuring ranges |
Easy-to-use
programming |
Activation of 4
temperature coefficients |
Sensor for free chlorine
These membrane-covered amperometric sensors are used to measure the concentration of free chlorine (e.g. in drinking water, swimming pool water, industrial water, process water, and cooling water). The sensors can be connected directly to a suitable indicating and control device.
|
 |
|
|
Easy calibration
|
Two-electrode/three-electrode
principle |
Integrated
temperature compensation |
