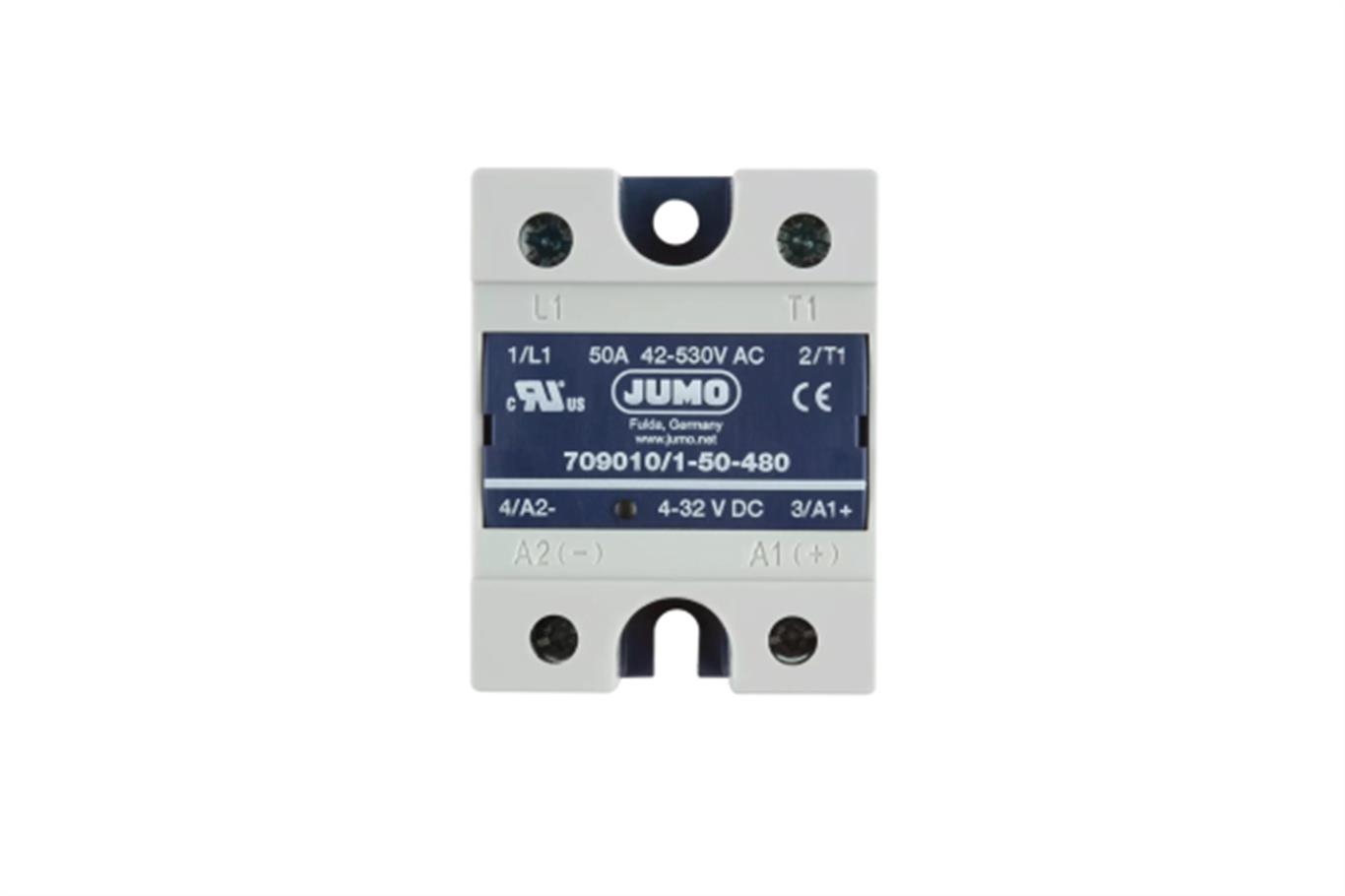

JUMO TYA 432 709010
Thyristor power switch
Thyristor power switches are required for contactless switching of the alternating current loads. A typical application is the switching of ohmic-inductive loads at a high switching frequency, particularly in the industrial sector.
 |
 |
 |
|
Control/power
section galvanically isolated |
UL approval
|
Without heat
sink |
GENERAL TECHNICAL DATA |
| Peak blocking voltage | ≥ 650 Vp; ≥ 1400 Vp |
| Weight | 60 g |
| Ambient temperature | -20 to +70 °C |
| Galvanic isolation | Between the control and power section through optocouplers; insulation voltage 4 kV |
| Load type | 1-phase |
| Special features | Overvoltage protection by integrated varistor, LED display for control input |
| Electrical connection | Screw terminals |
| Load current (max.) | 50 A |
| Operating mode | Zero-voltage switching |
| Load current (min.) | 150 mA AC; 250 mA AC |
| Approvals | cULus/CSA |
| Protection type | IP20 |
| Dimensions | 45 × 58.2 × 29 mm |
| Load voltage | 24 to 265 V AC; 42 to 660 V AC |
| Control voltage | 3 to 32 V DC; 4 to 32 V DC |
Thyristor power switch
Thyristor power switches are required for contactless switching of the alternating current loads. A typical application is the switching of resistive inductive loads at a high switching frequency, particularly in the industrial sector.
|
|
|
|
With heat
sink |
UL approval
|
Control/power
section galvanically isolated |
Single-phase thyristor controller for controlling non-linear loads
The JUMO TYA HL301 is characterized by an area of application from 300 to 800 A, a compact design, and efficient top-bottom wiring. All these factors make it a valuable tool in power control processes. The integrated data logging function and an oscilloscope for function control increase process reliability and ensure smooth operations in day-to-day business. In addition, extensive setup functions simplify configuration and startup.
 |
 |
 |
|
Optional load
management |
Versatile
communication protocols |
Suitable for
all load types |
Three-phase thyristor controller in economy circuit
The JUMO TYA HL302 is characterized by an area of application from 300 to 800 A, a compact design, and efficient top-bottom wiring. All these factors make it a valuable tool in power control processes. The integrated data logging function increases process reliability and ensures smooth operations in day-to-day business. In addition, extensive setup functions simplify configuration and startup.
|
|
|
|
Optional load
management |
Versatile communication
protocols |
Suitable for
all load types |
