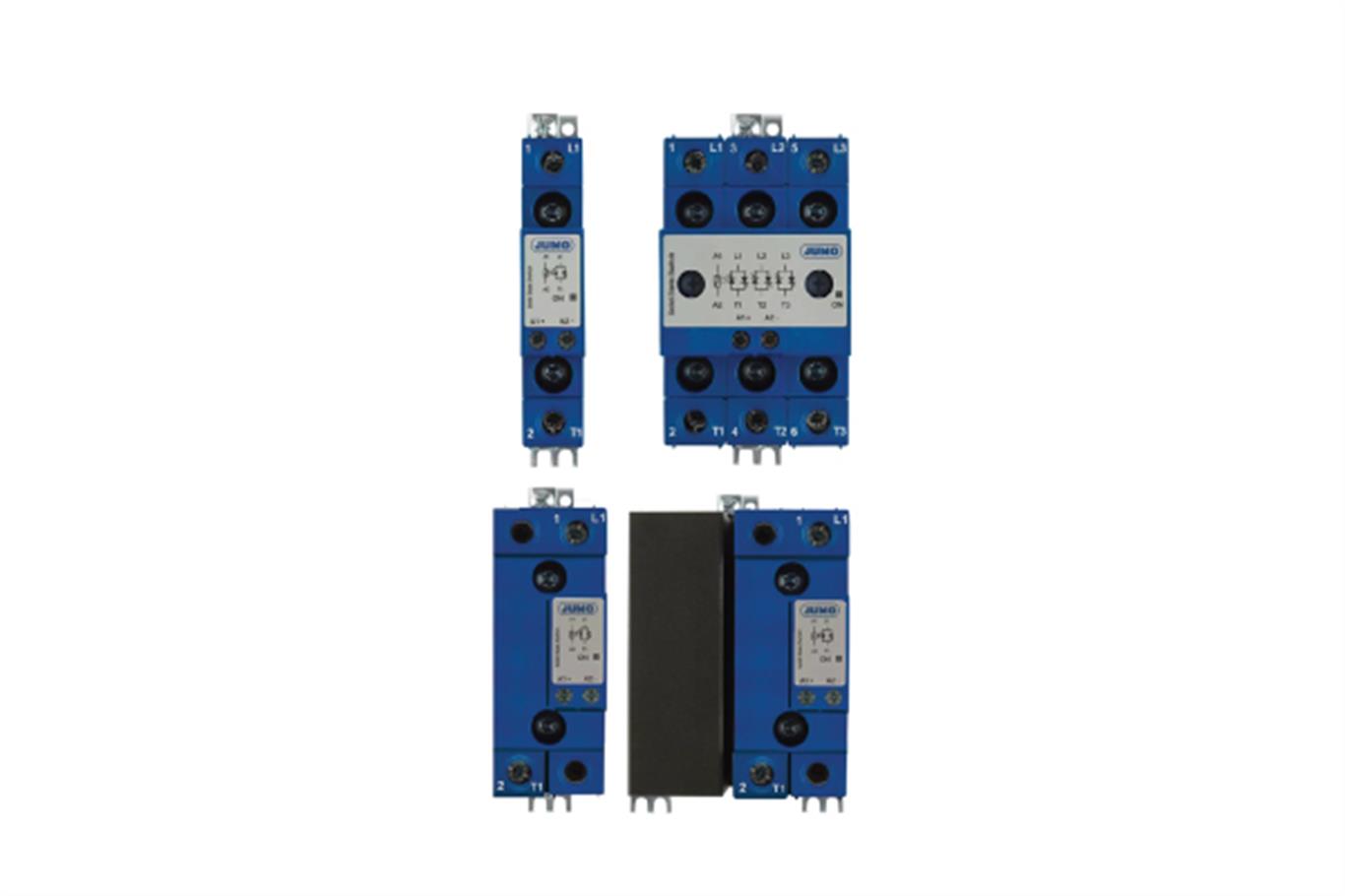

JUMO TYA 432 709020
Thyristor power switch
Thyristor power switches are required for contactless switching of the alternating current loads. A typical application is the switching of resistive inductive loads at a high switching frequency, particularly in the industrial sector.
 |
 |
 |
|
With heat
sink |
UL approval
|
Control/power
section galvanically isolated |
GENERAL TECHNICAL DATA |
| Peak blocking voltage | 1600 Vs; 1200 Vs |
| Ambient temperature | -40 to +70 °C |
| Galvanic isolation | Between the control and power section through optocouplers; insulation voltage 4 kV |
| Load current (max.) | 60 A (at 40 °C) |
| Operating mode | Zero point control |
| Load voltage | 24 to 265 V AC; 42 to 660 V AC |
| Approval | cULus/CSA |
| Protection type | IP20 |
| Control voltage | 4 to 32 V DC; 5 to 32 V DC |
Thyristor power switch
Thyristor power switches are required for contactless switching of the alternating current loads. A typical application is the switching of ohmic-inductive loads at a high switching frequency, particularly in the industrial sector.
|
|
|
|
Control/power
section galvanically isolated |
UL approval
|
Without heat
sink |
Single-phase thyristor controller for controlling non-linear loads
The JUMO TYA HL301 is characterized by an area of application from 300 to 800 A, a compact design, and efficient top-bottom wiring. All these factors make it a valuable tool in power control processes. The integrated data logging function and an oscilloscope for function control increase process reliability and ensure smooth operations in day-to-day business. In addition, extensive setup functions simplify configuration and startup.
 |
 |
 |
|
Optional load
management |
Versatile
communication protocols |
Suitable for
all load types |
Three-phase thyristor controller in economy circuit
The JUMO TYA HL302 is characterized by an area of application from 300 to 800 A, a compact design, and efficient top-bottom wiring. All these factors make it a valuable tool in power control processes. The integrated data logging function increases process reliability and ensures smooth operations in day-to-day business. In addition, extensive setup functions simplify configuration and startup.
|
|
|
|
Optional load
management |
Versatile communication
protocols |
Suitable for
all load types |
