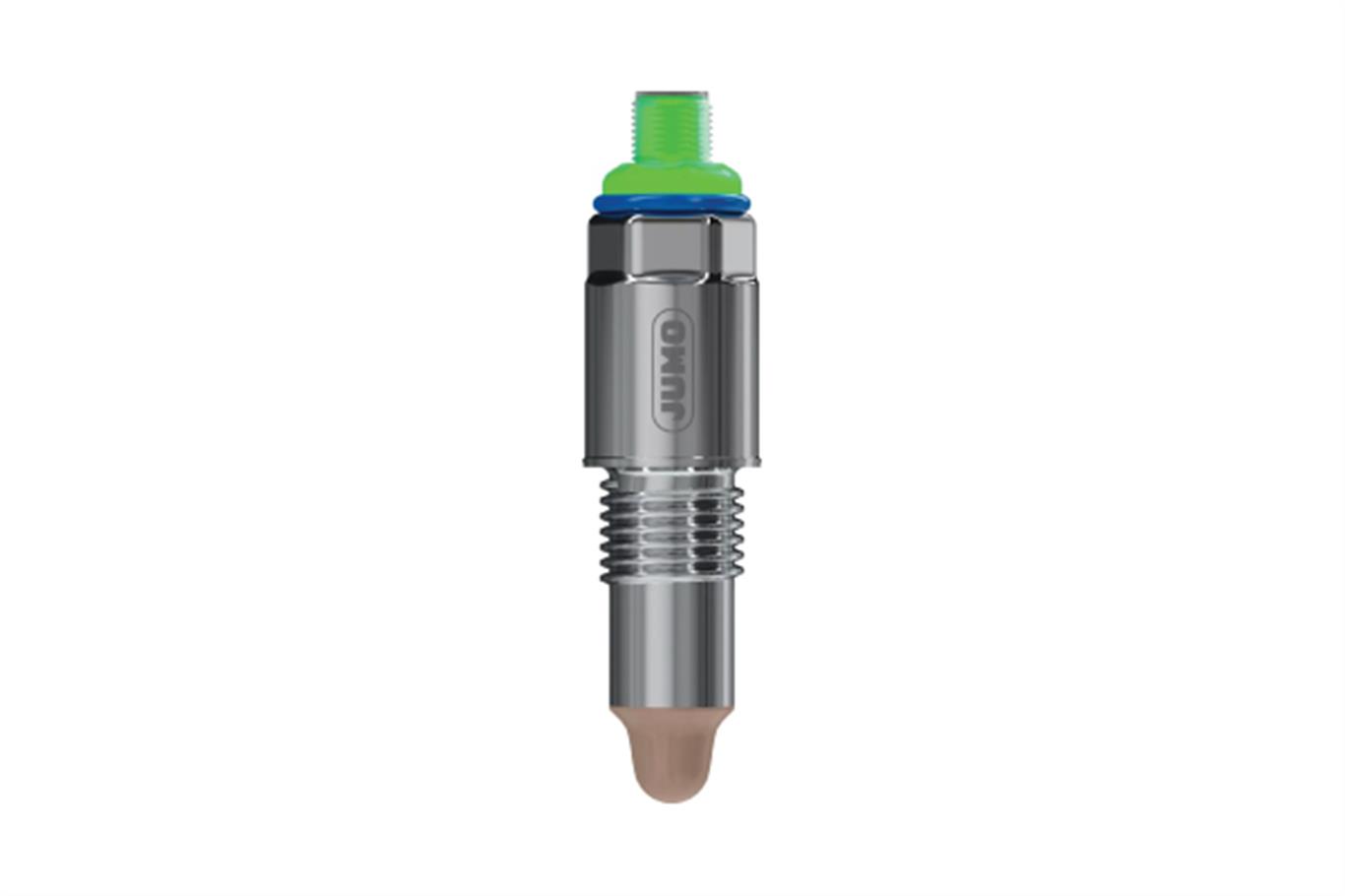

JUMO ZELOS C01 LS
Capacitive level switch
The capacitive level switch identifies the level of liquids and solids. It can also be used in pressurized tanks or pipes. Typically, the level switch is used in industrial environments for applications with requirements for overflow and dry-run protection or for media detection (such as sludge in separation processes).
 |
 |
 |
|
Maintenance-free
product structure |
Low investment
costs |
Reliable, robust
industry design |
GENERAL TECHNICAL DATA |
| Switching capacity | Up to DC 36 V and 200 mA |
| Medium temperature | -40 to +200 °C |
| Repeatability and hysteresis | +/- 1 mm in each case |
| Output signals | PNP, NPN, push-pull, IO-Link |
| Parts in contact with medium | PEEK |
| Additional equipment | unique auto-calibration function as standard, short-circuit and reverse polarity protection, 360° status display according to NE107, IO-Link or customer-specific |
| Protection type | IP67/IP69 |
| Approvals | ATEX, IEC Ex [Ex i], DNV, WHG, EHEDG, 3A, UL |
| Declaration of manufacturer | Railway technology test according to DIN EN 50155, CE, RoHS |
Related products

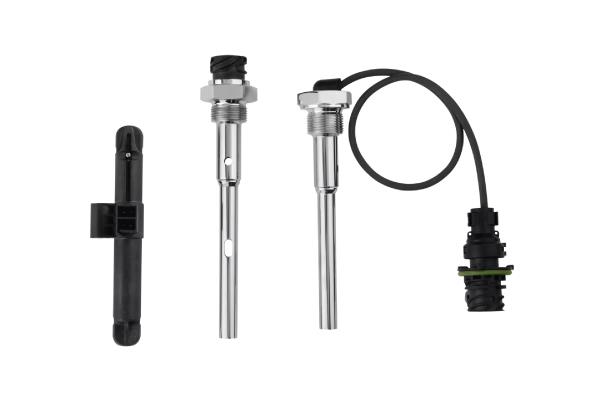

Level and temperature probes
For commercial vehicles
This product is for monitoring the level and temperature of engine oil and gearbox oil as well as for supporting vehicle diagnosis in modern commercial vehicles, construction machines, and agricultural machines.
|
 |
 |
|
Installation position:
standing or suspended |
Additional temperature
output as optional extra |
Connecting cable:
cross-linked polyester |
