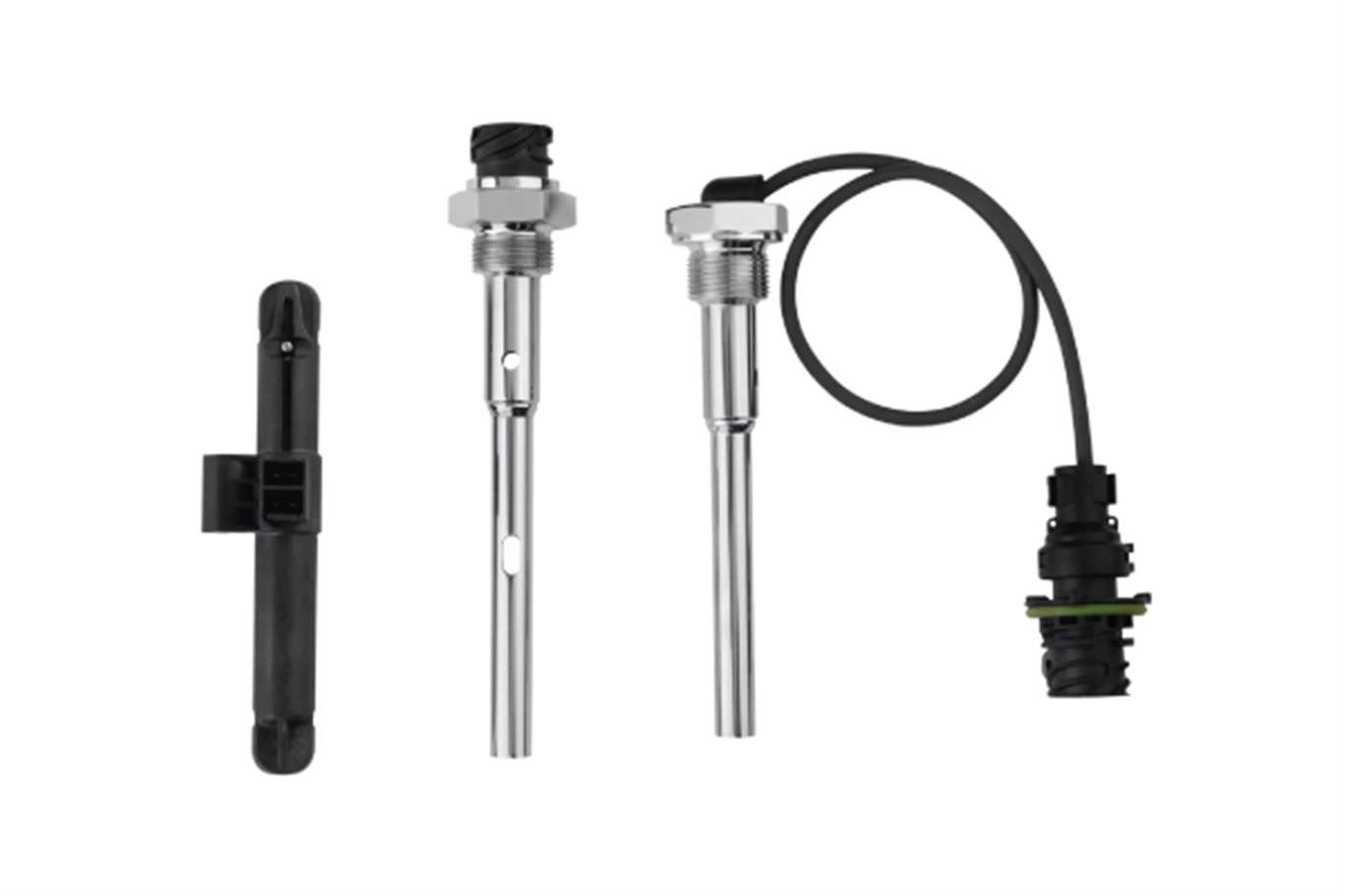

Level and temperature probes
For commercial vehicles
This product is for monitoring the level and temperature of engine oil and gearbox oil as well as for supporting vehicle diagnosis in modern commercial vehicles, construction machines, and agricultural machines.
 |
 |
 |
|
Installation position:
standing or suspended |
Additional temperature
output as optional extra |
Connecting cable:
cross-linked polyester |
GENERAL TECHNICAL DATA |
| Protection tube | Stainless steel, zinc-plated steel (heavy-duty plastics upon request) |
| Areas of application | Commercial vehicle/construction/agricultural machinery industry, engine manufacturing, gearbox construction |
| Process connection | Screw connection M 24 × 1.5 |
| Connecting cable | Cable made of polyester, cross-linked |
| Temperature sensor | Pt1000 |
| Connection | Cable ends stripped bare, plug connector DIN 72585 (bayonet connector) |
| Measuring circuits | 1/2 |
| Operating temperature | -40 to +140 °C |
| Features | Highly vibration-resistant |
| Measuring path | 50 mm or 62 mm |
| Option | Pt100, Pt500, NTC, or semiconductor sensors, corrugated hose, (process) connection according to customer request |
| Special features | Installation position: suspended or standing |
| Level sensor | Hot-wire principle, ±3 mm tolerance |
Related products

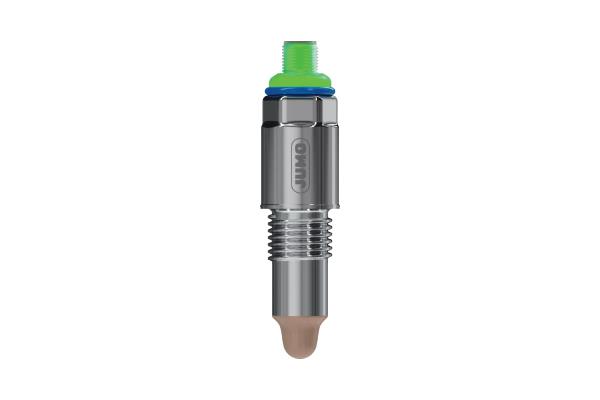

JUMO ZELOS C01 LS
