Panel-mounted thermostats 602010
ETH series

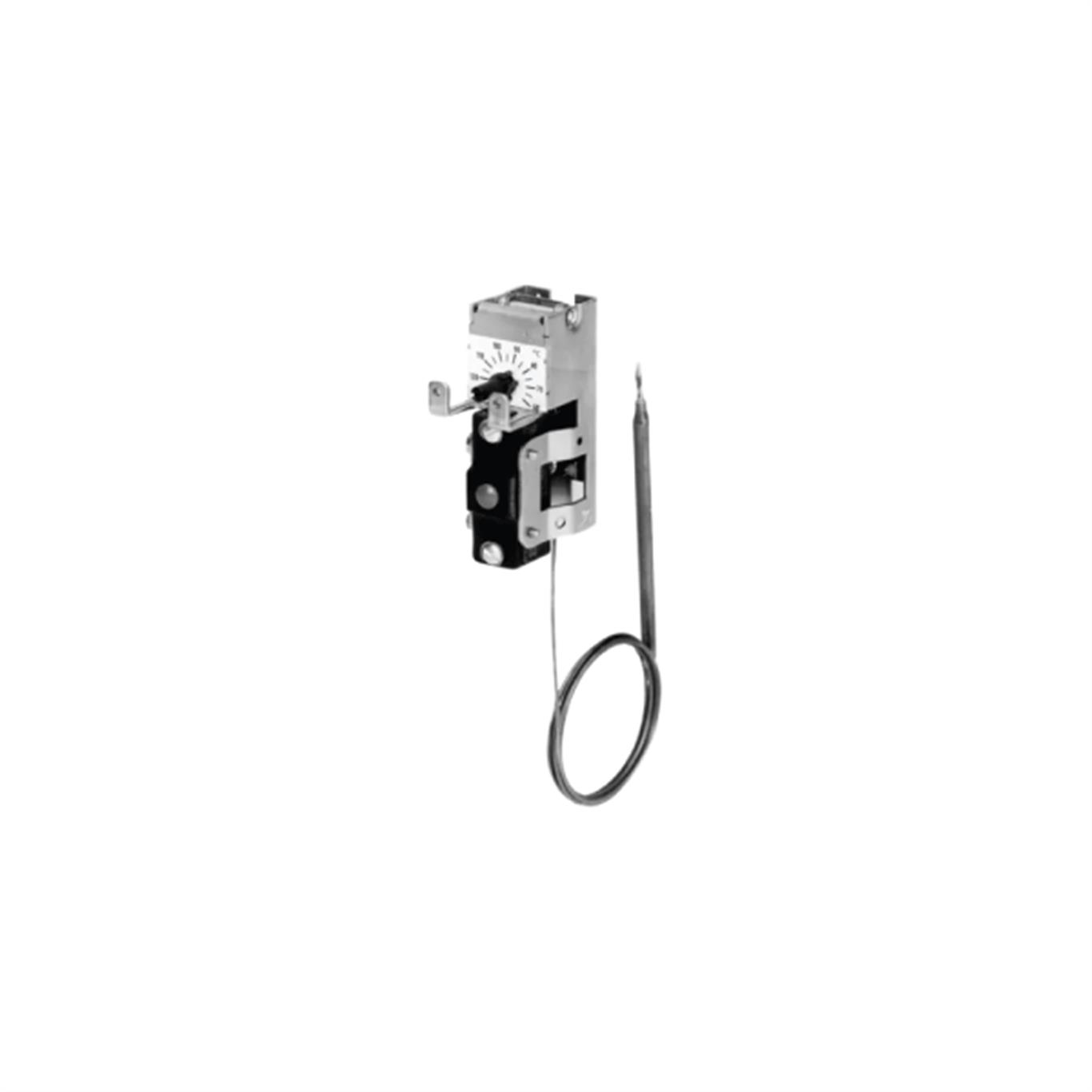

Panel-mounted thermostats from the ETH series monitor thermal processes. The devices are available as safety temperature monitors (STW) and safety temperature limiters (STB). In the event of a malfunction the STB places the system being monitored in a safe operating status.
 |
 |
 |
|
High control
range |
No auxiliary
energy required |
Various
applications |
GENERAL TECHNICAL DATA |
| Switching function | Safety temperature monitor (STW); restart lock with safety temperature limiter (STB); use of the safety temperature monitor (STW) as a safety temperature limiter (STB); self-monitoring with safety temperature limiter (STB) and safety temperature monitor (STW) |
| Control range, gas-filled | Max. 20 to 500 °C |
| Control range, liquid-filled | Max. 50 to 300 °C |
| Capillary length | As standard 1000 mm, maximum 5000 mm |
| Capillary material | Copper (Cu) ø 1.5 mm or stainless steel (CrNi) ø 1.5 mm |
| Temperature probe material | Copper (Cu) material number 2.0090, hard soldered, stainless steel (CrNi) ø 1.5 mm material number 1.4571 |
| Maximum switching capacity | AC 230 V 10 %, 10 (2) A, cos ϕ = 1 (0.6), DC 230 V 10 %, 0.25 A with switching differential |
| Process connection | Plain cylindrical probe (as a standard feature); protection tube for screwing in |
| Insertion length | Standard lengths: 100, 120, 150, 200, or 300 mm |
Digital indicator
Devices that can be used universally in various DIN formats to display process variables. The basic version includes a min/max value function, a hold function, a taring function, limit value monitoring functions, digital control signals, timer functions, and a service counter.
 |
 |
 |
|
Creation of individual
ST code application |
Intuitive configuration
and operation |
Fast and simple
startup |
Temperature limiter/monitor
The JUMO safetyM TB/TW is a user programmable limiter/monitor. The universal measurement input is user configurable for RTD temperature probes, thermocouples, and current or voltage signals. TB/TWs are used to monitor thermal processes in plants for a set limit value.
 |
 |
|
|
Setup program
|
Universal measurement
input |
Alphanumeric
LCD display |
Safety temperature limiters and monitors according to DIN EN 14597 and ATEX approval
The compact and user configurable JUMO safetyM STB/STW Ex can enable early and reliable detection of risks in Ex areas which could potentially result in personal injuries, environmental damage, or destruction of the production facilities and production goods.
|
 |
 |
|
Setup program
|
Intrinsically safe
inputs [Ex ia] |
Ignition source
monitoring |
