TCMH 0450 Gas

SPECIALITY Series

Coriolis

Coriolis Mass Flow Meter for High Pressure Gas Applications

Request a quote

Introduction Functions & Specifications Documents, Manuals & Software

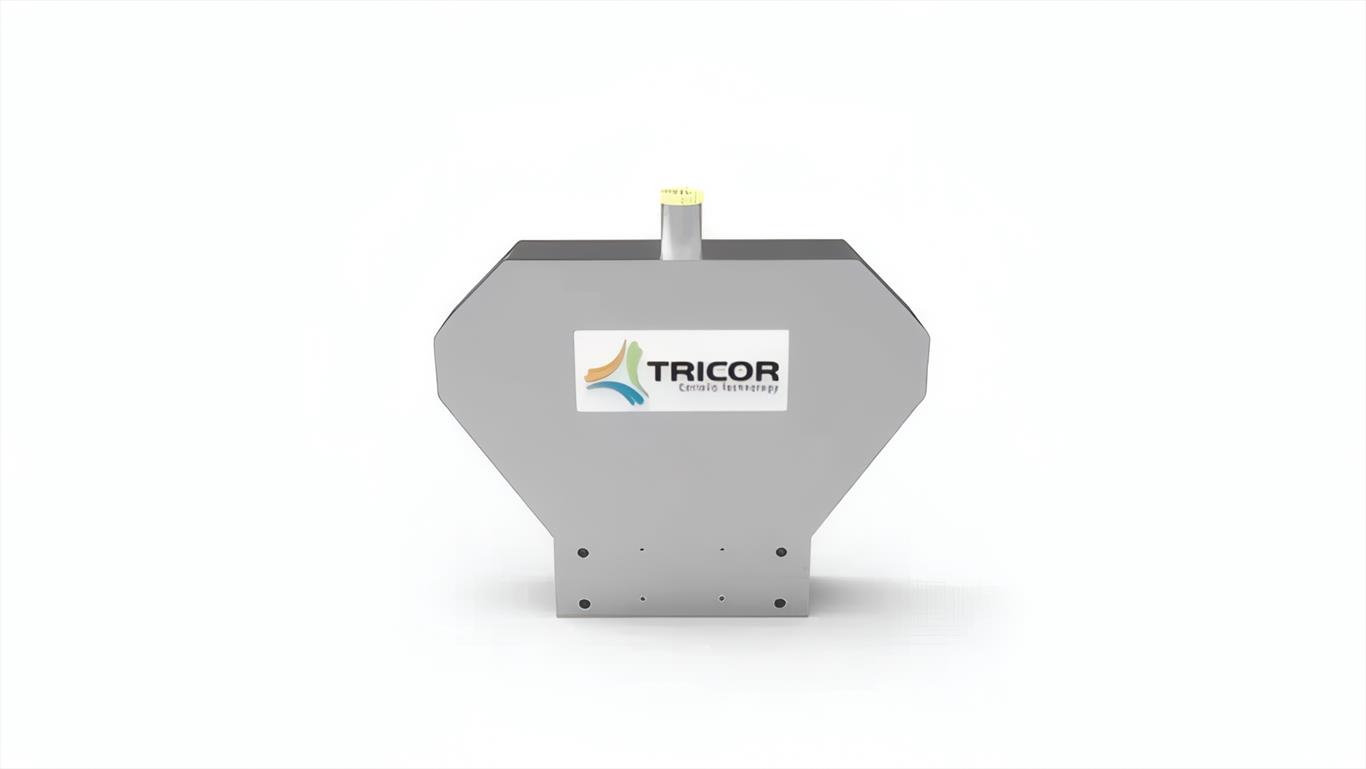

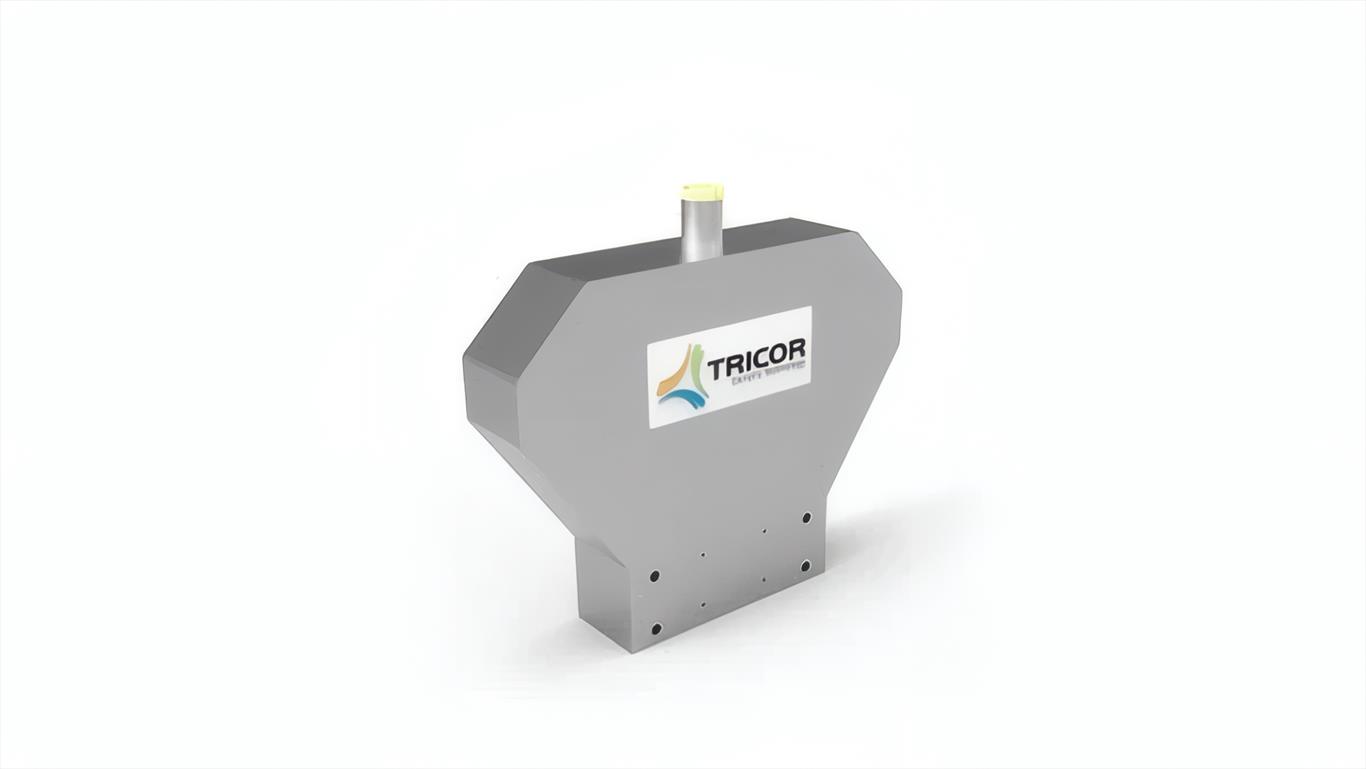

The TCMH 0450 is High Pressure Coriolis Mass Flow Meter, offered in three pressure ratings: 414 bar, 690 bar and 1050 bar (6,000 psi, 10,000 psi and 15,200 psi). The material choices for the U-shape tubes are either 316L stainless steel for chemical injection applications (NACE compliant) or Sandvik® Alloy HP 160, chosen to eliminate hydrogen embrittlement, such as in Hydrogen fueling stations.

Features & Benefits

Robust for long life
Customised installation length
Excellent repeatability
Latest transmitter technology

Nominal Flow Rate	@ 20°C air, pressure drop 10 bar: 394 kg/h @ 1,050 bar [14.5 lb/min @ 15,200 psi] 362 kg/h @ 690 bar [13.3 lb/min @ 10,000 psi] 316 kg/h @ 414 bar [11.6 lb/min @ 6,000 psi] @ 20°C H2, pressure drop 50 bar: 254 kg/h @ 1,050 bar [9.30 lb/min @ 15,200 psi] 240 kg/h @ 875 bar [8.80 lb/min @ 12,690 psi] 222 kg/h @ 690 bar [8.15 lb/min @ 10,000 psi] 184 kg/h @ 414 bar [6.75 lb/min @ 6,000 psi]
Pressure Rating	TCMH 0450-HC-SPPS (-SPMS): 1,050 bar [15,200 psi] TCMH 0450-HC-SRPS (-SRMS): 690 bar [10,000 psi] TCMH 0450-HC-SSPS (-SSMS): 414 bar [6,000 psi]
Accuracy	Flow: ±0.5 % of flow rate Mass Repeatability: ±0.5 % of flow rate Zero Stability: 0.45 kg/h [0.0165 lb/min]] Temperature: ±1 °C ±0.5 % of flow rate [±1,8 °F ±0.5 % of flow rate]
Operating conditions-process	Process Temperature Range: -40 °C ... +100 °C [-40 °F ... +212 °F] Medium: Gas Pressure Effect on Sensitivity: 0.0002 % / bar [0.000014 % / psi]
Operating conditions-environment	Ambient Temperature: -40 °C ... +70 °C [-40 °F ... +158 °F] Relative Humidity: max. 95 %
Materials (Wetted Parts)	Tubes: 1.4404 [AISI 316L] or Sandvik Alloy HP160 Case: 1.4404 [AISI 316L] Flow Splitter: 1.4404 [AISI 316L]
Burst protection	Rupture Disc: G1/2”
Connectivity	Flow Meter: 3/8” Autoclave (MP) (others on request) Signal Cable Connection: Push-Pull connector For triple Ex approval (Ex3)

Coriolis Mass Flow Meters - SPECIALITY Series - Flyer TCMH 0450 for High Pressure Gas Applications	Dowload PDF
Coriolis Mass Flow Meters – Manual TCM 0450/TCMH 0450	Dowload PDF
