TCMH 0450 Liquid

SPECIALITY Series

Coriolis

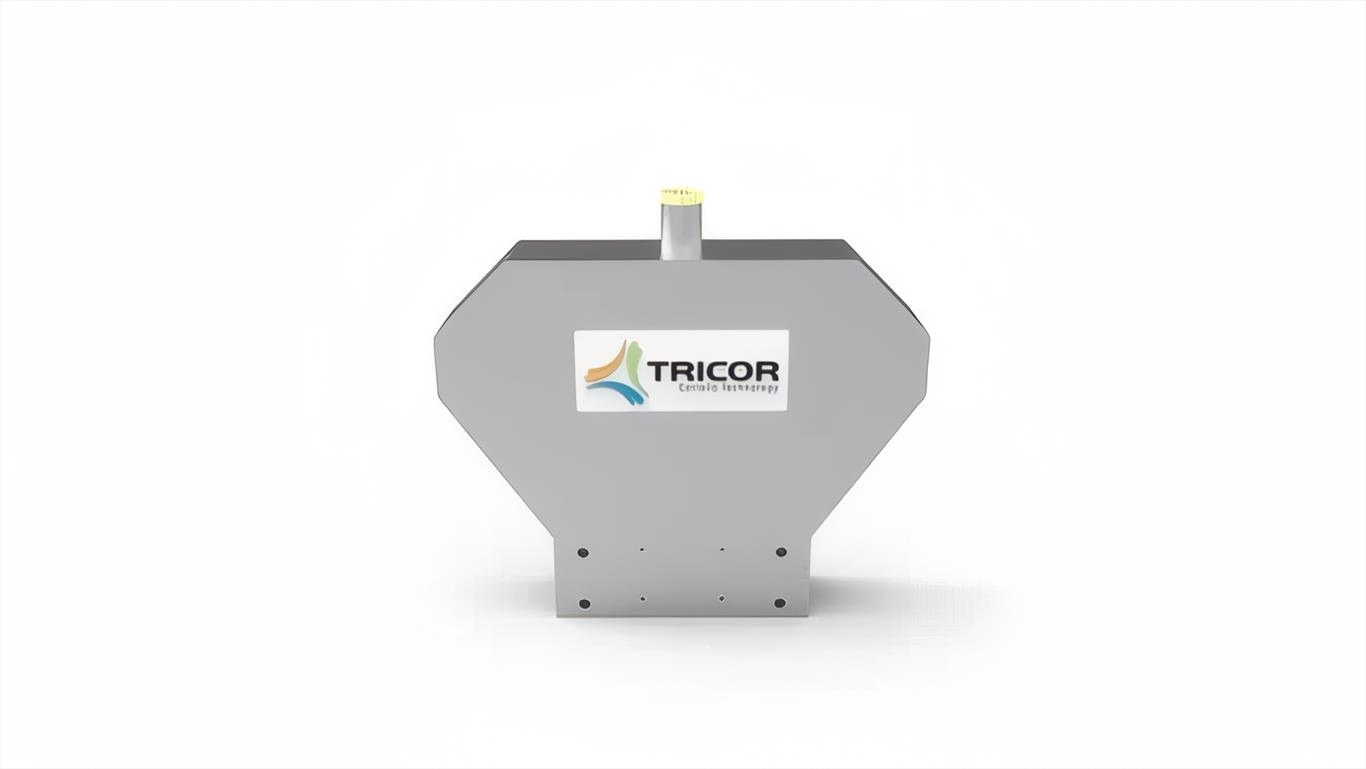

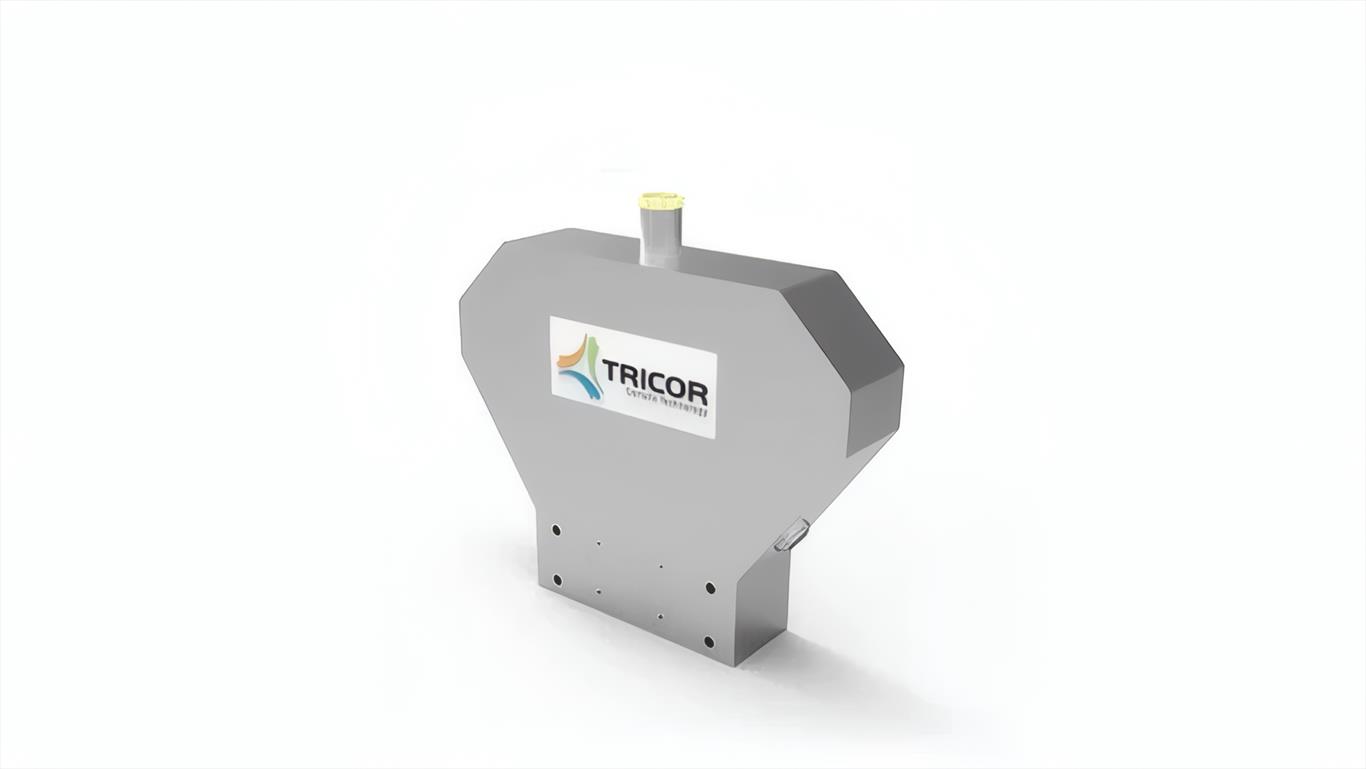

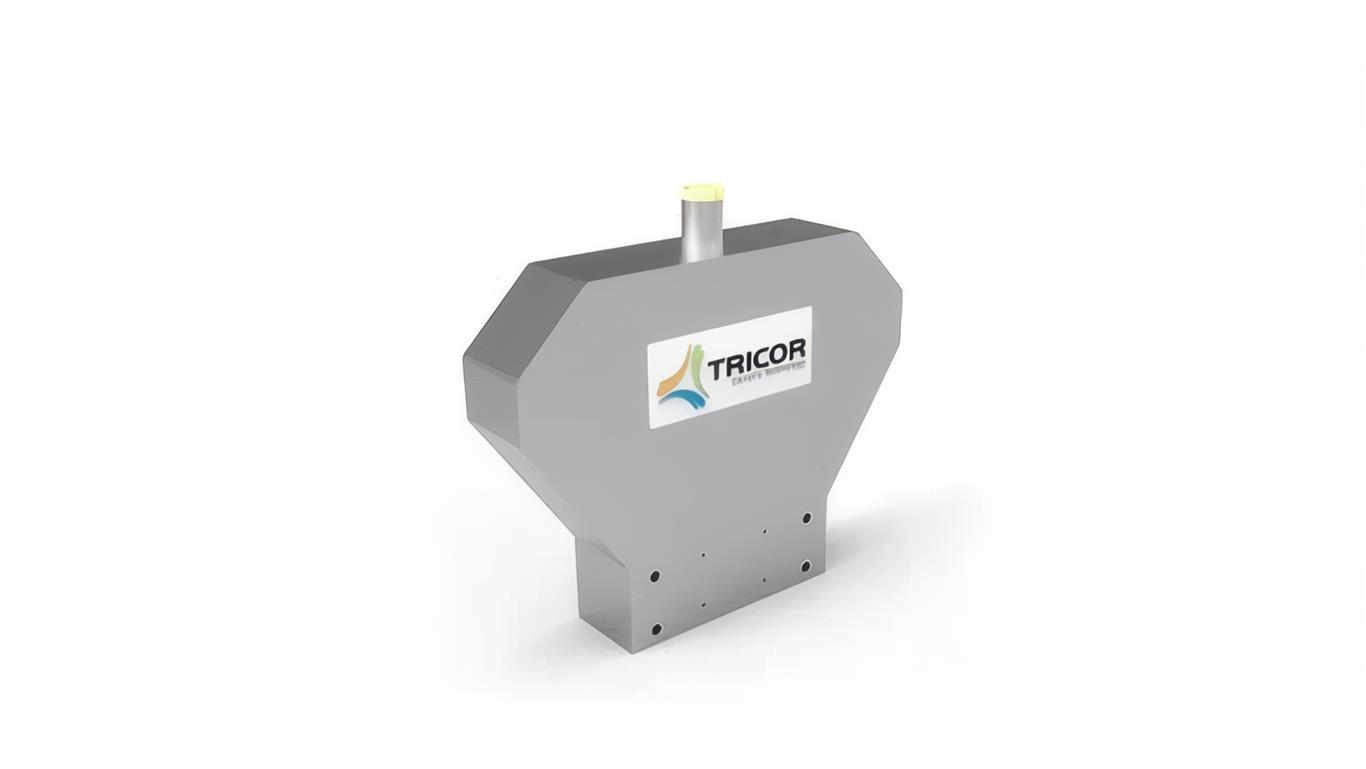

Coriolis Mass Flow Meter for High Pressure Liquid Applications

Request a quote

Introduction Functions & Specifications Documents, Manuals & Software

The TCMH 0450 is High Pressure Coriolis Mass Flow Meter, offered in three pressure ratings: 414 bar, 690 bar and 1050 bar (6,000 psi, 10,000 psi and 15,200 psi). The material choices for the U-shape tubes are either 316L stainless steel for chemical injection applications (NACE compliant) or Sandvik® Alloy HP 160, chosen to eliminate hydrogen embrittlement, such as in Hydrogen fueling stations.

Features & Benefits

Robust, no moving parts for long life

Nominal Flow Rate	@ 850 kg/m³: (Pressure Drop max. 2 bar) 180 kg/h @ 1 cSt [6.6 lb/min @ 1 cSt] 150 kg/h @ 10 cSt [5.5 lb/min @ 10 cSt] 65 kg/h @ 30 cSt [2.4 lb/min @ 30 cSt]
Pressure Rating	TCMH 0450-HC-SPOS: 1,050 bar [15,200 psi] TCMH 0450-HC-SROS: 690 bar [10,000 psi] TCMH 0450-HC-SSOS: 414 bar [6,000 psi]
Accuracy	Flow: ±0.5 % of flow rate Mass Repeatability: ±0.1 % of flow rate Zero Stability: 0.34 kg/h [0.16 kg/h] 0.012 lb/min [0.005 lb/min] Temperature: ±1 °C ±0.5 % of flow rate [±1,8 °F ±0.5 % of flow rate]
Operating conditions-process	Process Temperature Range: -40 °C ... +100 °C [-40 °F ... +212 °F] Medium: Liquid Pressure Effect on Sensitivity: 0.0002 % / bar [0.000014 % / psi]
Operating conditions-environment	Ambient Temperature: -40 °C ... +70 °C [-40 °F ... +158 °F] Relative Humidity: max. 95 %
Materials (Wetted Parts)	NACE MR0175/MR0103 Tubes: 1.4404 [AISI 316L] Case: 1.4404 [AISI 316L] Flow Splitter: 1.4404 [AISI 316L]
Burst protection	Rupture Disc: G1/2”
Connectivity	Flow Meter: 3/8” Autoclave (MP) Signal Cable Connection (For triple Ex approval (Ex3)): Push-Pull connector

Coriolis Mass Flow Meters - SPECIALITY Series - Flyer TCMH 0450 for High Pressure Liquid Applications	Dowload PDF
Coriolis Mass Flow Meters – Manual TCM 0450/TCMH 0450	Dowload PDF
