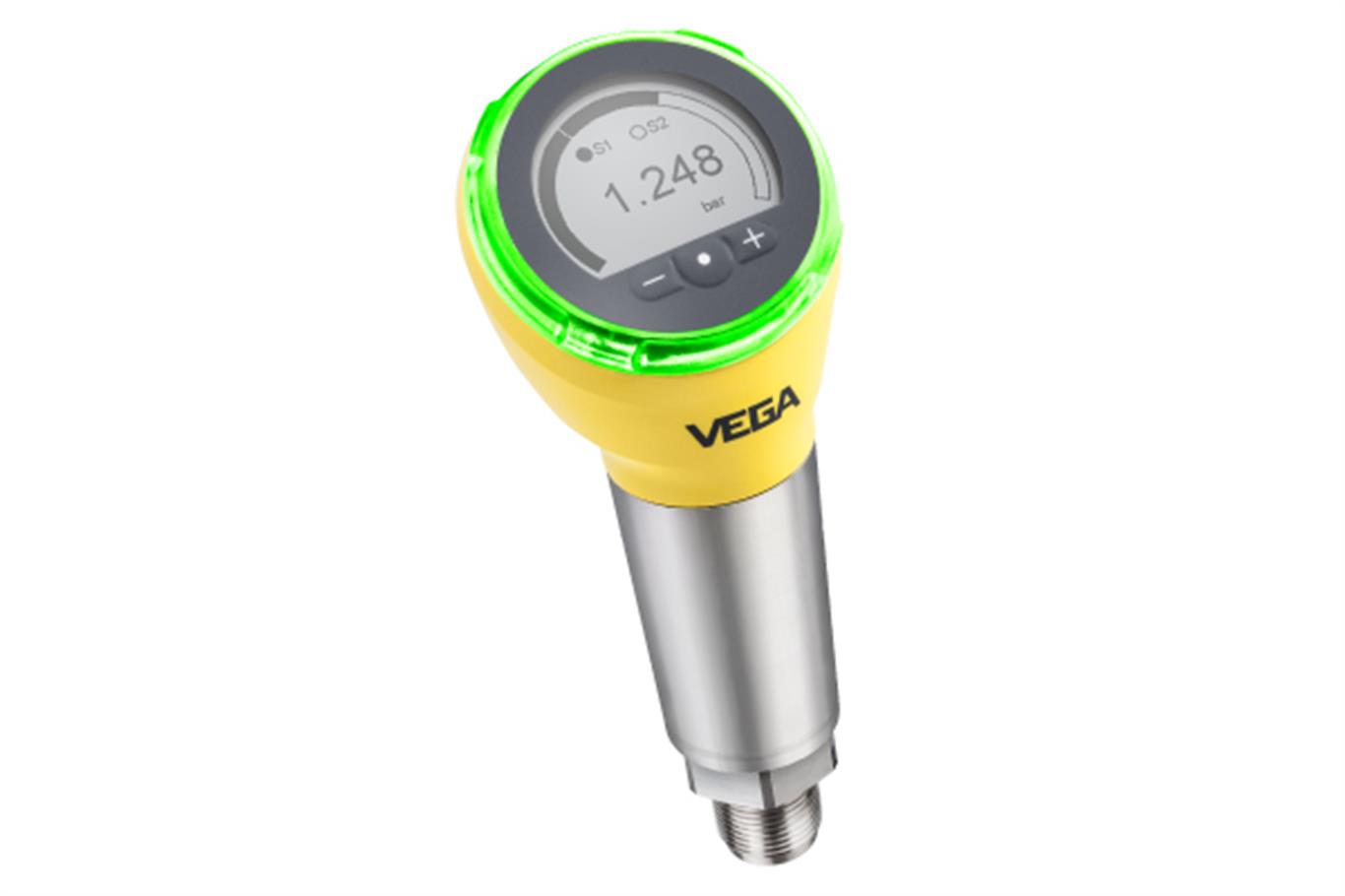

VEGABAR 39

Pressure sensor with switching function

With metallic measuring cell

Request a quote

Introduction Technical specifications Documentation

Application area

From thread ½", hygienic connections, universal connection G1" for hygiene adapter, 4 ... 20 mA, three-wire: PNP/NPN, 4 ... 20 mA, IO-Link, Ex and hygiene approval, coloured 360° status display, on-site display and 3-button operation

VEGABAR 39 is a universal pressure transmitter with a metallic measuring cell for measuring gases, vapours and liquids up 130 °C. The optional universal connection for hygienic adapters ensures reduced installation effort and leaner stock keeping. The sensor has a display with on-site operation and coloured 360° status display.

Your benefit

Coloured 360° status display, display and on-site operation with VDMA menu structure
Universally applicable due to fully welded metallic measuring cell
Easy integration into control systems through IO-Link communication

Measuring range - Pressure	-1 ... 1000 bar [Bar - kPa - psi]
Process temperature	-40 ... 130 °C [°C - °F]
Accuracy	0.3 %
Materials, wetted parts	316L
Threaded connection	≥ G¼, ≥ ¼ NPT

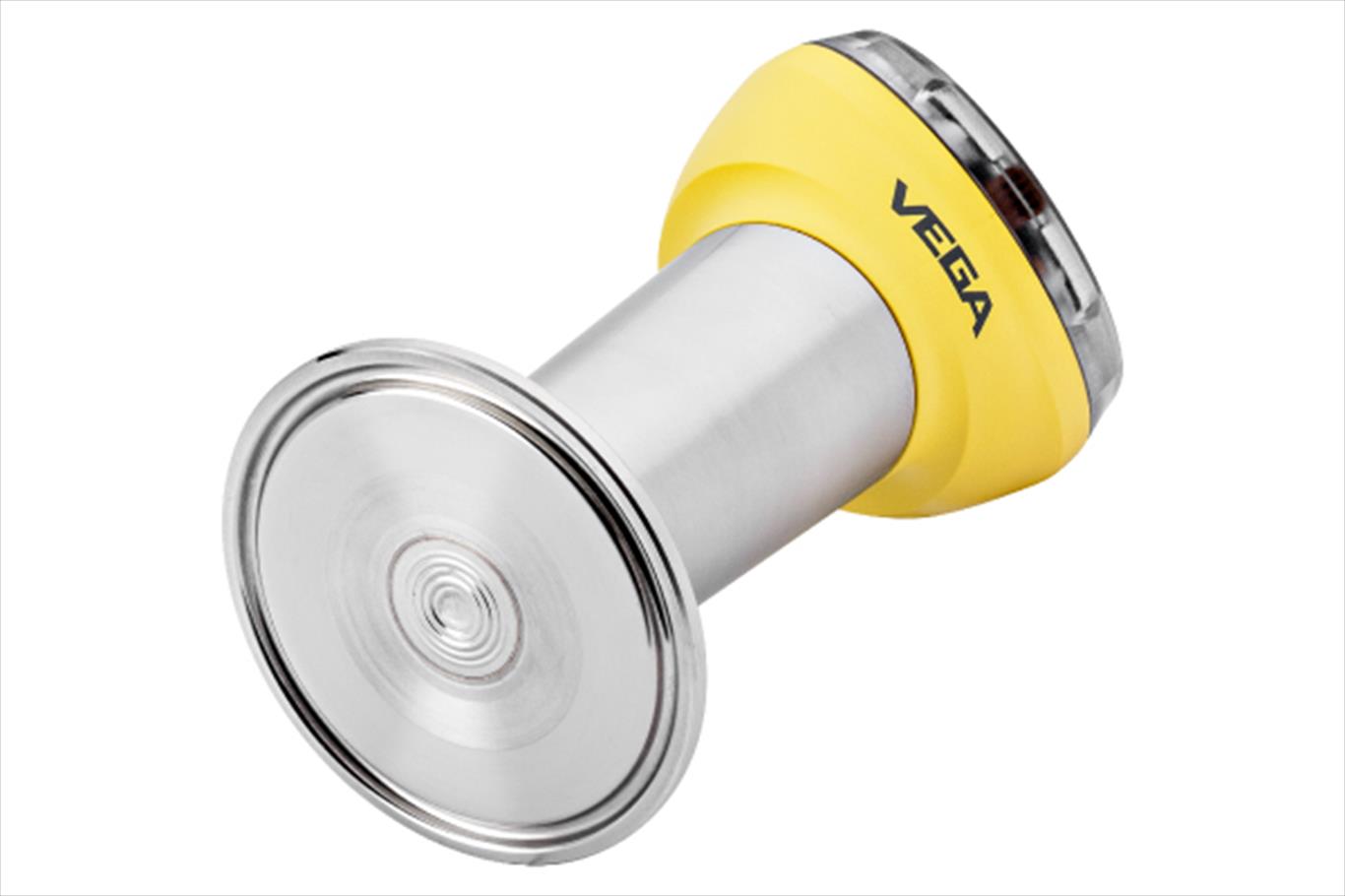

Hygenic fittings	Clamp ≥ 2", DN50 - DIN32676, ISO2852 Clamp ≥ 1" - DIN32676, ISO2852 Clamp ≥ 1½" - DIN32676, ISO2852 Slotted nut ≥ DN25 - DIN 11851 Slotted nut ≥ DN32 - DIN 11851 SMS 1145 DN51 SMS DN38 Hygienic fittings ≥ DN25 - DIN11864-1-A Hygienic fittings ≥ DN40 - DIN11864-1-A Varivent N50-40 SMS DN25 Ingold connection PN10 Varivent F25
Housing material	Plastic
Protection rating	IP66/IP67
Output	4 … 20 mA Three-wire (PNP/NPN, 4 … 20 mA) IO-Link
Ambient temperature	-40 ... 70 °C

Scope	ATEX / Europe CSA / Canada FM / USA IEC / worldwide NEPSI / China UKR Sepro / Ukraine INMETRO / Brazil CCOE / India KTL Korea TIIS / Japan IA c-UL-us UKEX
Explosion protection	Intrinsic safety "i"
Foodstuffs/Pharma	3A EHEDG FDA EG1935/2004
Ship approval	ABS BV CCS DNV LR RINA

Adjustment	Smartphone / Tablet / PC via Bluetooth PC, PACTware and DTM, IODD
Indication	Graphic-capable clear text indication with background lighting 360° status display
