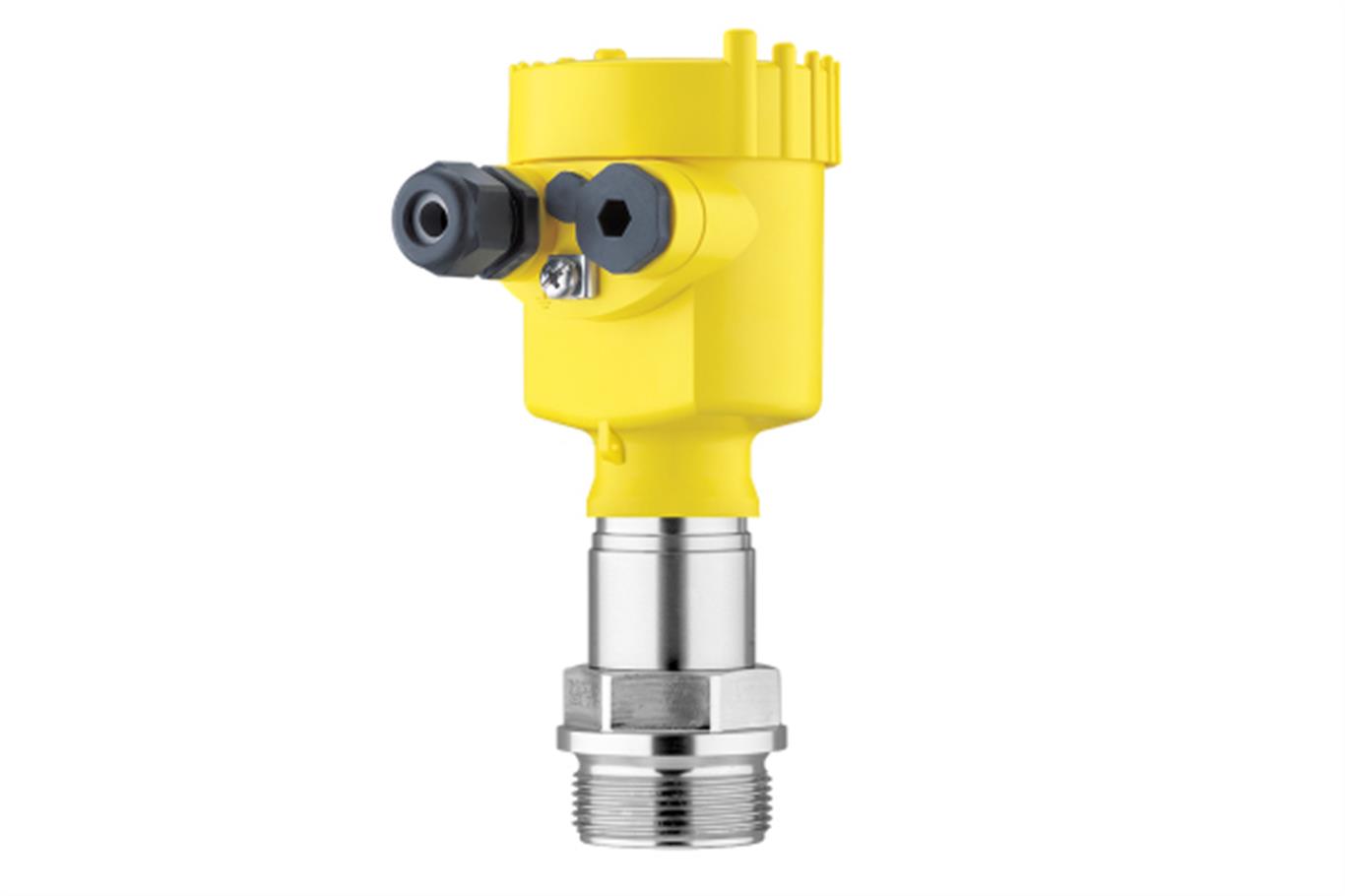

VEGABAR 83

Pressure transmitter with metallic measuring cell

With metallic measuring cell, for high pressures

Request a quote

Introduction Technical specifications Documentation

Application area

For measurement of liquids and viscous products with high process pressure.

The VEGABAR 83 is a pressure transmitter for pressure measurement of gases, vapours and liquids in all industries. The VEGABAR 83 offers special advantages in applications with high pressures. The simple connection of VEGABAR series 80 sensors as electronic differential pressure opens new possibilities for the measurement of differential pressures.

Your benefit

Maximum dependability and safety through proven technology
High reliability through vacuum resistant version
Universal use due to welded measuring cell

Measuring range - Pressure	-1 ... 1000 bar [Bar - kPa - psi]
Process temperature	-40 ... 200 °C [°C - °F]
Process pressure	-1 ... 1000 bar[Bar - kPa - psi]
Accuracy	0.075 %
Materials, wetted parts	316L Alloy C22 (2.4602) 316Ti (1.4571) Alloy C4 (2.4610)
Threaded connection	≥ G½, ≥ ½ NPT

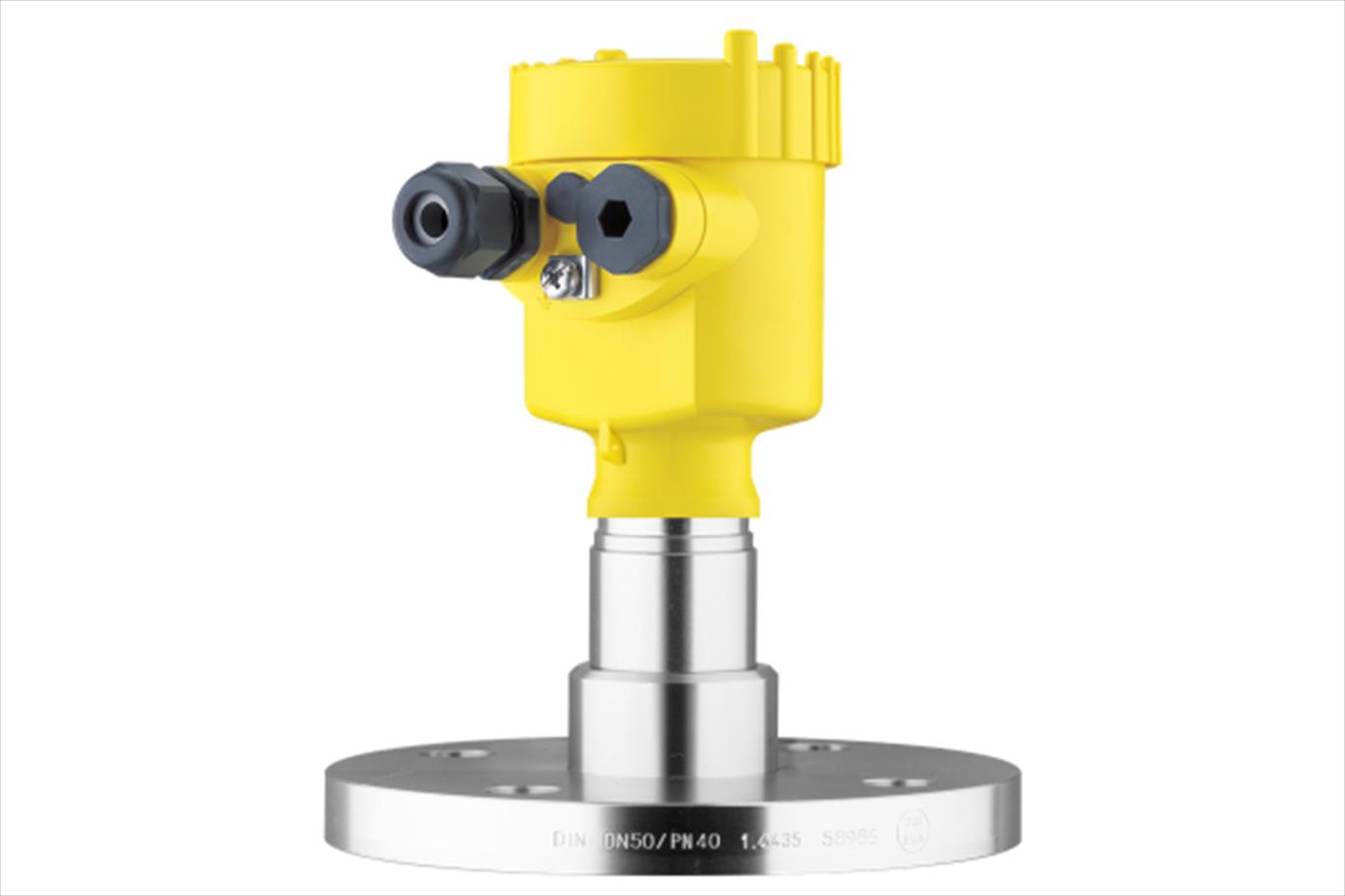

Flange connection	≥ DN25, ≥ 1"

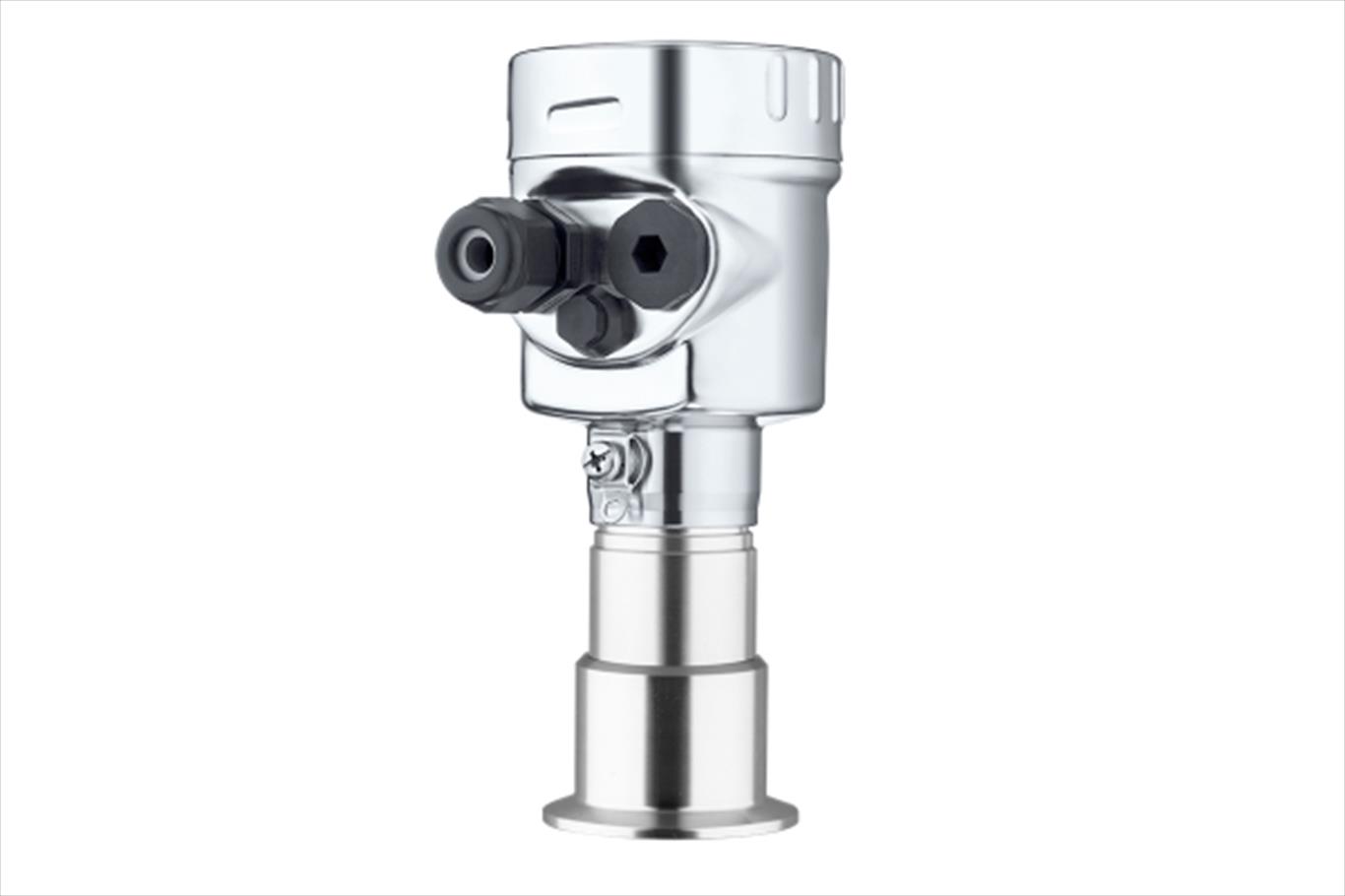

Hygenic fittings	Slotted nut ≥ DN25 - DIN 11851 Varivent ≥ DN25 hygienic fitting with tension flange DN32 Hygienice flange connection ≥ DN50 DIN11864-2 SMS 1145 DN51 SMS DN38 Hygienic fittings ≥ DN33 - DIN11864-1-A Hyg. collar clamp adapter DN40PN40 DIN11864-3-A Hyg. clamp connection DIN11864-3-A; DN50 Rohr ø53 Swagelok VCR screwing Varivent G125
Seal material	no media contact
Housing material	Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished)
Protection rating	IP66/IP67 IP66/IP68 (1 bar) IP68 (0,2 bar) IP66/IP68 (25 bar) IP69
Output	Profibus PA Foundation Fieldbus 4 … 20 mA Two-wire: 4 … 20 mA/HART Modbus Secondary electronics for electronic differential pressure
Ambient temperature	-40 ... 80 °C

Scope	ATEX / Europe FM / USA EAC (GOST) / Belarus EAC (GOST) / Russia IEC / worldwide NEPSI / China INMETRO / Brazil CCOE / India CSA / USA and Canada IA UKEX
Explosion protection	Intrinsic safety "i" Flameproof enclosure "d" Dust ignition protection "t"
Foodstuffs/Pharma	3A EHEDG FDA EG1935/2004
Ship approval	ABS BV CCS DNV LR RINA
Overfill protection	WHG VLAREM II
SIL qualification	SIL2

Adjustment	PLICSCOM PC, PACTware and DTM HART-Communicator Software (e. g. AMS™, PDM)
Indication	Display/adjustment module PLICSCOM VEGADIS 81 VEGADIS 82
