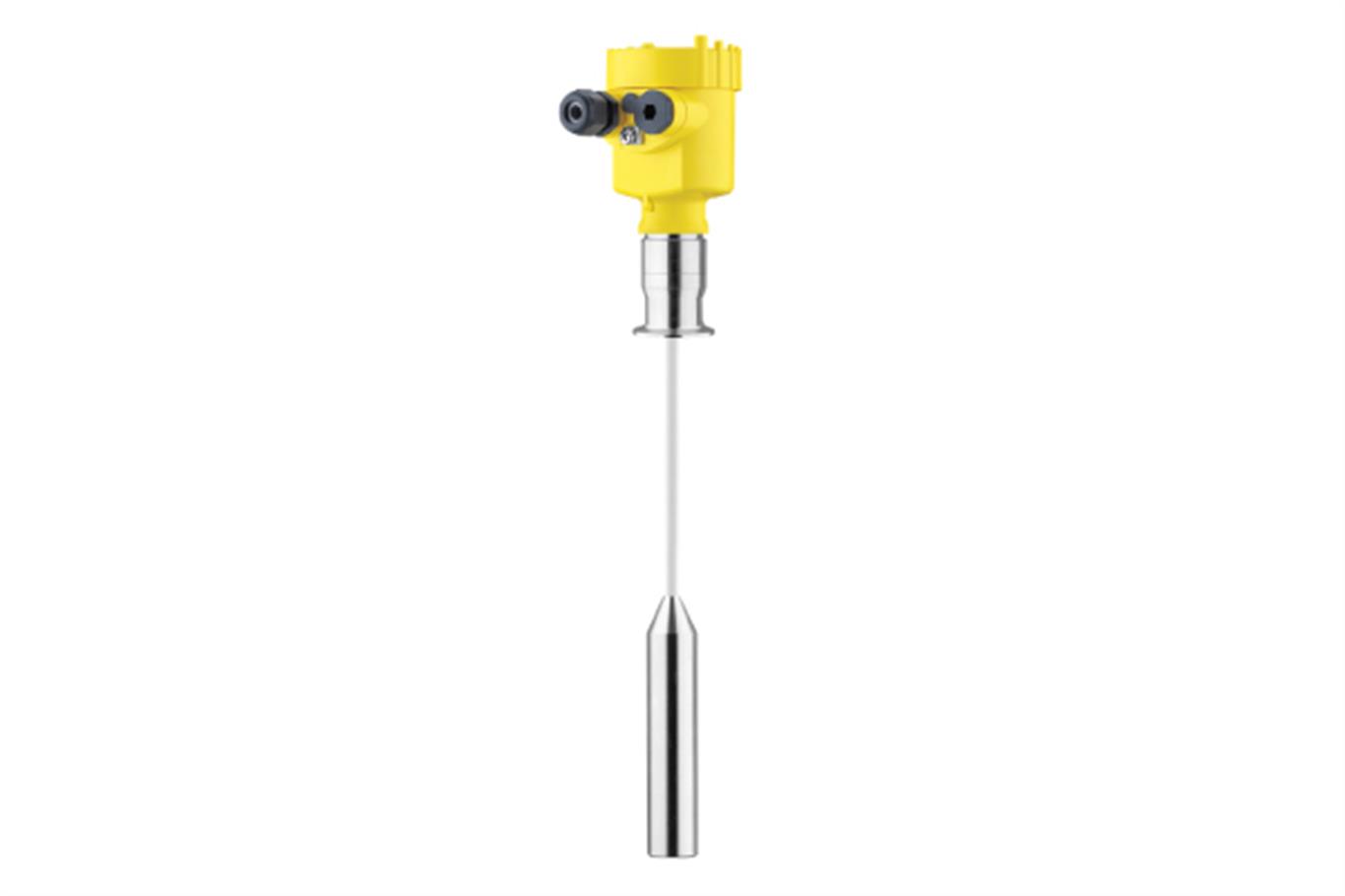

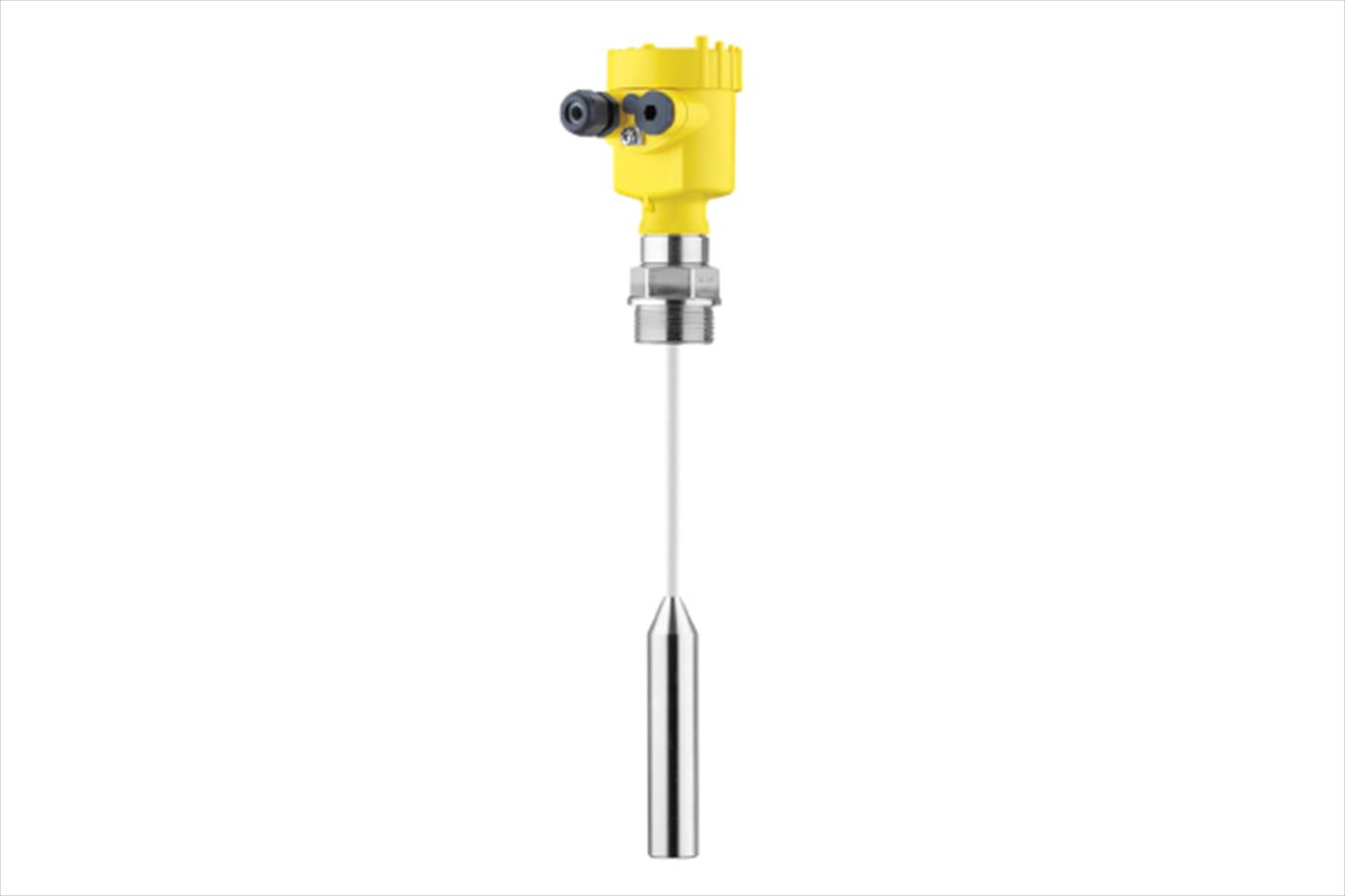

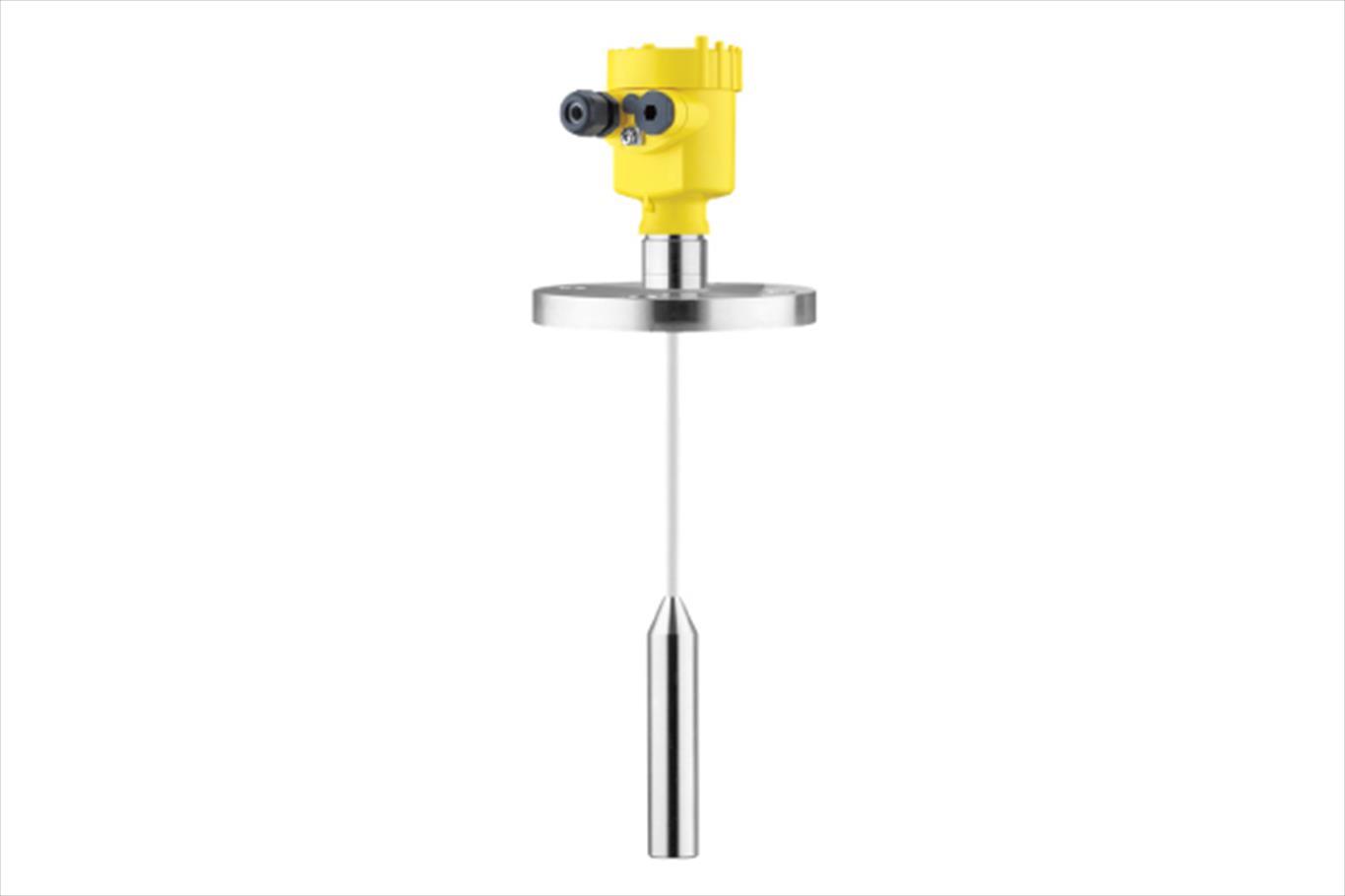

VEGACAL 66

Capacitive cable probe for continuous level measurement

Cable probe, fully PTFE insulated

Request a quote

Introduction Technical specifications Documentation

Application area

For use in non-abrasive liquids and bulk solids. The cable probe is fully insulated. A full/empty adjustment is necessary for setup.

The VEGACAL 66 is a level sensor for use in non-abrasive liquids and bulk solids. The cable probe is fully insulated. The proven mechanical construction offers high functional safety.

Your benefit

Savings through simple mounting and setup
Long lifetime and low maintenance requirement through robust mechanical construction
Maximum utilization of the vessel because measurement over the complete probe length

Measuring range - Distance	32 m [Meter - Foot]
Process temperature	-50 ... 150 °C [°C - °F]
Process pressure	-1 ... 40 bar [Bar - kPa - psi]
Version	PTFE insulated cable ø 8 mm with gravity weight PTFE-insulated cable ø 8 mm with gravity weight and screening tube
Materials, wetted parts	PTFE 316L Steel C22.8
Threaded connection	≥ G1, ≥ 1 NPT
Flange connection	≥ DN50, ≥ 2"
Seal material	no media contact
Housing material	Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished)
Protection rating	IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar)
Output	Profibus PA Foundation Fieldbus Two-wire: 4 … 20 mA/HART
Ambient temperature	-40 ... 80 °C

Scope	ATEX / Europe FM / USA EAC (GOST) / Belarus EAC (GOST) / Kazakhstan EAC (GOST) / Russia IEC / worldwide KOSHA / Korea NEPSI / China UKR Sepro / Ukraine INMETRO / Brazil CSA / USA and Canada
Explosion protection	Intrinsic safety "i" Flameproof enclosure "d" Dust ignition protection "t"
Ship approval	ABS BV CCS DNV GL LR RINA RMROS
Overfill protection	WHG VLAREM II
SIL qualification	SIL2

Adjustment	PLICSCOM PC, PACTware and DTM HART-Communicator Software (e. g. AMS™, PDM)
Indication	Display/adjustment module PLICSCOM VEGADIS 81 VEGADIS 82
