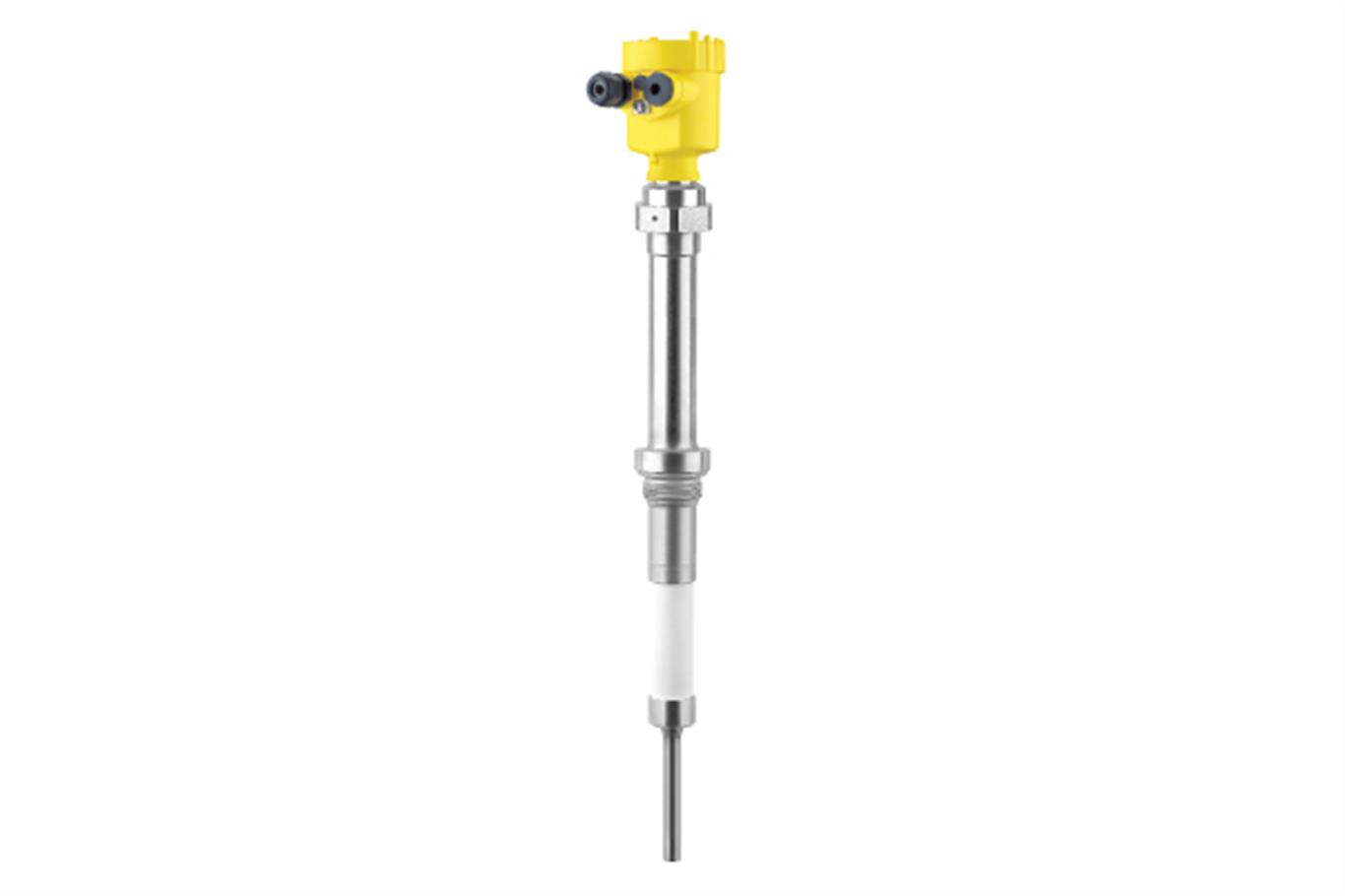

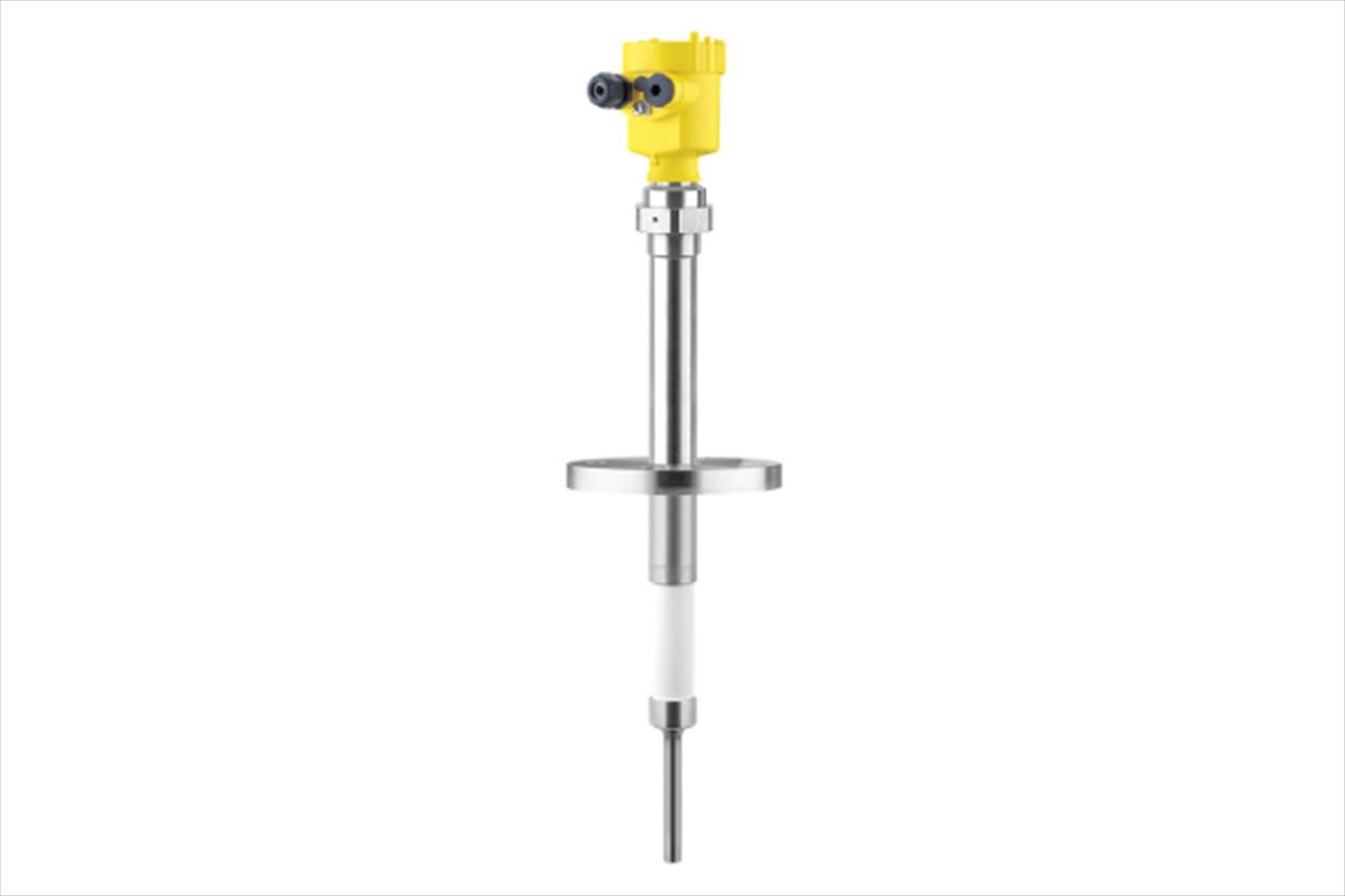

VEGACAL 67

Capacitive high temperature probe for level measurement of bulk solids

Rod probe, partly ceramic insulated

Request a quote

Introduction Technical specifications Documentation

For measurement of bulk solids at high process temperatures up to +400 °C. A full/empty adjustment is necessary for setup.

The VEGACAL 67 level sensor can be used universally for continuous level measurement of bulk solids at high process temperatures.

Precise measuring results in virtually all bulk solids and high temperature ranges
High flexibility through shortenable probe
Long lifetime and low maintenance requirement through robust mechanical construction

Measuring range - Distance	40 m [Meter - Foot]
Process temperature	-50 ... 400 °C [°C - °F]
Process pressure	-1 ... 16 bar [Bar - kPa - psi]
Version	Ceramic insulated cable probe Ceramic insulated cable probe with crimping sleeve Ceramic insulated rod probe
Materials, wetted parts	316L Ceramic 316
Threaded connection	≥ G1½, ≥ 1½ NPT
Flange connection	≥ DN50, ≥ 2"
Seal material	no media contact
Housing material	Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished)
Protection rating	IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar)
Output	Profibus PA Foundation Fieldbus Two-wire: 4 … 20 mA/HART
Ambient temperature	-40 ... 80 °C

Scope	ATEX / Europe CSA / Canada FM / USA EAC (GOST) / Belarus EAC (GOST) / Kazakhstan EAC (GOST) / Russia IEC / worldwide KOSHA / Korea NEPSI / China UKR Sepro / Ukraine INMETRO / Brazil
Explosion protection	Intrinsic safety "i" Dust ignition protection "t"
Foodstuffs/Pharma	FDA
Ship approval	ABS BV CCS DNV GL LR RINA RMROS
Overfill protection	WHG VLAREM II
SIL qualification	SIL2

Adjustment	PLICSCOM PC, PACTware and DTM HART-Communicator Software (e. g. AMS™, PDM)
Indication	Display/adjustment module PLICSCOM VEGADIS 62 VEGADIS 81 VEGADIS 82
