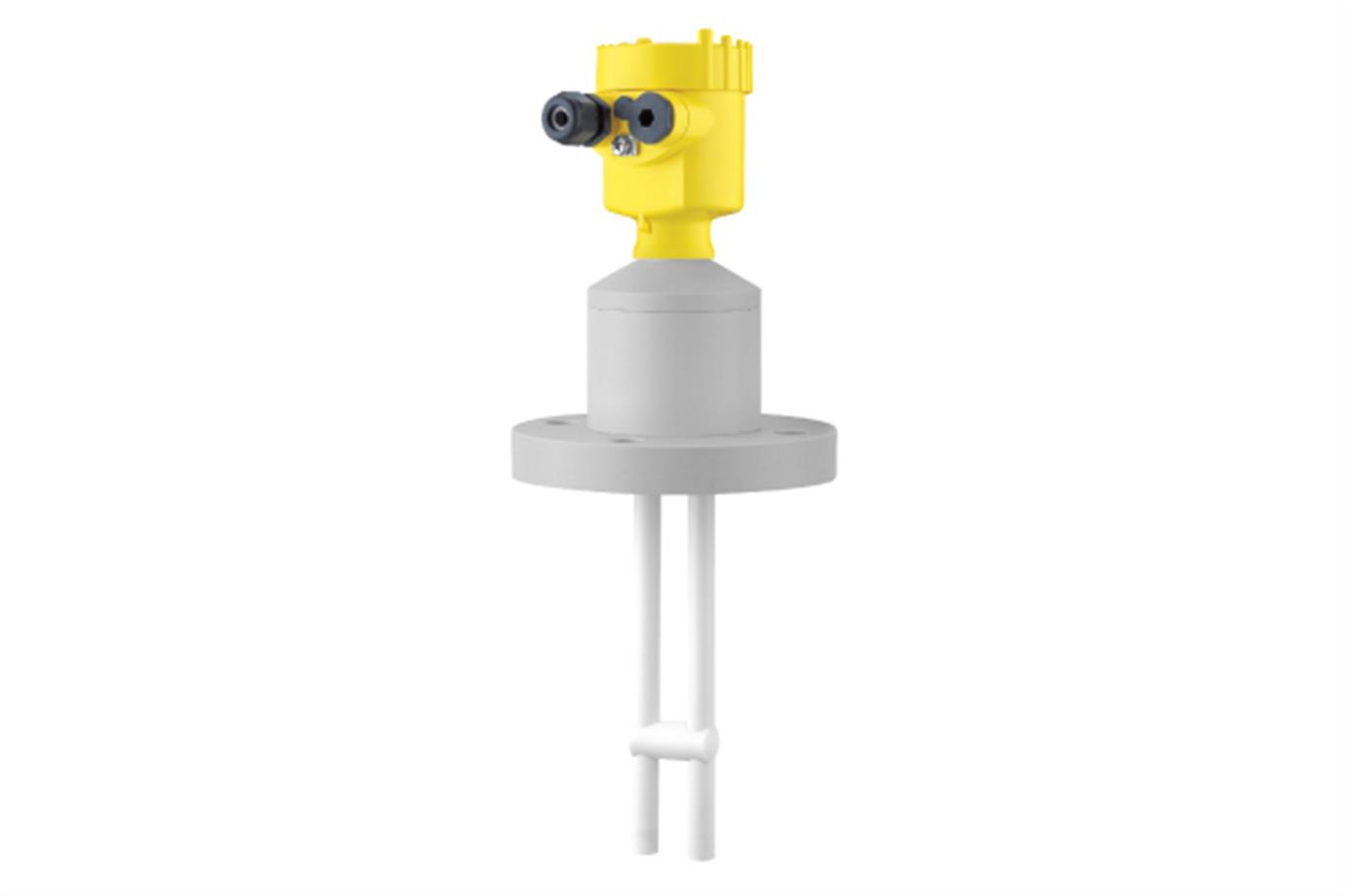

VEGACAL 69

Capacitive double rod electrode for level measurement

Double rod probe, fully FEP insulated

Introduction Technical specifications Documentation

Application area

For use in non-conductive vessels or corrosive liquids. The double rod probe is fully insulated and highly resistant. A full/empty adjustment is necessary for setup.

The VEGACAL 69 is a level sensor for continuous level measurement of liquids in non-conductive vessels or corrosive liquids. The double rod probe is fully insulated and highly resistant.

Your benefit

Low mounting expenditure through compact double rod version
Long service life and low maintenance due to high resistance materials
Maximum utilization of the vessel because measurement over the complete probe length

Measuring range - Distance	4 m [Meter - Foot]
Process temperature	-50 ... 100 °C [°C - °F]
Process pressure	-1 ... 2 bar [Bar - kPa - psi]
Version	FEP insulation
Materials, wetted parts	PTFE PP FEP
Flange connection	≥ DN50, ≥ 2"
Seal material	no media contact
Housing material	Plastic
Protection rating	IP66/IP67
Output	Profibus PA Foundation Fieldbus Two-wire: 4 … 20 mA/HART
Ambient temperature	-40 ... 80 °C

Scope	ATEX / Europe EAC (GOST) / Belarus EAC (GOST) / Kazakhstan EAC (GOST) / Russia IEC / worldwide UKR Sepro / Ukraine INMETRO / Brazil
Explosion protection	Intrinsic safety "i"
SIL qualification	SIL2

Adjustment	PLICSCOM PC, PACTware and DTM HART-Communicator Software (e. g. AMS™, PDM)
Indication	Display/adjustment module PLICSCOM VEGADIS 81 VEGADIS 82
