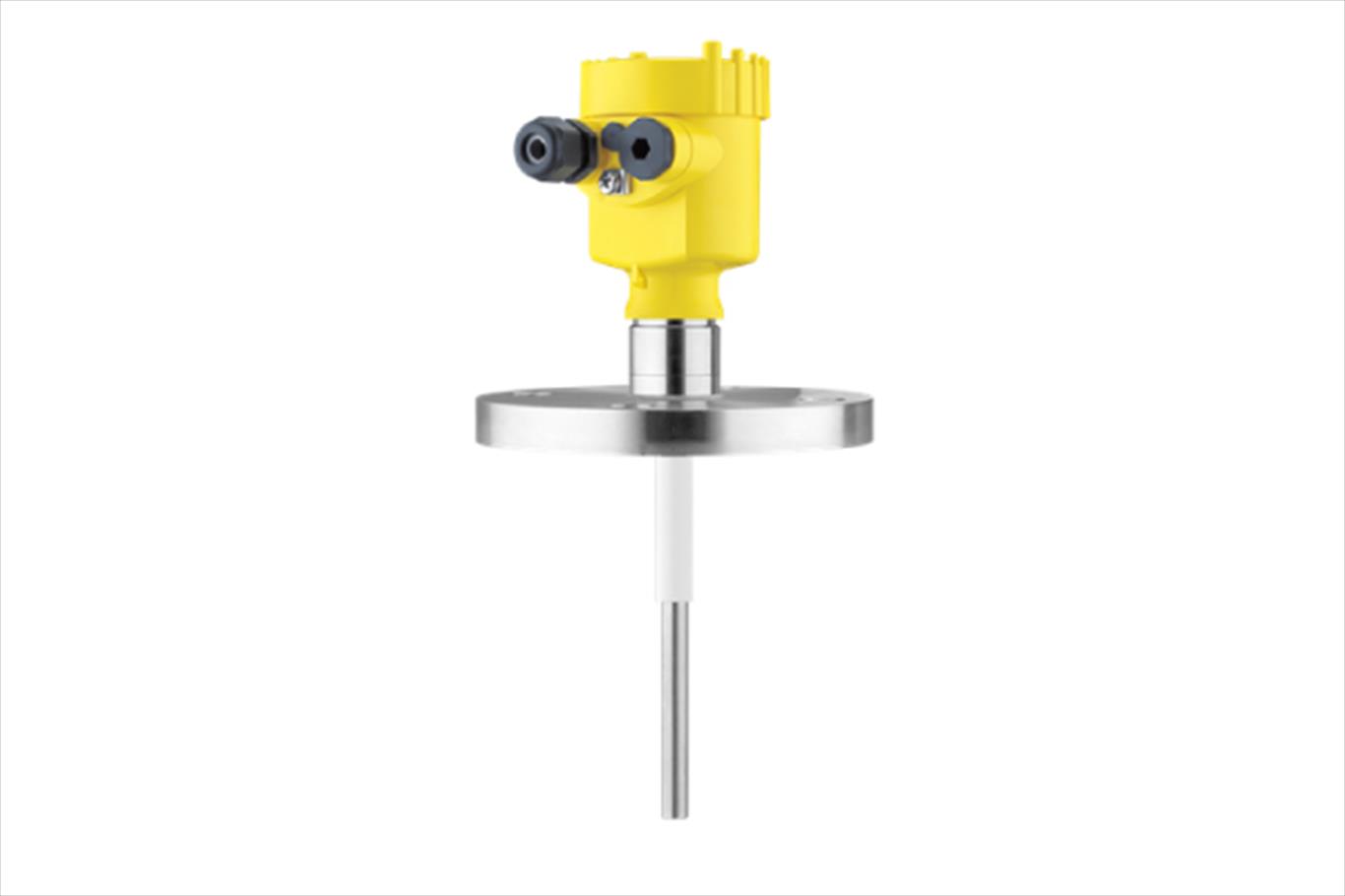

VEGACAP 62

Capacitive rod probe for level detection

Rod probe, partly PTFE insulated

Request a quote

Introduction Technical specifications Documentation

Application area

For liquids and bulk solids, Sensor length up to 6 m

The VEGACAP 62 is a point level sensor for use in all areas of industry. The partly insulated probe is suitable for measurement of bulk solids and liquids. The proven mechanical construction offers high functional safety.

Your benefit

High flexibility through shortenable probe
Long lifetime and low maintenance requirement through robust mechanical construction
Universal use in all products

Measuring range - Distance	- m [Meter - Foot]
Process temperature	-50 ... 200 °C [°C - °F]
Process pressure	-1 ... 64 bar [Bar - kPa - psi]
Version	with screening tube PN1 Standard
Materials, wetted parts	PTFE 316L Alloy 400 (2.4360) PE Steel C22.8
Threaded connection	≥ G½, ≥ ½ NPT
Flange connection	≥ DN25, ≥ 1"
Seal material	no media contact
Housing material	Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished)
Protection rating	IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar)
Output	Relay (DPDT) Contactless electronic switch Transistor (NPN/PNP) Two-wire
Ambient temperature	-40 ... 80 °C

Scope	ATEX / Europe CSA / Canada FM / USA EAC (GOST) / Belarus EAC (GOST) / Kazakhstan EAC (GOST) / Russia IEC / worldwide NEPSI / China UKR Sepro / Ukraine INMETRO / Brazil CCC
Explosion protection	Intrinsic safety "i" Flameproof enclosure "d" Dust ignition protection "t"
Ship approval	ABS BV CCS DNV LR RINA RMROS
Overfill protection	WHG VLAREM II
SIL qualification	SIL2
Foodstuffs/Pharma	FDA
