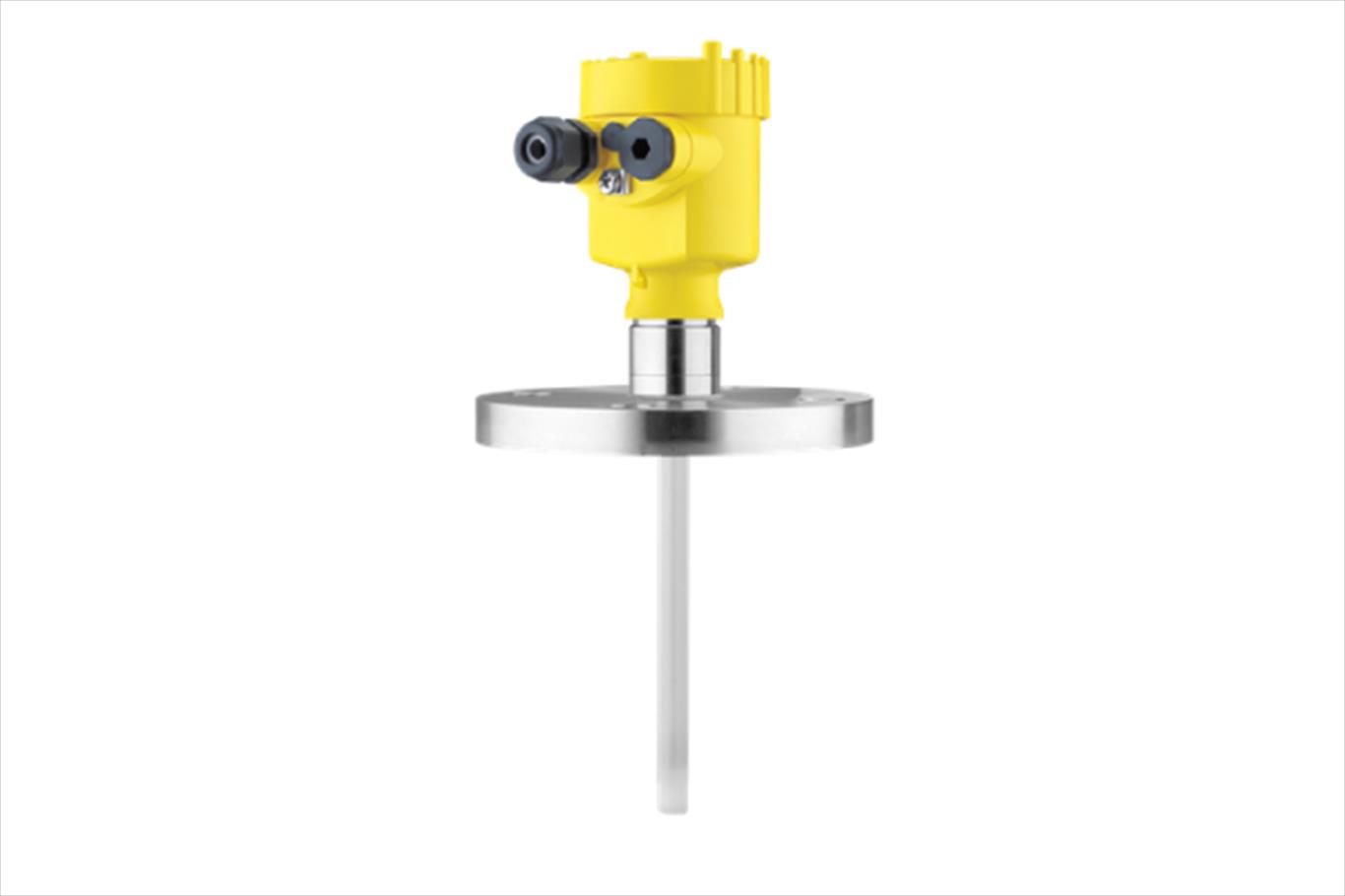

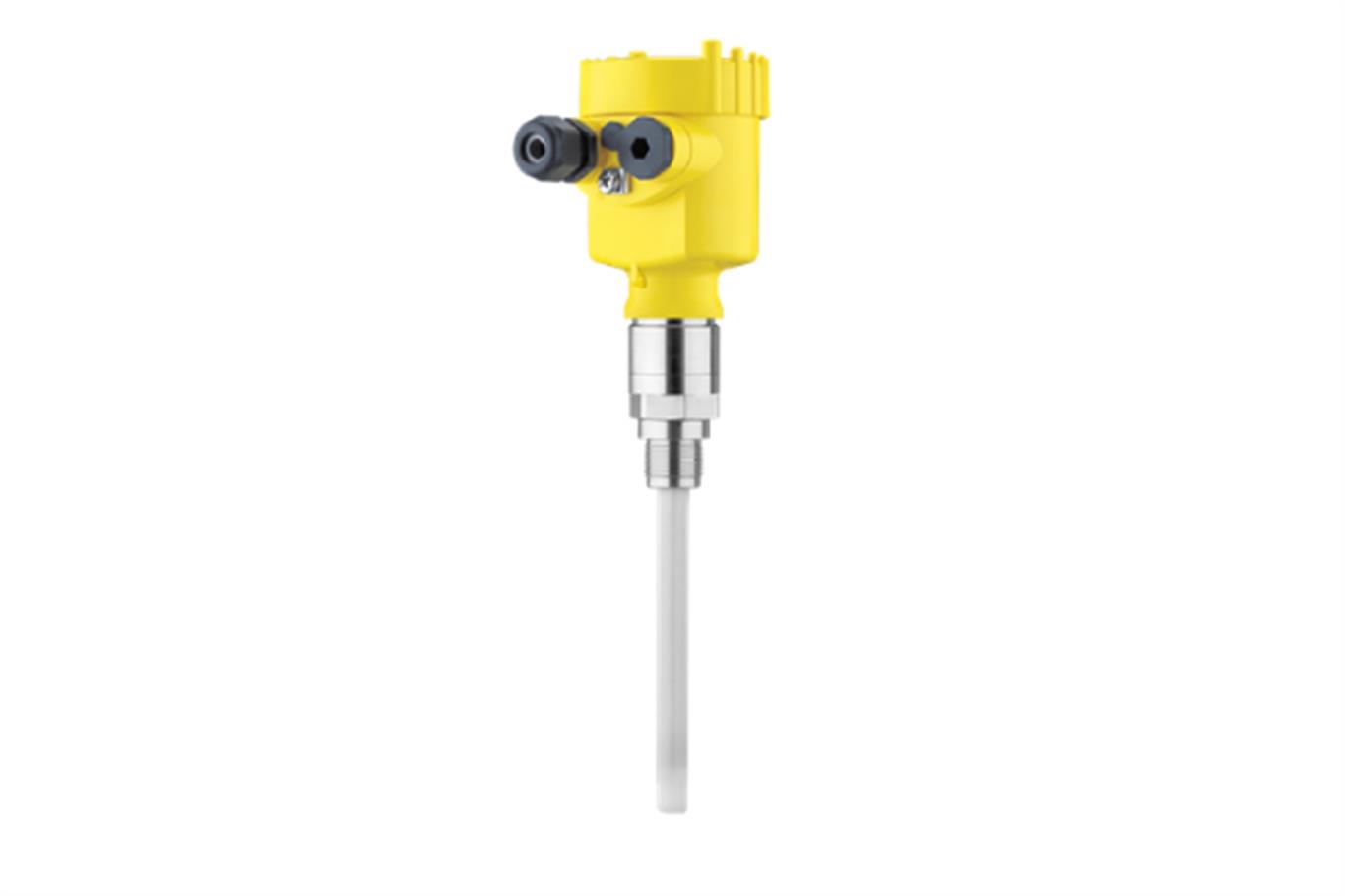

VEGACAP 63

Capacitive rod probe for level detection

Rod probe, fully PE or PTFE insulated

Request a quote

Introduction Application Technical specifications Documentation

Application area

For liquids and bulk solids, non-abrasive, Sensor length up to 6 m

The VEGACAP 63 point level sensor can be used universalle for the measurement of non-abrasive liquids and bulk solids. The rod probe is fully insulated and the proven mechanical construction offers high functional safety.

Your benefit

Simple planning due to variable switching point
Savings through simple mounting and setup
Long lifetime and low maintenance requirement through robust mechanical construction

Other applications

Measuring range - Distance	- m [Meter - Foot]
Process temperature	-50 ... 200 °C [°C - °F]
Process pressure	-1 ... 64 bar [Bar - kPa - psi]
Version	PE insulation PE insulation and concentric tube PTFE insulation PTFE insulation with screening tube PN1 PTFE insulation with screening tube PN16 PTFE insulation with screening tube PN40 PTFE insulation and concentric tube
Materials, wetted parts	PTFE 316L Alloy C22 (2.4602) Alloy 400 (2.4360) PE Steel C22.8
Threaded connection	≥ G½, ≥ ½ NPT
Flange connection	≥ DN25, ≥ 1"
Seal material	no media contact
Housing material	Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished)
Protection rating	IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar)
Output	Relay (DPDT) Contactless electronic switch Transistor (NPN/PNP) Two-wire
Ambient temperature	-40 ... 80 °C

Scope	ATEX / Europe CSA / Canada FM / USA EAC (GOST) / Belarus EAC (GOST) / Kazakhstan EAC (GOST) / Russia IEC / worldwide NEPSI / China UKR Sepro / Ukraine CSA / USA and Canada CCC
Explosion protection	Intrinsic safety "i" Flameproof enclosure "d" Dust ignition protection "t"
Ship approval	ABS BV CCS DNV LR RINA RMROS
Overfill protection	WHG VLAREM II
SIL qualification	SIL2
Foodstuffs/Pharma	FDA
