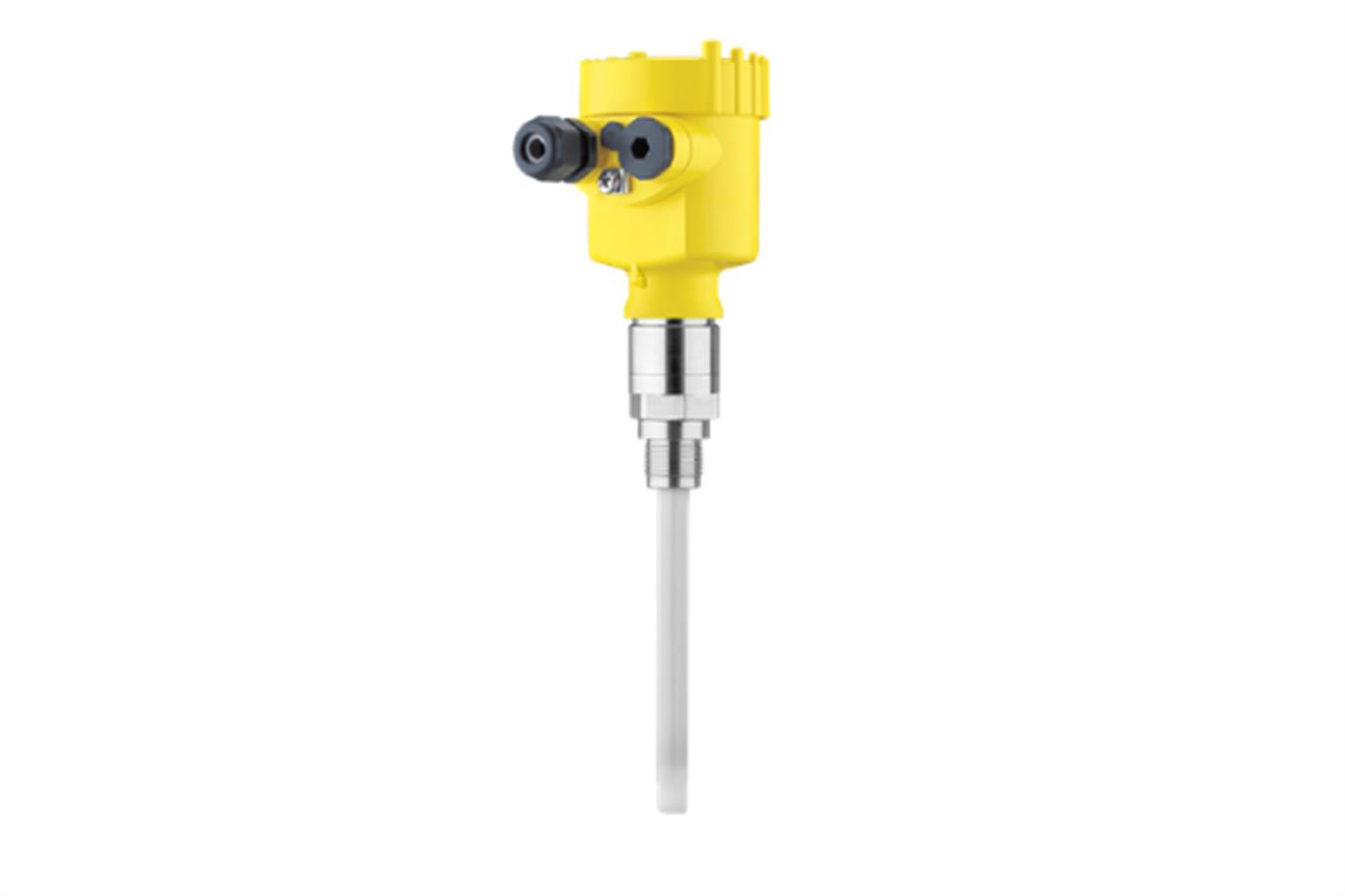

VEGACAP 64

Capacitive rod probe for level detection of adhesive products

Rod probe, fully PTFE insulated

Application area

For adhesive liquids and light, non-abrasive bulk solids, Sensor length up to 4 m
The VEGACAP 64 is a point level sensor for non-abrasive liquids and bulk solids. The rod probe is fully insulated and due to its construction is particularly suitable for viscous and adhesive products.


Your benefit

  • Reduced number of cleaning cycles through measurement insensitive to buildup
  • Long lifetime and low maintenance requirement through robust construction
  • Reliable measurement with strong buildup through optimized construction

Measuring range - Distance
  • - m [Meter - Foot]
Process temperature
  • -50 ... 200 °C [°C - °F]
Process pressure
  • -1 ... 64 bar [Bar - kPa - psi]
Version
  • PTFE insulation
Materials, wetted parts
  • PTFE
  • 316L
  • Alloy C22 (2.4602)
  • Steel C22.8
Threaded connection
  • ≥ G¾, ≥ ¾ NPT

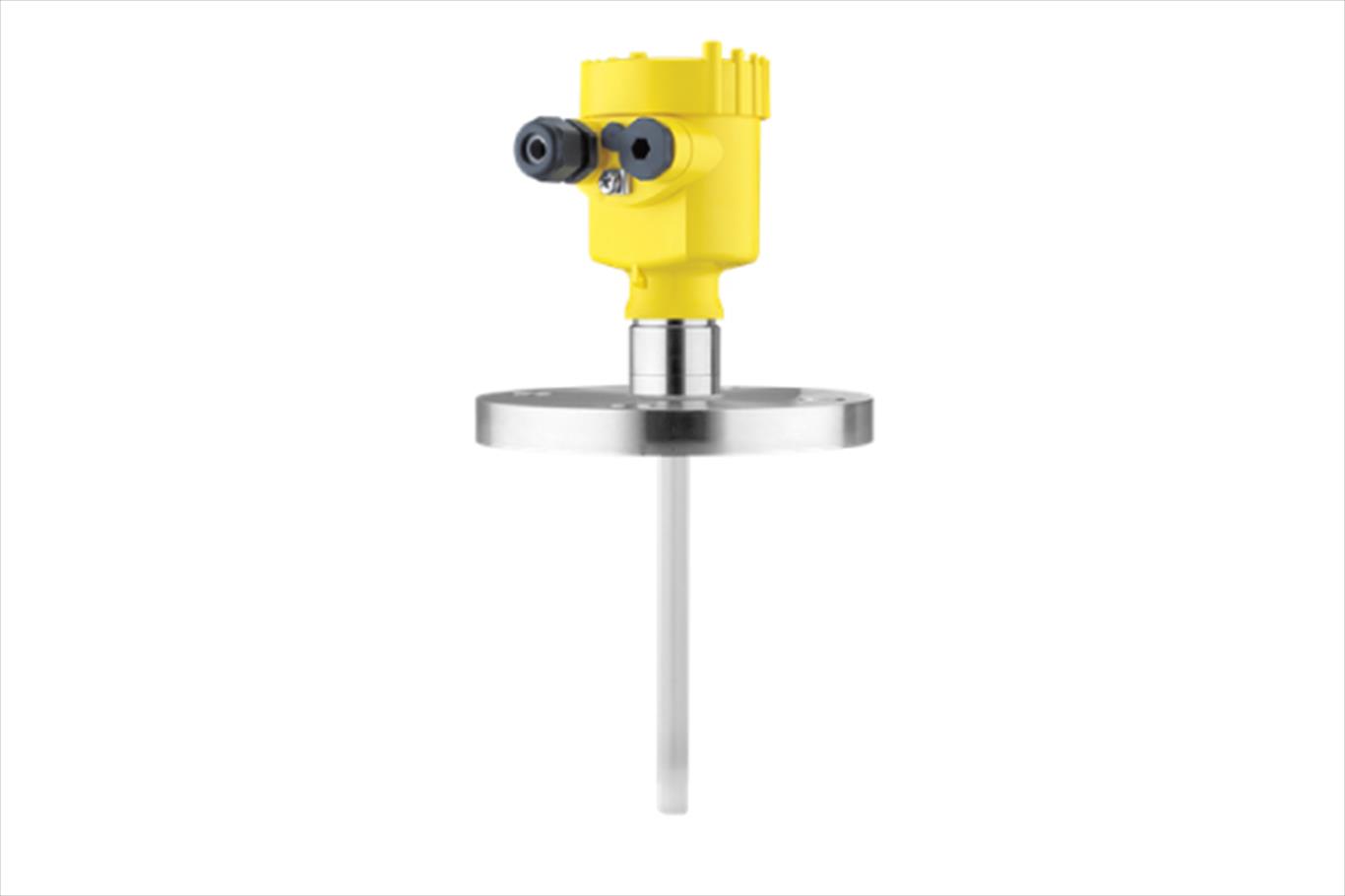

Flange connection
  • ≥ DN25, ≥ 1"
Housing material
  • Plastic
  • Aluminium
  • Stainless steel (precision casting)
  • Stainless steel (electropolished)
Protection rating
  • IP66/IP68 (0,2 bar)
  • IP66/IP67
  • IP66/IP68 (1 bar)
Output
  • Relay (DPDT)
  • Contactless electronic switch
  • Transistor (NPN/PNP)
  • Two-wire
Ambient temperature
  • -40 ... 80 °C

Scope
  • ATEX / Europe
  • FM / USA
  • EAC (GOST) / Belarus
  • EAC (GOST) / Kazakhstan
  • EAC (GOST) / Russia
  • IEC / worldwide
  • NEPSI / China
  • UKR Sepro / Ukraine
  • CSA / USA and Canada
  • CCC
Explosion protection
  • Intrinsic safety "i"
  • Flameproof enclosure "d"
  • Dust ignition protection "t"
Ship approval
  • ABS
  • BV
  • CCS
  • DNV
  • LR
  • RINA
  • RMROS
Overfill protection
  • WHG
  • VLAREM II
SIL qualification
  • SIL2

Indication
  • Pluggable display module PLICSLED
