VEGACAP 66

Capacitive cable probe for level detection

Cable probe, fully PTFE insulated

Application area

For non-abrasive liquids and bulk solids, Sensor length up to 32 m
The VEGACAP 66 point level sensor can be used universall for the measurement of non-abrasive liquids and bulk solids. The cable probe is fully insulated and the proven mechanical construction offers high functional safety.


Your benefit

  • Simple planning due to variable switching point
  • Savings through simple mounting and setup
  • Long lifetime and low maintenance requirement through robust mechanical construction

Measuring range - Distance
  • - [Meter - Foot]
Process temperature
  • -50 ... 150 °C [°C - °F]
Process pressure
  • -1 ... 40 bar [Bar - kPa - psi]
Version

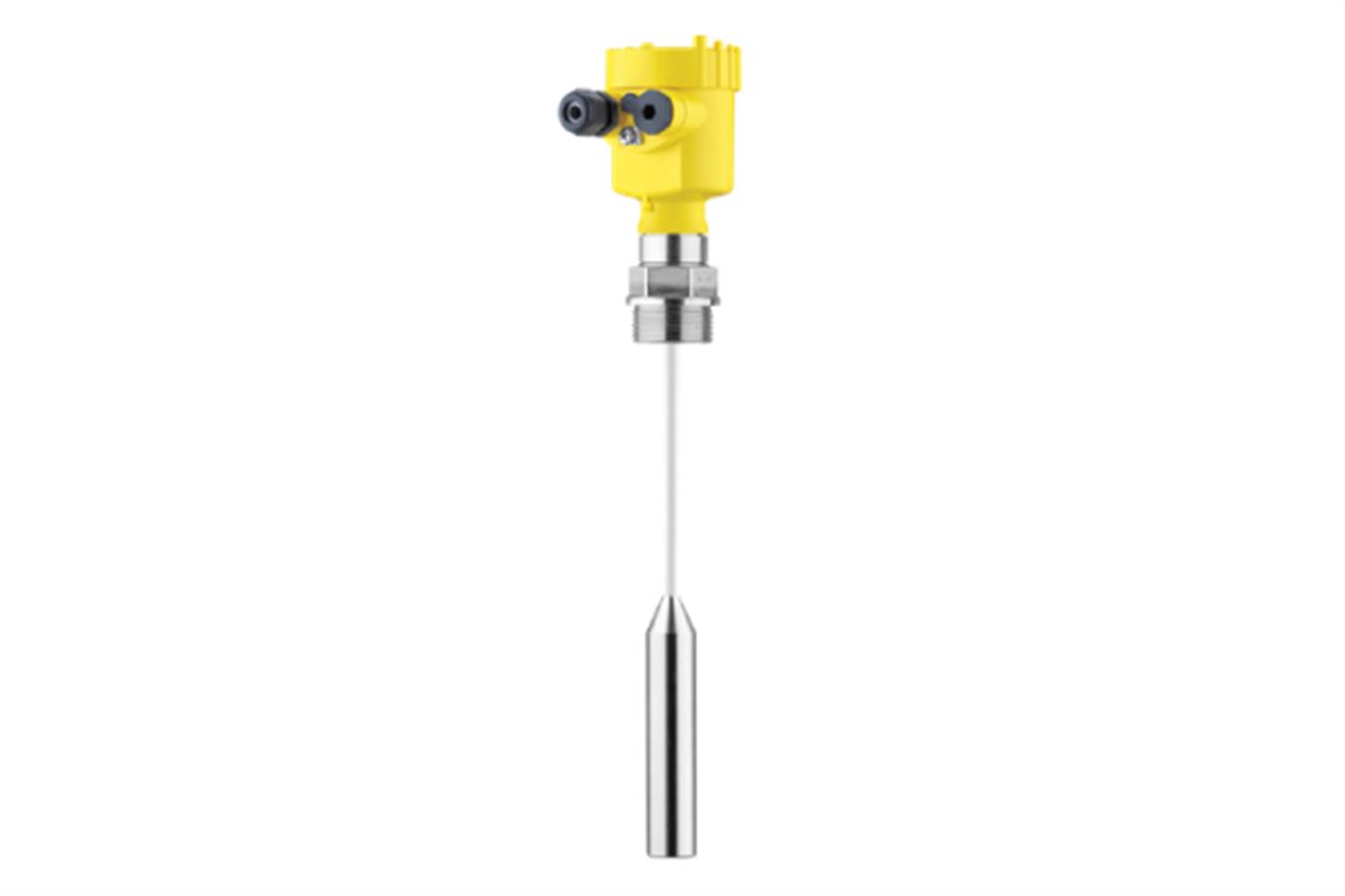

  • PTFE insulated cable ø 8 mm with gravity weight
  • PTFE-insulated cable ø 8 mm with gravity weight and screening tube
Materials, wetted parts
  • PTFE
  • 316L
  • Steel C22.8
Threaded connection
  • ≥ G1, ≥ 1 NPT

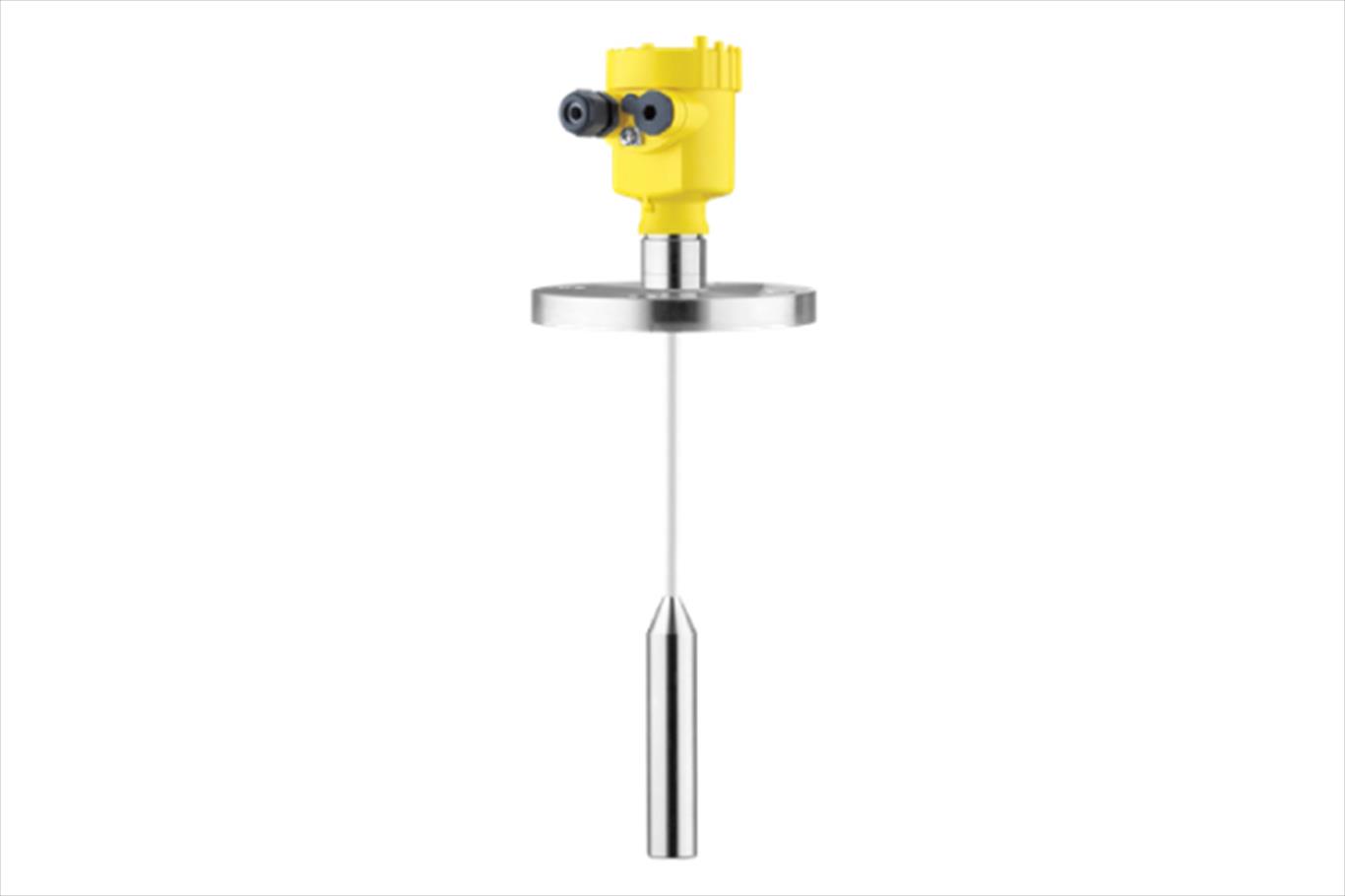

Flange connection
  • ≥ DN40, ≥ 1½"
Seal material
  • no media contact
Housing material
  • Plastic
  • Aluminium
  • Stainless steel (precision casting)
  • Stainless steel (electropolished)
Protection rating
  • IP66/IP68 (0,2 bar)
  • IP66/IP67
  • IP66/IP68 (1 bar)
Output
  • Relay (DPDT)
  • Contactless electronic switch
  • Transistor (NPN/PNP)
  • Two-wire
Ambient temperature
  • -40 ... 80 °C

Scope
  • ATEX / Europe
  • CSA / Canada
  • FM / USA
  • EAC (GOST) / Belarus
  • EAC (GOST) / Kazakhstan
  • EAC (GOST) / Russia
  • IEC / worldwide
  • NEPSI / China
  • UKR Sepro / Ukraine
  • CCC
Explosion protection
  • Intrinsic safety "i"
  • Dust ignition protection "t"
Ship approval
  • ABS
  • BV
  • CCS
  • DNV
  • LR
  • RINA
  • RMROS
Overfill protection
  • WHG
  • VLAREM II
SIL qualification
  • SIL2

Indication
  • Pluggable display module PLICSLED
