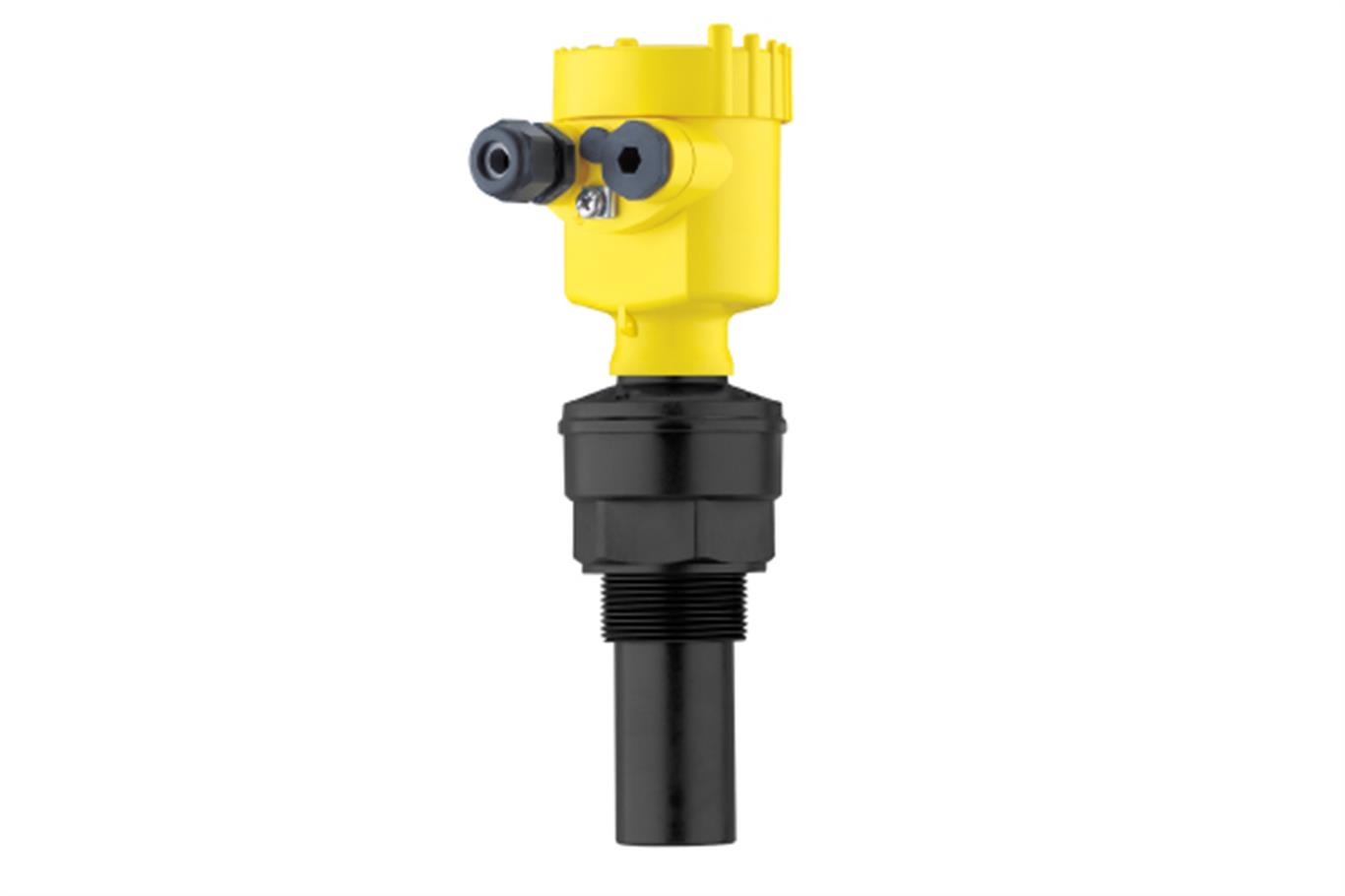

VEGASON 61

Ultrasonic sensor for continuous level measurement

Measures liquids up to 5 m and bulk solids up to 2 m away

Request a quote

Introduction Technical specifications Documentation

Application area

Extensive selection of electronics, housings, approvals. Process fittings: G1½ or 1½ NPT

The VEGASON 61 is an ultrasonic sensor for continuous level measurement of liquids or bulk solids. Typical applications are the measurement of liquids in storage tanks or open basins. The sensor is also suitable for the detection of bulk solids in small vessels or open containers. The non-contact measuring principle is independent of product features and allows a setup without medium.

For this instrument, new radar sensors with connection housing VEGAPULS 11, 21 or 31, or radar sensors with fixed connected cable VEGAPULS C 11, C 21, C 22 or C 23 are available as alternative.

Your benefit

Price-favourable solution for simple applications
Maintenance-free operation through non-contact measuring principle
Reliable measurement independent of product features

Measuring range - Distance	5 m [Meter - Foot]
Process temperature	-40 ... 80 °C [°C - °F]
Process pressure	-0.2 ... 2 bar [Bar - kPa - psi]
Accuracy	± 4 mm
Materials, wetted parts	PVDF
Threaded connection	≥ G1½, ≥ 1½ NPT
Hygenic fittings	Clamp ≥ 2", DN50 - DIN32676, ISO2852 Clamp ≥ 3", DN65 - DIN32676, ISO2852 Clamp ≥ 3½" , DN80 - DIN32676, ISO2852 Clamp ≥ 4" , DN100 - DIN32676, ISO2852 Slotted nut ≥ 3", DN65 - DIN 11851 Slotted nut ≥ 3½", ≥ DN80 - DIN 11851 Slotted nut ≥ 4", ≥ DN100 - DIN 1185
Seal material	EPDM FKM

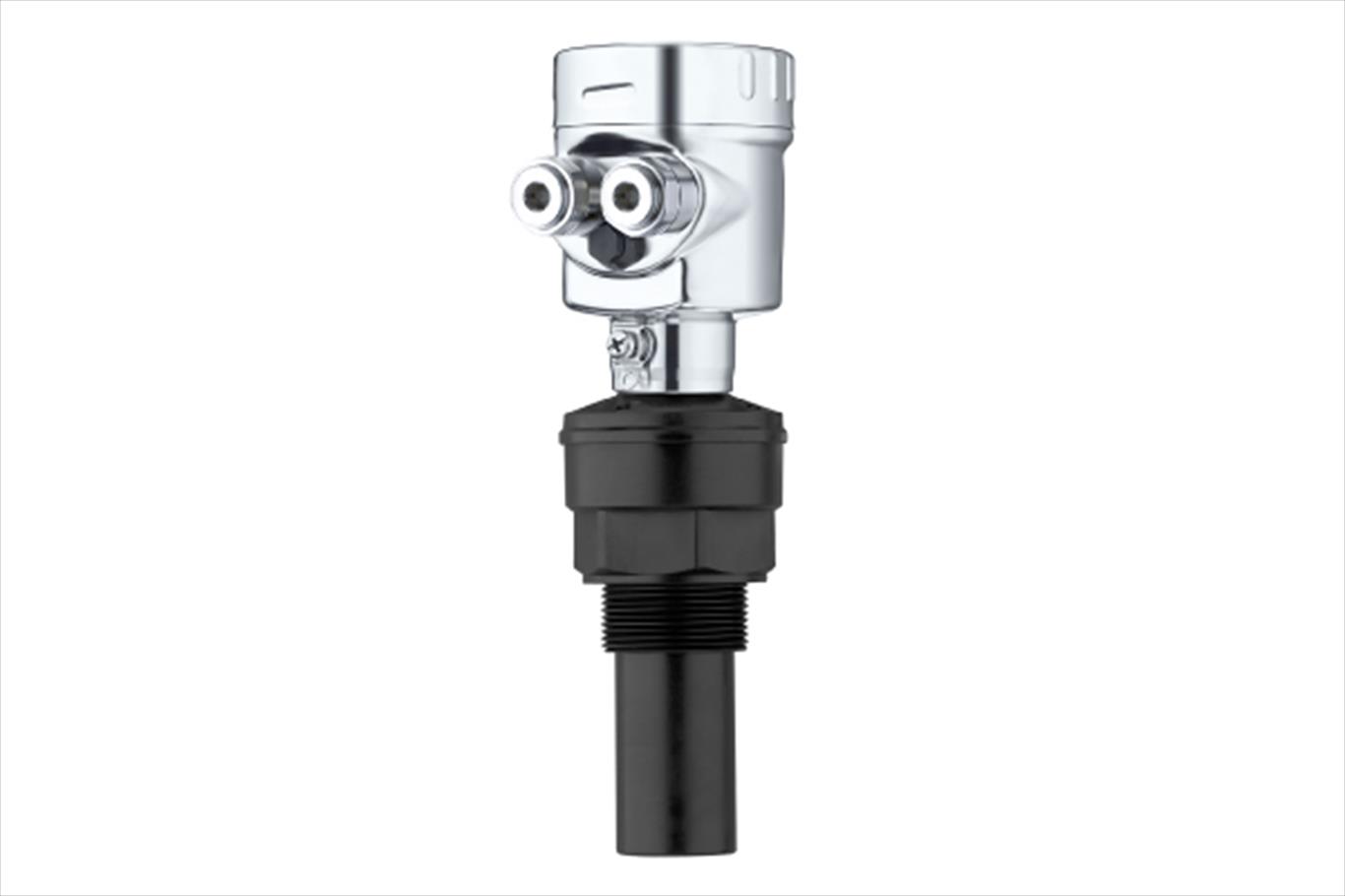

Housing material	Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished)
Protection rating	IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar)
Output	Profibus PA Foundation Fieldbus Two-wire: 4 … 20 mA/HART Four-wire: 4 … 20 mA/HART
Ambient temperature	-40 ... 80 °C

Scope	ATEX / Europe CSA / Canada FM / USA EAC (GOST) / Belarus EAC (GOST) / Kazakhstan EAC (GOST) / Russia IEC / worldwide NEPSI / China UKR Sepro / Ukraine INMETRO / Brazil
Explosion protection	Intrinsic safety "i"
Ship approval	ABS CCS DNV GL LR RINA
SIL qualification	SIL2

Adjustment	PLICSCOM PC, PACTware and DTM HART-Communicator Software (e. g. AMS™, PDM) Bluetooth
Indication	Display/adjustment module PLICSCOM VEGADIS 81 VEGADIS 82
