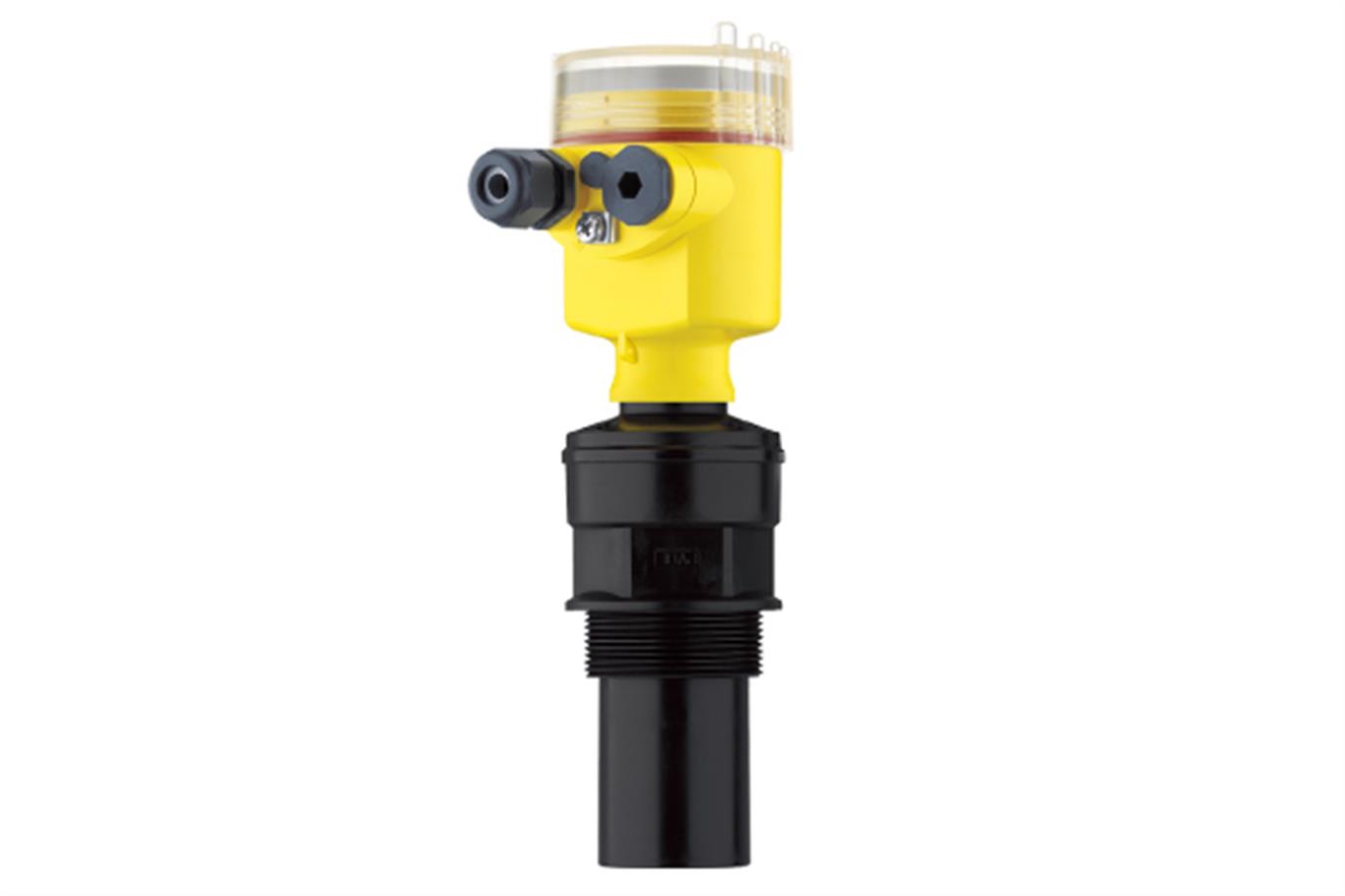

VEGASON S62

Ultrasonic sensor for continuous level measurement for measuring ranges up to 8 m

Measures liquids up to 8 m and bulk solids up to 3.5 m away

Request a quote

Introduction Technical specifications Documentation

Application area

Output signal 4 ... 20 mA, Ex approval and PLICSCOM optional.

The VEGASON S 62 is an ultrasonic sensor for continuous level measurement of liquids or bulk solids. Typical applications are the measurement of liquids in storage tanks or open basins. The sensor is also suitable for the detection of bulk solids in small vessels or silos. The sensor can be used in all industries. The non-contact measuring principle is independent of product features and allows a setup without medium.

For this instrument, new radar sensors with connection housing VEGAPULS 11, 21 or 31, or radar sensors with fixed connected cable VEGAPULS C 11, C 21, C 22 or C 23 are available as alternative.

Measuring range - Distance	8 m [Meter - Foot]
Process temperature	-40 ... 80 °C [°C - °F]
Process pressure	-0.2 ... 2 bar [Bar - kPa - psi]
Accuracy	± 4 mm
Materials, wetted parts	PVDF

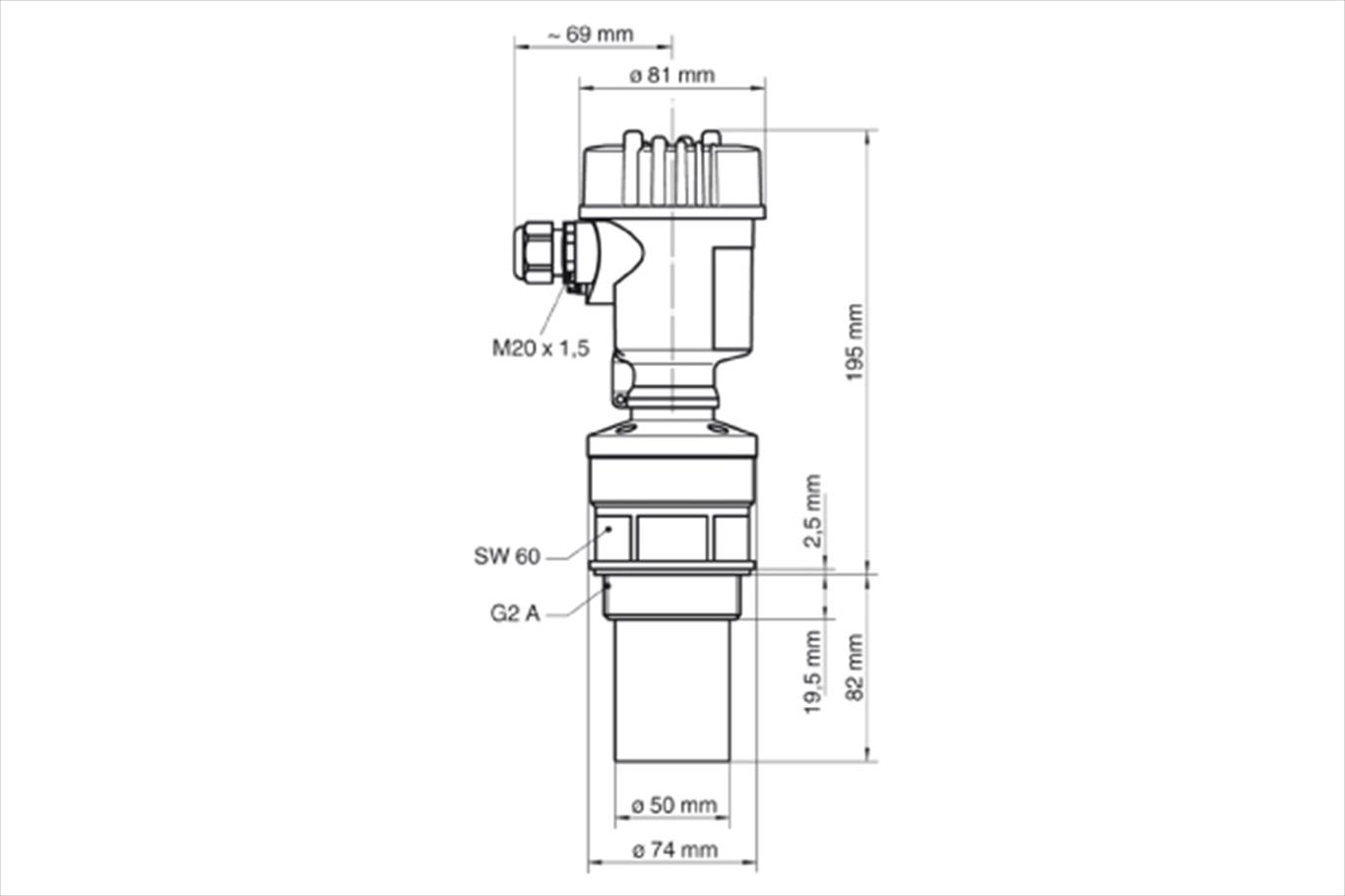

Threaded connection	G2
Seal material	EPDM
Housing material	Plastic
Protection rating	IP66/IP67
Output	4 … 20 mA
Ambient temperature	-40 ... 80 °C
