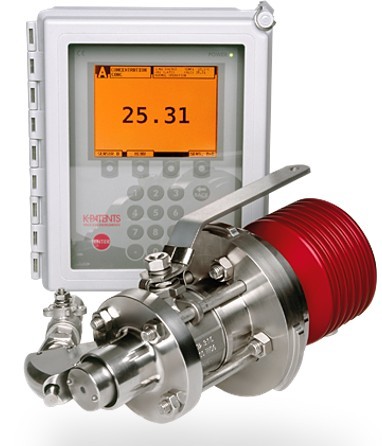

Vaisala (K-Patents) - Safe-Drive Process Refractometer PR-23-SD _ AU17106-M4_Bai Bang Paper

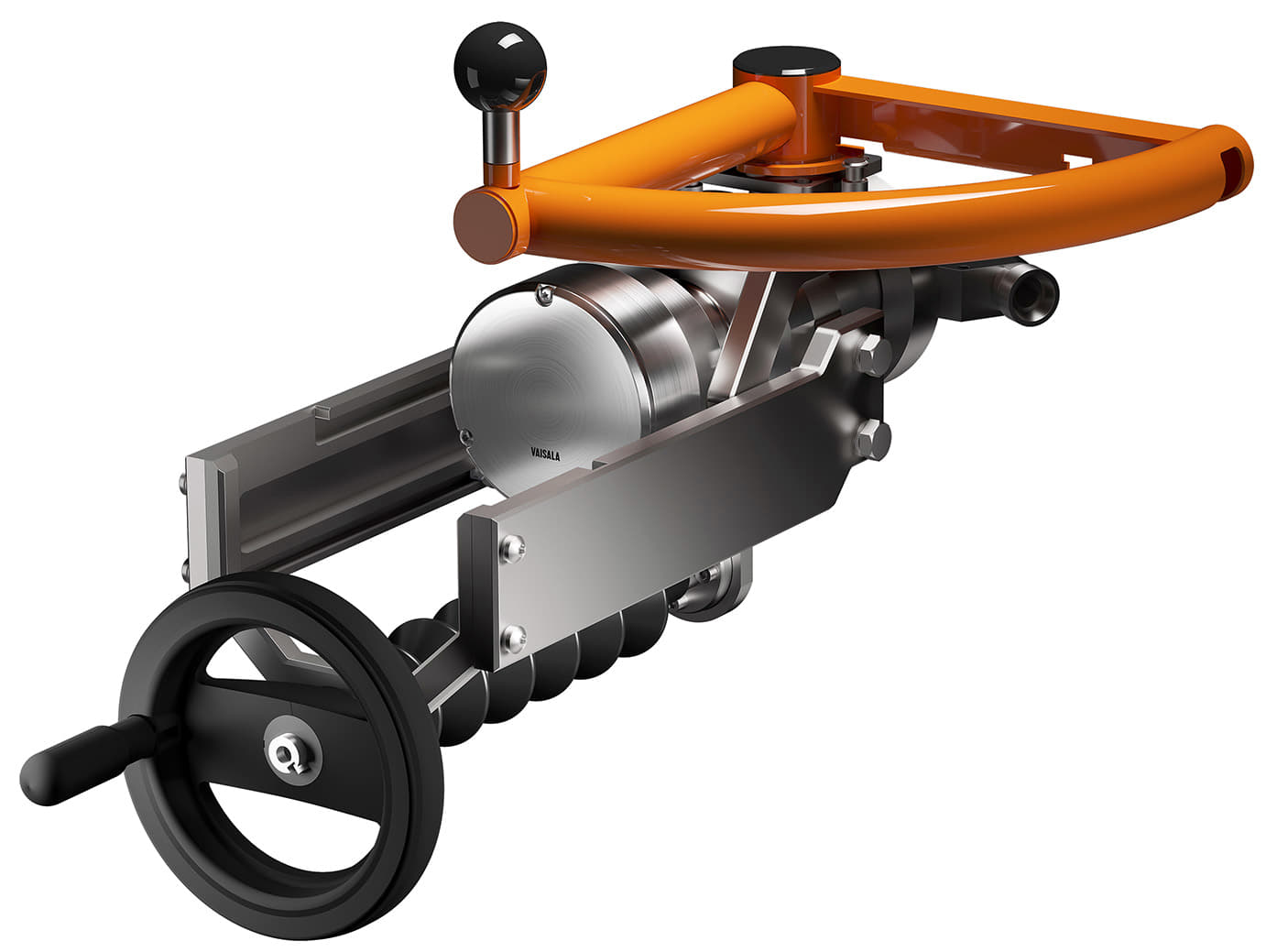

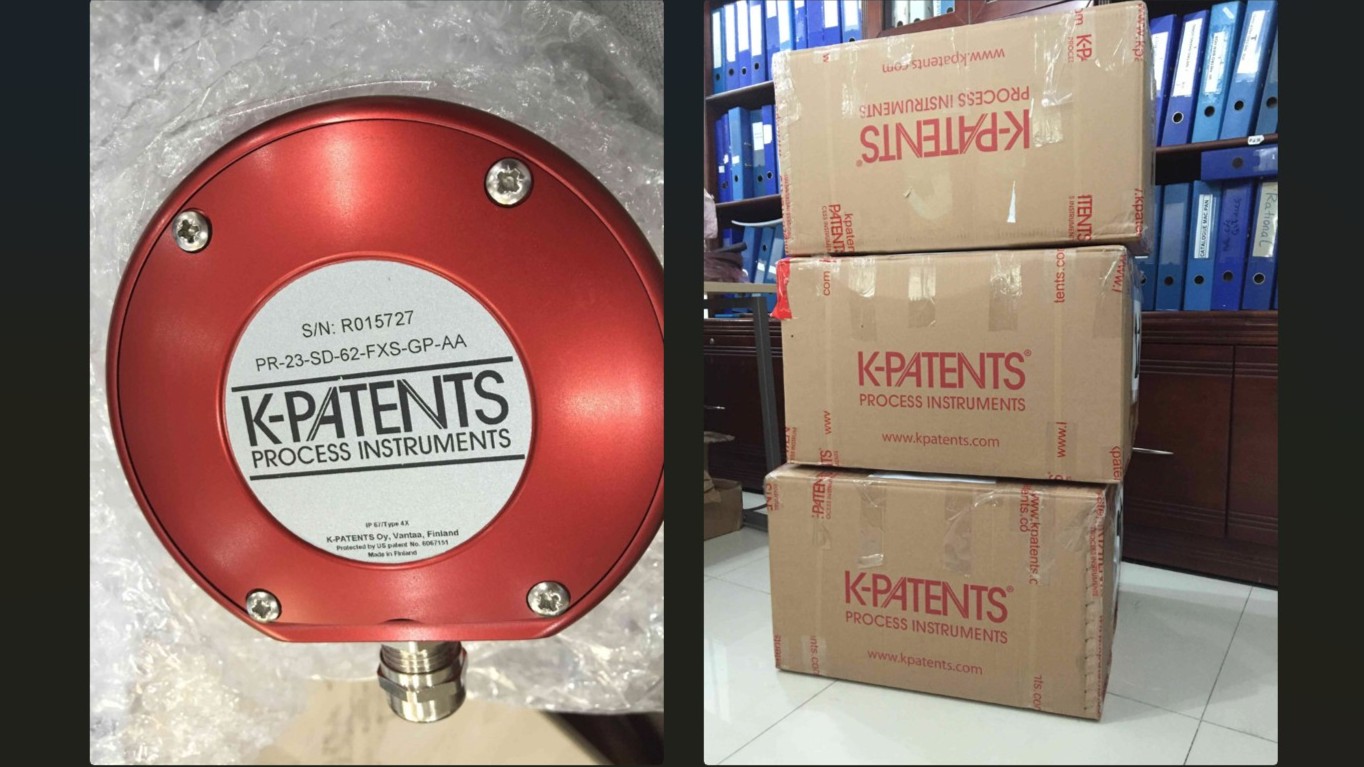

PR-23-SD-62-FXS-GP-AA _ s/n R015727 _ ACK 171027 (successor by Vaisala Polaris™ PR53SD)
Pulp & Paper industry - Black liquor
| Application
|

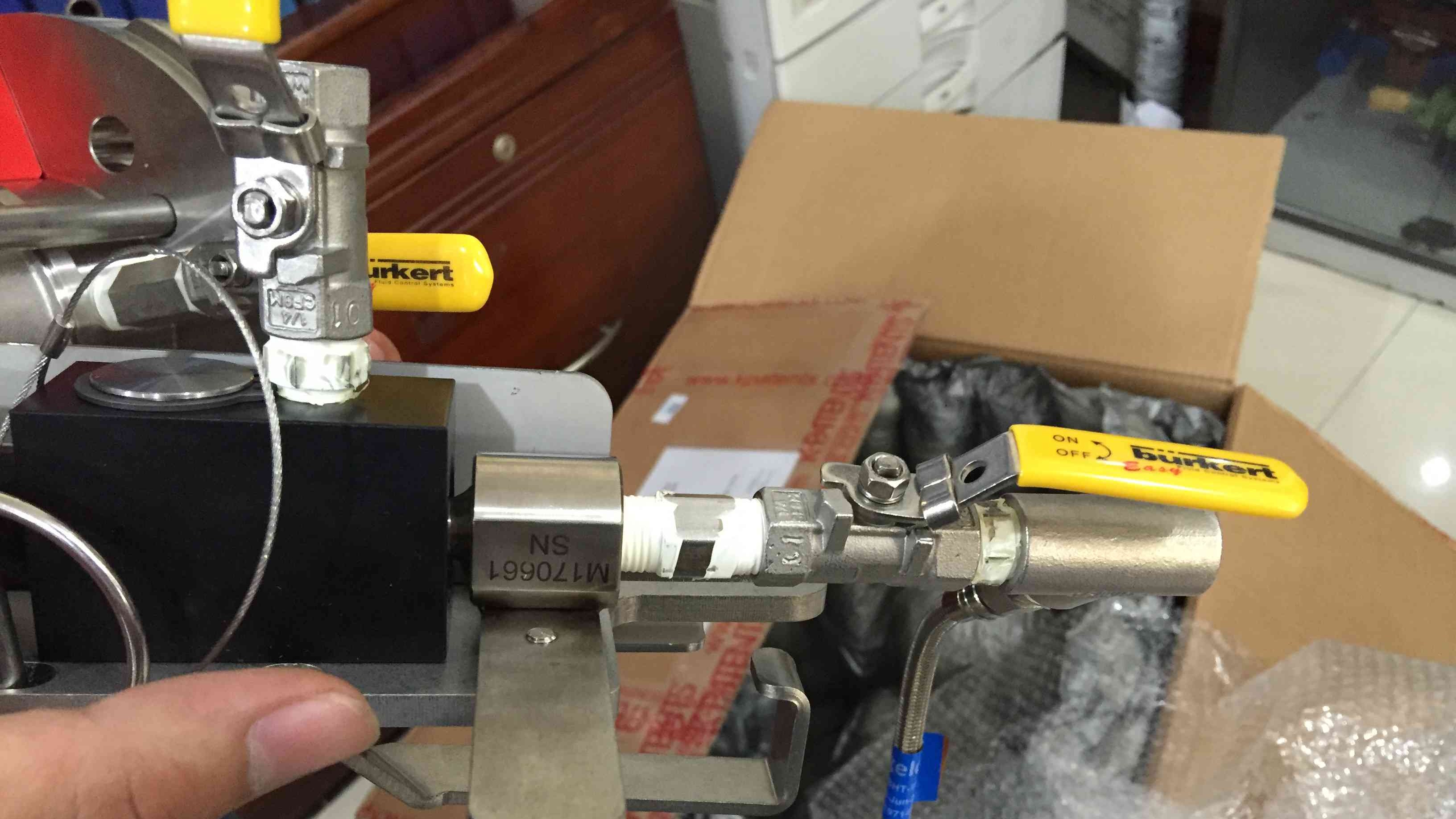

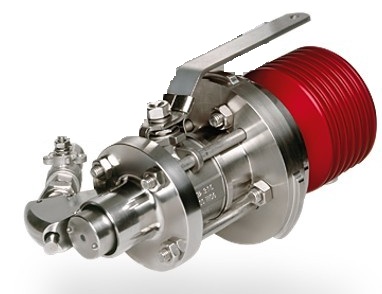

 | SAFE-DRIVE Process Refractometer PR-23-SD for measuring black liquor dry solids and green liquor density or TTA in kraft chemical recovery process. Vaisala SAFE-DRIVE design allows for safe and easy insertion and retraction of the sensor under full operating pressure without having to shut down the process. | Refractive Index range: | Full range, nD = 1.3200...1.5300 (corresponds to 0...100 % b.w.) | | Accuracy: | Refractive index nD ±0.0002 (typically corresponds to ± 0.1% by weight)

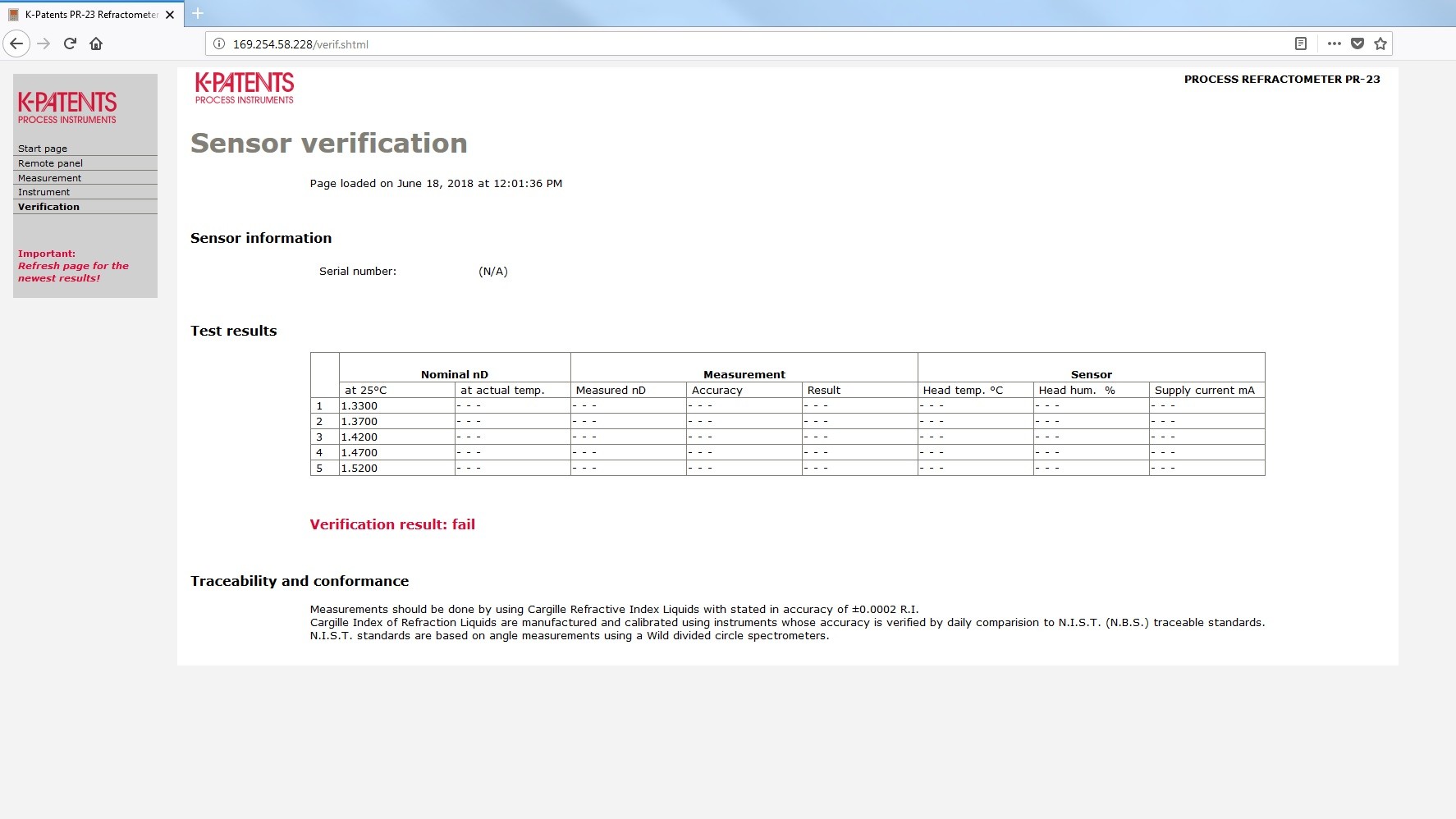

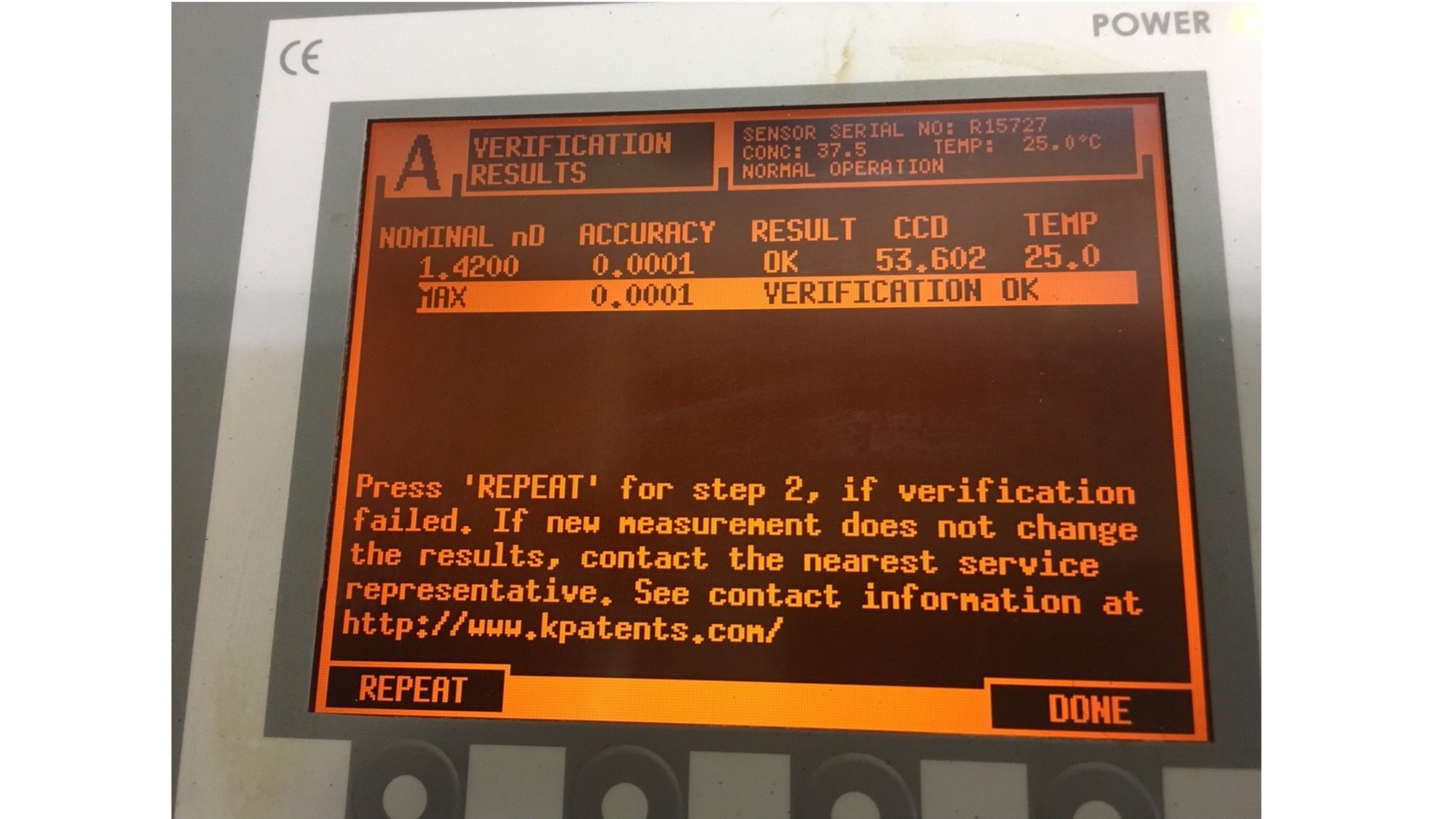

Repeatability nD ±0.0001 (typically corresponds to ±0.05% by weight) | | Speed of response: | 1 s undamped, damping time selectable up to 5 min | | Instrument verification: | According to ISO 9000 quality system: with standard R.I. liquids and
Transmitter's menu guided procedure | | Ambient temperature: | Sensor: max. 45°C (113°F), min. -20°C (-4°F)

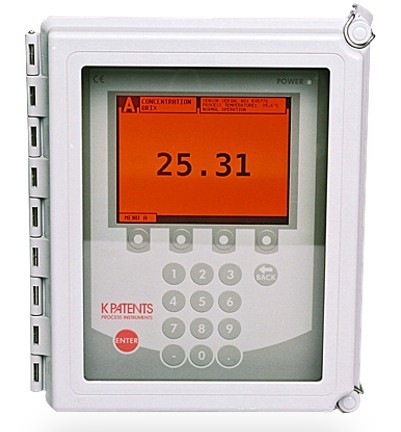

Indicating transmitter: max. 50°C (122°F), min. 0°C (32°F) |
|
» read more
| Documentation & software
|
| Datasheet (PDF)
|
| User Guide (PDF)
|
| Vaisala Polaris - Youtube
|
| Vaisala Polaris PR53SD - Youtube
|
Huynh Bang supplied the following products for this project:
Vaisala products - Liquid concentrationr

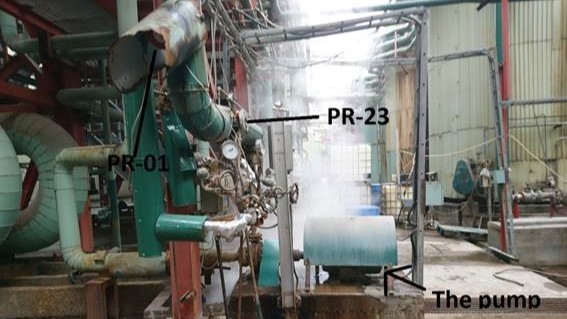

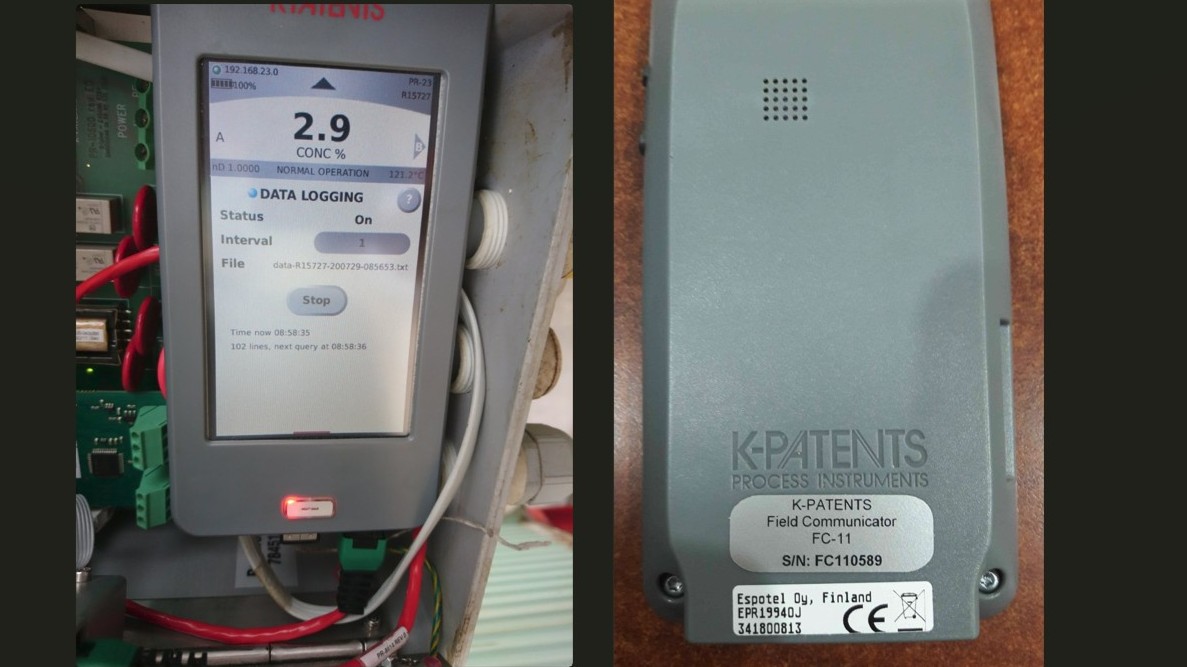

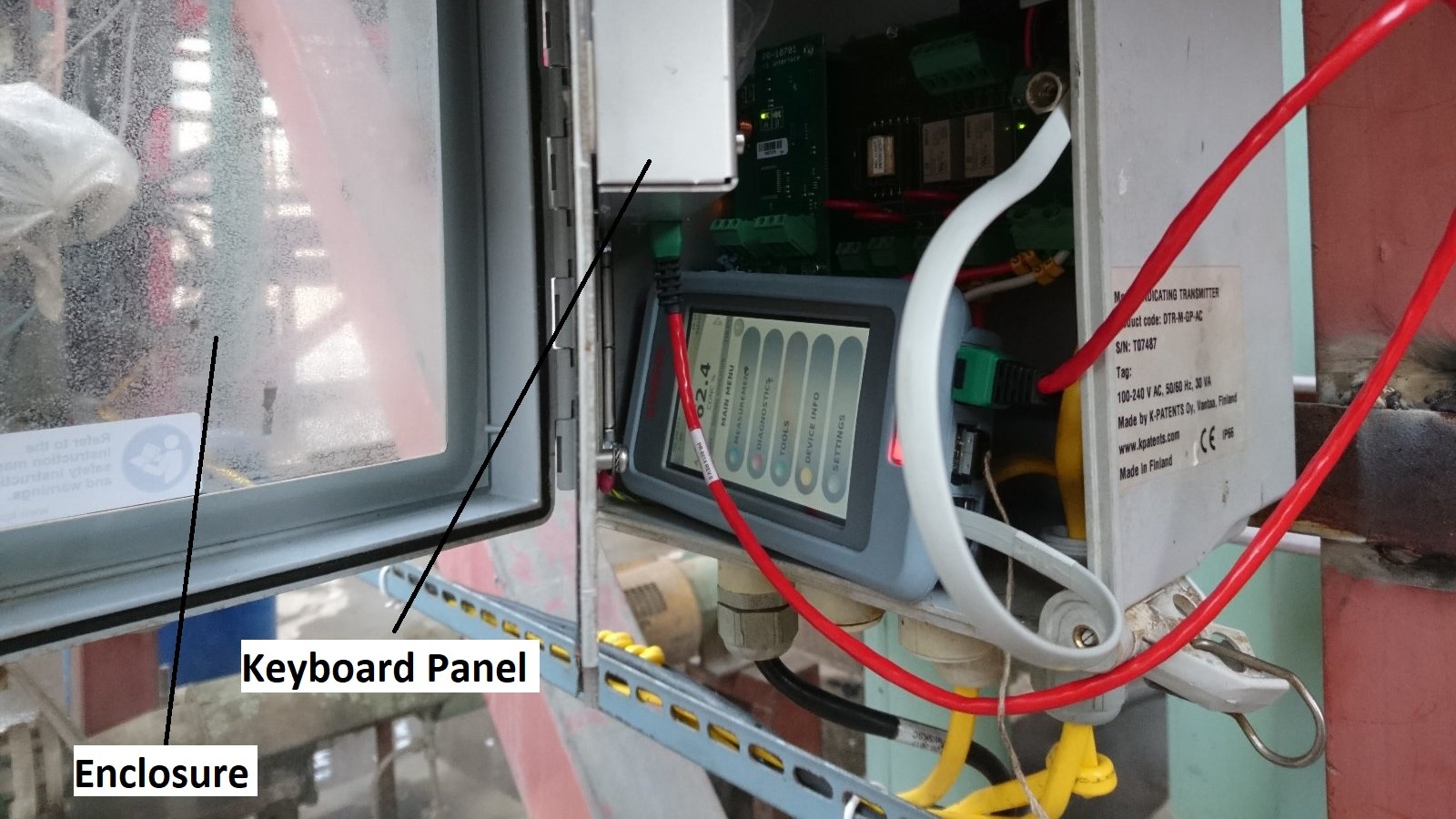

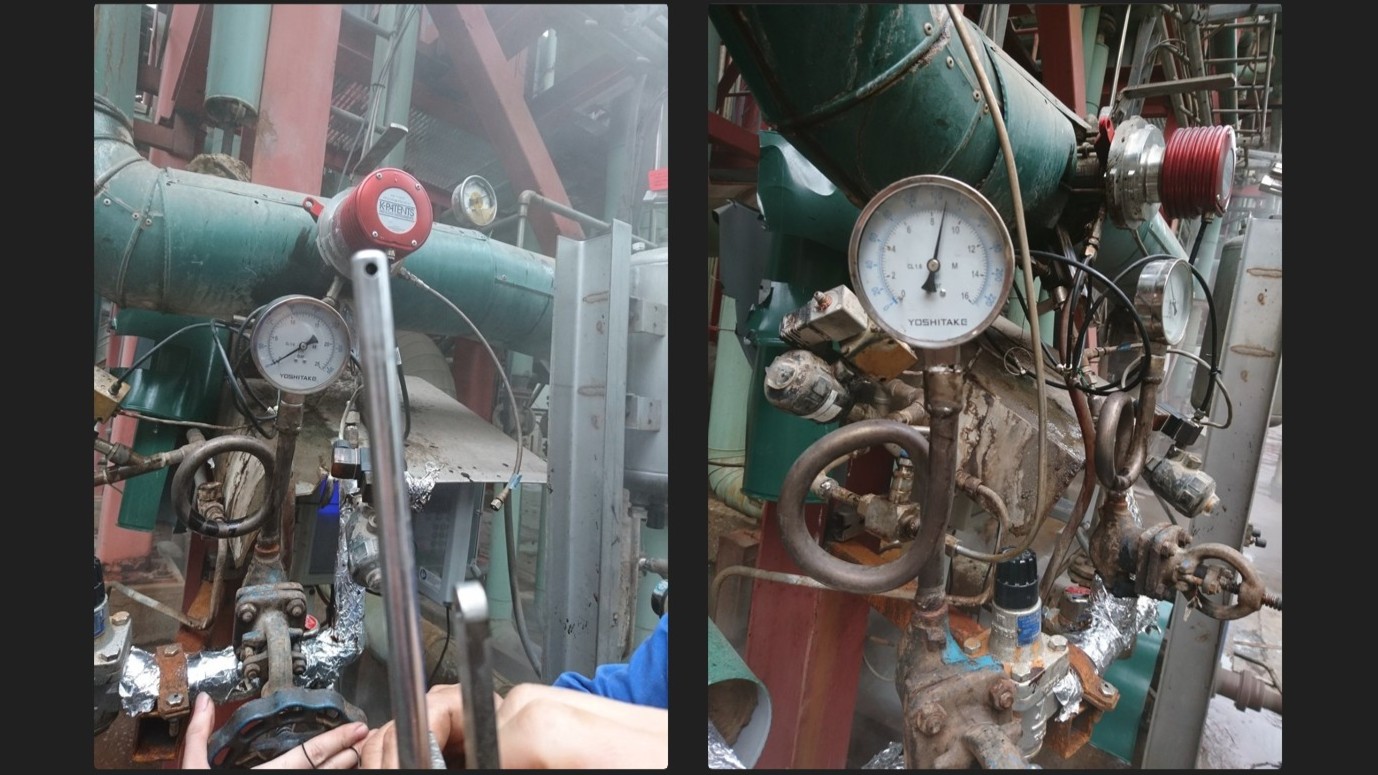

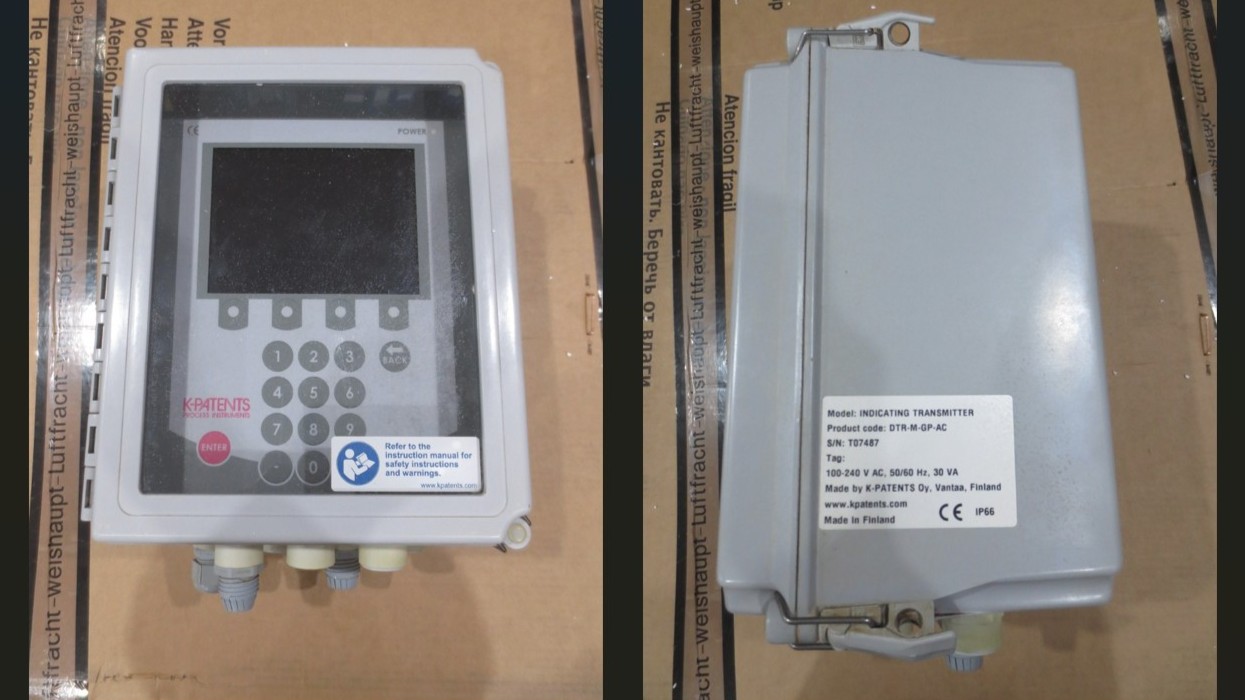

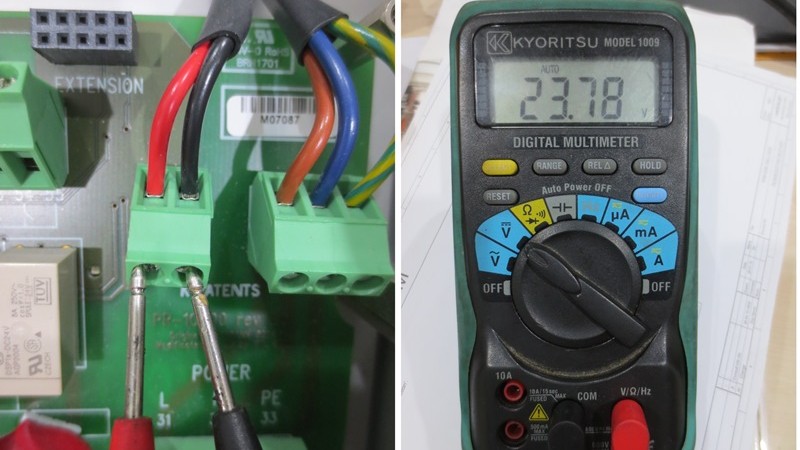

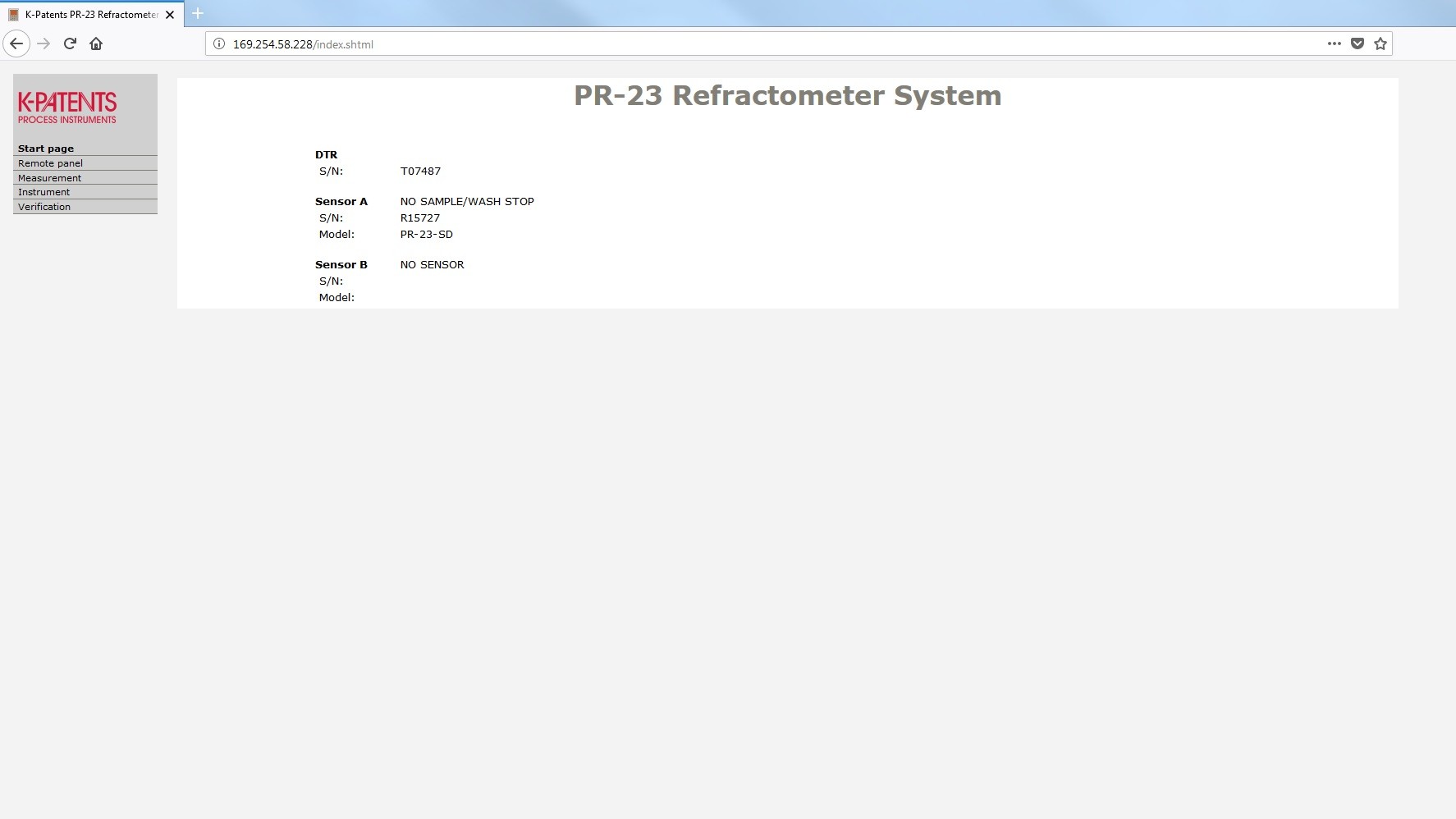

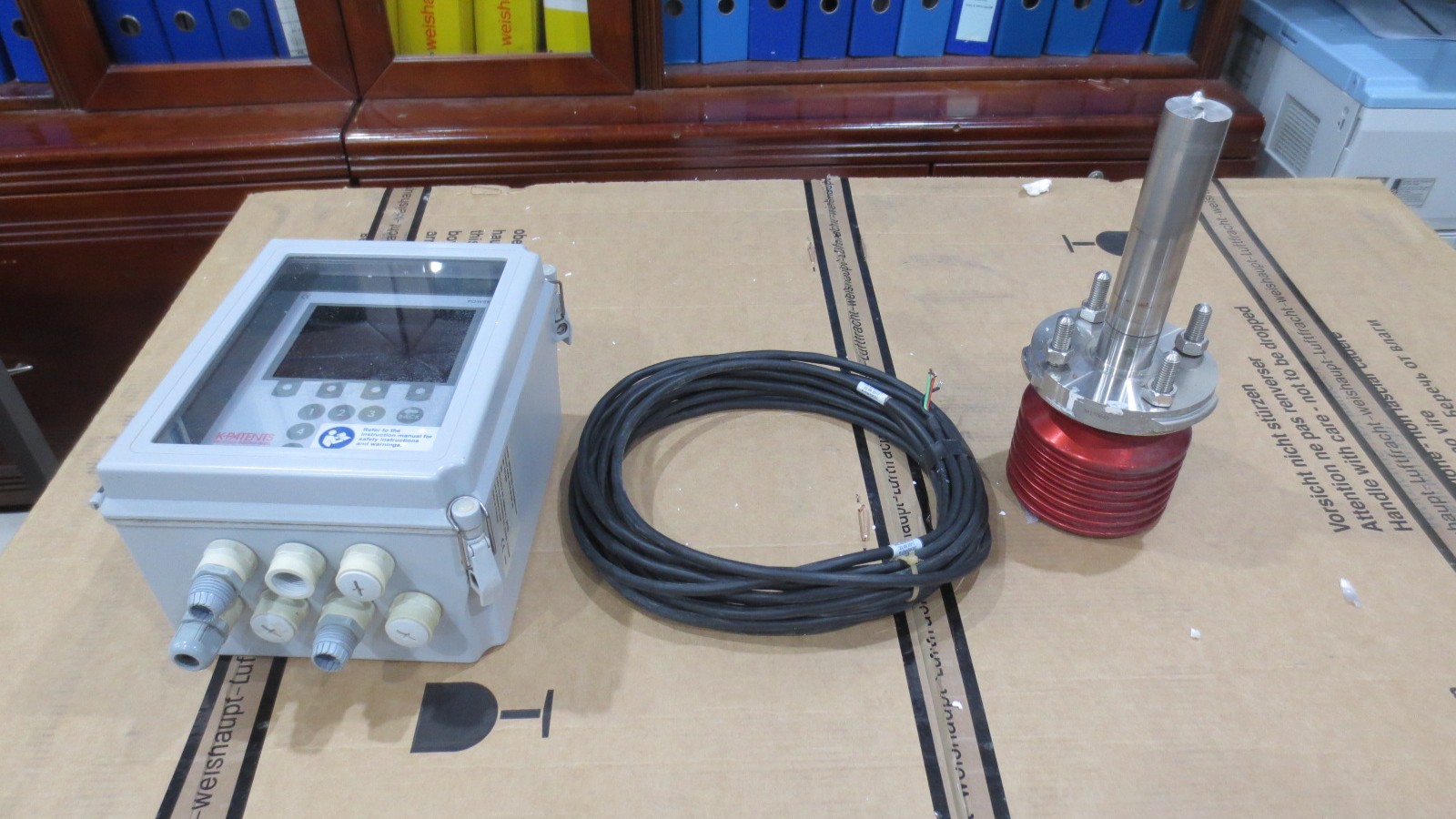

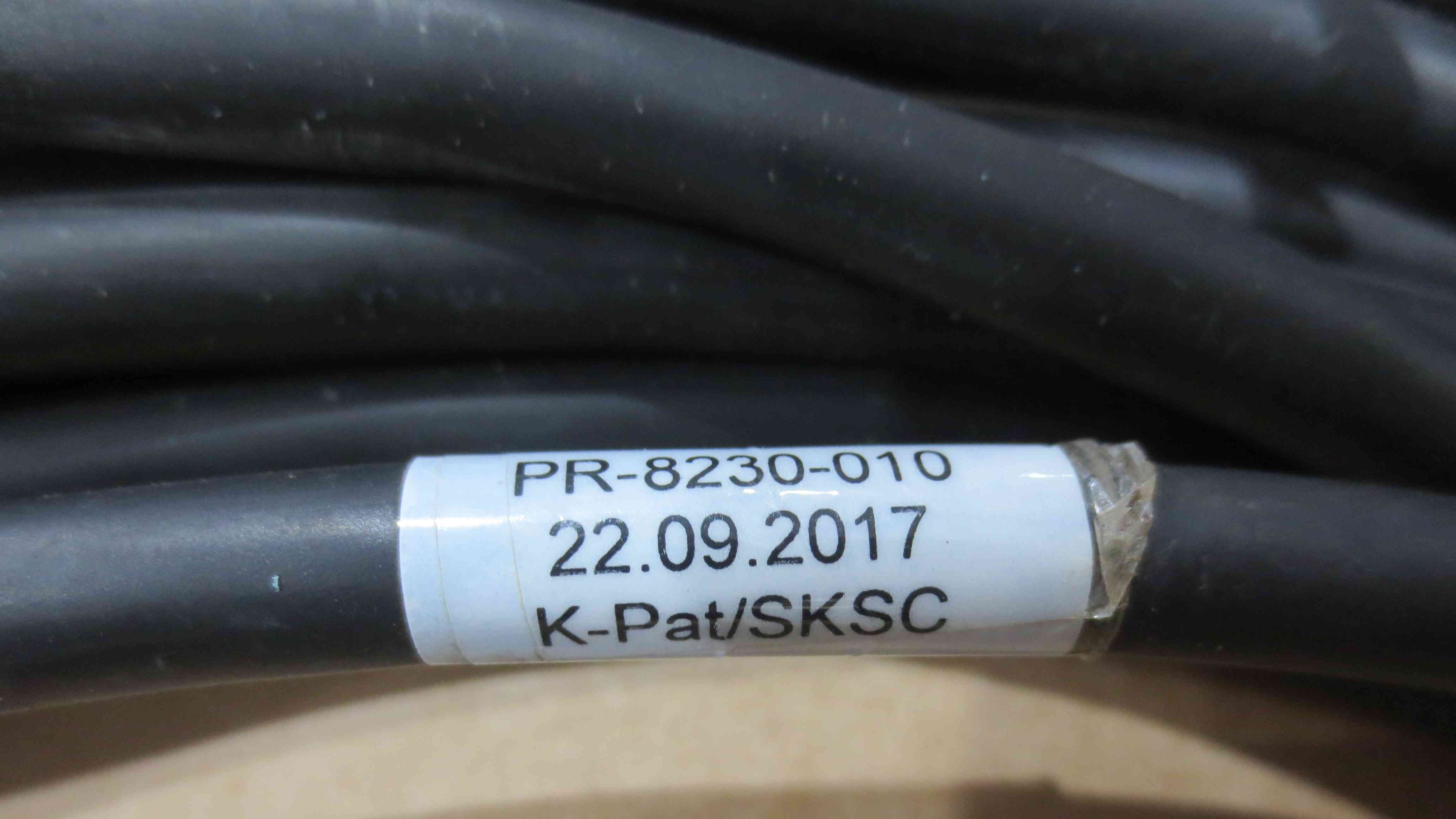

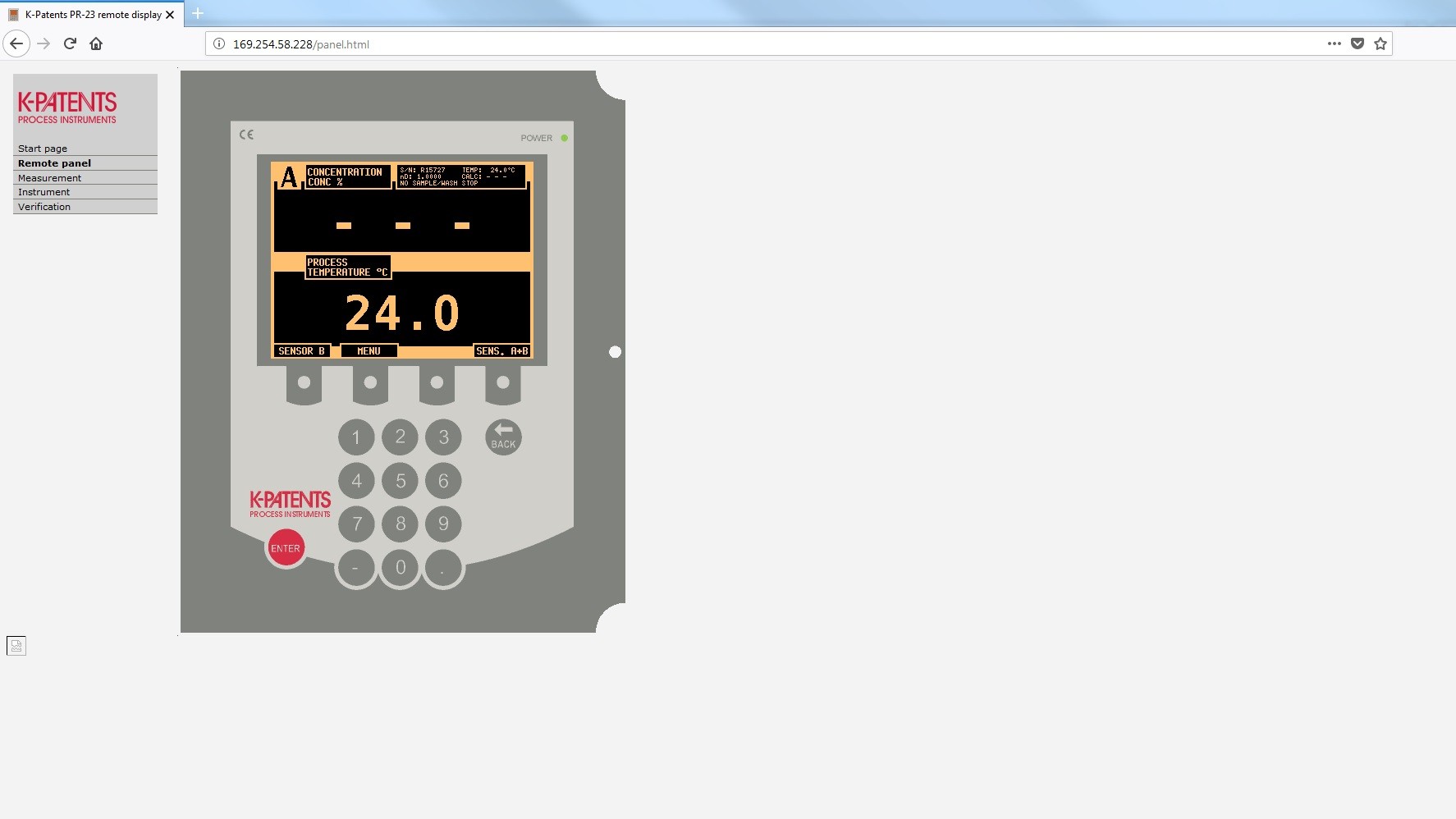

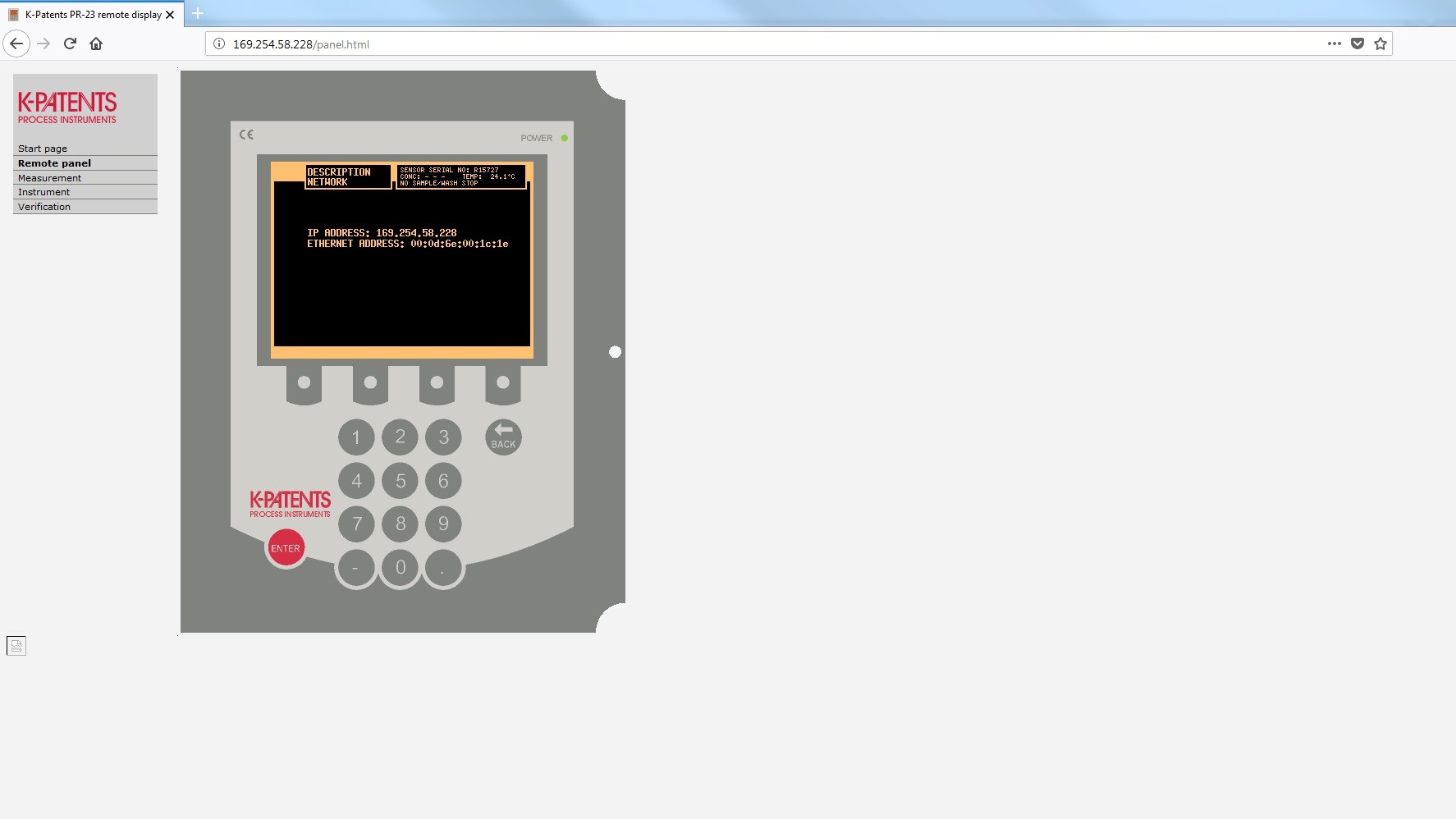

Project images:
✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨
✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨✨
HBC TSM B.B
Year: 2017
