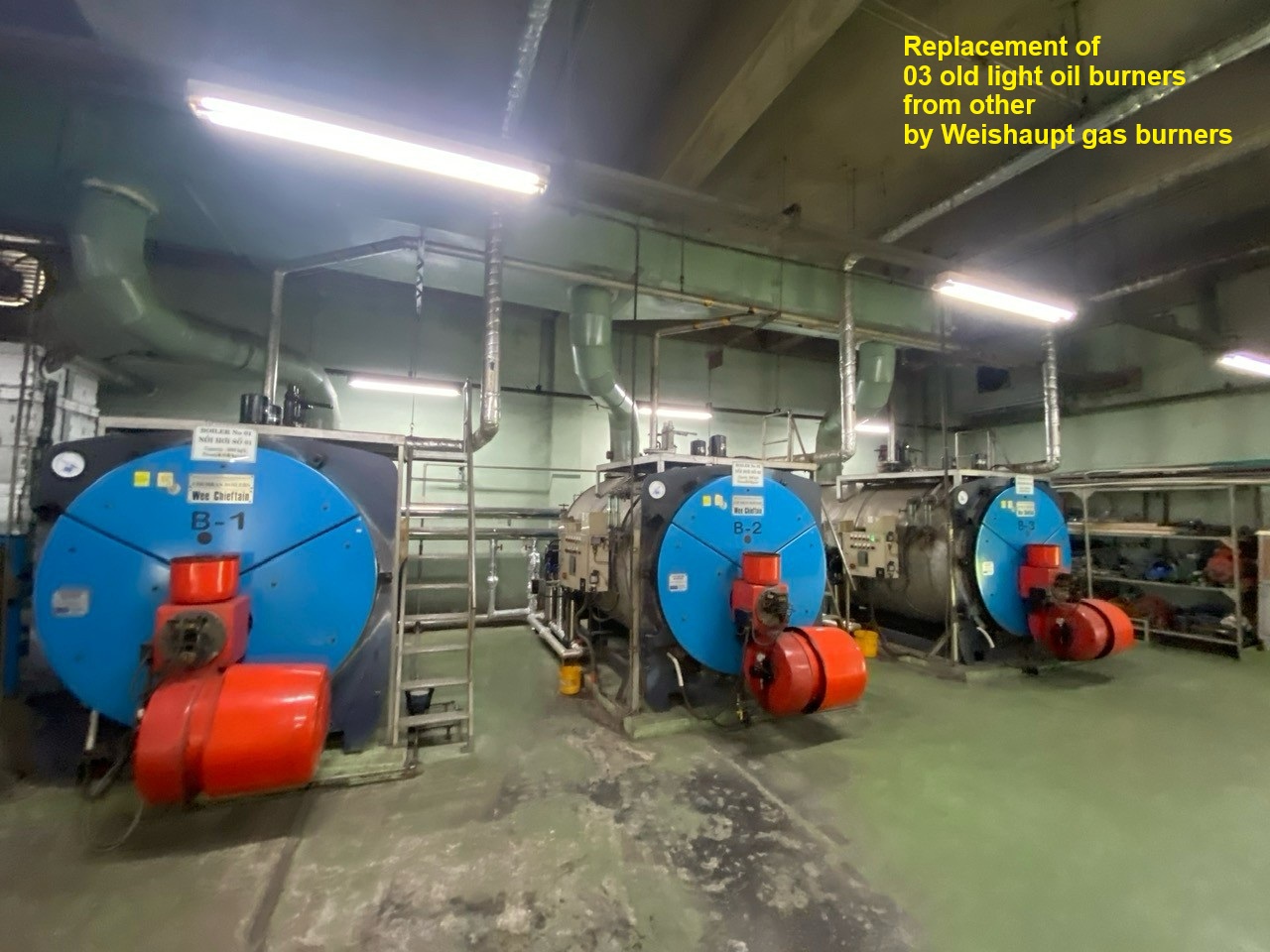

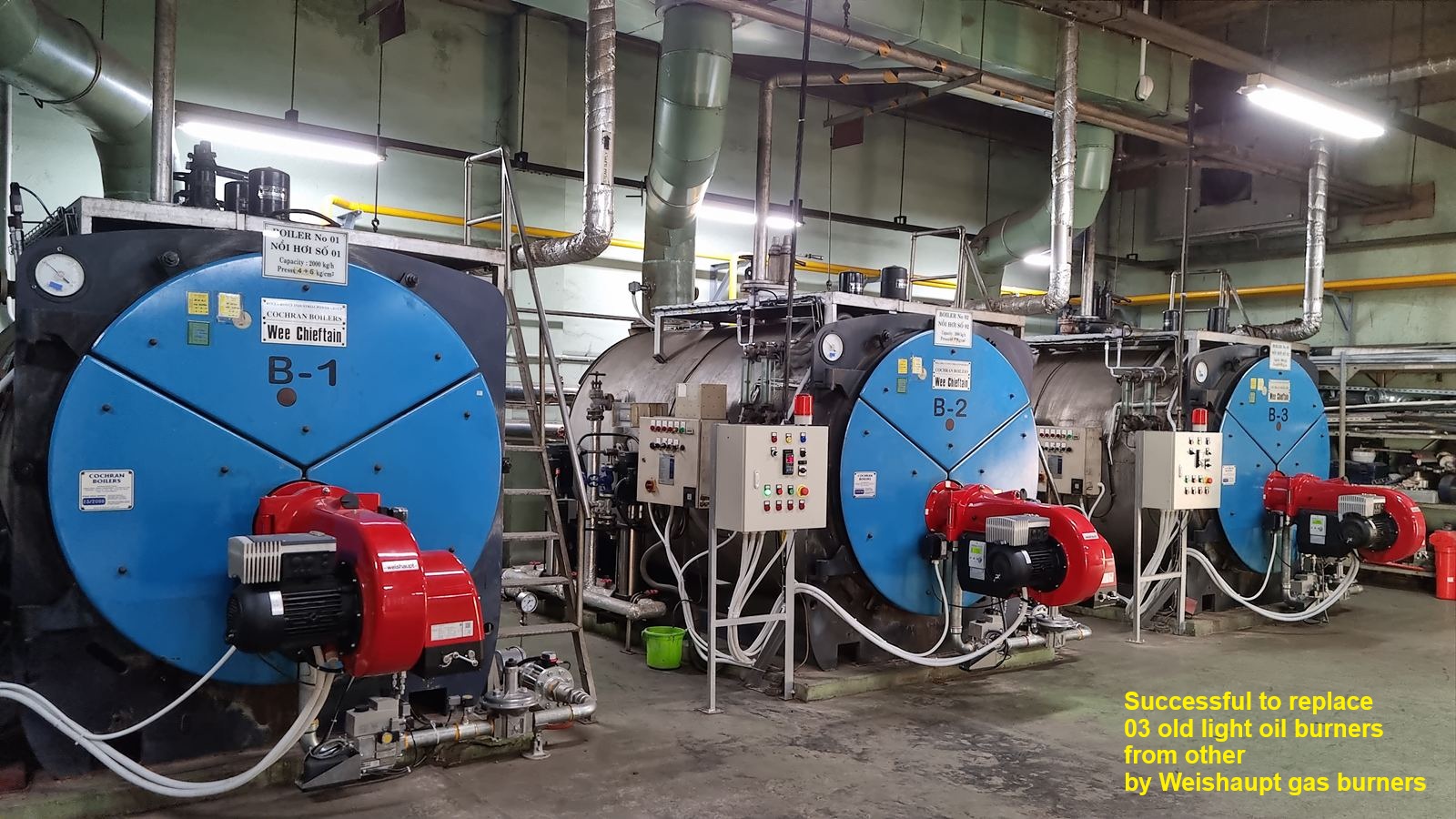

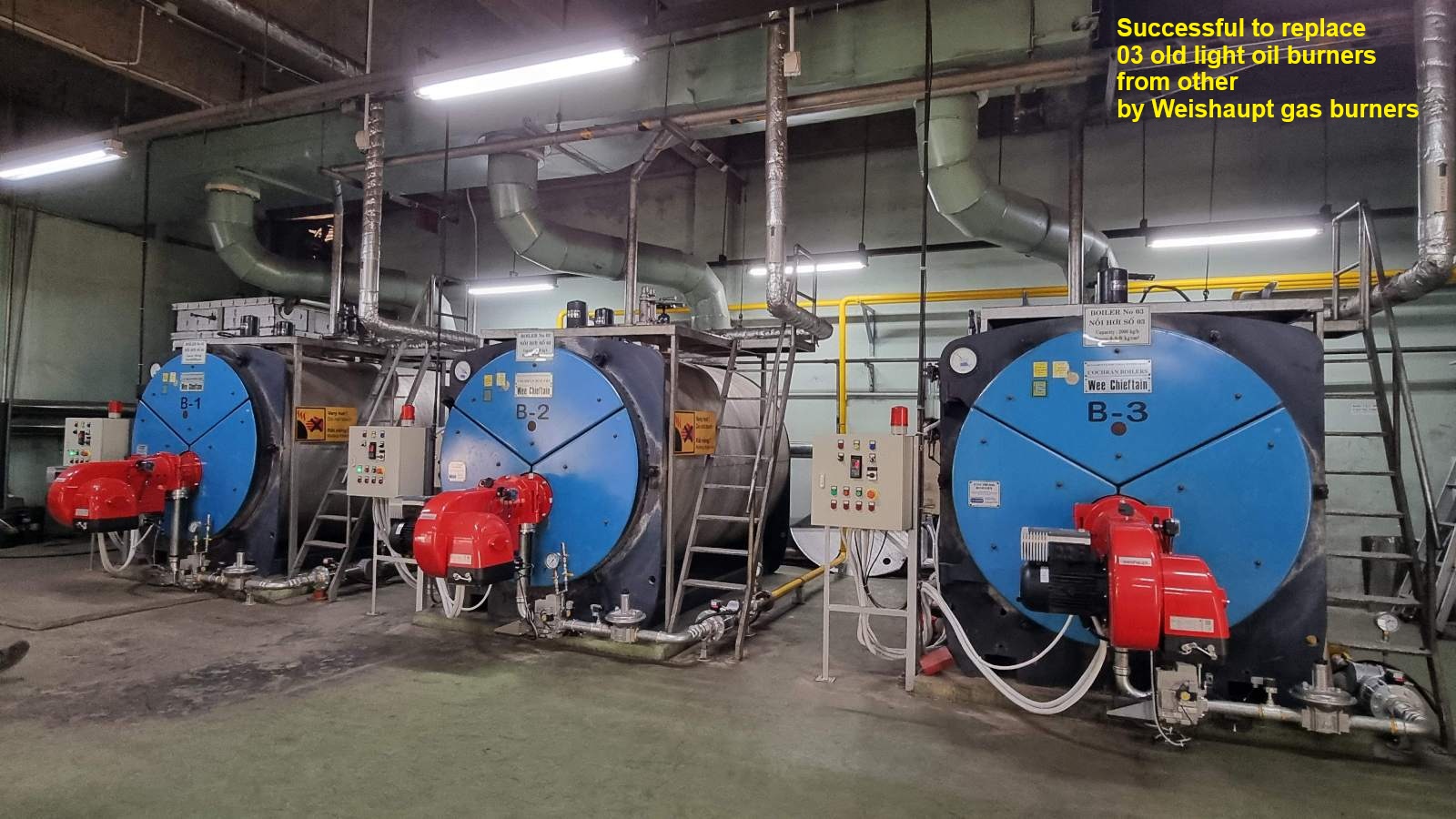

Weishaupt burners - Successful to replace 3 old light oil burners from other by Weishaupt gas burners | Tripod Bien Hoa | 2026

Operating mode &

operating issues

• ON / OFF (two-stage via two pressure switches)
• Intermittent operation
• Spare parts replacement more frequently.
• Consumption too much oil fuel
• Cannot improve combustion / system efficiency.
• Boilers cleaning issues because of oil fuel.
• Too much noise in operation.
• Cannot connect / integrate to BMS / PLC system

• Modulating control with pressure controller KS40-108 (special design / optimizing for Weishaupt burners)
• Continuous operation > 24h
• VSD (variable speed drive)
• Oxygen trim system

Special features /

Customer benifits

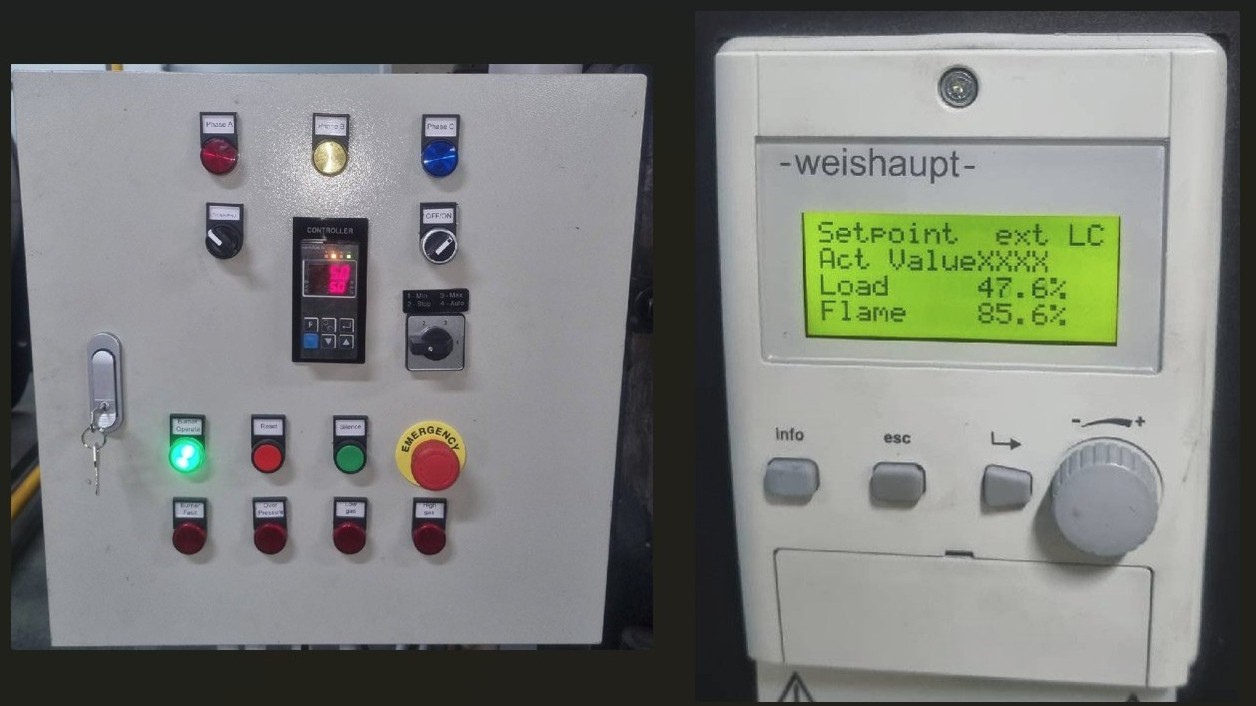

• Modern Weishaupt gas burner using digital combustion manager W-FM 200 with clear text control and display unit ABE, easier for operation and troubleshooting later with errors code and errors details displayed.
• Burners capacity controlled by pressure controller KS40-108 which are in deep fine-tuning for optimizing operation.
• Minimization of spare parts replacement.
• Burners with VSD (variable speed drive) reduced both its electrical consumption and noise emissions at partial load.
• Increase a system’s safety and efficiency, save more fuel cost by using O2 trim system combination with W-FM 200
• Ready to connect to BMS (Building Management System) or PLC system via digital interface integrated.
• Gas fuel consumption management via gas flow meter with impulse output / easy to integrate to W-FM 200 or into other control system.

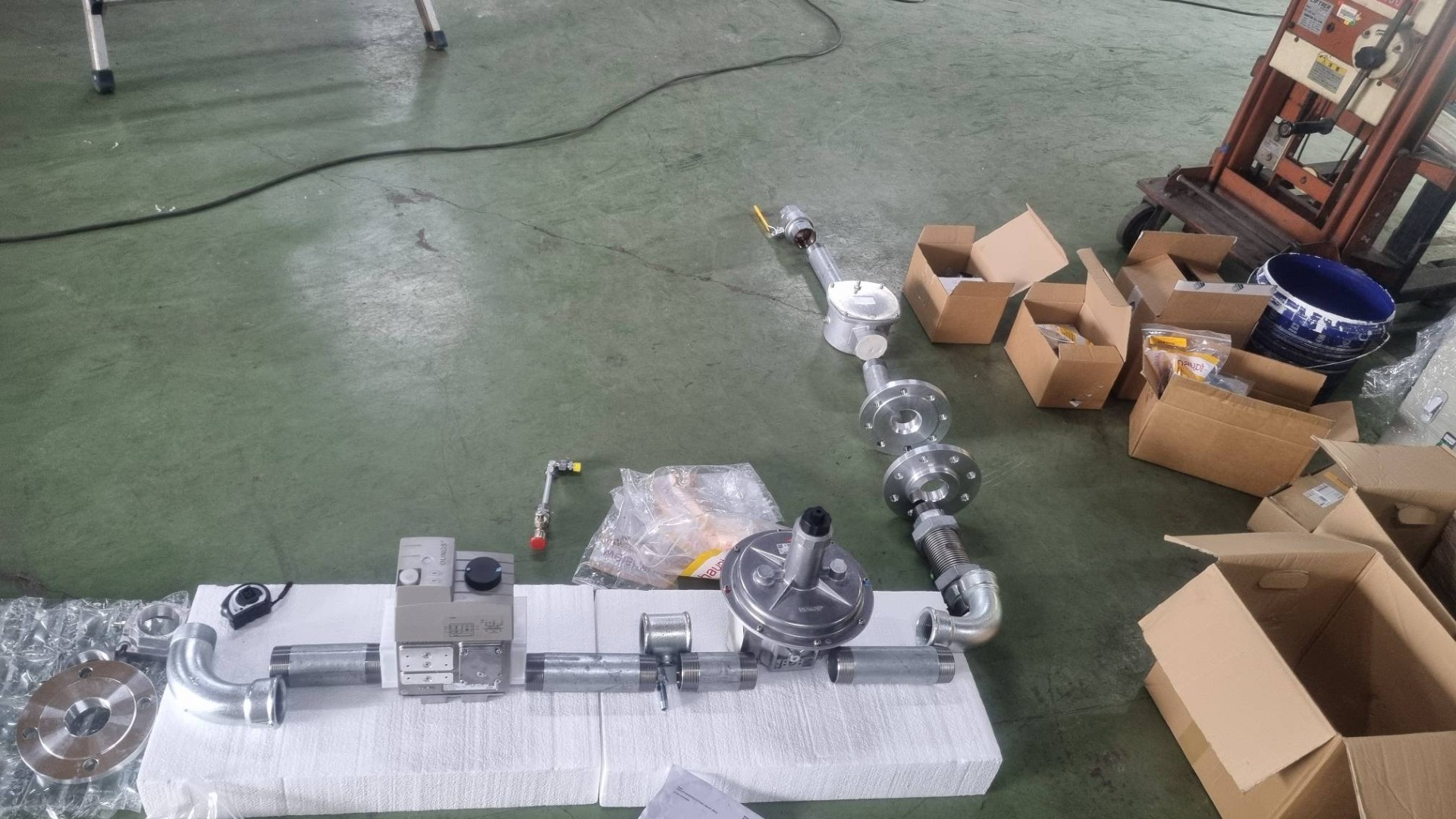

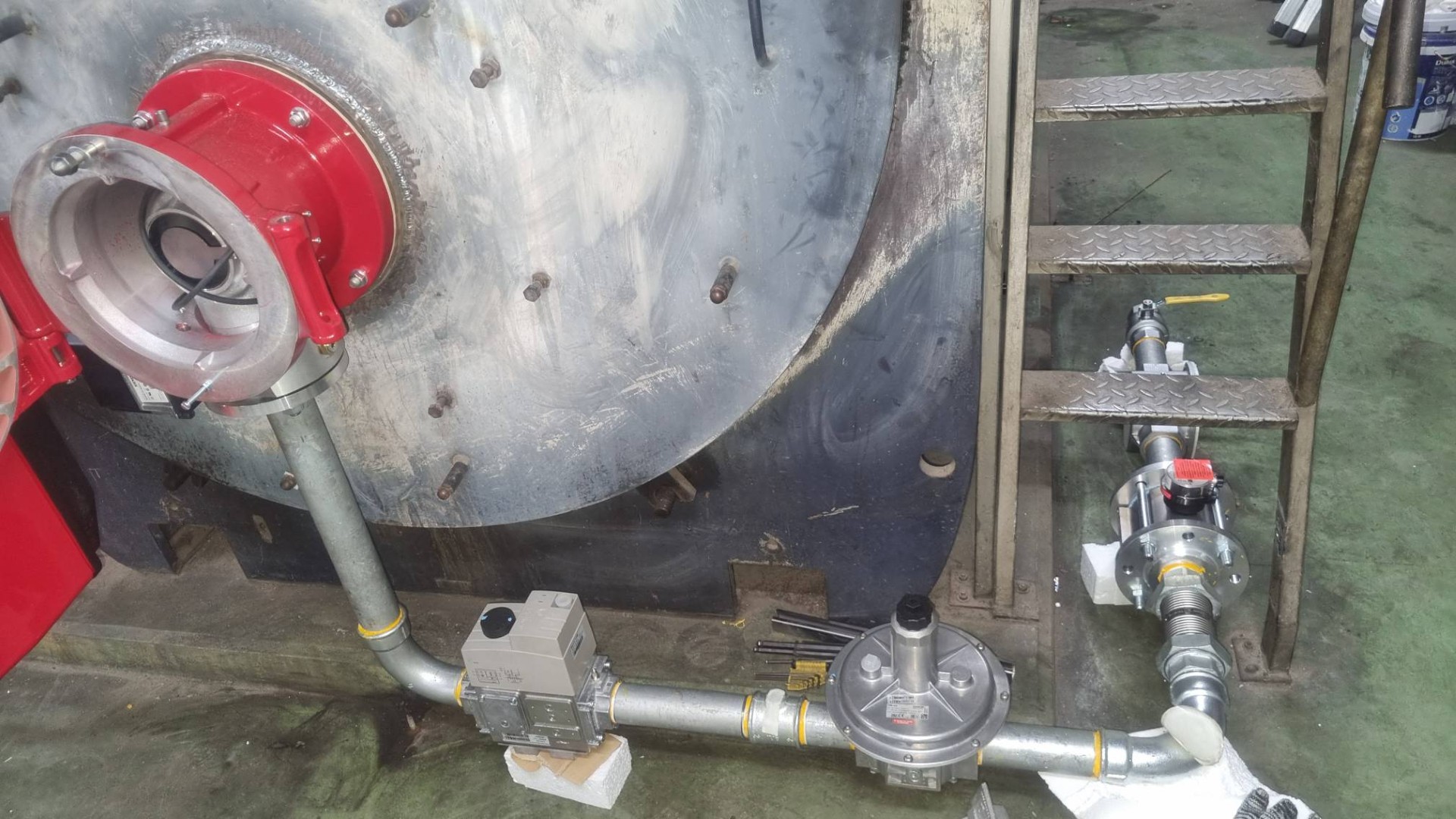

• Gas valve proving integrated to double solenoid valve DMV with testing procedure via gas pressure switch GW and W-FM 200.

• Outstanding price-to-performance ratio

• Versatility

• User-friendly concept

• Particularly quiet operation
