ecom-DP-Engine - EXTREMELY tuned
Differential pressure gauge for measurements and adjustments on engines
EXTREMELY tuned.
ecom-DP-Engine
Differential pressure gauge for measurements and adjustments on engines
-
gas pressure control
-
differential pressure measurement on the intercooler
-
measurement of exhaust gas overpressure
-
Differential pressure measurement on the blow-by filter
-
measurement of crankcase pressure
-
can also be used for pressure measurements on gas heaters and gas burners
-
thermal printer as an accessory
-
Min./ Max. function (storage of the lowest or highest measured value)
-
Freeze function (manual buffering of a specific measured value)
-
adjustable damping
-
variable parameters for individual tests
-
data storage and data logging
- measuring device with backlit graphic display
- Power supply: 3 standard batteries type AA 1.5 V (Mignon)
- Dimensions (H x W x D): approx. 170 x75 x 35mm
- Weight: approx. 300g (with batteries)
- PC software “ecom-DP Logger” available for free download
to carry out the following measurements:
- Measurements and adjustments on engines
- Gas pressure control (± 80 hPa to 8 bar)
- Differential pressure measurement at the intercooler (± 20 to 700 hPa)
- Measuring the exhaust gas pressure (± 5 to 120 hPa)
- Differential pressure measurement on the blow-by filter (5 to 50 hPa)
- Measuring the crankcase pressure (-5 to 100 hPa)
- Differential pressure measurements on gas heaters or gas burners are also possible
- measuring the connection pressure
- measuring the nozzle pressure
- measurement of system pressure
- measurement of resting pressure
- Carrying out pressure tests according to TRGI (on request)
- Leak test of the gas fitting on gas heaters or gas burners (on request)
- thermal printer (IR)
- Hose set - for operating pressures up to 1 bar (2 hoses - each 4 m long plus quick and screw coupling)
- Hose set - for operating pressures up to 10 bar (2 hoses - each 4 m long plus quick and screw coupling)

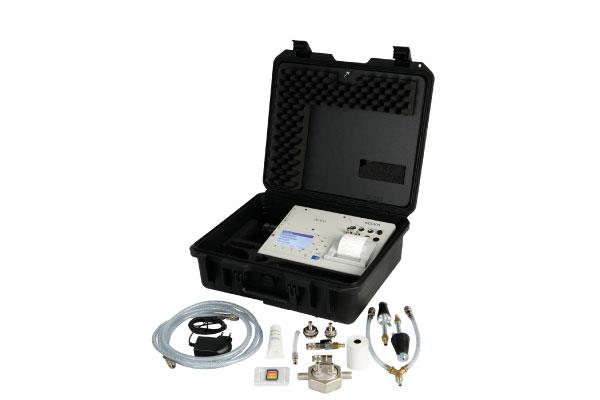

- Plastic transport case (various options - depending on scope of delivery)
