ecom-DP professional set - EXTREMELY customized
EXTREMELY customized.

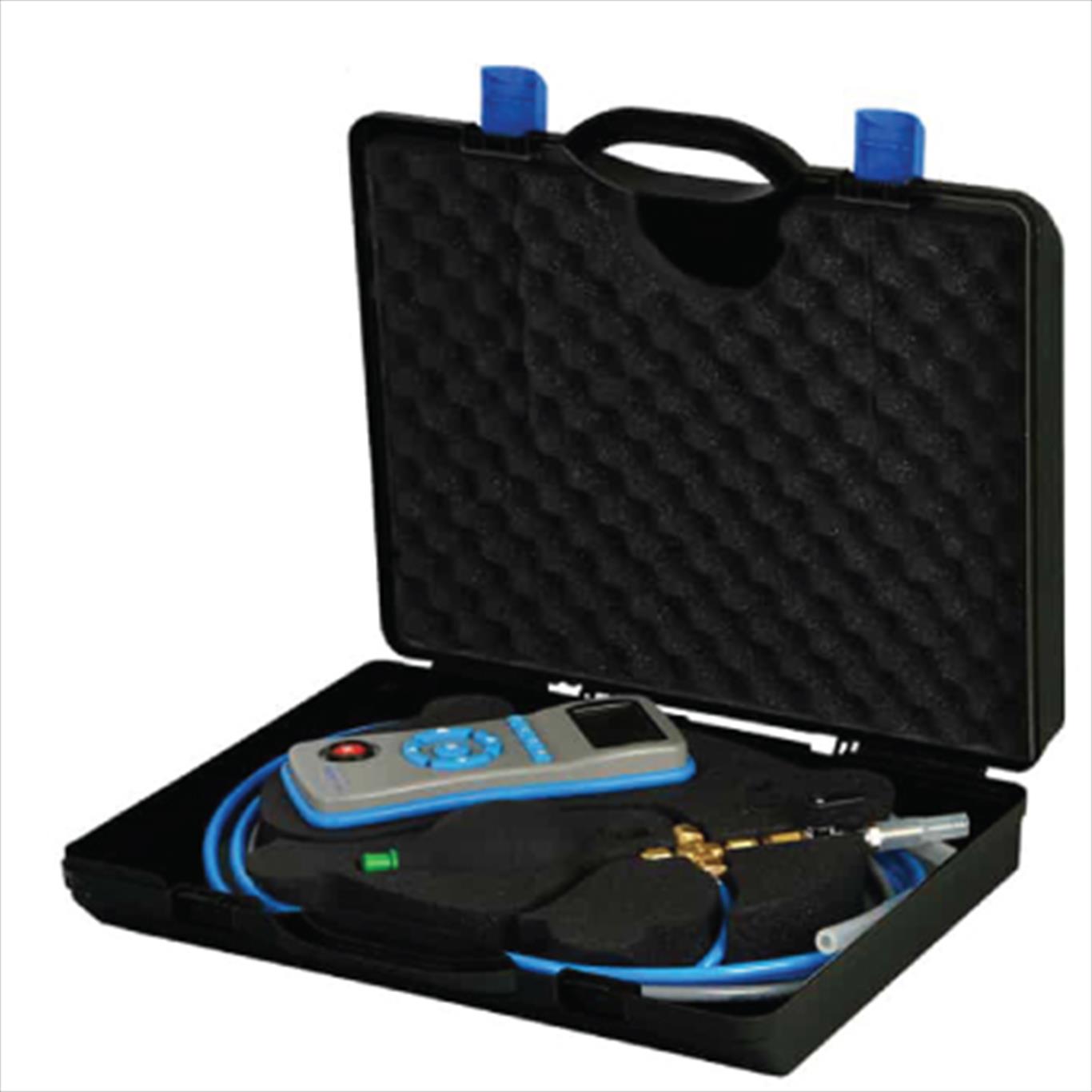

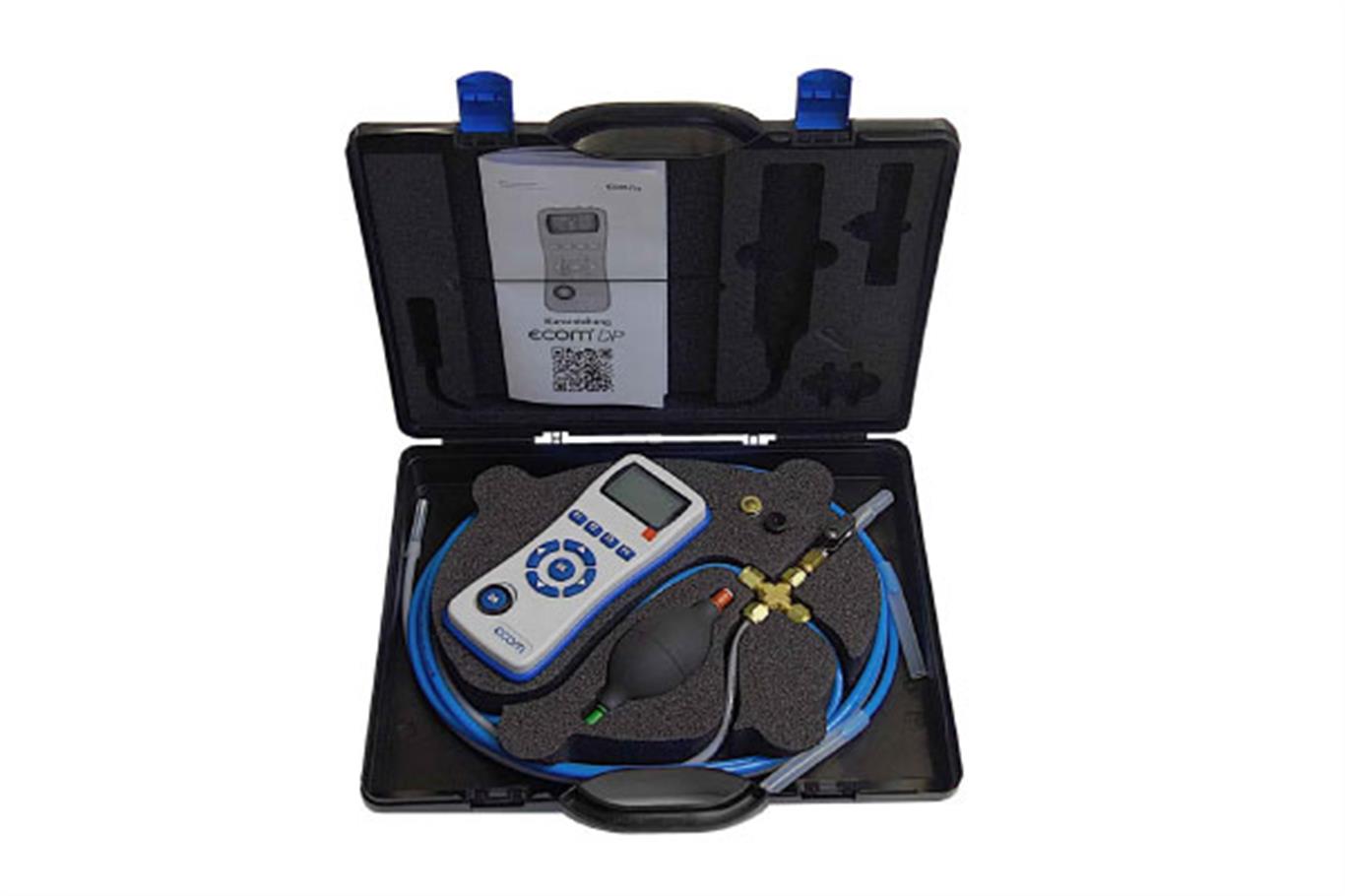

ecom-DP Profi Set
-
For pressure measurements at gas burners
-
For tightness check of gas fittings (± 100 to 150 mbar)
-
Check of gas connection pressure
-
Measurement of gas adjustment pressure
-
Adjustement of gas pressure controller
-
Adjustment of air pressure controller
- Measuring instrument with backlit graphics display
- Min./Max. function (recording of lowest resp. highest measurement values)
- Freeze function (manual temporary recording of a specific value)
- Adjustable units (hPa, cmH2O, mmHg, PSI, H2O, Hg)
- Adjustable damping
- Changeable parameters for stabilization time, measurement time and check
- Data recording and data logging
- Power supply: 3 one-way batteries type AA 1.5 V (Mignon)
- Dimensions (L x W x H): approx. 170 x 75 x 35 mm
- Weight: approx. 300 g (with batteries)
- Free downloadable PC software "ecom-DP Logger"
- Further accessories for checks and adjustment at gas-fired burners included in delivery scope:
- 3 PVC connection hoses
- 2 stopples
- Cross-piece with shut-off valve
- Bellow
- Transport case (330 x 260 x 75 mm)
Carrying Out of the Following Measurements:
- Differential pressure measurement at gas-fired heatings/gas-fired burners (connection pressure, nozzle pressure, plant pressure and idle pressure)
- Tightness check of gas fitting (± 100 to 150 mbar)
- Adjustment of gas pressure controller
- Adjustment of air pressure controller
- Along the pressure meter itself (also suitable for general differential pressure easurement with as range of 1500 balr) the ecom-DP Profi Set comes with three high-value connection hoses for connection at the respective measurement connectors, two stopples, one cross-piece with adapter and gasket as well as one bellow to build-up the test pressure required for tightness check within a closed system
UKCA approved
- 2nd pressure sensor (0-1500 hPa resp. 0-70 hPa) for two parallel pressure measurements (additional 2x hose necessary)
- Pressure measurements according to TRGI (on request)
- Thermal printer (IR)
- ecom-LSG for detection of flammable gases
| Measurement Range |
Resolution [hPa] |
Accuracy |
|---|---|---|
| 0-1500 hPa | 0,1 hPa | < 3% of meas. range end value |
| 0-1500 hPa* | 0,1 hPa | < 3% of meas. end value |
| 0-70 hPa* | 0,1 hPa | < 3% of meas. end value |
* 2. Pressure Sensor = Option
EXTREMELY functional.
ecom-UNO
Pressure Measurement in Pocket Size
-
Fits in every shirt pocket – small and compact
-
Precise and fast pressure measurement at gas heatings and burners
-
Magnet fixation at the back side
-
Four changeable units
-
Batteries and protective pouch included in delivery scope
EXTREMELY functional.
ecom-DP3
Pressure-Meter
-
Fully automatic pressure checks
-
Internal pump for pressure build-up up to 1.5 bar
-
Integral thermal quick-printer
-
Fully automatic leakage rate determination within a few minutes
(gas sampling not required) -
Suitability check in no time
-
Safe and fully automatic check routines
-
For gas (TRGI), liquid gas (TRF), water (TRWI) and sewage pipes checks
-
For further measurements up to 40 bar (with external sensors)
-
PC software included in delivery scope
