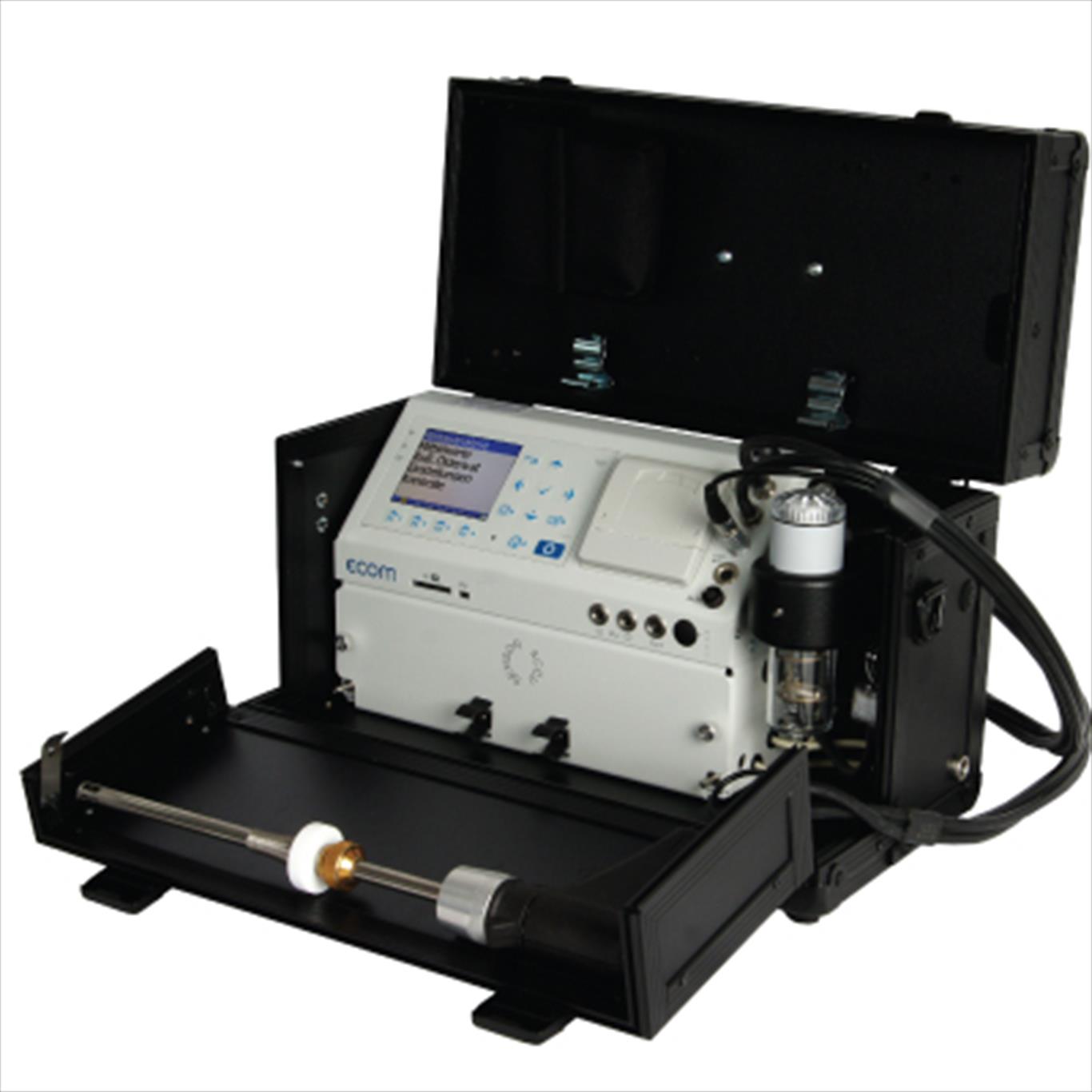

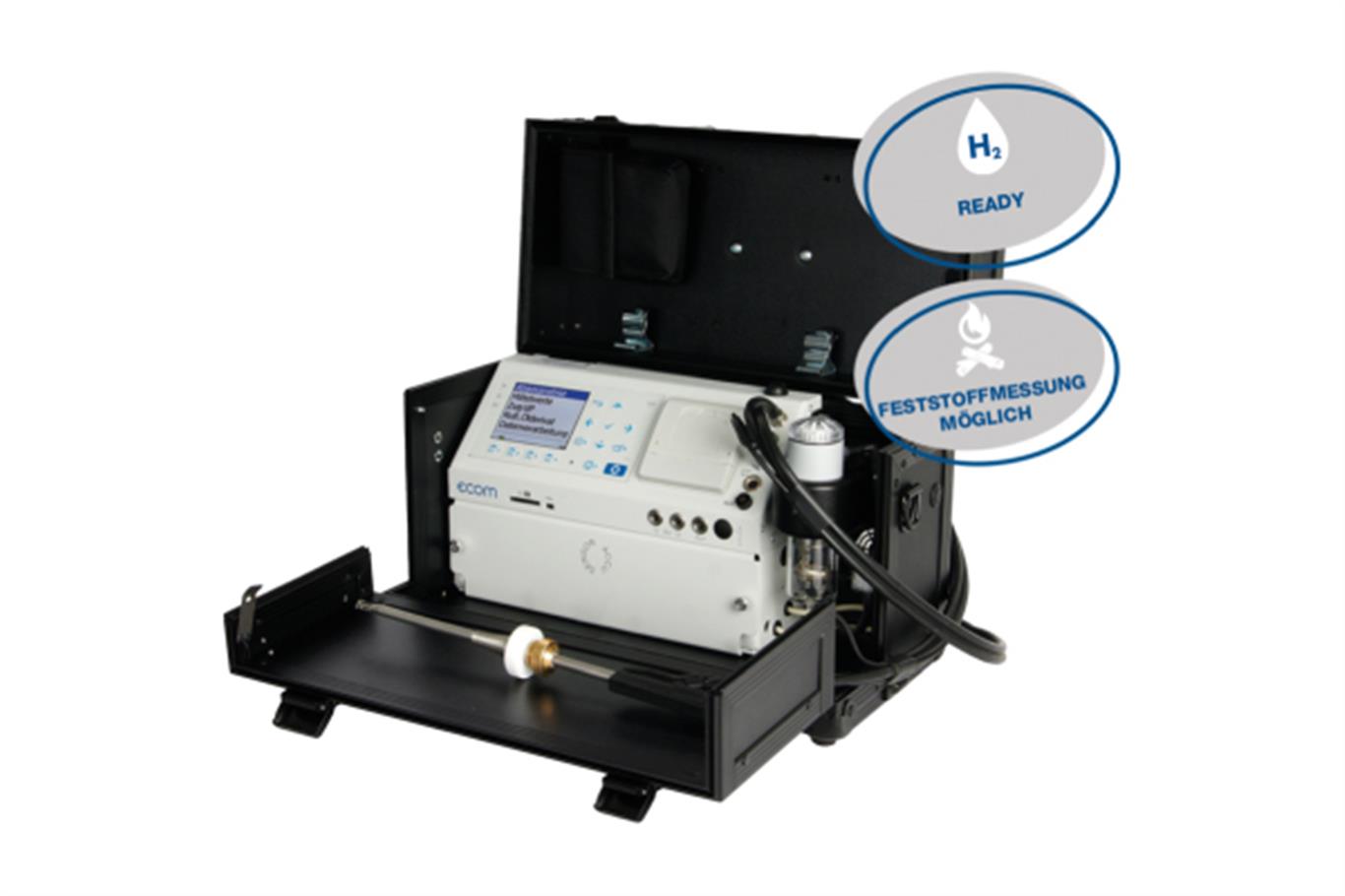

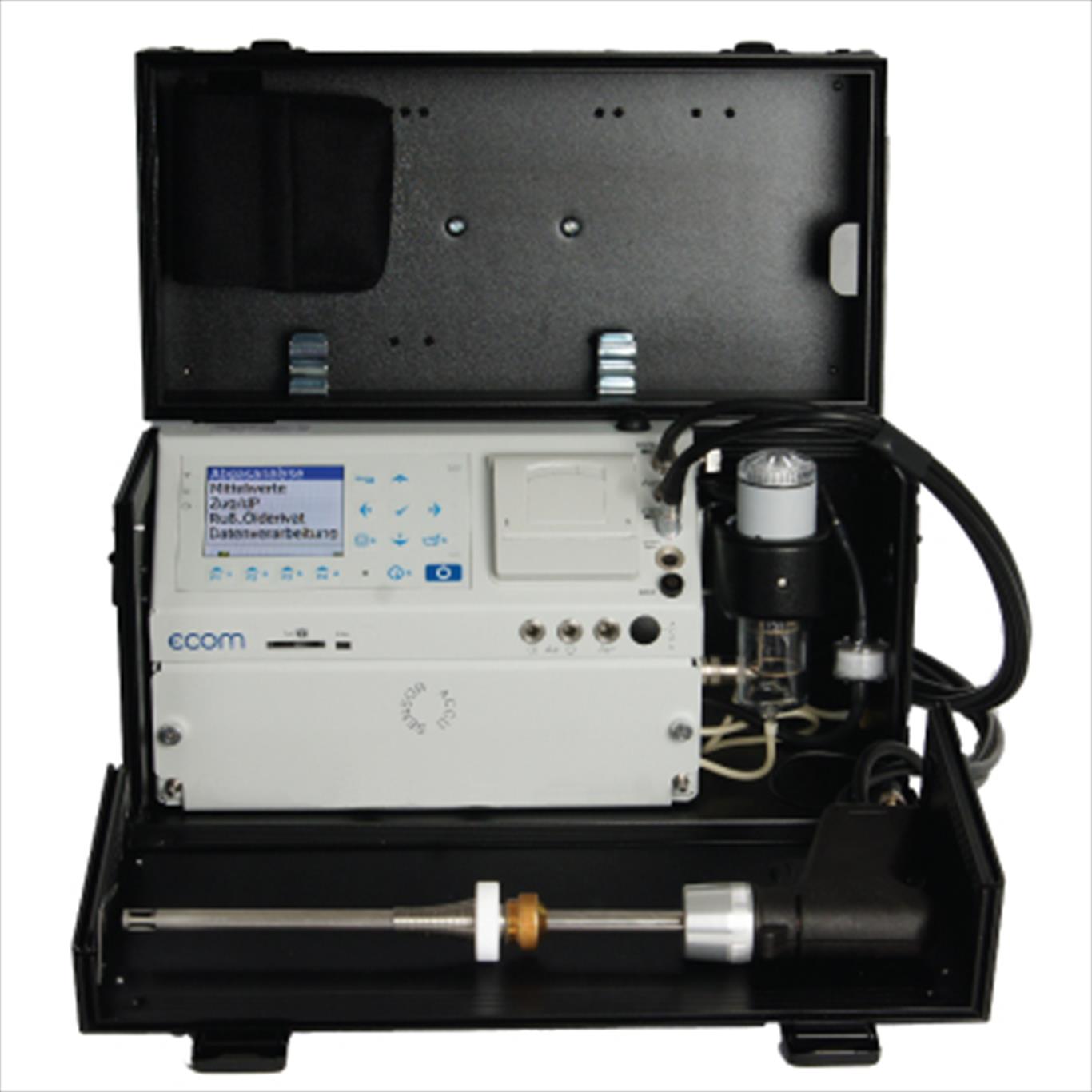

ecom-EN3-R - EXTREMELY versatile

• With O₂/CO (H₂ comp.) Longlife sensors
• automatic CO shutdown and flushing (but without interrupting the measurement)
• large condensate trap including electronic condensate monitoring
• integrated thermal printer

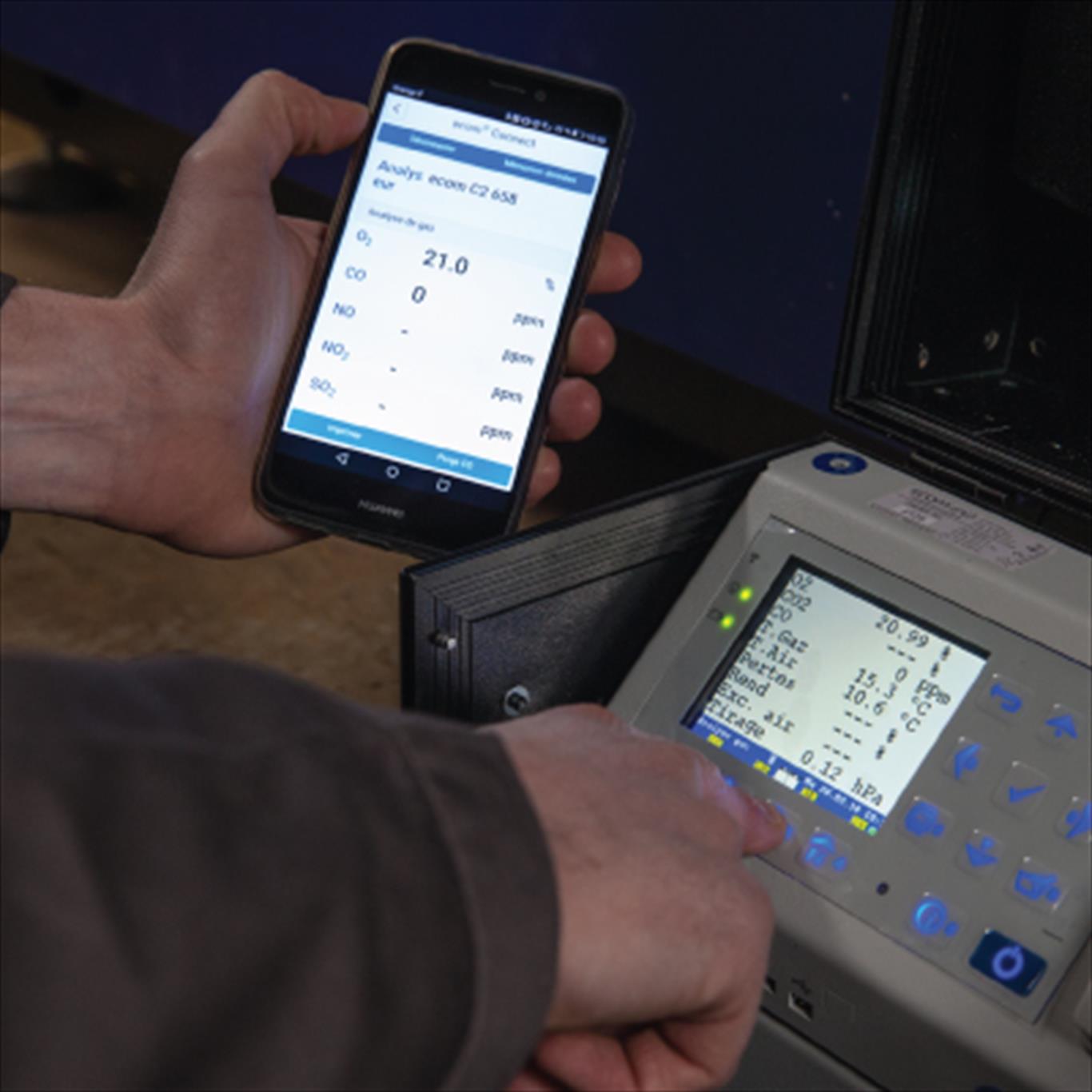

• wireless data transfer (e.g. to a smartphone or tablet)
• powerful lithium-ion battery
• LED flow display
• TFT color display and backlit membrane keyboard
• low-maintenance high-performance measuring gas pump (2.6 liters/minute)
• completely in aluminum housing and yet ultra-light

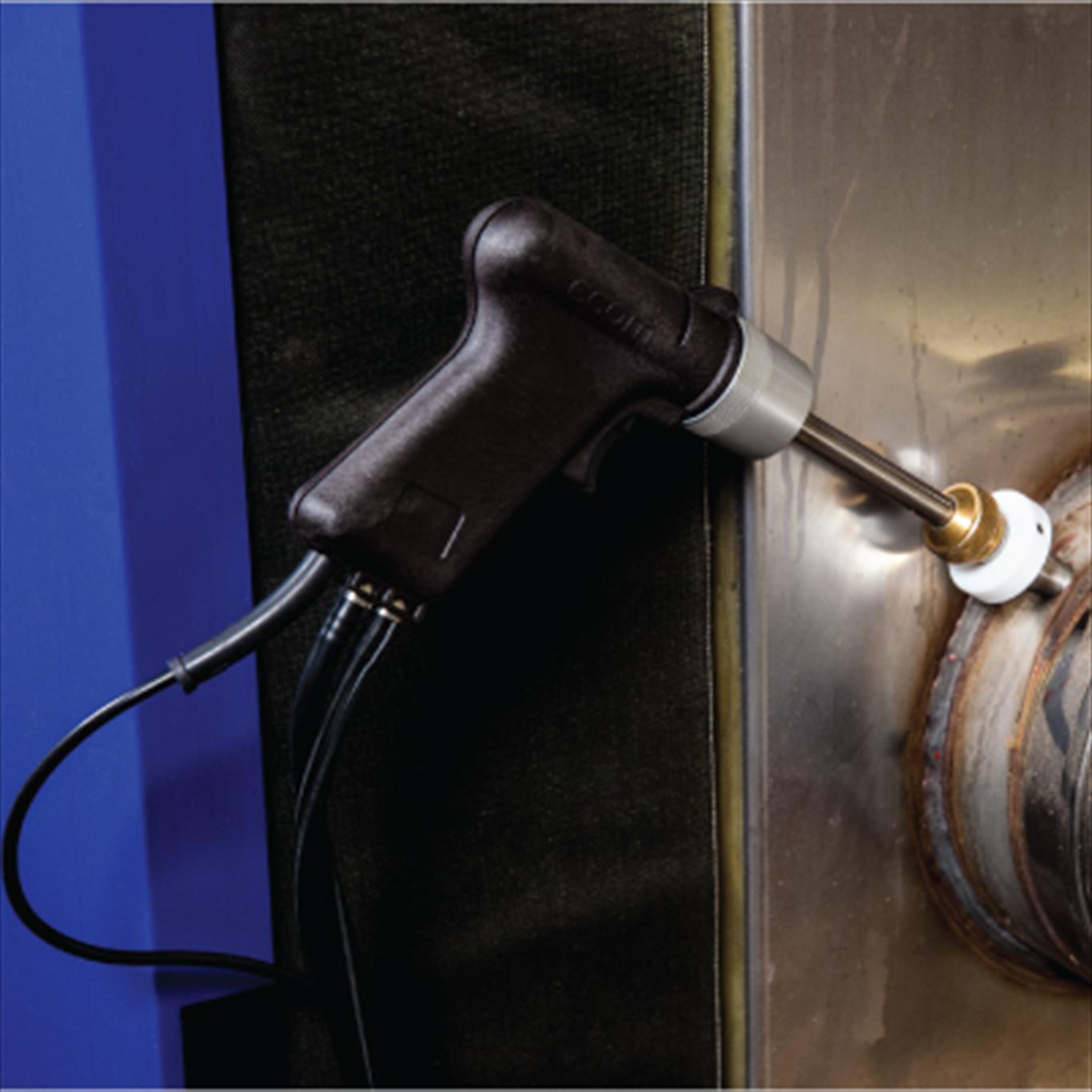

• with high-quality, heated sampling probe (250 mm) for integrated soot measurement - including thermocouple, cone and high-quality 3-chamber hose (3 m)
• T-room sensor
• Power supply + power supply bag (battery can be charged from the outside when the case is closed)
• in an aluminum frame transport case with comfortable carrying strap
• Calibration certificate - created after 100% sensor calibration in the climate chamber
• ecom service package (including free PC software)

Dimensions

• (L x H x W): 400 x 275 x 205 mm

Weight

• approx. 7.5 kg (complete in the measuring case)

Testing according to DIN EN 50379-2 and 1st. BImSchV.	UKCA approved

Data Sheet

Product Flyer

• additional NO sensor
• additional sensor options (including CO high and others on request)
• Mini gas cooler for perfect gas preparation
• 4-Pa test
• ecomFORT

• Various filter options – including for solid fuel measurement
• Undercase for convenient storage of e.g. accessories or tools
• T-space probe 220 mm (PT2000)
• T-Raum Stick (PT2000)
• hose for differential pressure measurement
• various temperature sensors (contact sensors, surface sensors, ...) for differential temperature measurement (e.g. flow and return temperatures)
• Special probes - annular gap probe or CO multi-hole probe
