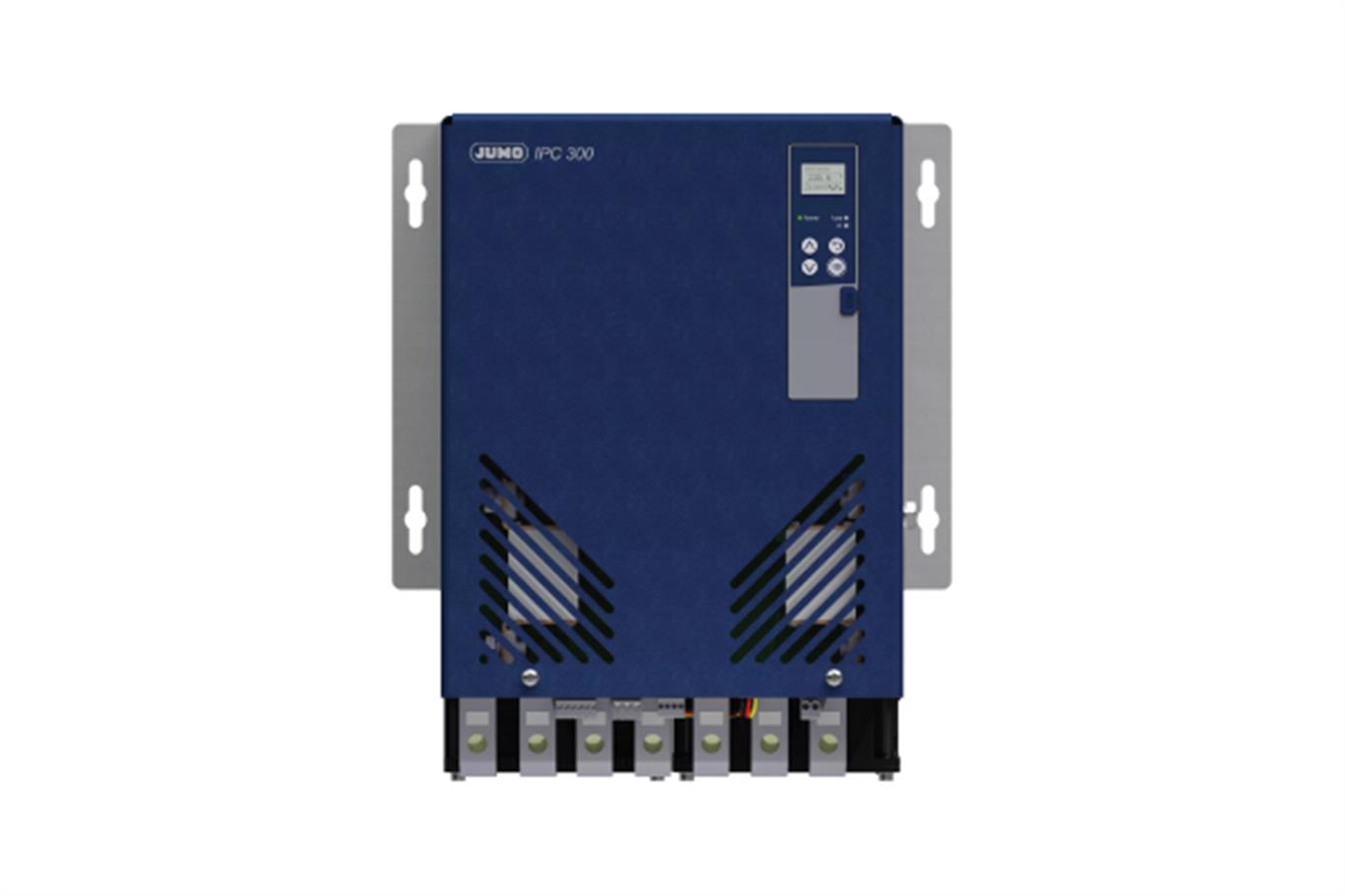

JUMO IPC 300
Electronic transformer
The JUMO IPC 300 is an electronic transformer for controlling heating loads. Due to the amplitude control, the mains current is proportional to the required performance. This reduces interference (flicker, harmonics) and energy costs while increasing the durability of MoSi2 and SiC heating elements, which in turn reduces operating costs.
 |
 |
 |
|
Reduction of
reactive power |
Lower electricity
and operating costs |
Greater plant
availability |
GENERAL TECHNICAL DATA |
| Service | Up to 40 kW |
| Operating mode | Amplitude control |
| Subordinate control loop | U², P, I² |
| Output | Analog output 0(4) to 20 mA, 0(2) to 10 V or 0(1) to 5 V |
| Display | LCD with plain text display |
| Operation | Keypad on the device |
| Configuration | Setup program with transfer of parameters via USB interface without voltage supply (USB powered); keys and display |
| Protective functions | Short-circuit control during activation procedure, r-control, integrated semiconductor fuses for protection against ground fault |
| Interface | PROFINET, Modbus-RTU |
| Special features | Gentle mains operation with high-powered resistive loads (flicker); minimal harmonics in the plant's network; compensation of the aging process for SiC heating rods with an indication when the voltage reserve is no longer sufficient for compensation; control regardless of the heating elements' resistance characteristic; protection of molybdenum disilicide heating elements against overheating in the upper temperature range |
| Dimensions | 348.6 × 300 × 217 mm or 403.5 × 300 × 257.5 mm |
Thyristor power switch
Thyristor power switches are required for contactless switching of the alternating current loads. A typical application is the switching of resistive inductive loads at a high switching frequency, particularly in the industrial sector.
 |
|
 |
|
With heat
sink |
UL approval
|
Control/power
section galvanically isolated |
Thyristor power switch
Thyristor power switches are required for contactless switching of the alternating current loads. A typical application is the switching of ohmic-inductive loads at a high switching frequency, particularly in the industrial sector.
|
|
|
|
Control/power
section galvanically isolated |
UL approval
|
Without heat
sink |
Single-phase thyristor controller for controlling non-linear loads
The JUMO TYA HL301 is characterized by an area of application from 300 to 800 A, a compact design, and efficient top-bottom wiring. All these factors make it a valuable tool in power control processes. The integrated data logging function and an oscilloscope for function control increase process reliability and ensure smooth operations in day-to-day business. In addition, extensive setup functions simplify configuration and startup.
 |
 |
 |
|
Optional load
management |
Versatile
communication protocols |
Suitable for
all load types |
