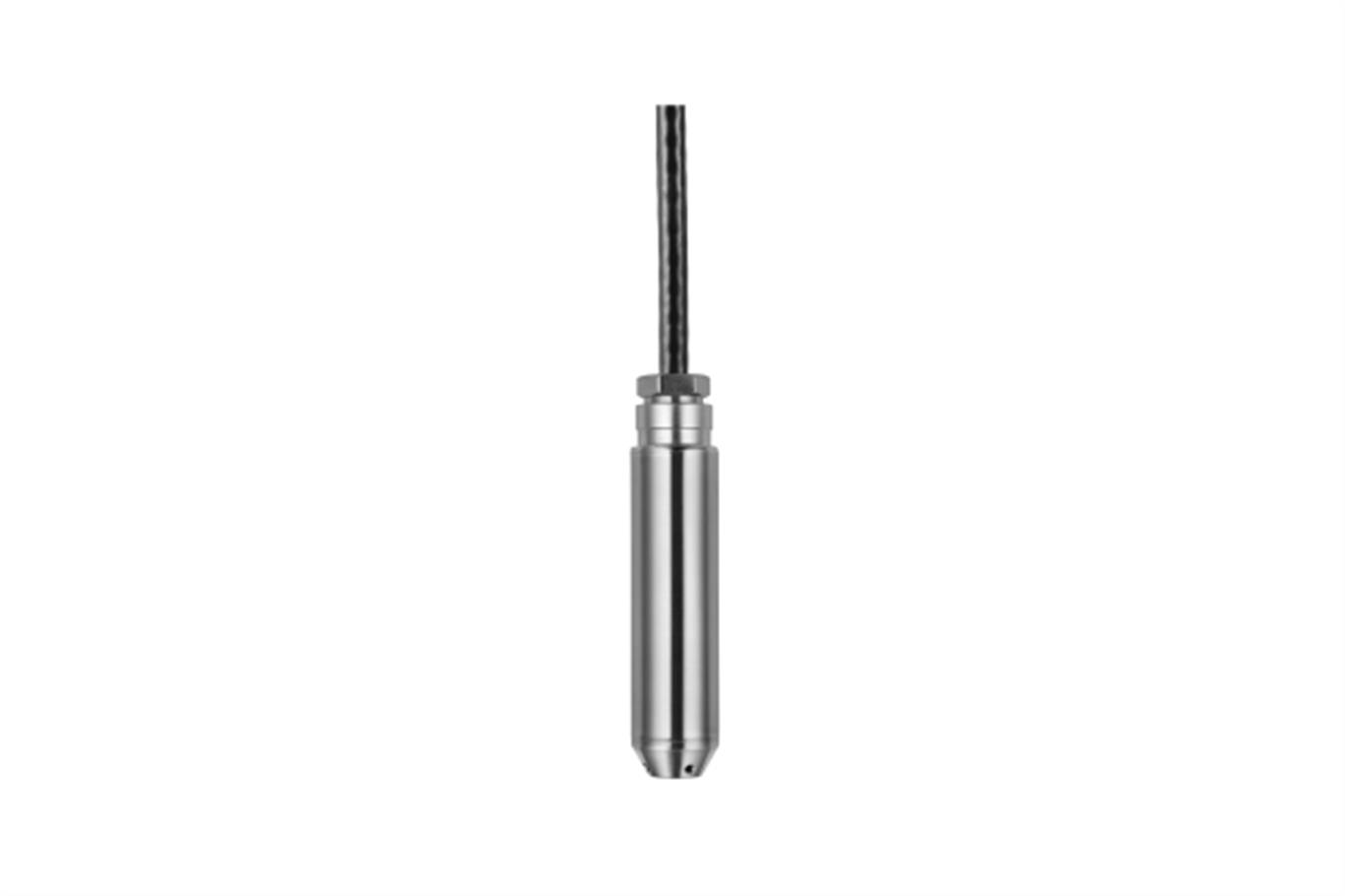

JUMO MAERA S26
Level probe
The level probe measures the level of liquids continuously and hydrostatically. It can be used in ventilated tanks at filling heights from 2.50 to 25 mH2O. The level probe is used, among other places, in pumping stations or storage tanks.
 |
 |
 |
|
CSA and drinking
water approval |
Sturdy version
|
Economical
industrial version |
GENERAL TECHNICAL DATA |
| Measuring range | 250 mbar to 2.5 bar (2.50 to 25 mH2O) |
| Medium temperature | 0 to 50 °C |
| Accuracy (linearity) | ±0.3 % (optional ±0.2 %) |
| Output signal | 0 to 20 mA, three-wire; 4 to 20 mA, two-wire or three-wire; 0.5 to 4.5 V, three-wire; 0 to 10 V, three-wire 1 to 5 (6) V, three-wire |
| Housing material | Stainless steel |
| Cable material | PE, FEP, PUR, EPR |
| Additional equipment | Reverse-polarity protection |
| Protection type | IP68 |
| Approval | Drinking water approval (ACS, PZH); CSA; metrological certificate; EAC |
| Declaration of manufacturer | CE |
| Application areas | Indoor installation, well water (without salt content), rainwater, drinking water, caustic soda (20 %, 20 °C), diesel, heating oil, car washes, wastewater |
Level probe made of titanium or stainless steel
The level probe measures the level of liquids continuously and hydrostatically. In ventilated tanks, filling heights from 1 to 100 mH2O can be achieved. The level probe is used, among other places, in ballast water tanks, pumping stations, and splash water containers.
 |
|
|
|
Highly resistant
due to titanium design |
Approval for
explosion protection and shipbuilding |
Economical industrial
version |
Level probe
The level probe measures the level of liquids continuously and hydrostatically. It can be used in ventilated tanks at filling heights from 2.50 to 10 mH2O. The level probe is used, among other places, in rainwater cisterns or in graywater recycling.
|
|
|
|
Sturdy version
|
Low investment
costs |
Reverse-polarity
protection |
Level probe
The level probe measures the level of liquids continuously and hydrostatically. In ventilated tanks, filling heights from 2.5 to 100 mH2O can be achieved. The level probe is equipped with integrated overvoltage protection as a standard feature. Examples of where the level probe is used include water management, well water, and surface water.
|
|
 |
|
Drinking water
approval |
Sturdy version
|
Optional temperature
sensor Pt100 |
