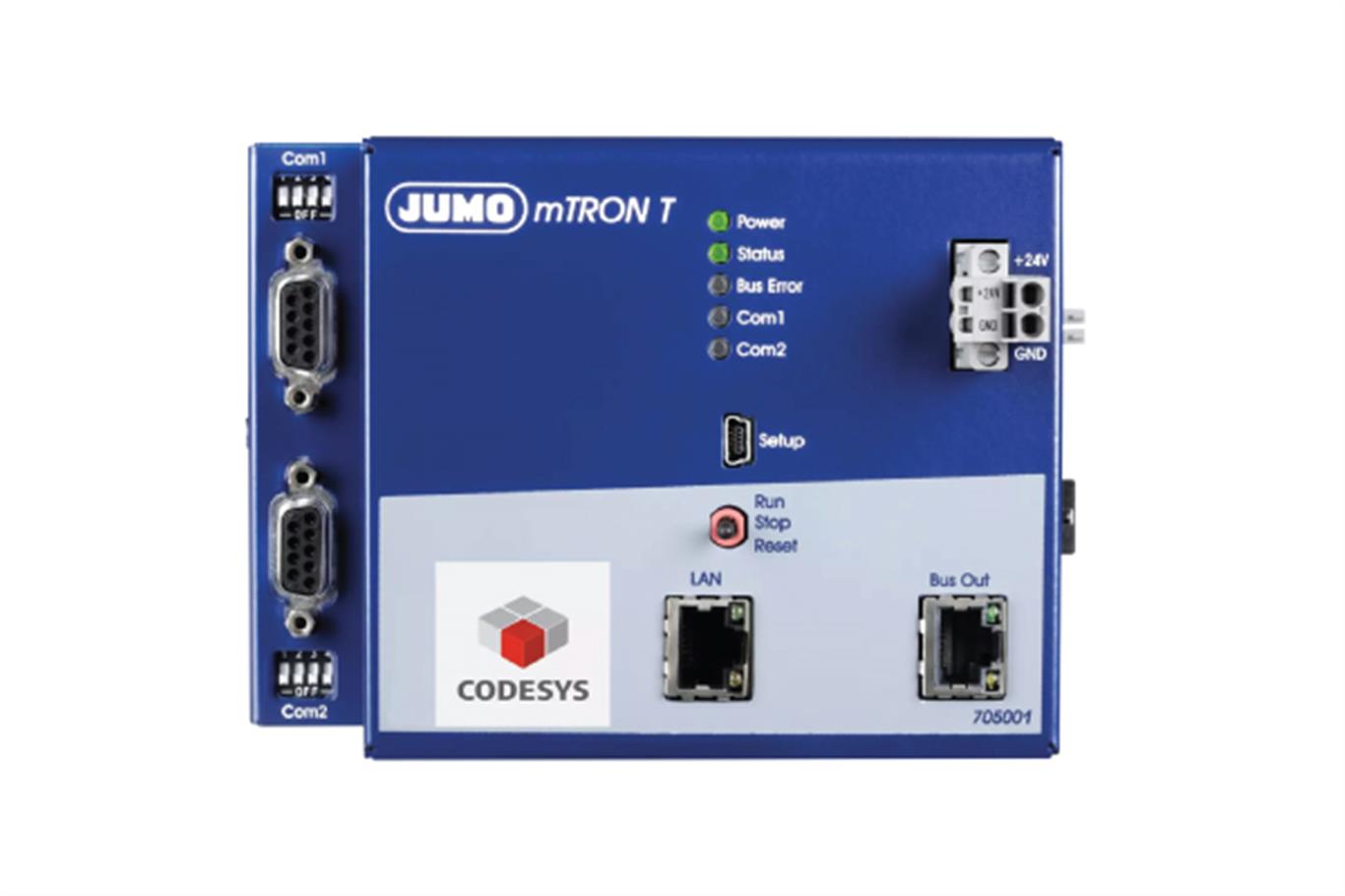

JUMO mTRON T 705001
Central processing unit
The central processing unit contains the process map of the application and manages the configuration and parameter data of the overall system. 9 program generators and extensive limit value monitoring functions are available for individual control tasks.
 |
 |
 |
|
Process mapping
for 30 input and output modules |
Software for
fast startup |
Access to
process values via web server |
GENERAL TECHNICAL DATA |
| Interfaces | Process mapping for up to 30 input and output modules, integrated web server, 64 limit value monitoring functions, PLC according to IEC 61131-3 (CODESYS V3.5), OPC server (OPC-DA, in connection with PLC CODESYS V3.5), 9 program generators, math and logic module, Plug and Play when replacing the input and output modules, battery-buffered RAM, real-time clock, supply of operating voltage, fast wiring of operating voltage and system bus by simply plugging together the modules |
| Housing | Robust metal case for DIN-rail mounting in the control cabinet |
| Approvals | UL, DNV GL |
| Ambient temperature | -20 to +55 °C |
| Dimensions (W × H × D) | 135 mm × 101 mm × 67.1 mm (without connection elements) |
| Protection type | IP20, according to DIN EN 60529 |
| Current consumption | Max. 350 mA (at DC 19.2 V) current consumption of modules installed in rows |

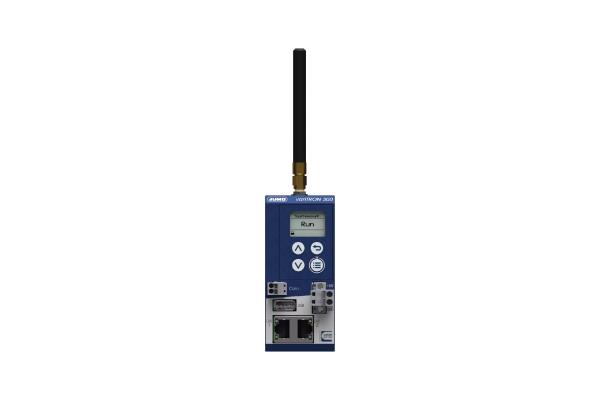

Central processing unit for automation system with optional wireless interface
JUMO variTRON 300 is a compact automation system. The central processing unit can also be used as a receiver for the wireless JUMO Wtrans sensors. A router module can be used to connect JUMO's proven input and output modules and to set up an overall system with integrated PLC (CODESYS V3.5).
|
 |
 |
|
Support of
numerous fieldbus systems |
Connection of
modern web panels |
CODESYS V3.5
programming environment |

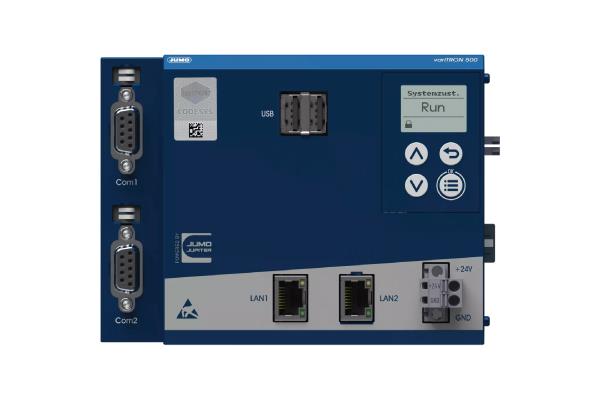

Central processing unit for an automation system
JUMO variTRON 500 is based on the modular platform JUMO JUPITER. The central processing unit along with the tried-and-tested input and output modules (incl. controller module) of the measuring, control, and automation system JUMO mTRON T form an overall system and provide a PLC (CODESYS V3.5).
|
 |
 |
|
Integration of
software functions (PLC) |
High degree
of scalability |
Process mapping
of all connected modules |

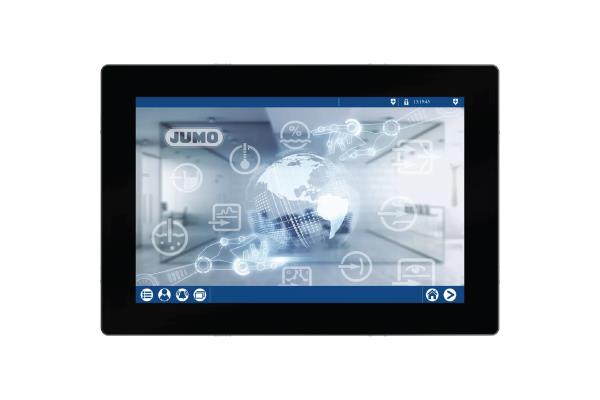

Touch panel with integrated central processing unit for the automation system
JUMO variTRON 500 touch is based on the JUMO JUPITER modular platform. The central processing unit, in combination with the proven input and output modules from JUMO, forms an overall system with integrated PLC (CODESYS V3.5) and enables visualization via touch panel.
|
 |
|
|
Support of many fieldbus systems
|
Process and plant visualizations
|
CODESYS V3.5 and Node-RED as IDEs
|
