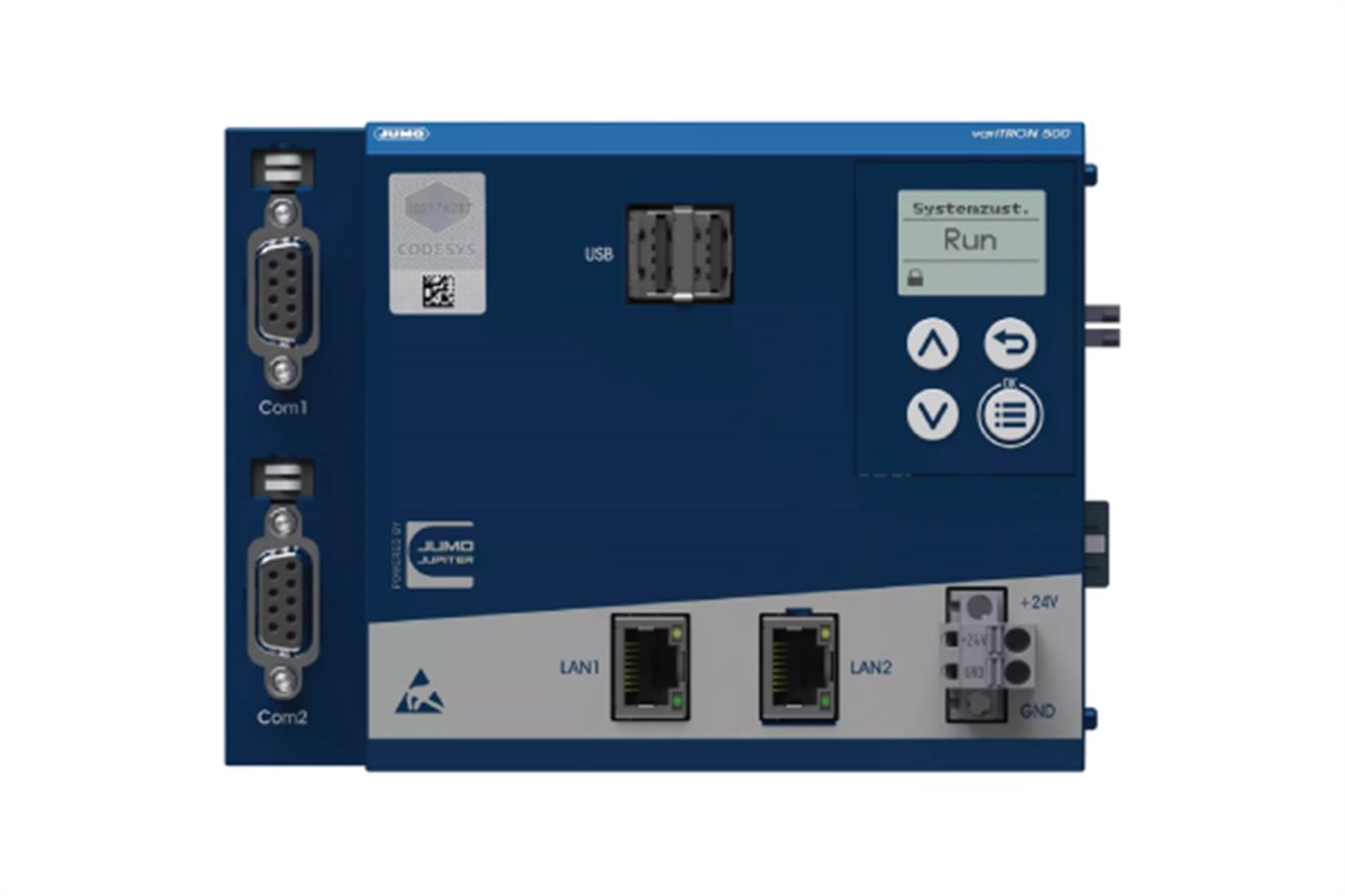

JUMO variTRON 500
Central processing unit for an automation system
JUMO variTRON 500 is based on the modular platform JUMO JUPITER. The central processing unit along with the tried-and-tested input and output modules (incl. controller module) of the measuring, control, and automation system JUMO mTRON T form an overall system and provide a PLC (CODESYS V3.5).
 |
 |
 |
|
Integration of
software functions (PLC) |
High degree
of scalability |
Process mapping
of all connected modules |
GENERAL TECHNICAL DATA |
| Interfaces | 2 USB host, 1 Ethernet, system bus, optional: 1 Ethernet, 2 PROFINET, 2 RS232/RS485 |
| Operation | 4 keys and LCD display, monochrome, 96 × 64 pixels (8 lines) |
| Option | PLC according to IEC 61131-3 (CODESYS V3.5), OPC UA server (in combination with PLC), 9 program generators (in combination with PLC, from system version xx) |
| Hardware | JUMO JUPITER platform with 800 MHz quad-core processor, battery-buffered RAM |
| Modules | More than 30 intelligent connection modules, panels in various formats (portrait or landscape, 4:3 or 16:9) |
| Control loops | more than 120 |
| Connection possibilities | JUMO digiLine sensors for liquid analysis, thyristor power controller (via EtherCAT) |
| Special features | High speed performance, flexible operating philosophy, many levels of freedom in software and hardware, state-of-the-art communication interfaces (e.g. OPC UA and MQTT), easy adaptation of the hardware inputs and outputs, easy integration of new software functions via CODESYS PLC, support of a multi-system principle, integrated JUMO web diagnosis, provision of function and visualization libraries |
Central processing unit
The central processing unit contains the process map of the application and manages the configuration and parameter data of the overall system. 9 program generators and extensive limit value monitoring functions are available for individual control tasks.
 |
 |
 |
|
Process mapping
for 30 input and output modules |
Software for
fast startup |
Access to
process values via web server |
Central processing unit for automation system with optional wireless interface
JUMO variTRON 300 is a compact automation system. The central processing unit can also be used as a receiver for the wireless JUMO Wtrans sensors. A router module can be used to connect JUMO's proven input and output modules and to set up an overall system with integrated PLC (CODESYS V3.5).
|
|
 |
|
Support of
numerous fieldbus systems |
Connection of
modern web panels |
CODESYS V3.5
programming environment |
Touch panel with integrated central processing unit for the automation system
JUMO variTRON 500 touch is based on the JUMO JUPITER modular platform. The central processing unit, in combination with the proven input and output modules from JUMO, forms an overall system with integrated PLC (CODESYS V3.5) and enables visualization via touch panel.
|
 |
|
|
Support of many fieldbus systems
|
Process and plant visualizations
|
CODESYS V3.5 and Node-RED as IDEs
|
