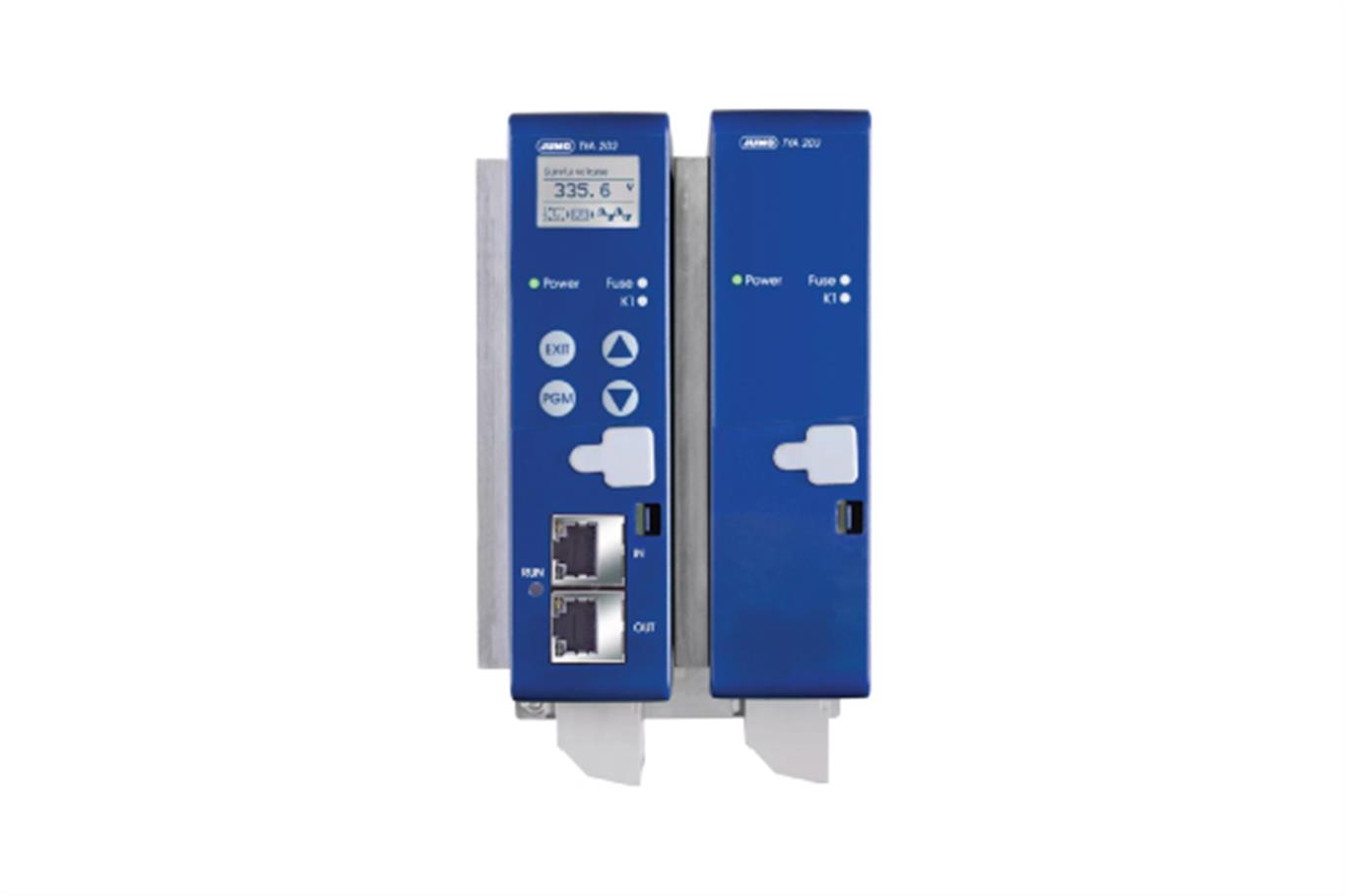

JUMO TYA 202
Three-phase thyristor power controller in three-phase economy circuit
The JUMO TYA 202 is the systematic advancement of JUMO power controller technology. It switches resistive inductive loads using a three-phase economy circuit in star-delta three-phase operation. It is used where larger resistive and inductive loads have to be switched.
 |
 |
 |
|
LCD display with
info line |
Close mounting
possible |
Setup program
via USB interface |
GENERAL TECHNICAL DATA |
| Subordinate control loop | U, U2 control (as a standard feature); I, I2, P control (optional) |
| Load voltage | 24 V, 42 V, 115 V, 230 V, 400 V, 460 V, 500 V |
| Load currents | 20 A, 32 A, 50 A, 100 A, 150 A, 200 A, 250 A |
| Configuration | Setup/USB-powered; plain text display on the device |
| Operating modes | Burst-firing operation, SSR logical operation, fast logical operation, alpha start, soft start |
| Load type | Resistive load, resistive inductive load, transformer load, infrared emitter (short, medium, long-wave) |
| Control voltage | Control voltage = load voltage |
| Approval | cULus |
| Ambient temperature | -20 to +70 °C |
| Special features | Economy circuit, mains load optimization, dual energy management, "Teach-In" function (partial load failure detection), "r-control" (resistance limitation), intelligent diagnosis system, integrated semiconductor fuse, device configuration without auxiliary voltage, vibrant display, "True RMS" (root mean square) |
| System interfaces | Modbus, PROFIBUS DP, system bus JUMO mTRON T, PROFINET, EtherCAT |
Thyristor power switch
Thyristor power switches are required for contactless switching of the alternating current loads. A typical application is the switching of resistive inductive loads at a high switching frequency, particularly in the industrial sector.
 |
 |
 |
|
With heat
sink |
UL approval
|
Control/power
section galvanically isolated |
Thyristor power switch
Thyristor power switches are required for contactless switching of the alternating current loads. A typical application is the switching of ohmic-inductive loads at a high switching frequency, particularly in the industrial sector.
|
|
|
|
Control/power
section galvanically isolated |
UL approval
|
Without heat
sink |
Single-phase thyristor controller for controlling non-linear loads
The JUMO TYA HL301 is characterized by an area of application from 300 to 800 A, a compact design, and efficient top-bottom wiring. All these factors make it a valuable tool in power control processes. The integrated data logging function and an oscilloscope for function control increase process reliability and ensure smooth operations in day-to-day business. In addition, extensive setup functions simplify configuration and startup.
 |
 |
 |
|
Optional load
management |
Versatile
communication protocols |
Suitable for
all load types |
